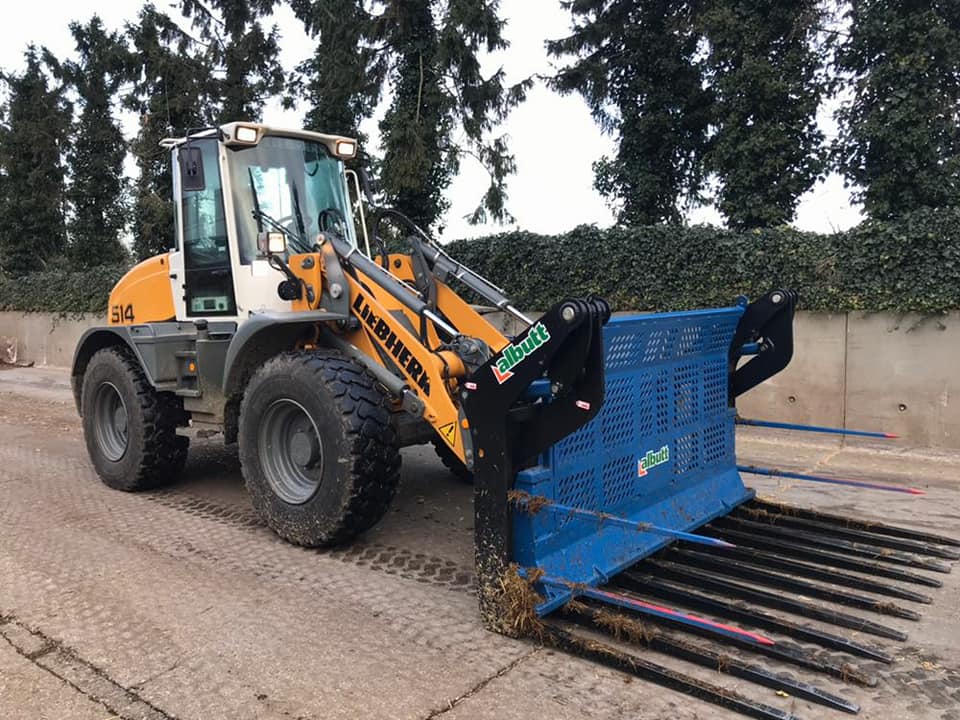

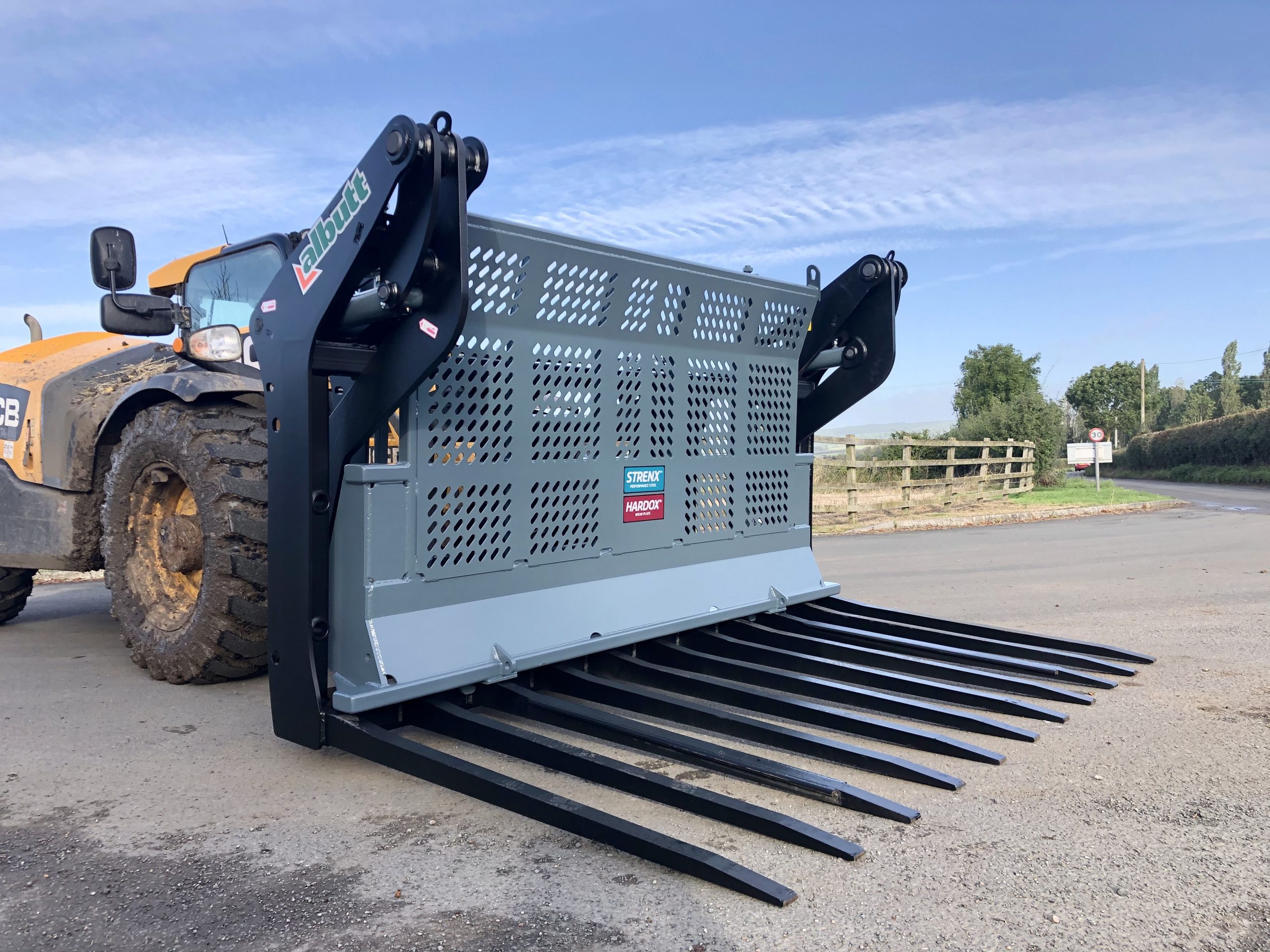

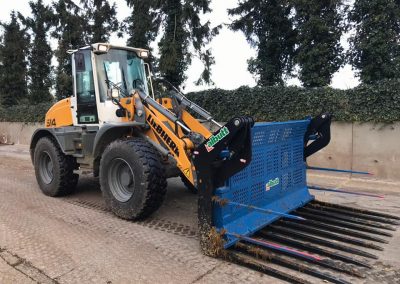

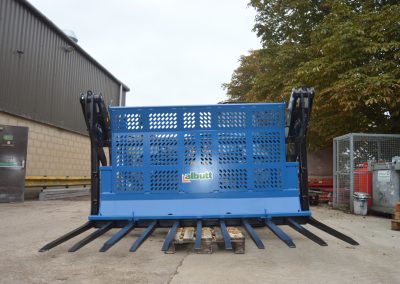

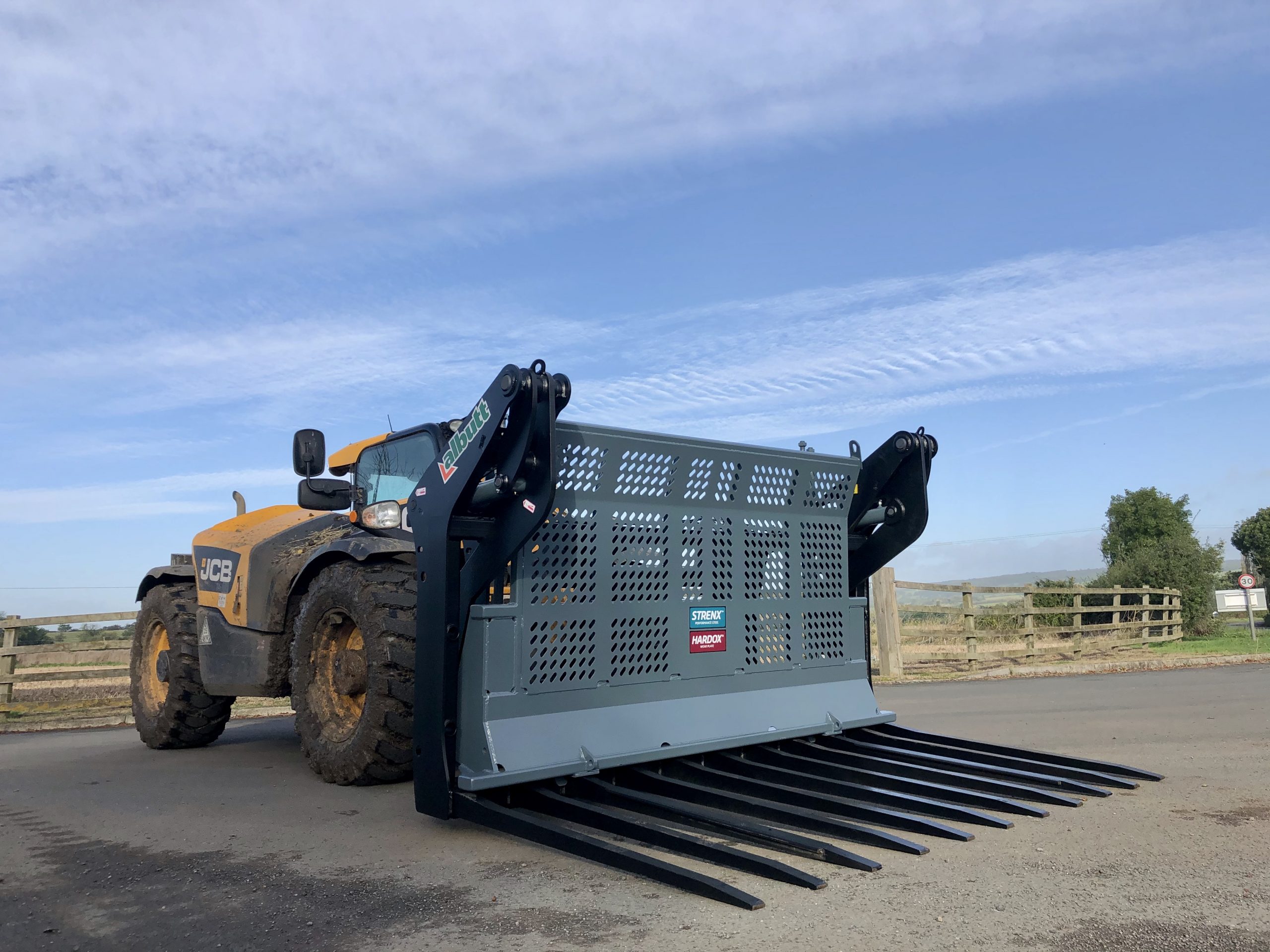

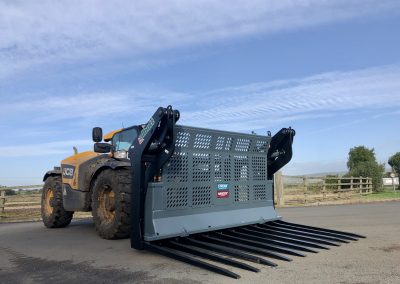

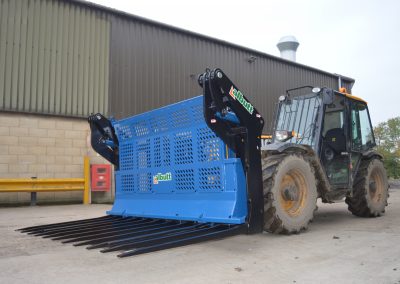

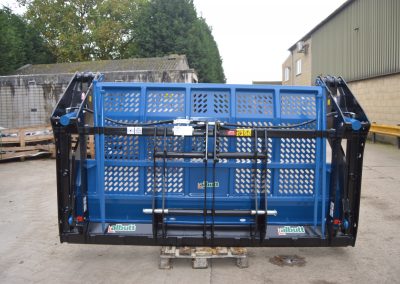

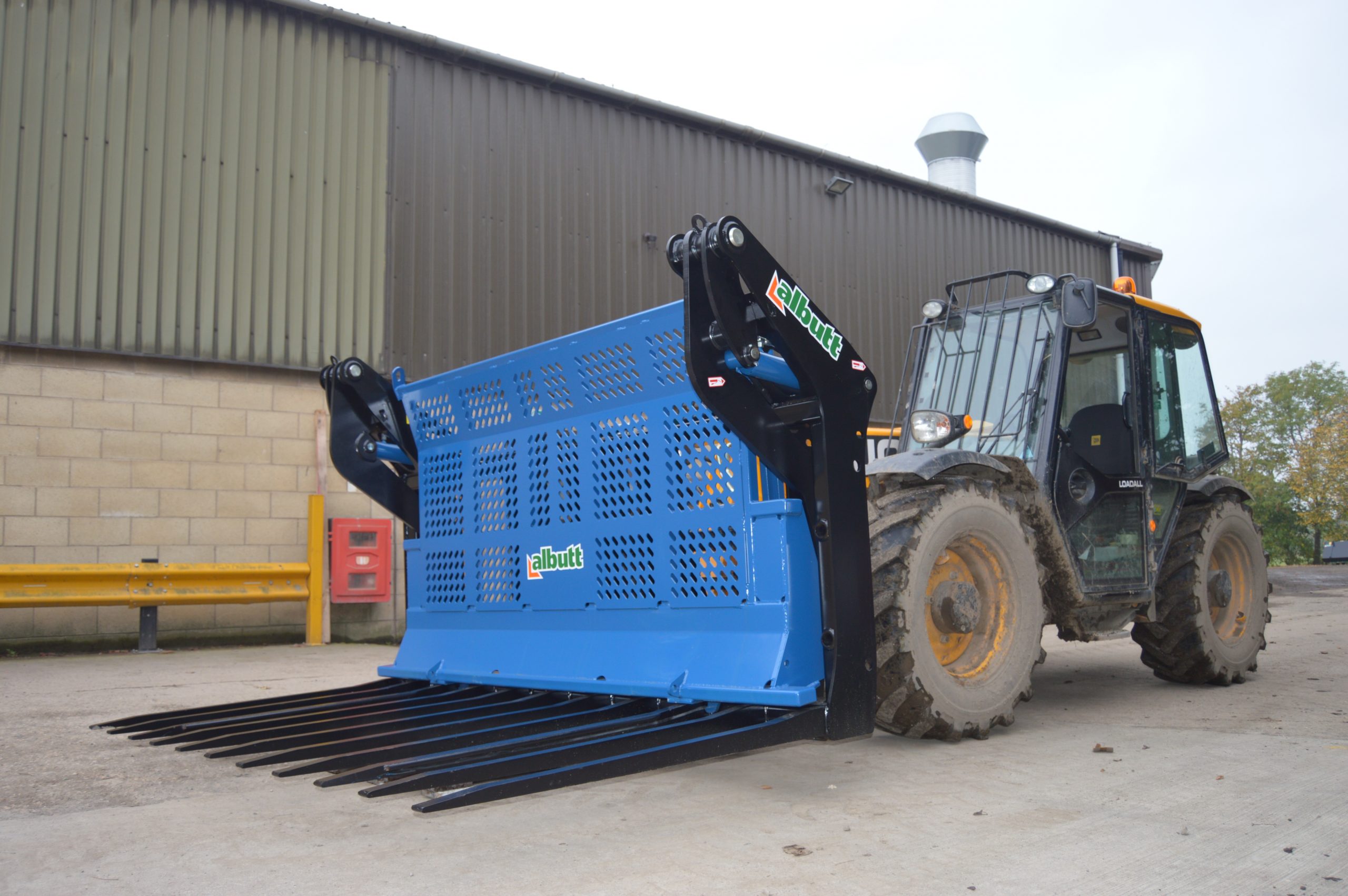

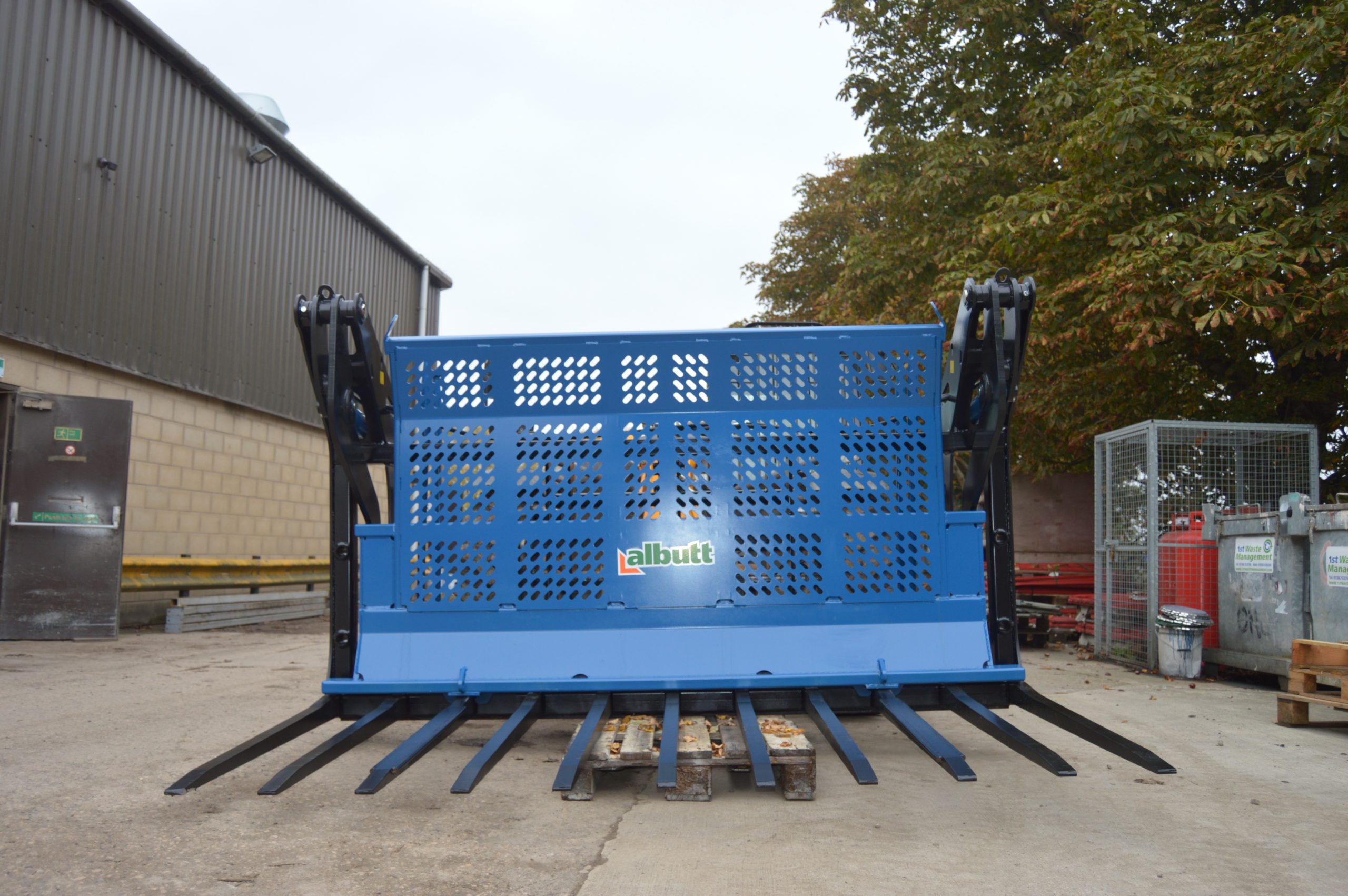

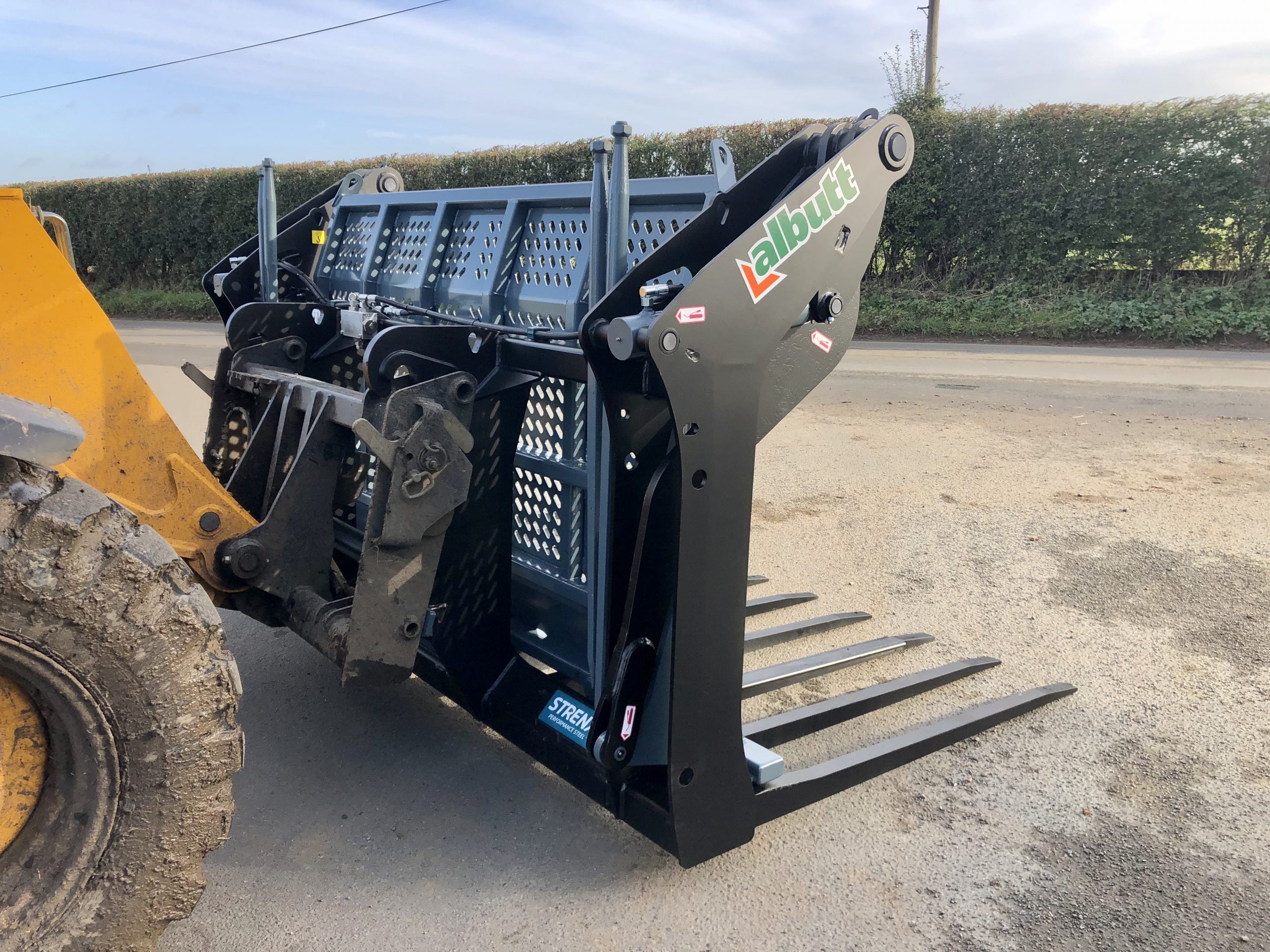

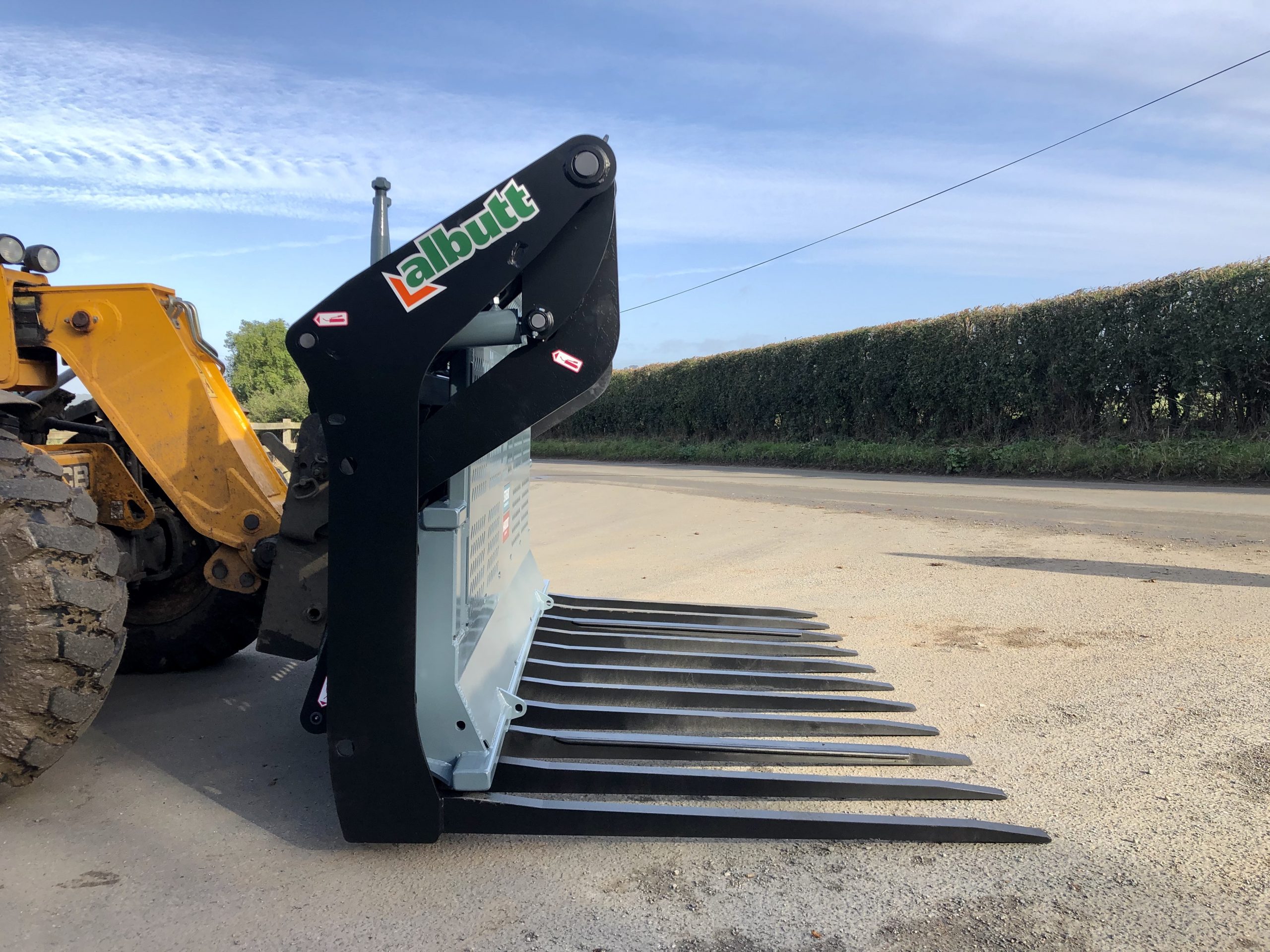

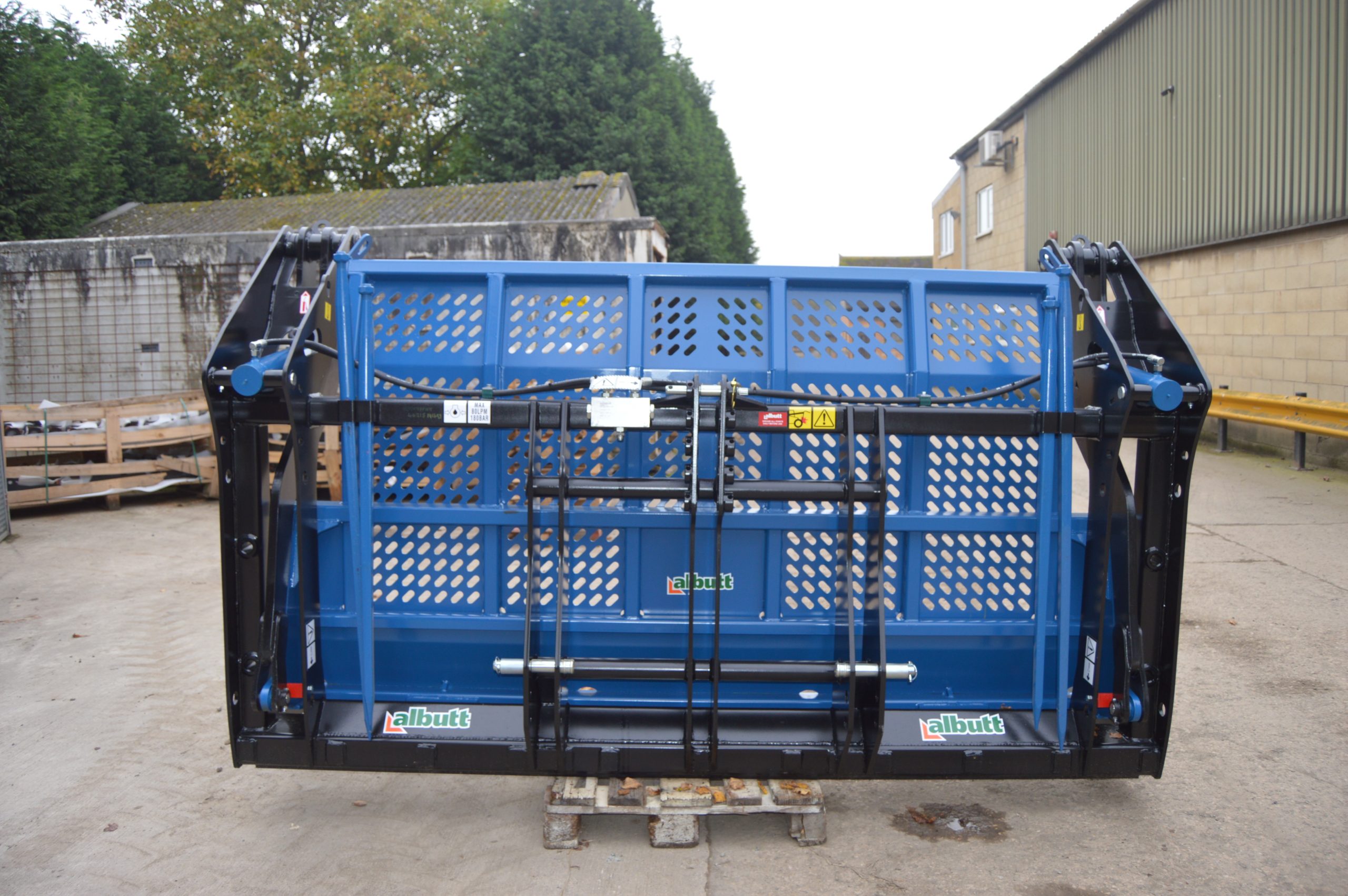

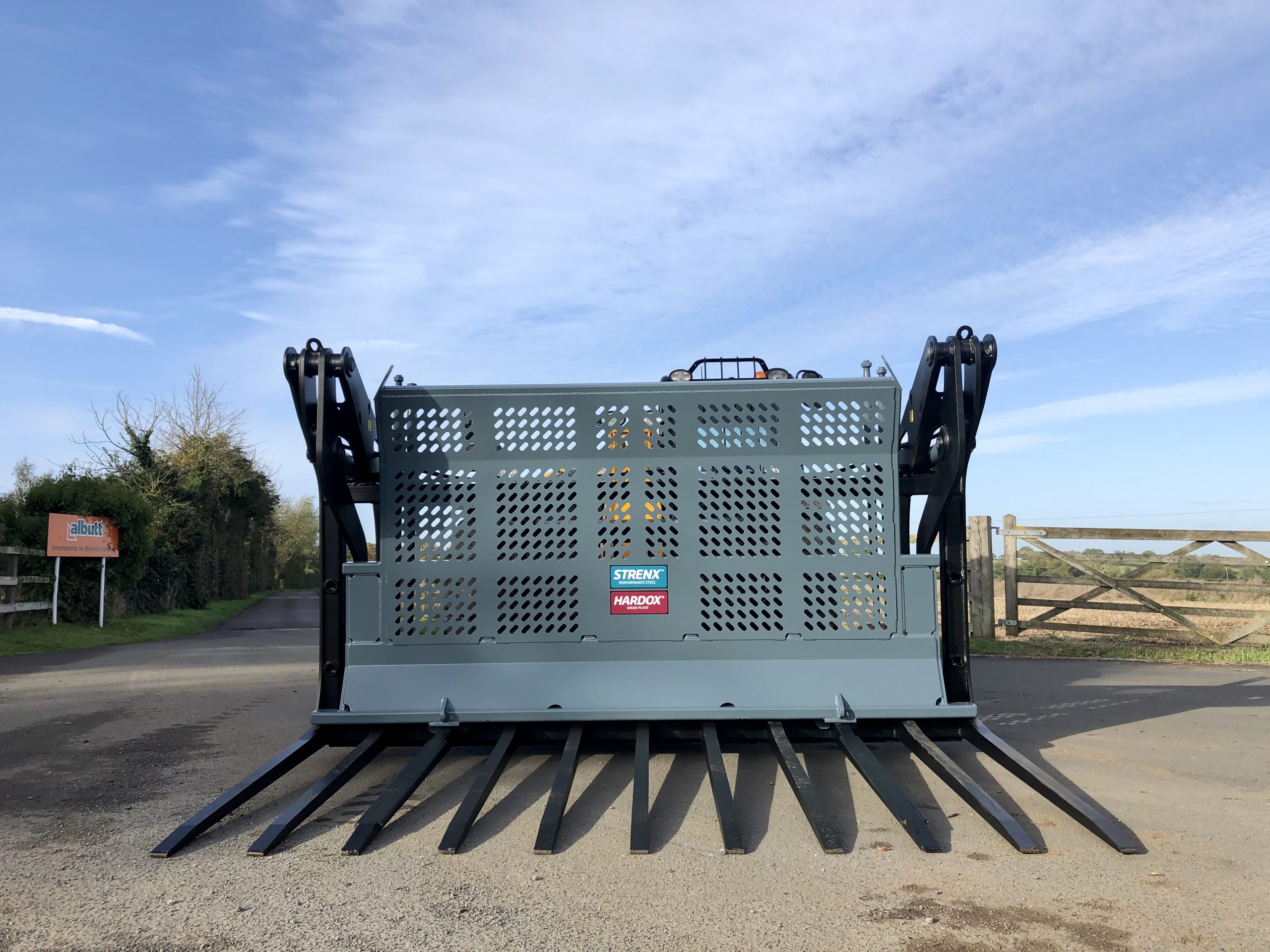

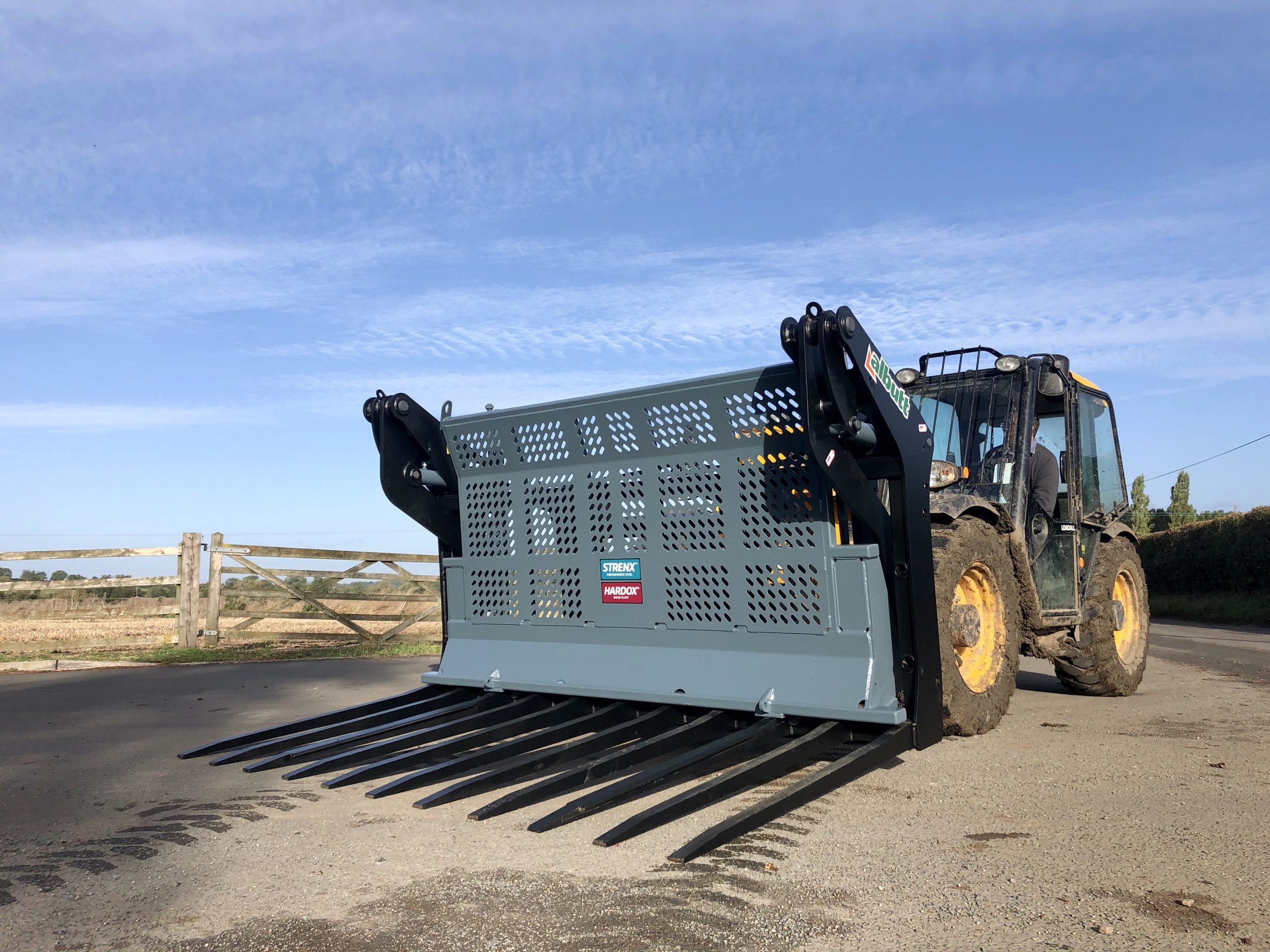

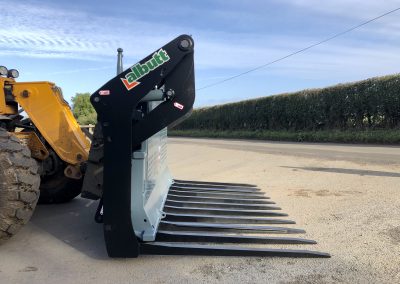

Waste King Push Off Fork

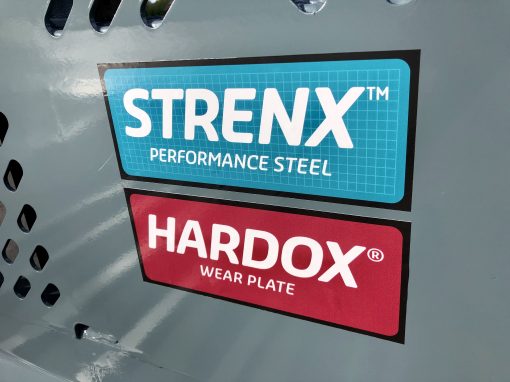

The Albutt Waste King Fork with Push Off Gate is based on the same principle design as our ultra popular Push Off Buck Rake Range. The fork utilises high strength steels such as Domex and Hardox to provide a heavy duty attachment, suitable for a variety of applications.

The Domex gate offers maximum strength at minimum weight with strategically placed weldmesh cut outs for user visibility. 1650mm Hardox base tines are resistant to bending and breaking; ideal for green waste applications.







Features

  • 1650mm genuine Hardox base tines
  • Side tines
  • Flow divider valve helps to prevent gate twists on uneven loads
  • For use with Telehandlers and Loading Shovels
  • 10mm thick base tine holder
  • 60mm diameter main pivot pin
  • Double profile gate mounting prevents arms bending

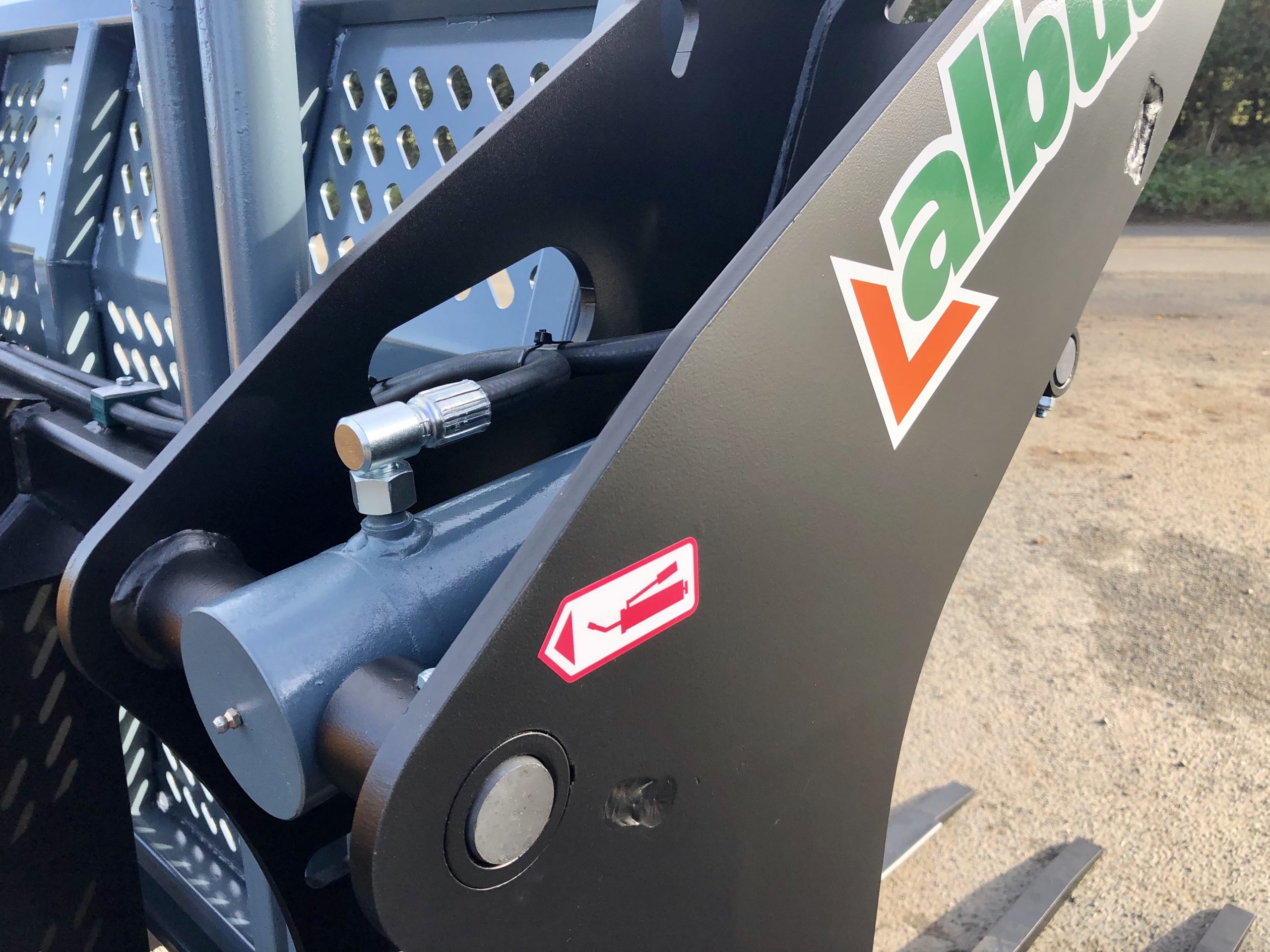

  • 35mm diameter ram pivot pins
  • 75mm ram bore size
  • Suitable for a variety of industries and applications

Models

Model Width Capacity Weight
WB808PPHX 8′ 4.53m3 1280kgs
WB809PPHX 9′ 5.09m3 1400kgs
WB810PPHX 10′ 5.66m3 1500kgs
