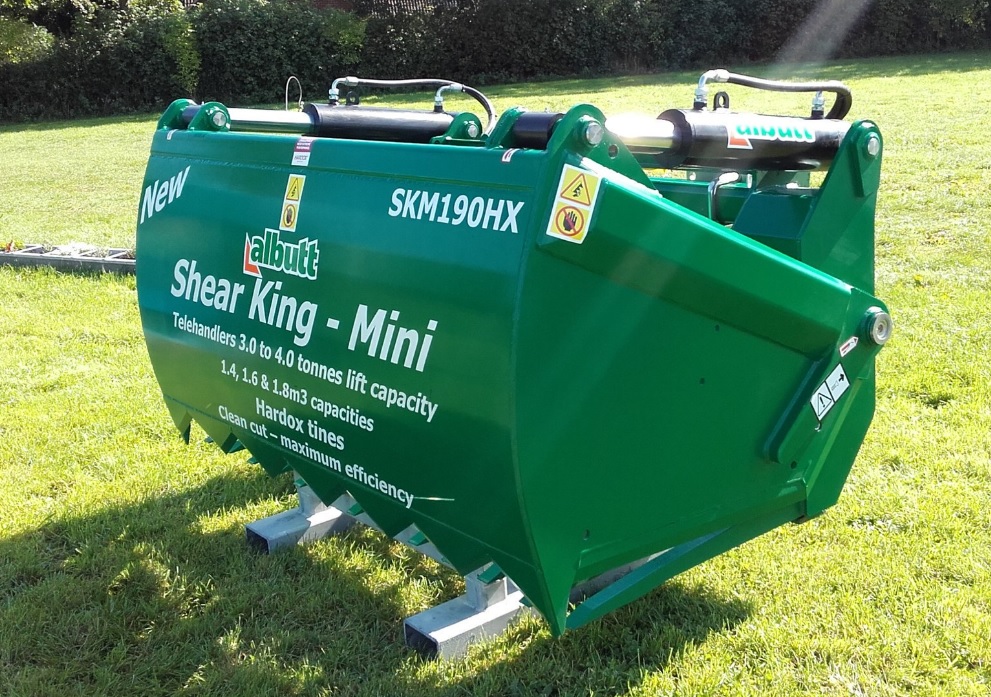

Shear King Mini

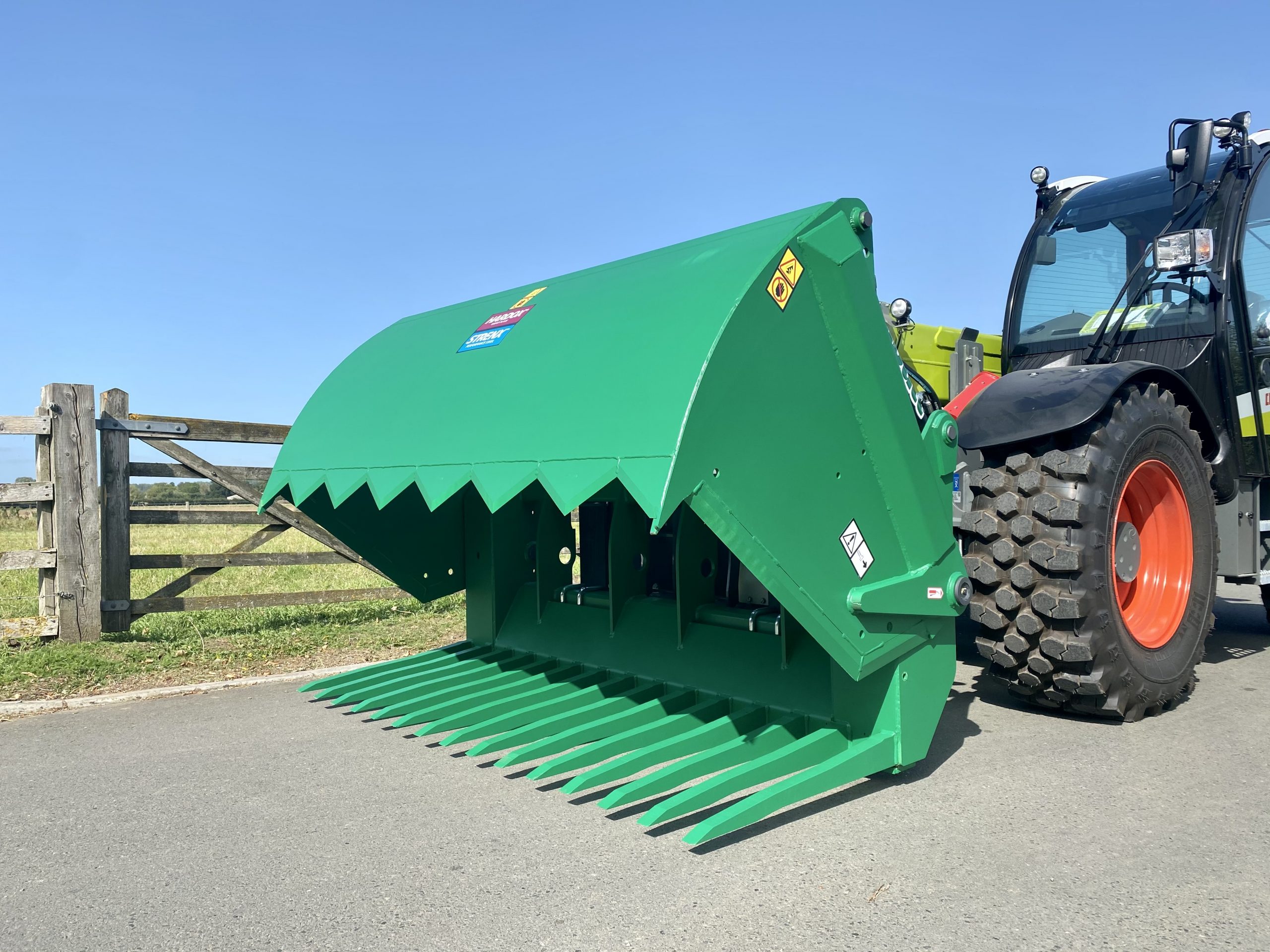

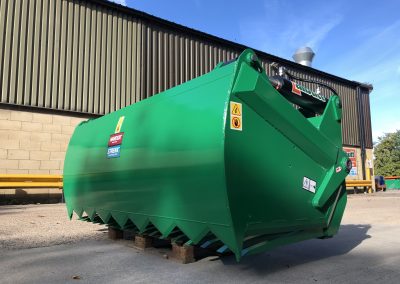

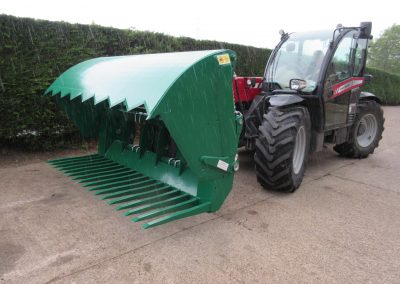

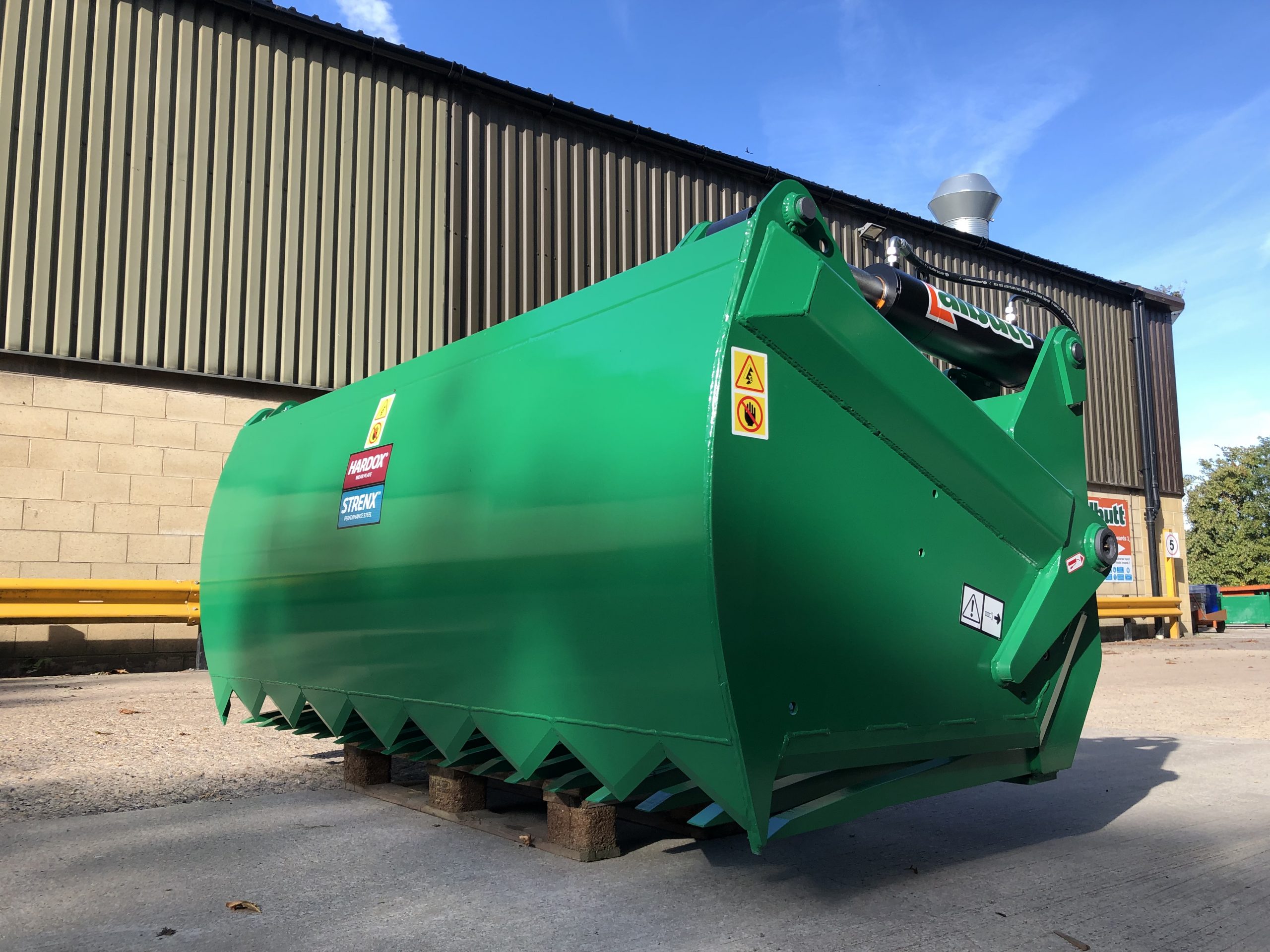

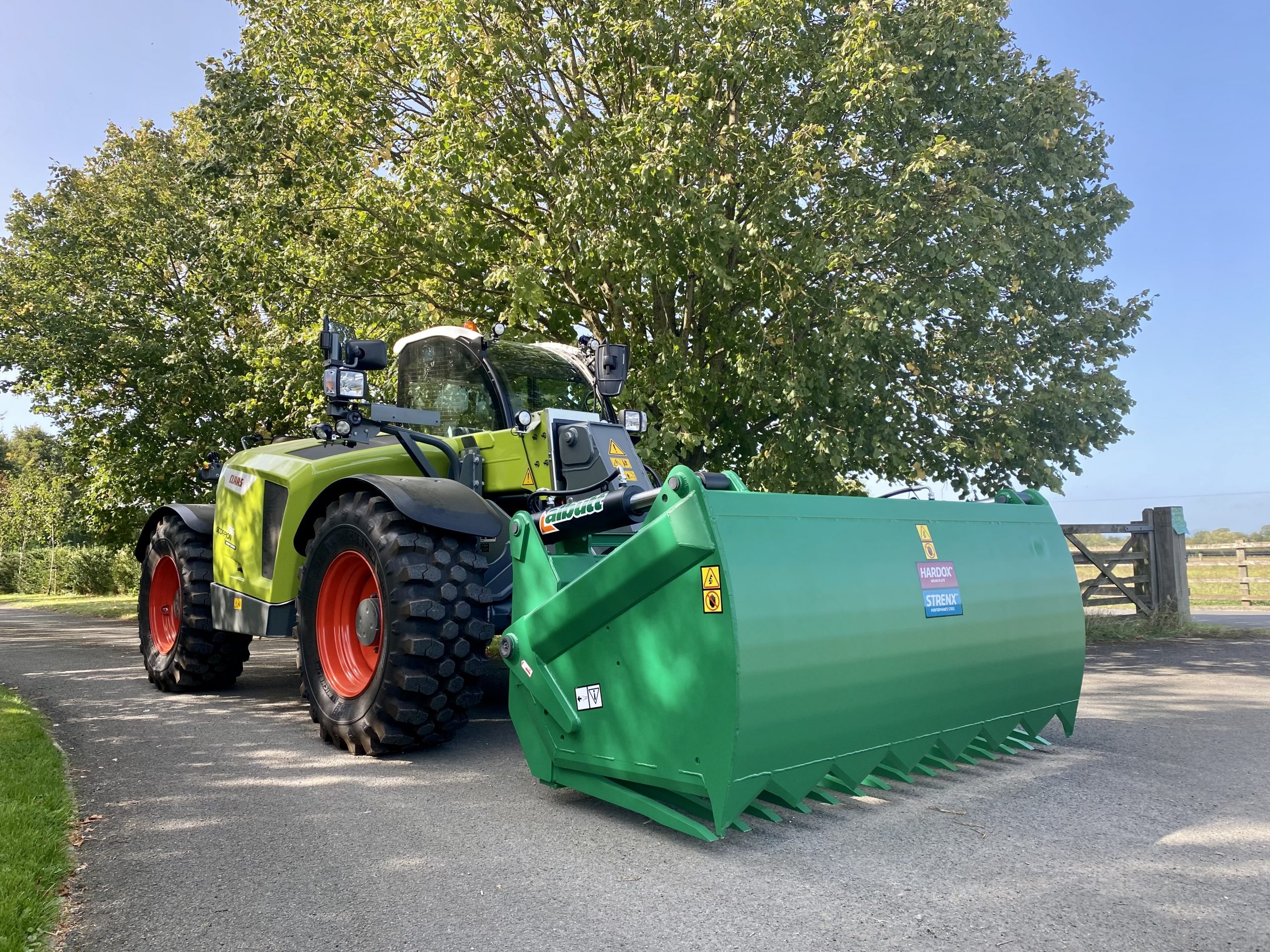

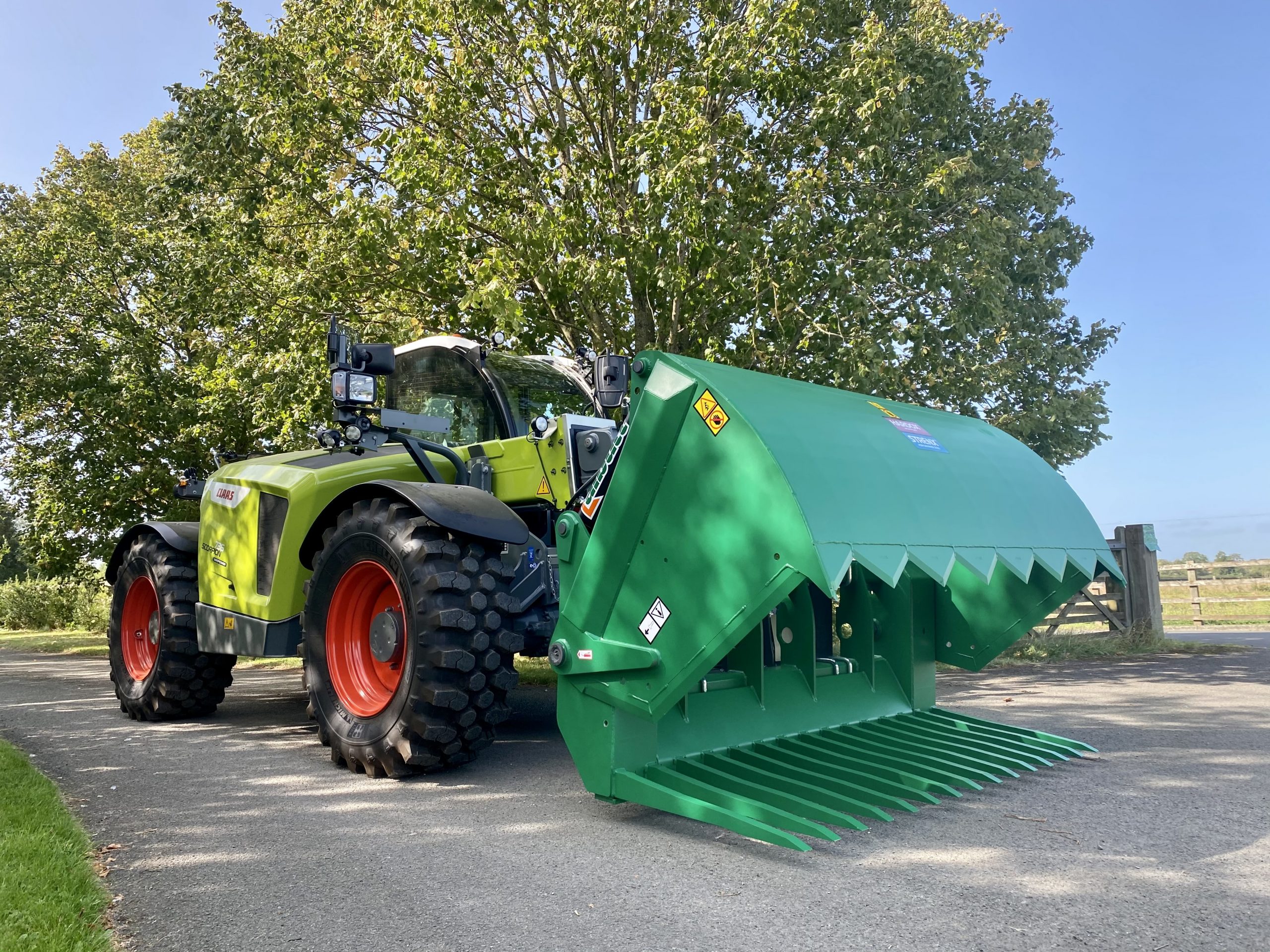

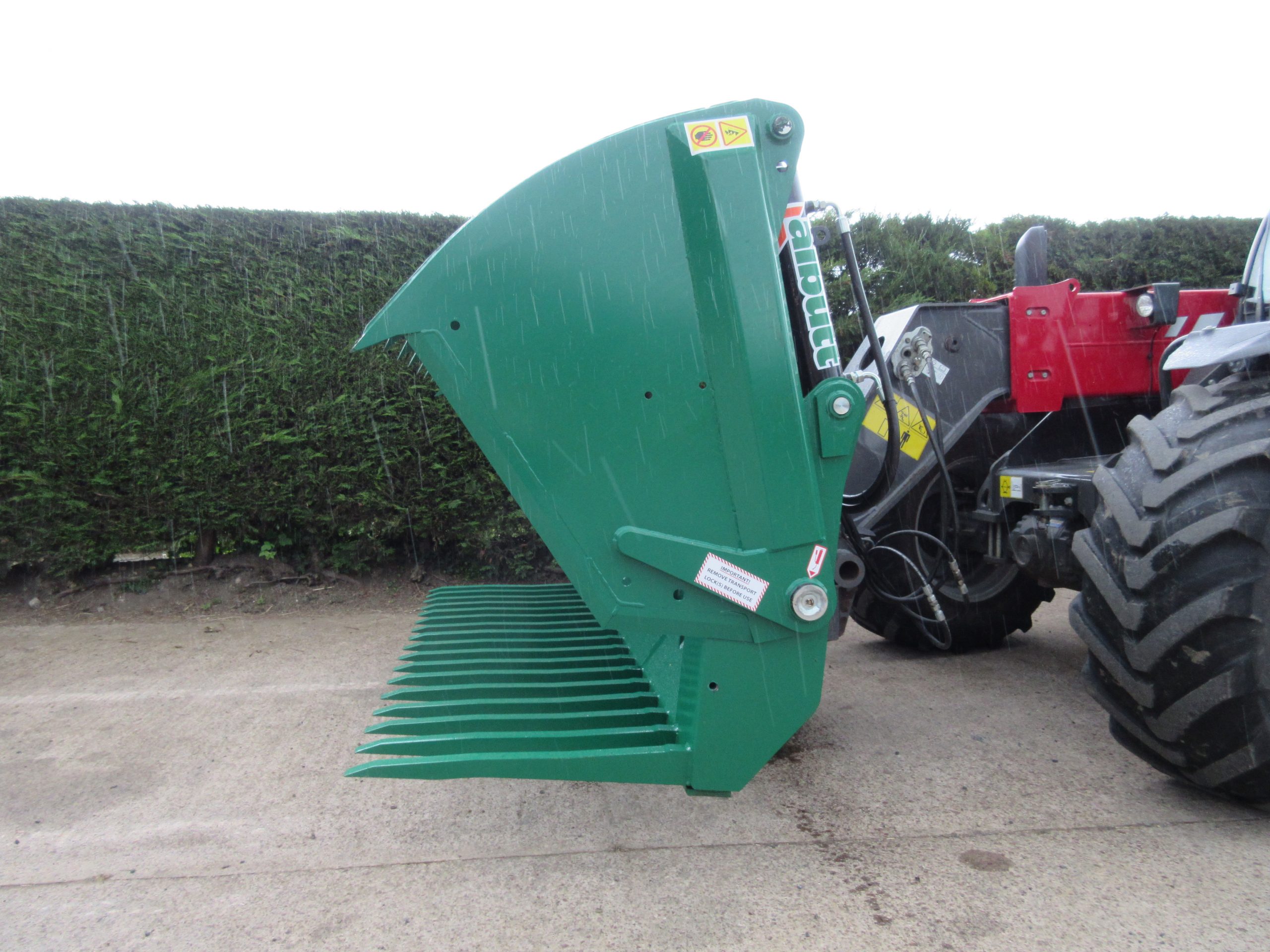

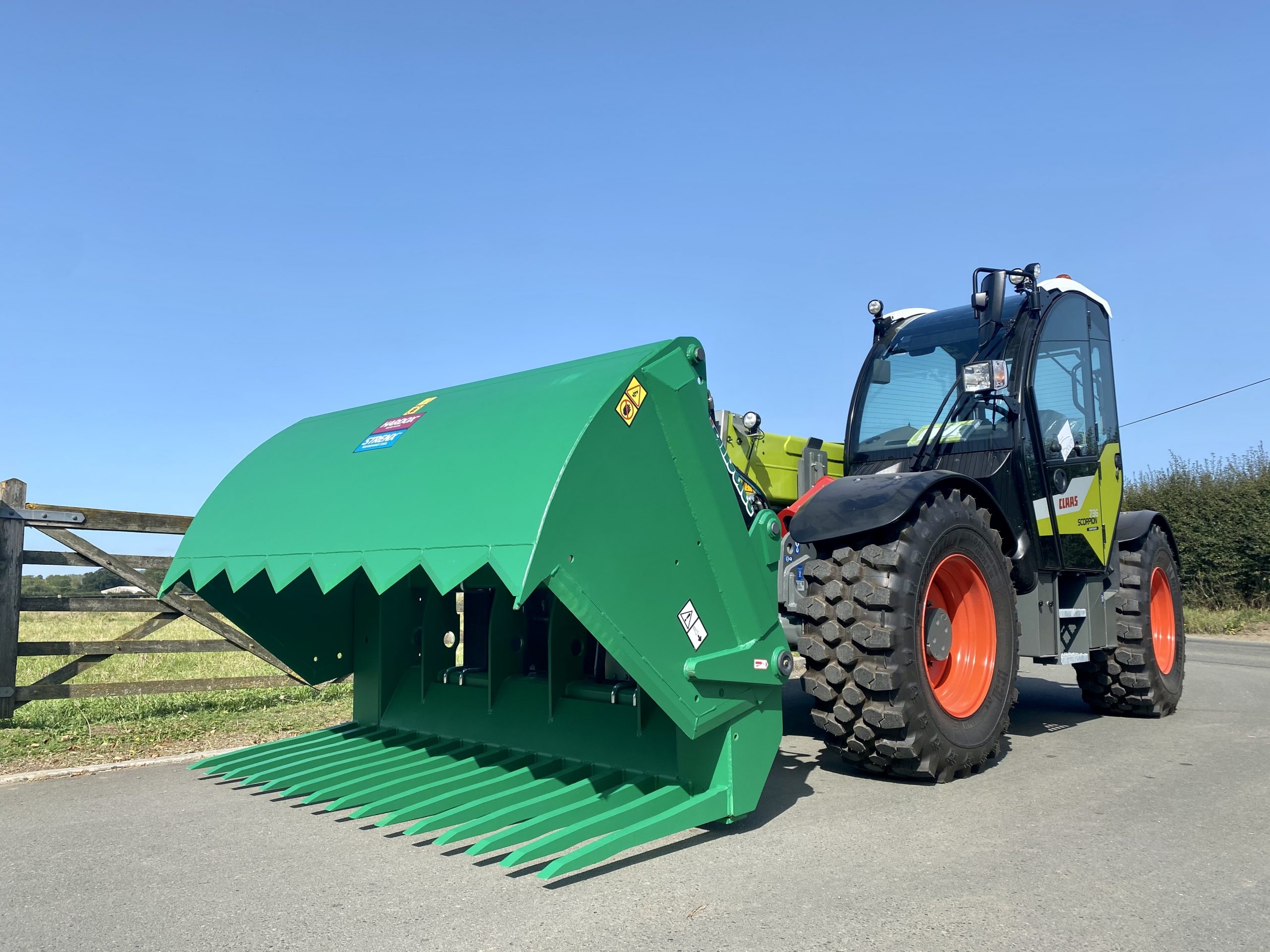

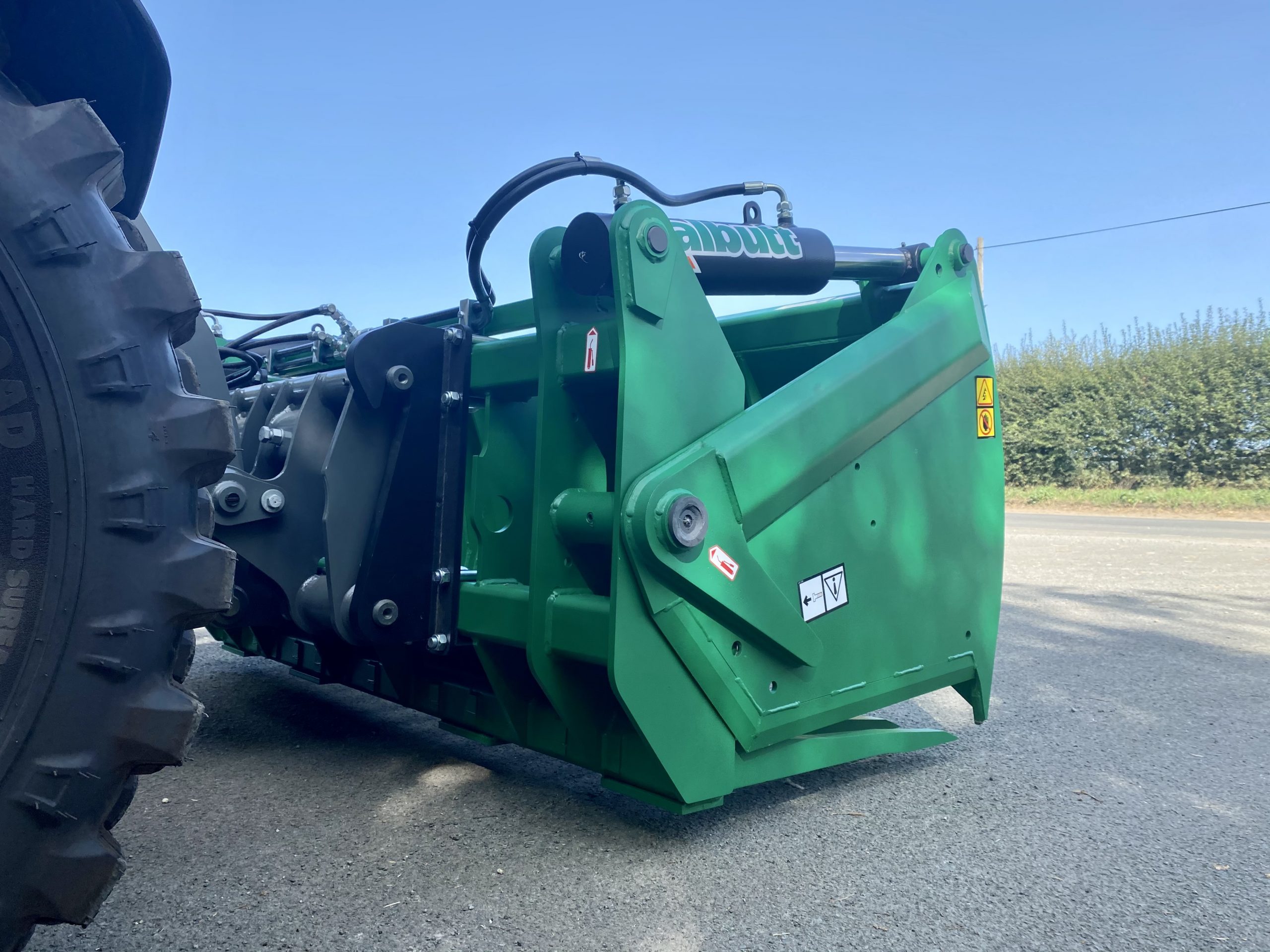

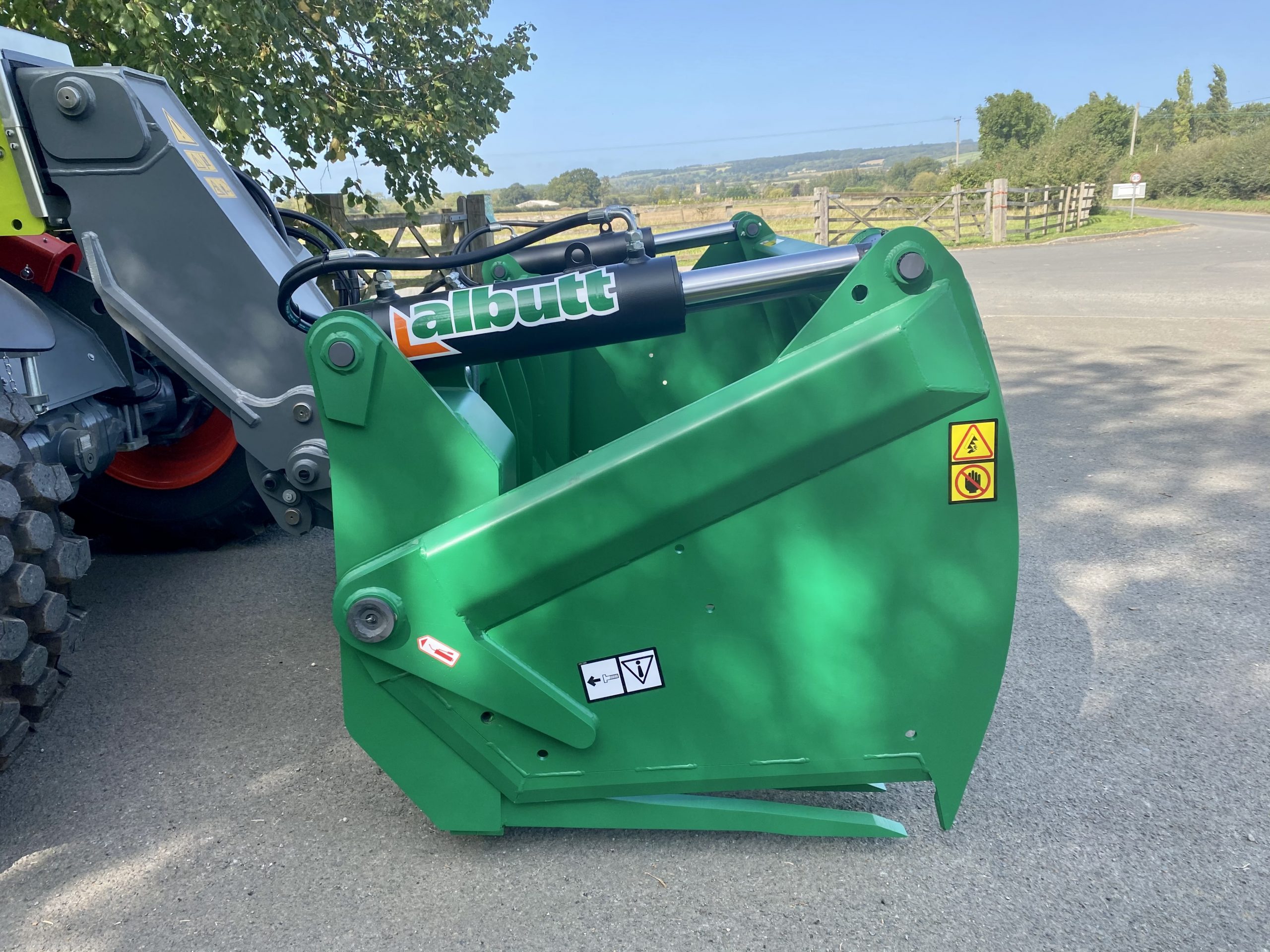

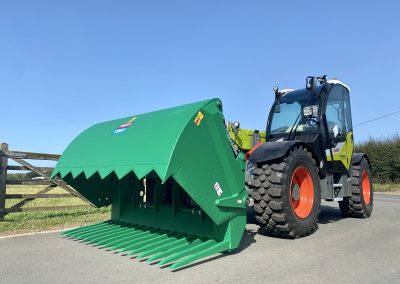

The Albutt Shear King Mini high capacity shear grab is designed to be used with telehandlers and wheeled loaders with a minimum lift of 3-4 tonnes. The grabs have a capacity of 1.40m3, 1.60m3 and 1.80m3 and a width of 1.90m, 2.20m and 2.50m. Users wanting to handle large amounts of silage and maximise their machines’ productivity are the ideal customers for this new grab. With a large capacity, the number of cuts and journey times can be reduced, improving silage quality and handling efficiency.

Our Shear Grabs have been the recognised market leader for a number of years. Manufactured by ourselves in either our Tewkesbury or Evesham facilities, we are proud that our grabs are British built, supporting the British dairy industry.







Features

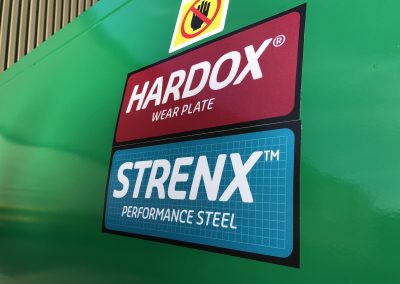

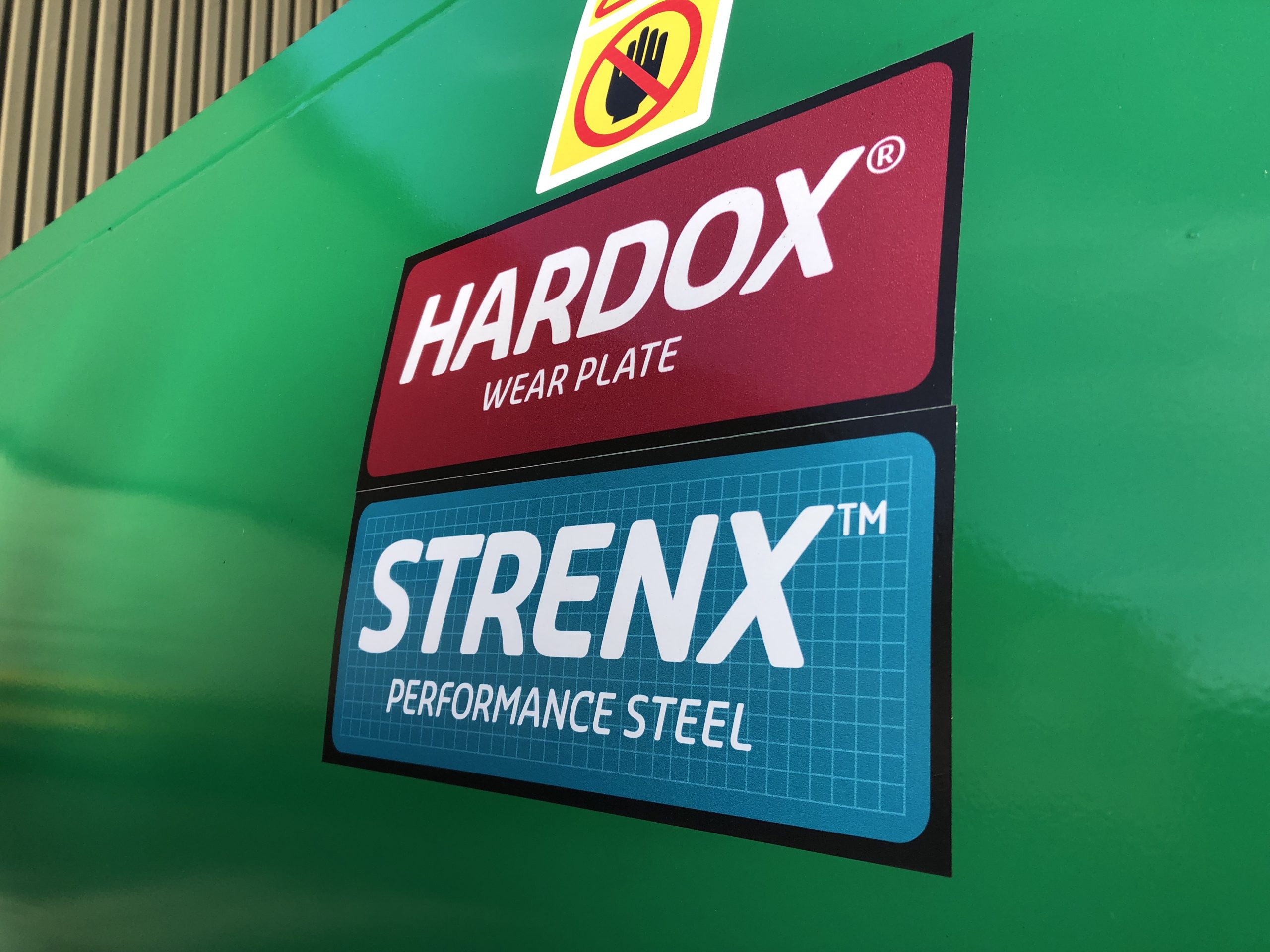

  • Hardox tines welded into heavy duty box section; 13, 15 or 17
  • Hardox cutting blades to the front and side of the grab
  • High tensile Domex front blade

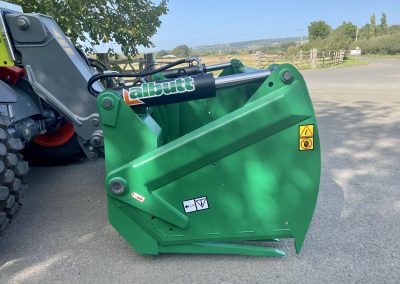

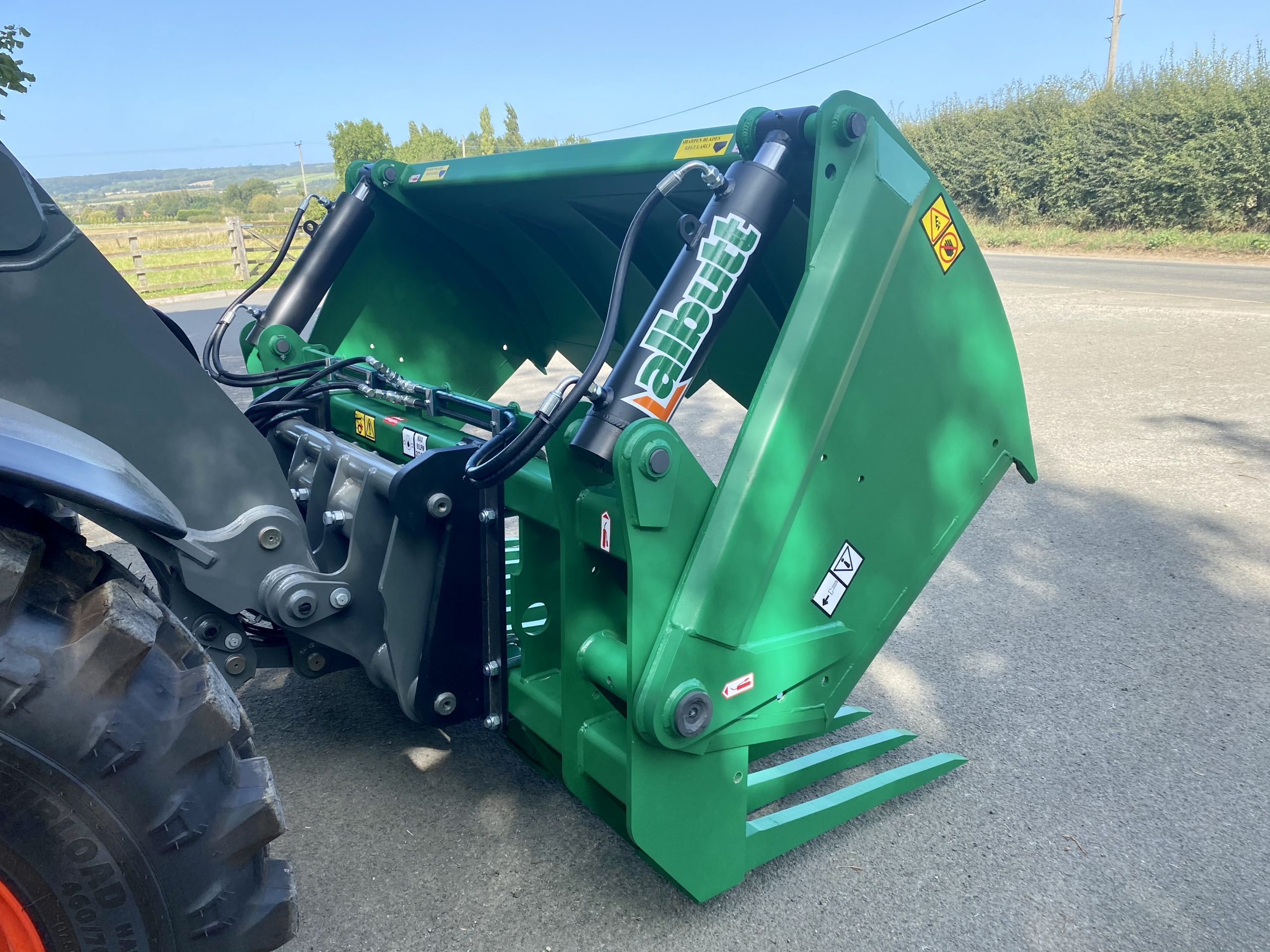

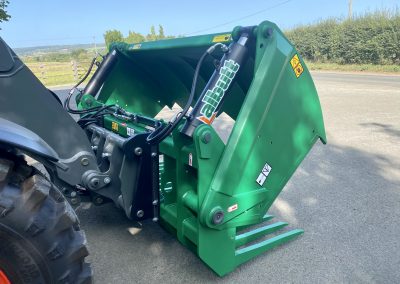

  • Twin double acting hydraulic rams; 115mm bore
  • Heavy duty box sections; 10mm wall
  • Grab pivots 60mm and bushed, ram pivots 40mm and bushed
  • Front grab double skinned for maximum strength
  • Long term reliability with a great cut for a clean clamp face
  • Suitable for grass, maize and wholecrop
  • Height 1085mm / Depth 1157mm / Jaw Opening 946mm
  • Recommended to be used with Albutt’s bolt on bracket system – ask your dealer for details

Featuring our ALS pin system – better lubrication properties than zinc plated pins

Video

Models

Model Tines Width Weight m3
SKM190HX 13 1.90m 1010kgs 1.40m3
SKM220HX 15 2.20m 1120kgs 1.60m3
SKM250HX 17 2.50m 1220kgs 1.80m3
