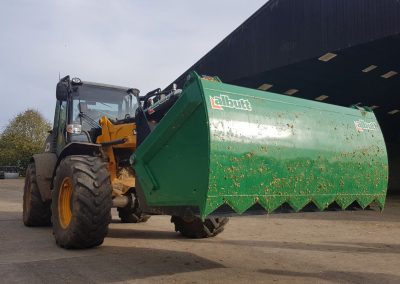

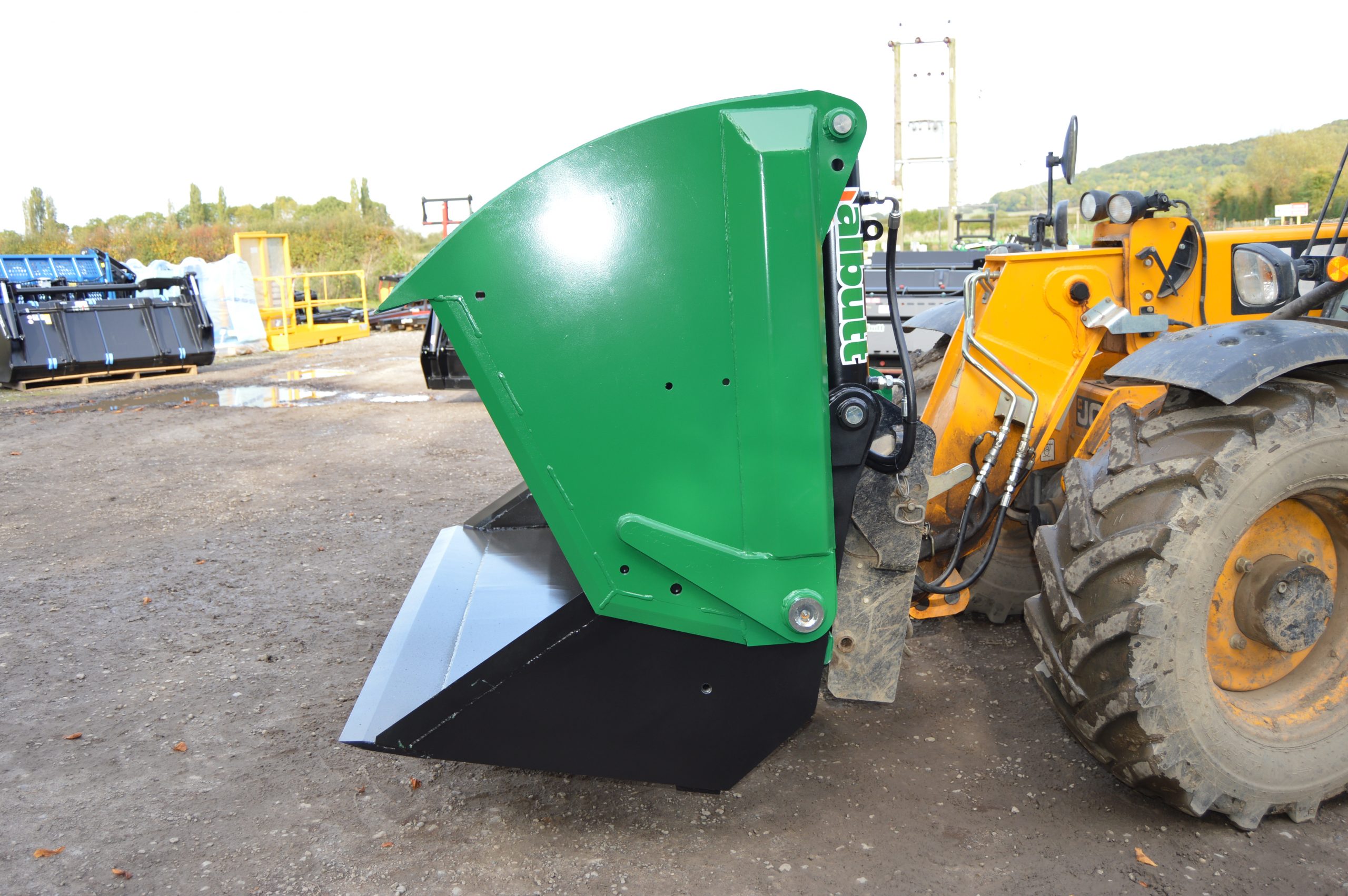

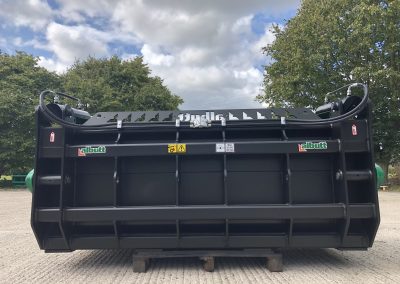

Albutt Shear Bucket
Shear BucketShear BucketShear Bucket

Shear Buckets

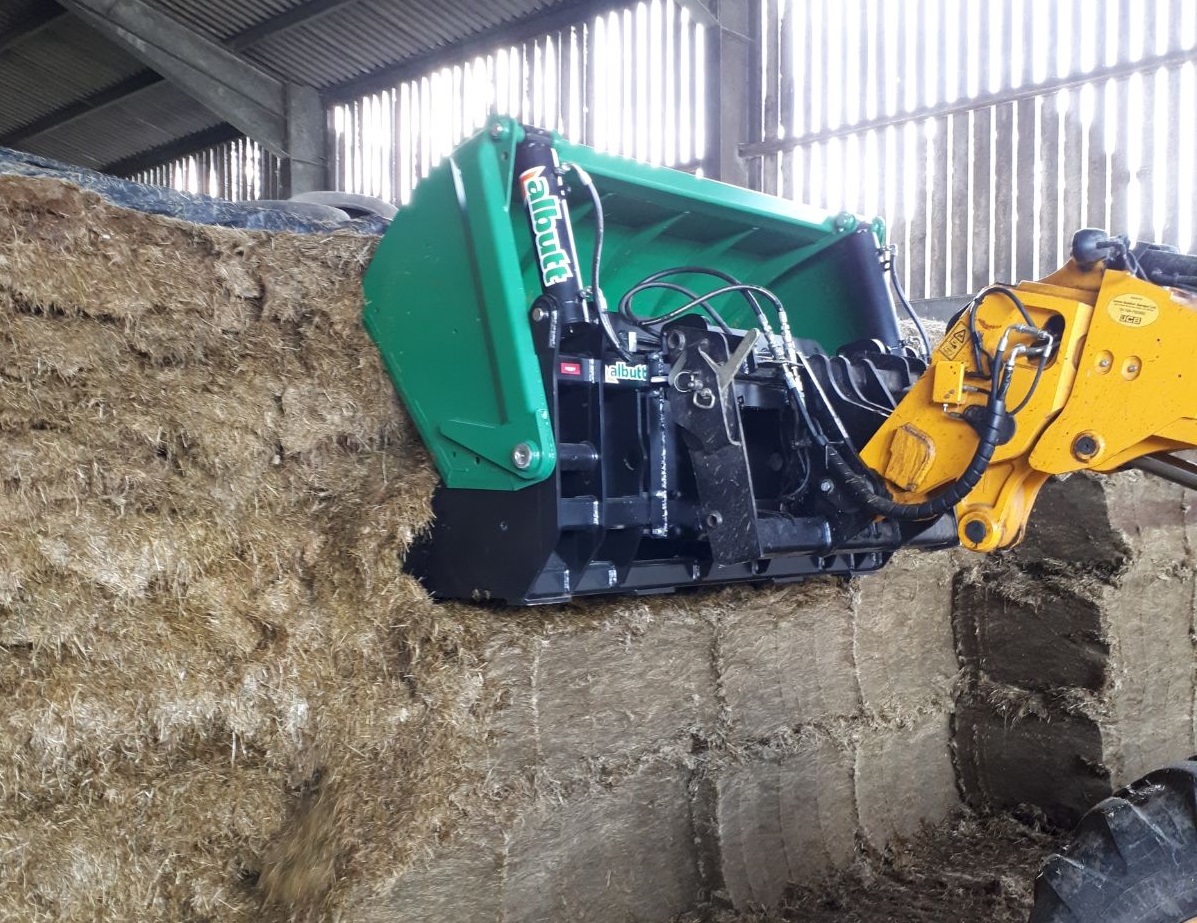

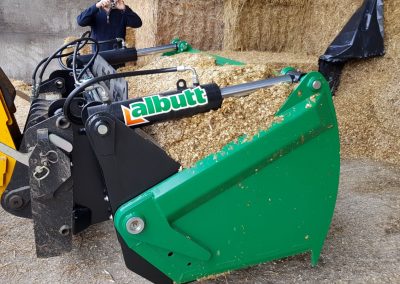

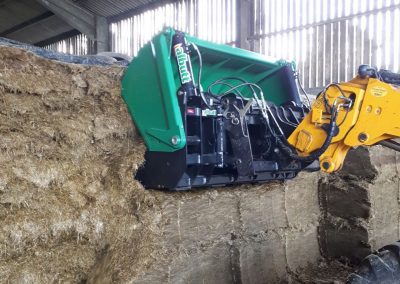

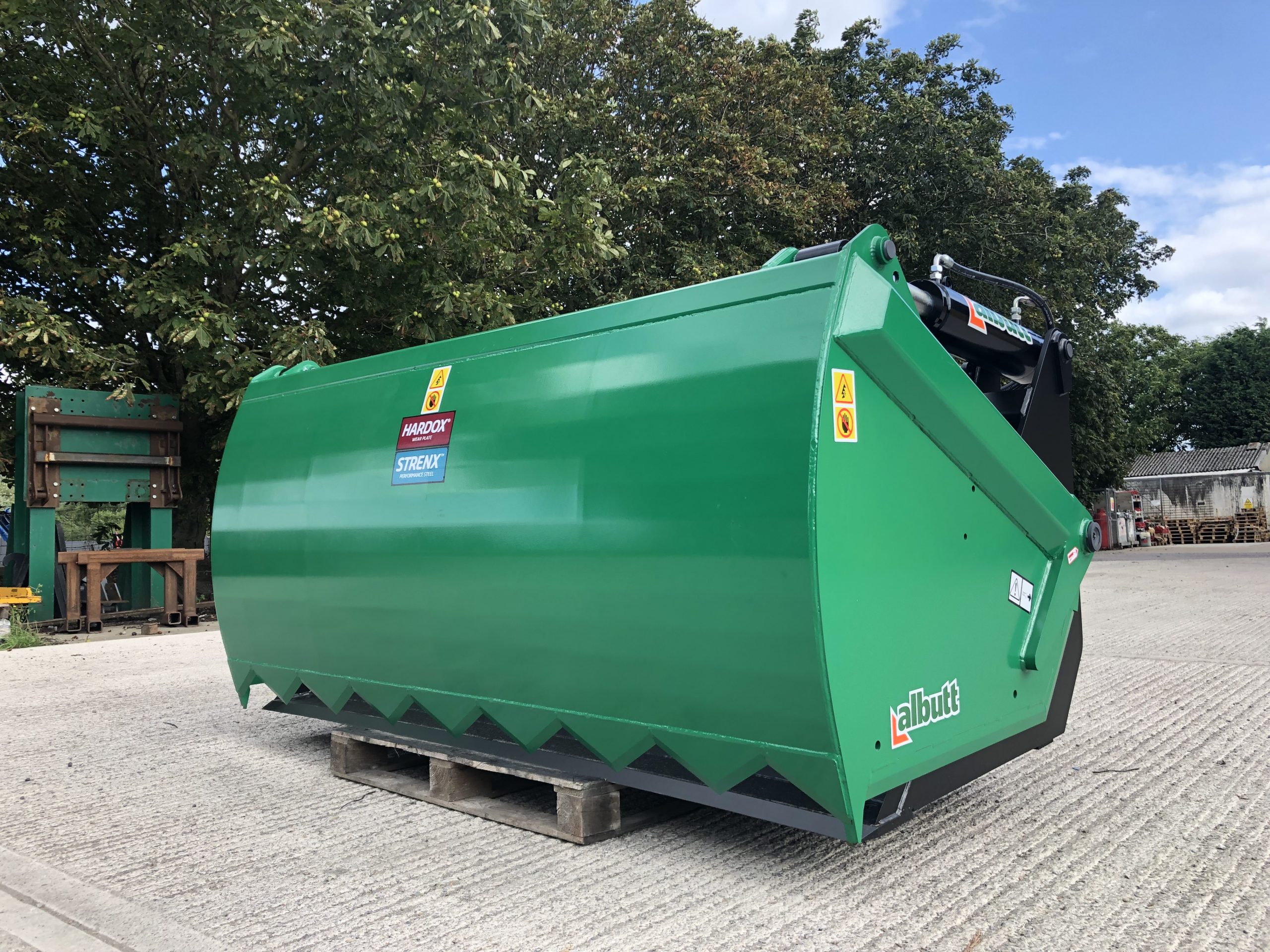

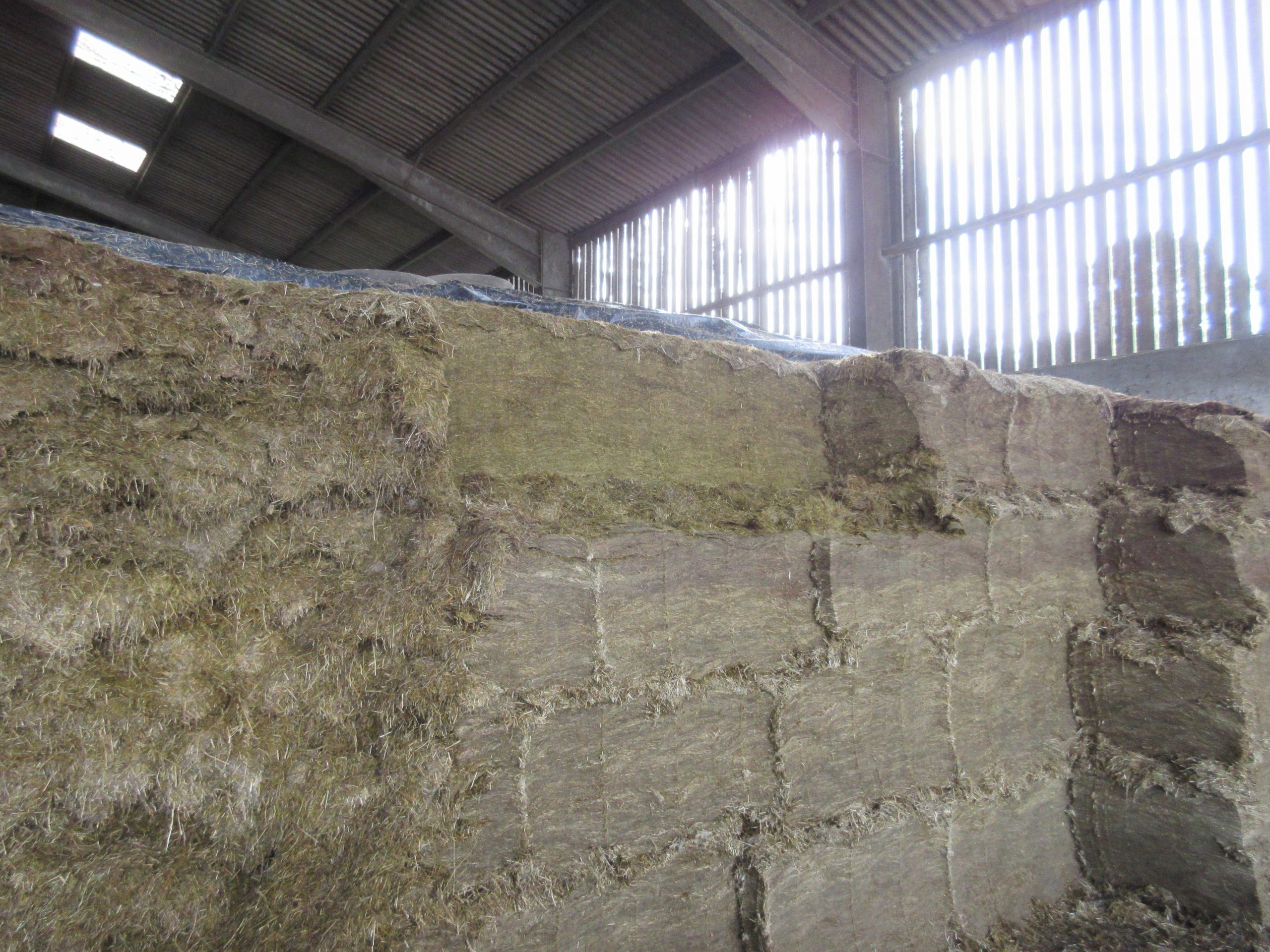

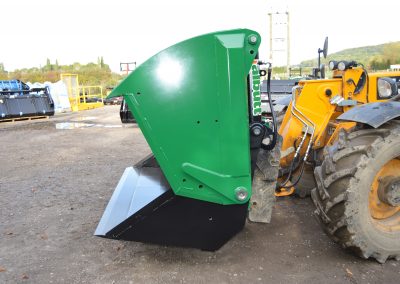

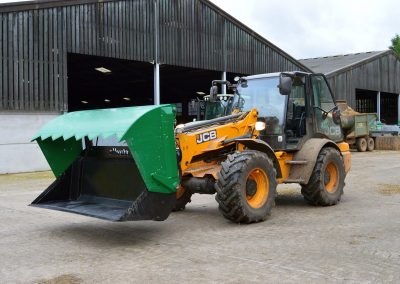

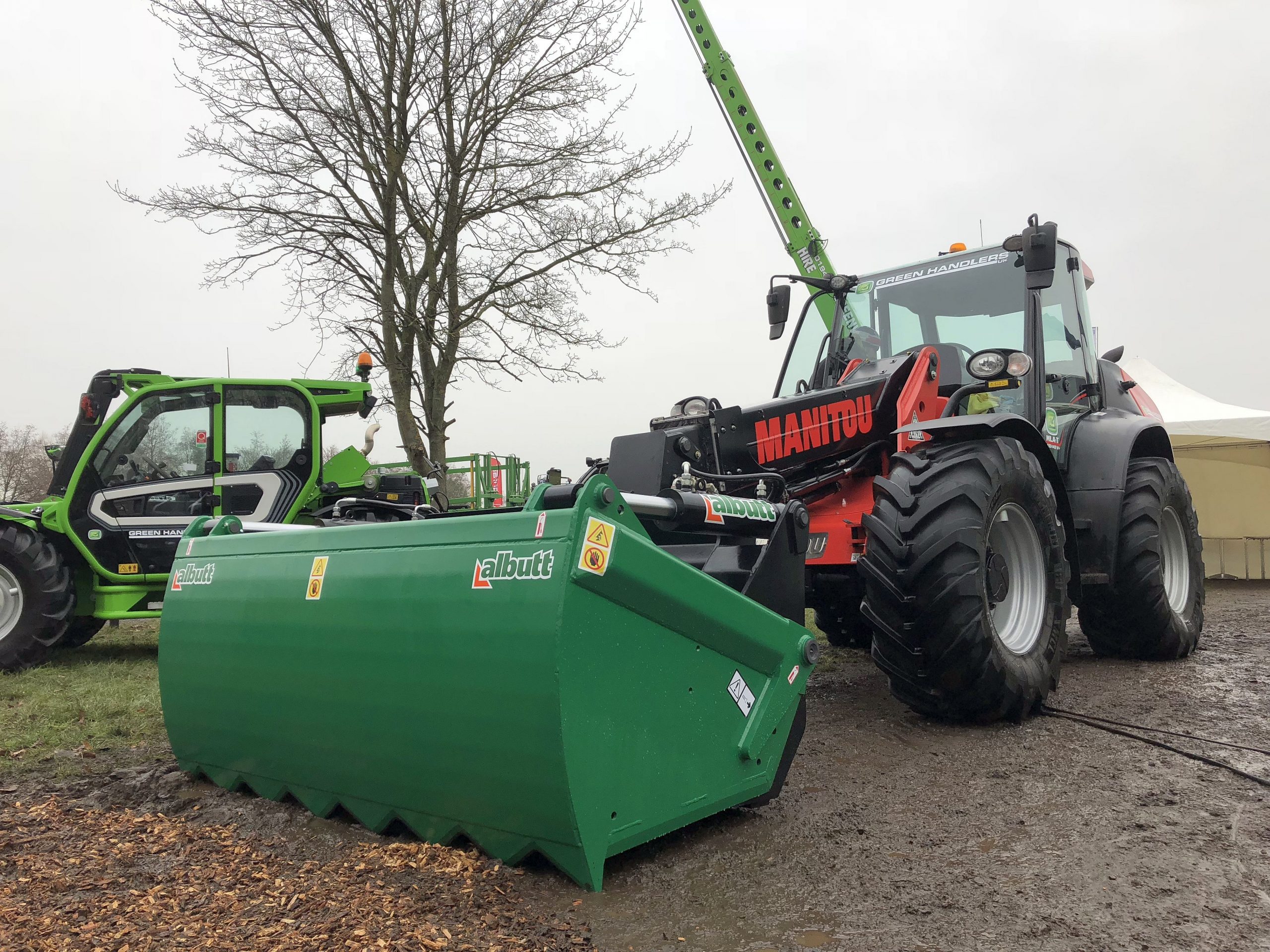

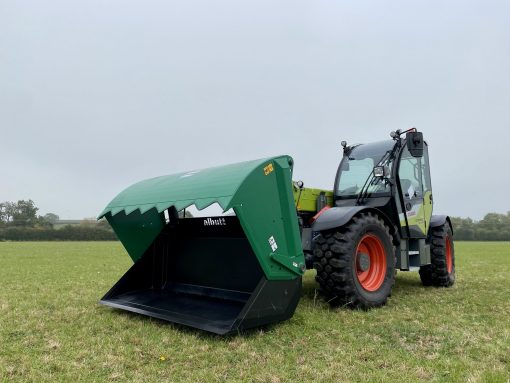

The Albutt Shear Bucket range is based on the ultra high strength design of the Shear King range, providing excellent cutting capabilities on all silage types. The grab is taken directly off of the Shear King ranges and features the same high tensile steels (Hardox & Strenx) throughout. The bucket floor is braced by underside Hardox tines for maximum durability. Across the front edge of the bucket is a specially commissioned Hardox cutting edge, sharpened to enter the pit face as clean as possible. This process is bolstered by cutting edges to the side profiles of the bucket.







Categories: ,

Features

  • Hardox cutting blades to the front and side of the grab
  • High tensile STRENX front blade
  • Hardox cutting edge across front of bucket floor

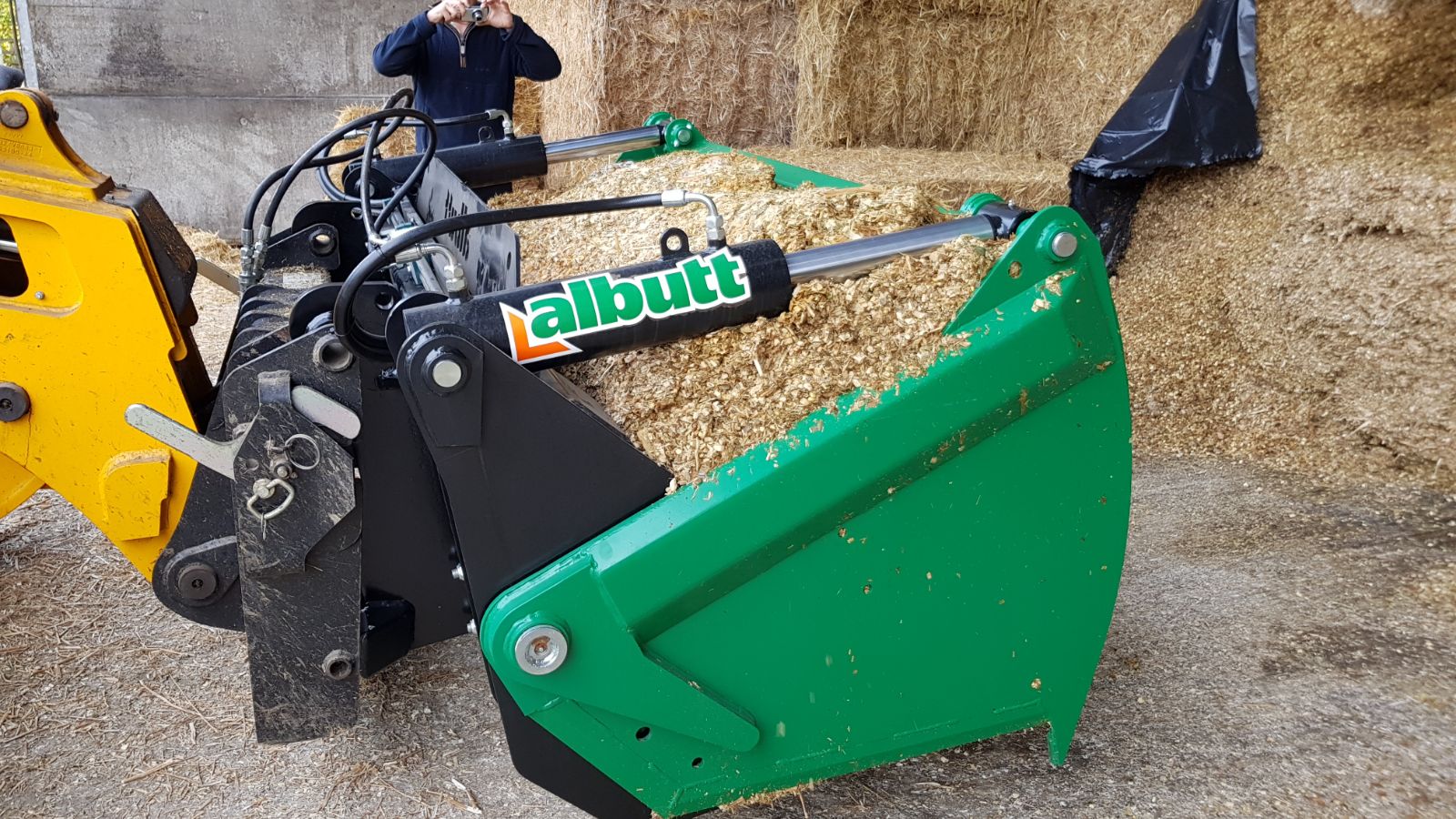

  • Twin double acting hydraulic rams
  • Heavy duty box sections; 10mm wall
  • Grab pivots 60mm and bushed, ram pivots 40mm and bushed
  • Front grab double skinned for maximum strength

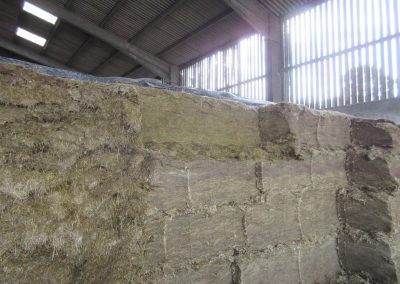

  • Long term reliability with a great cut for a clean clamp face
  • Suitable for maize, wholecrop and precision chopped grass silage
  • Hardox tines brace the bucket floor
  • Recommended to be used with Albutt’s bolt on bracket system – ask your dealer for details

Featuring our ALS pin system – better lubrication properties than zinc plated pins

Models

Model Width Weight m3 Bore Size Opening
SKMB190HX 1.90m 1070kgs 1.40m3 115mm 946mm

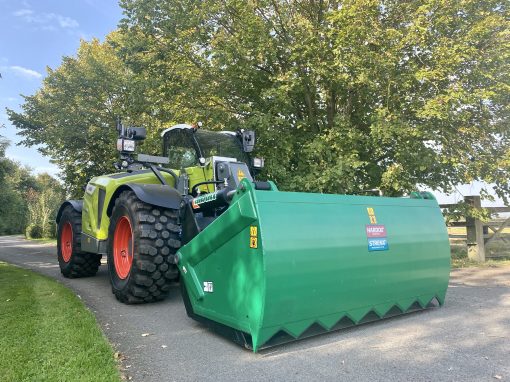

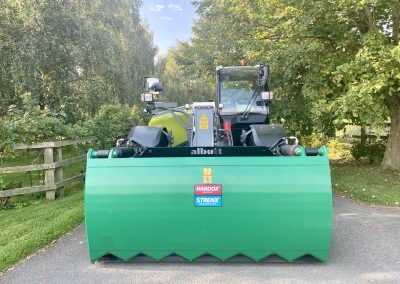

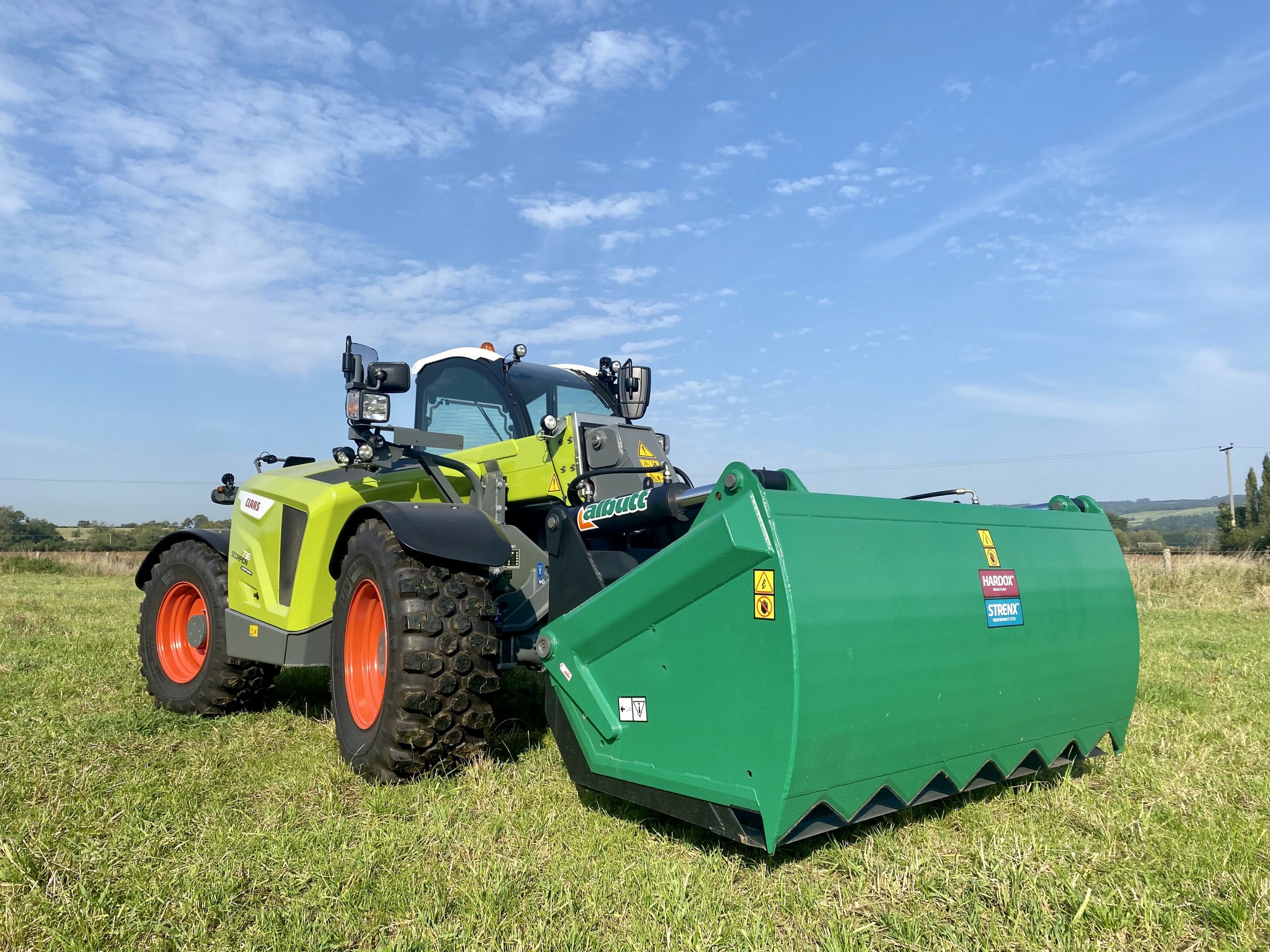

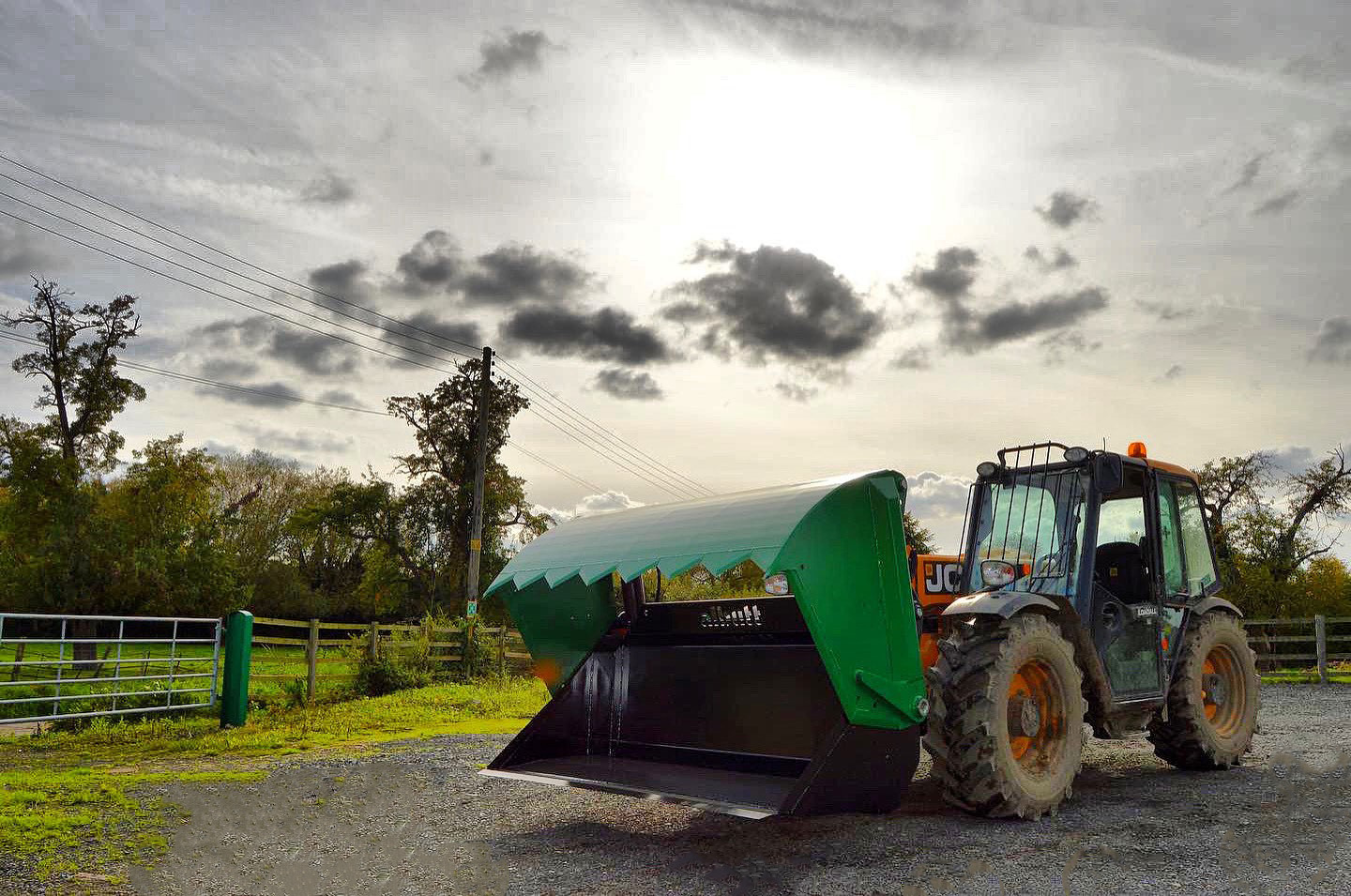

SKMB220HX 2.20m 1150kgs 1.60m3 115mm 946mm
SKMB250HX 2.50m 1320kgs 1.80m3 115mm 946mm
SKB220HX 2.20m 1520kgs 2.20m3 125mm 1111mm

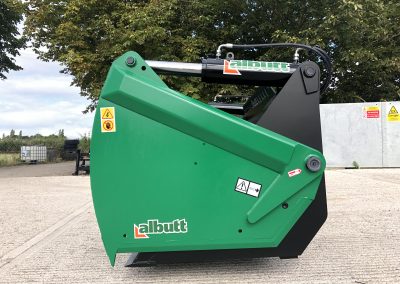

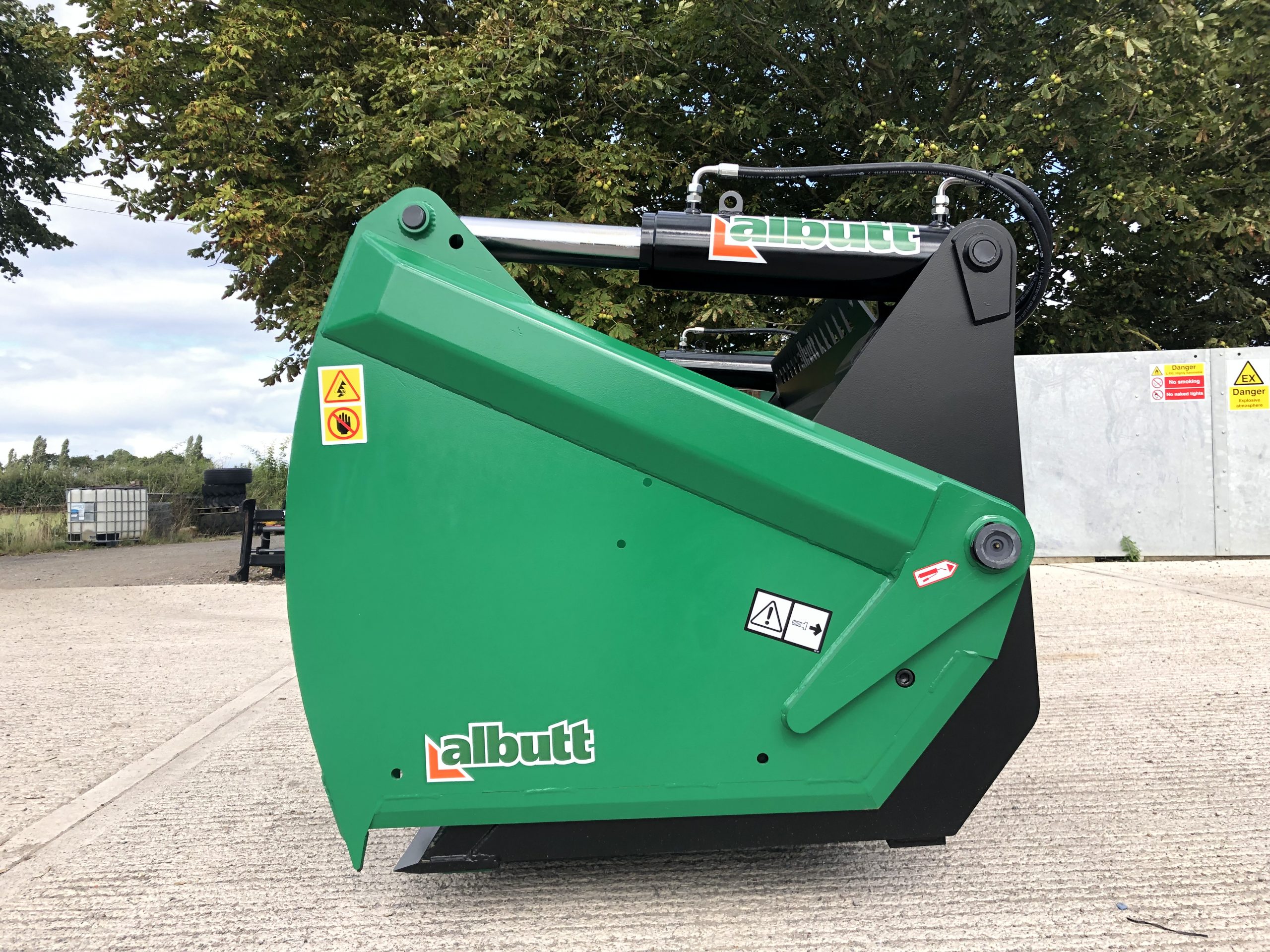

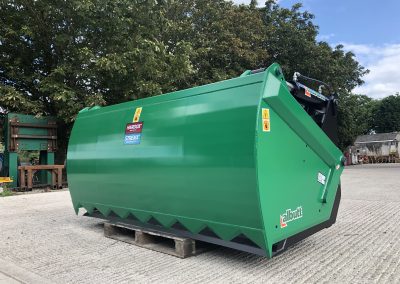

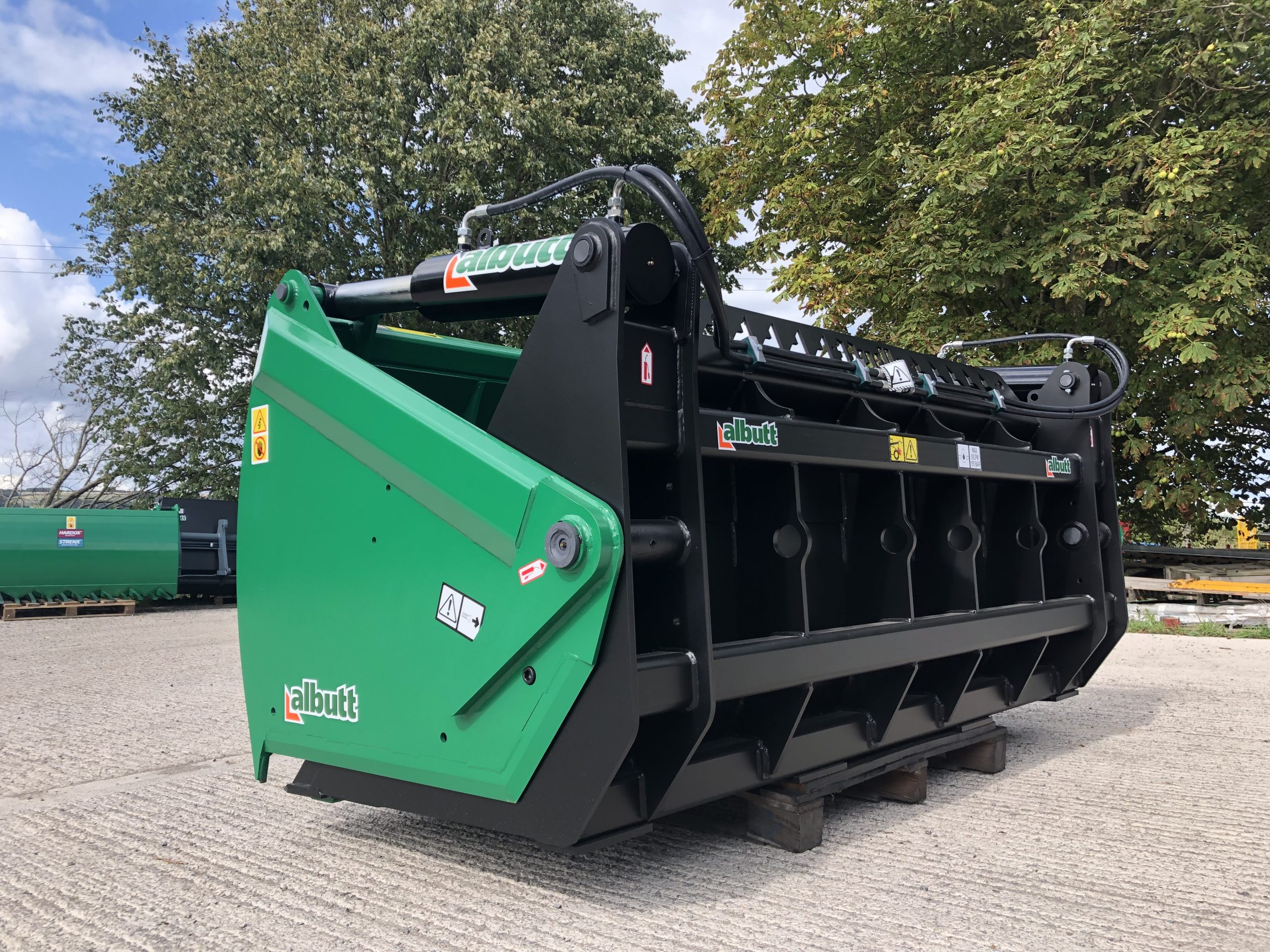

SKB250HX 2.50m 1590kgs 2.50m3 125mm 1111mm
