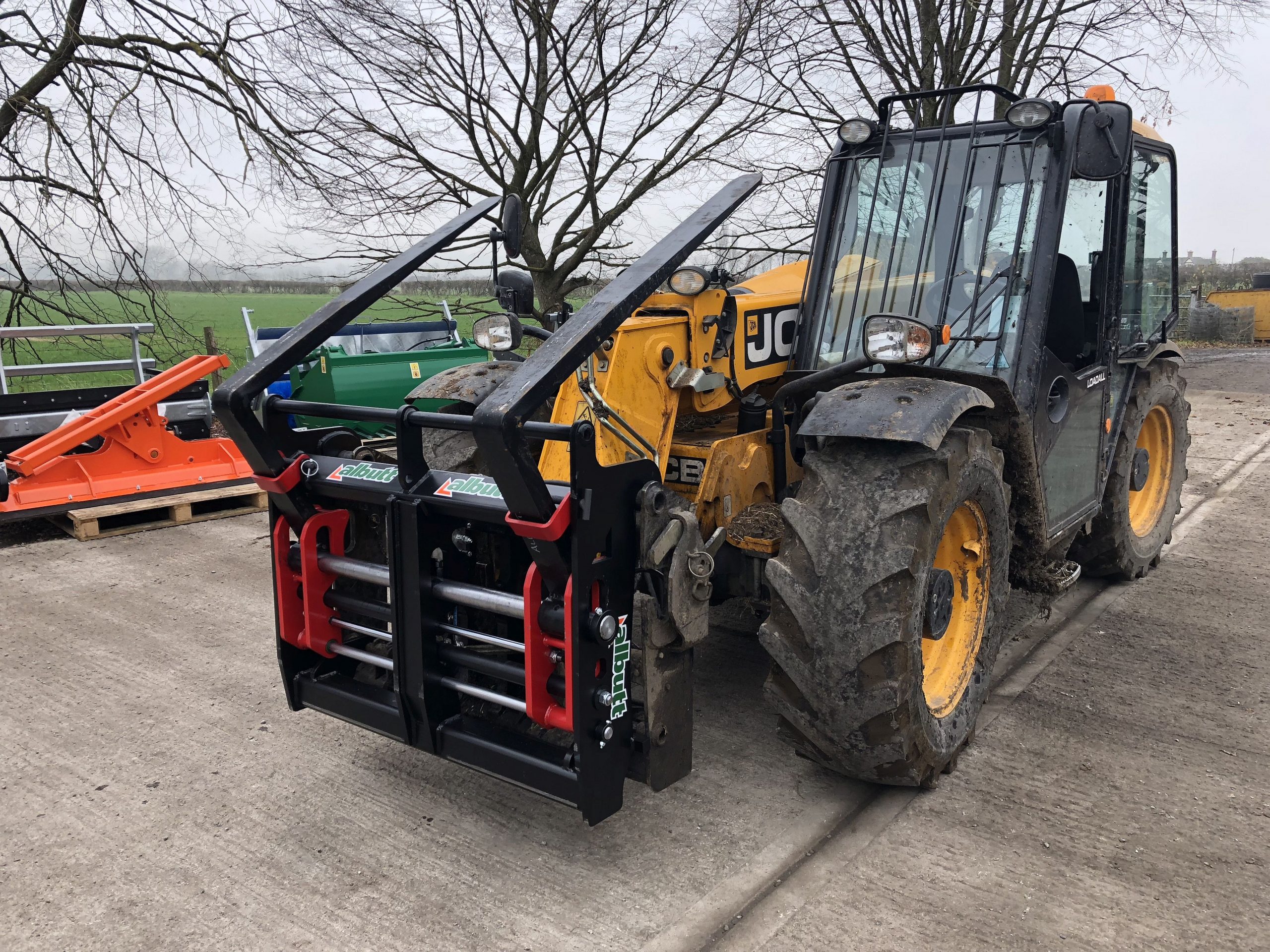

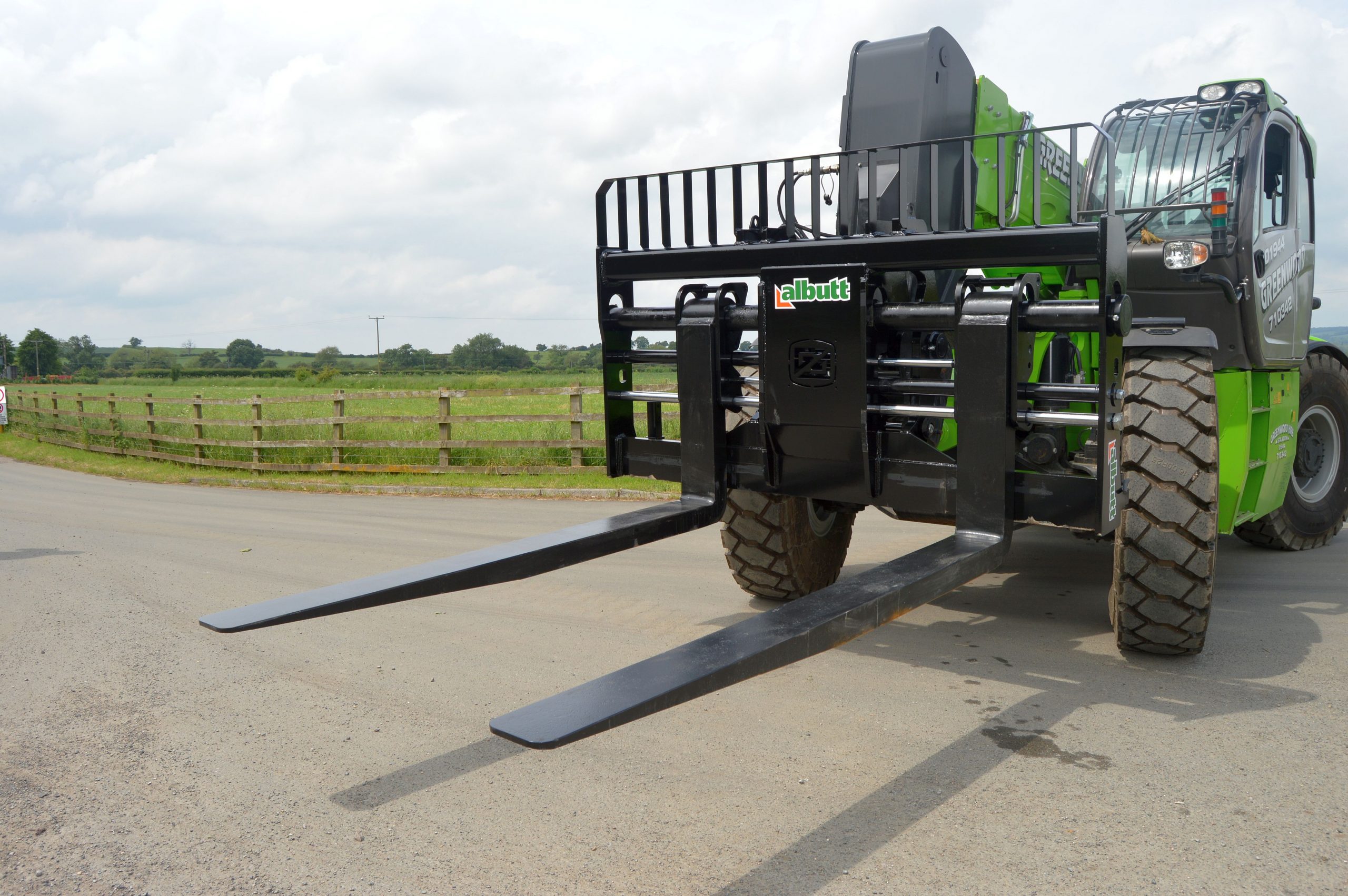

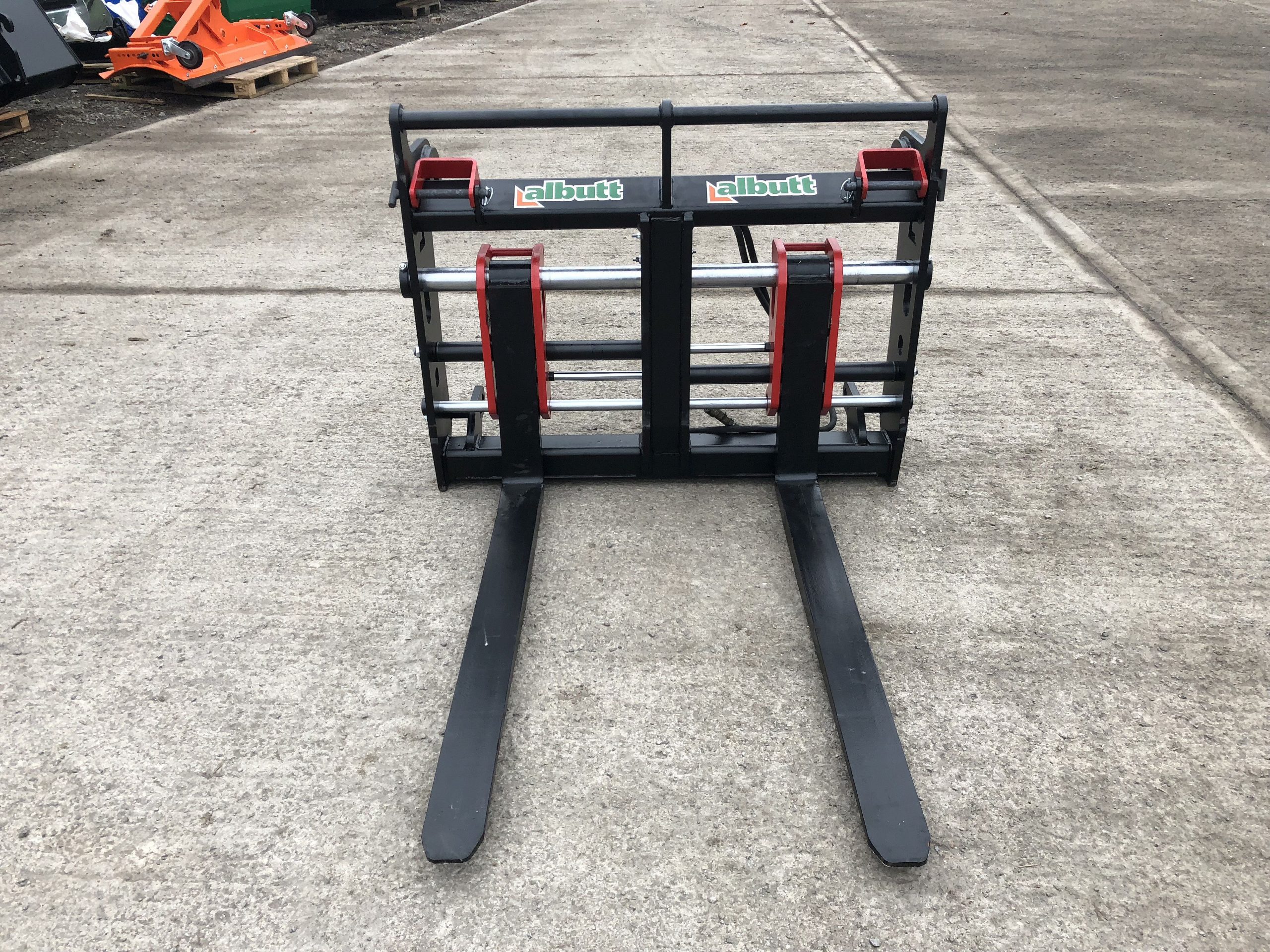

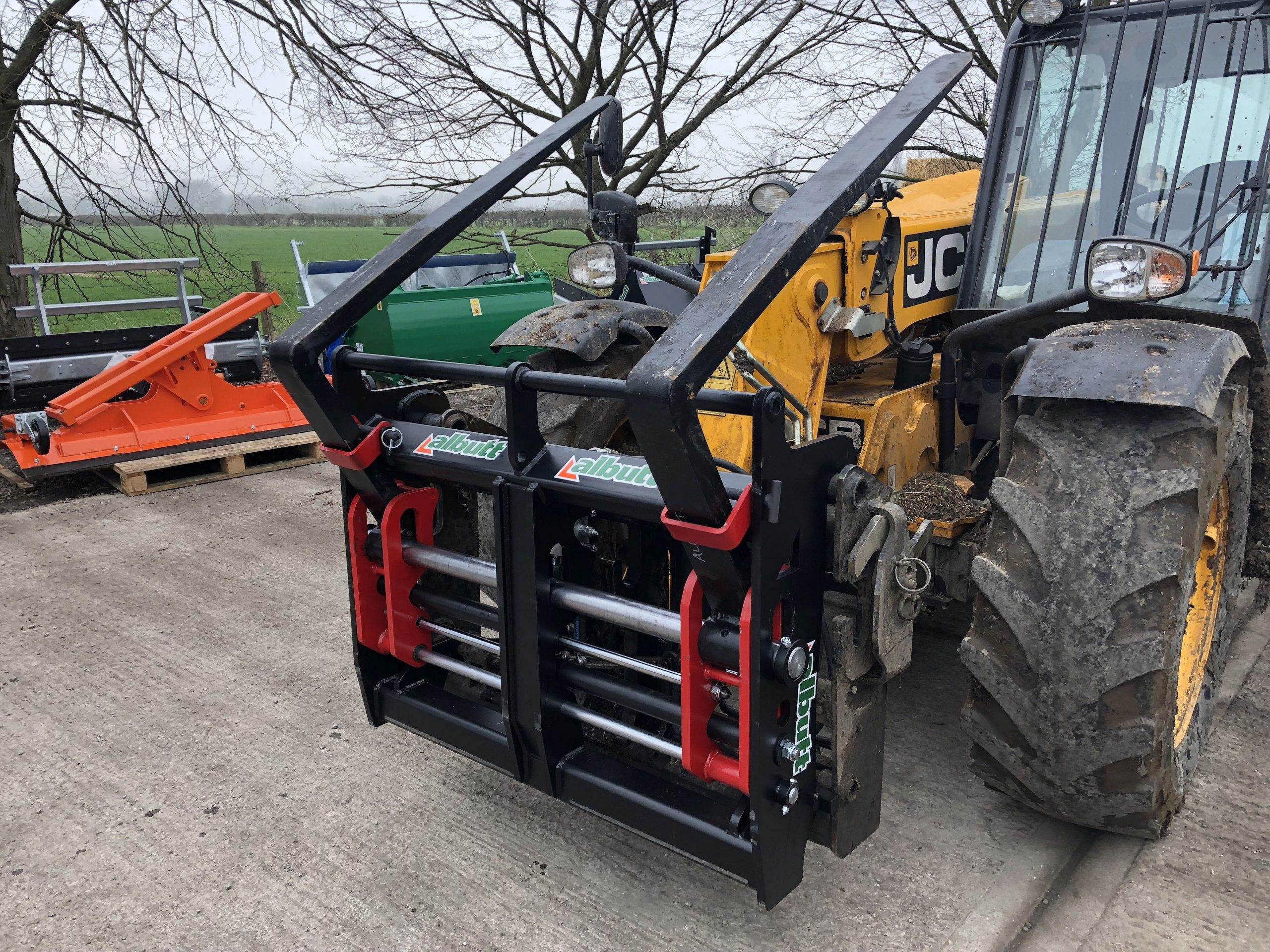

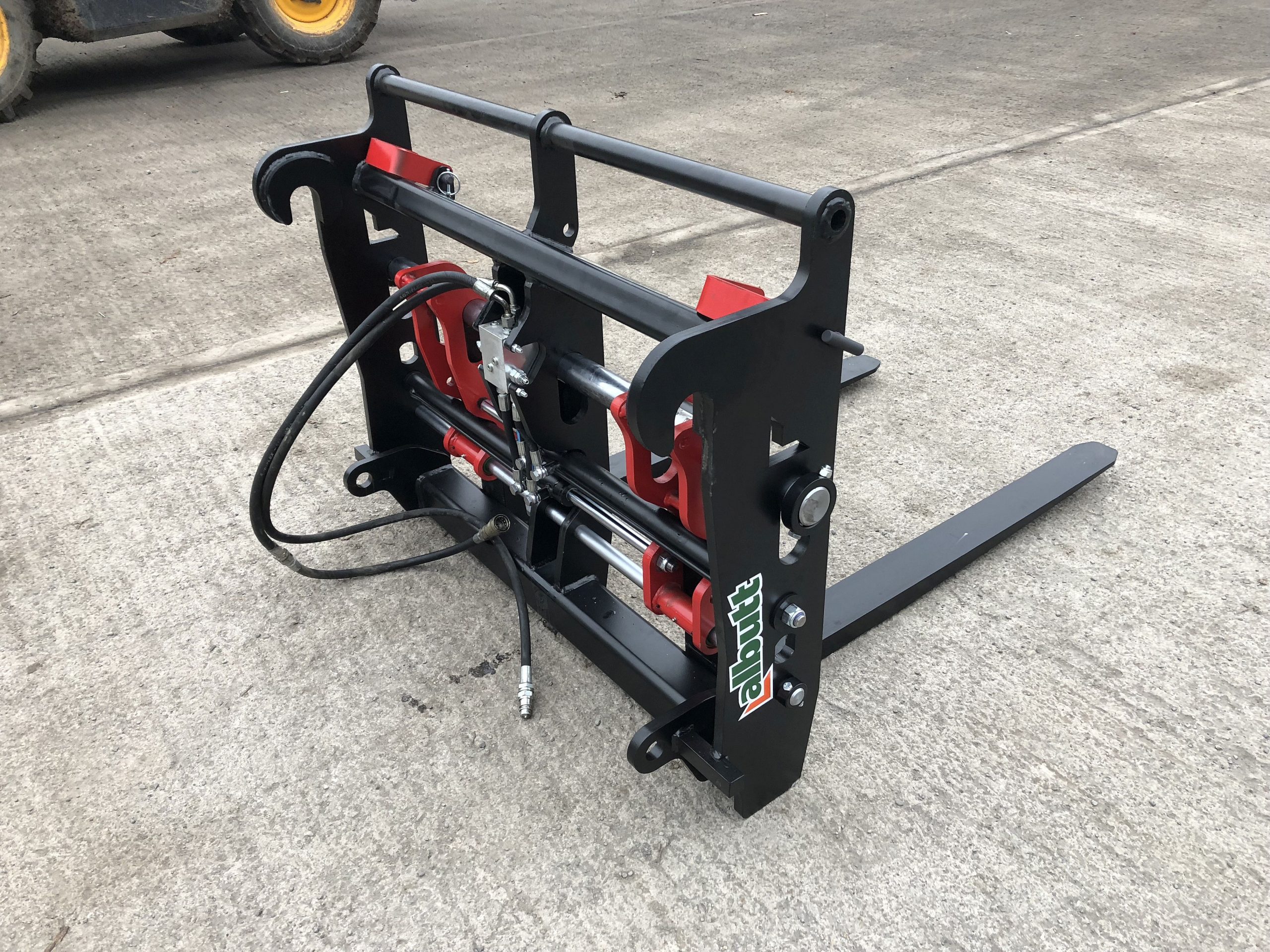

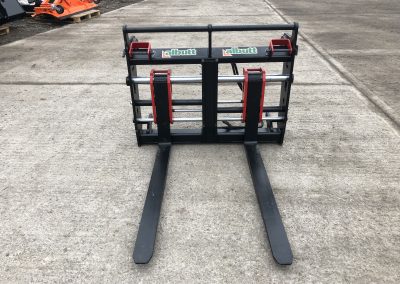

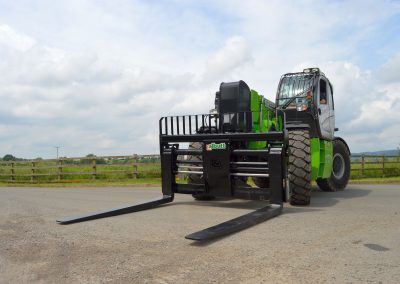

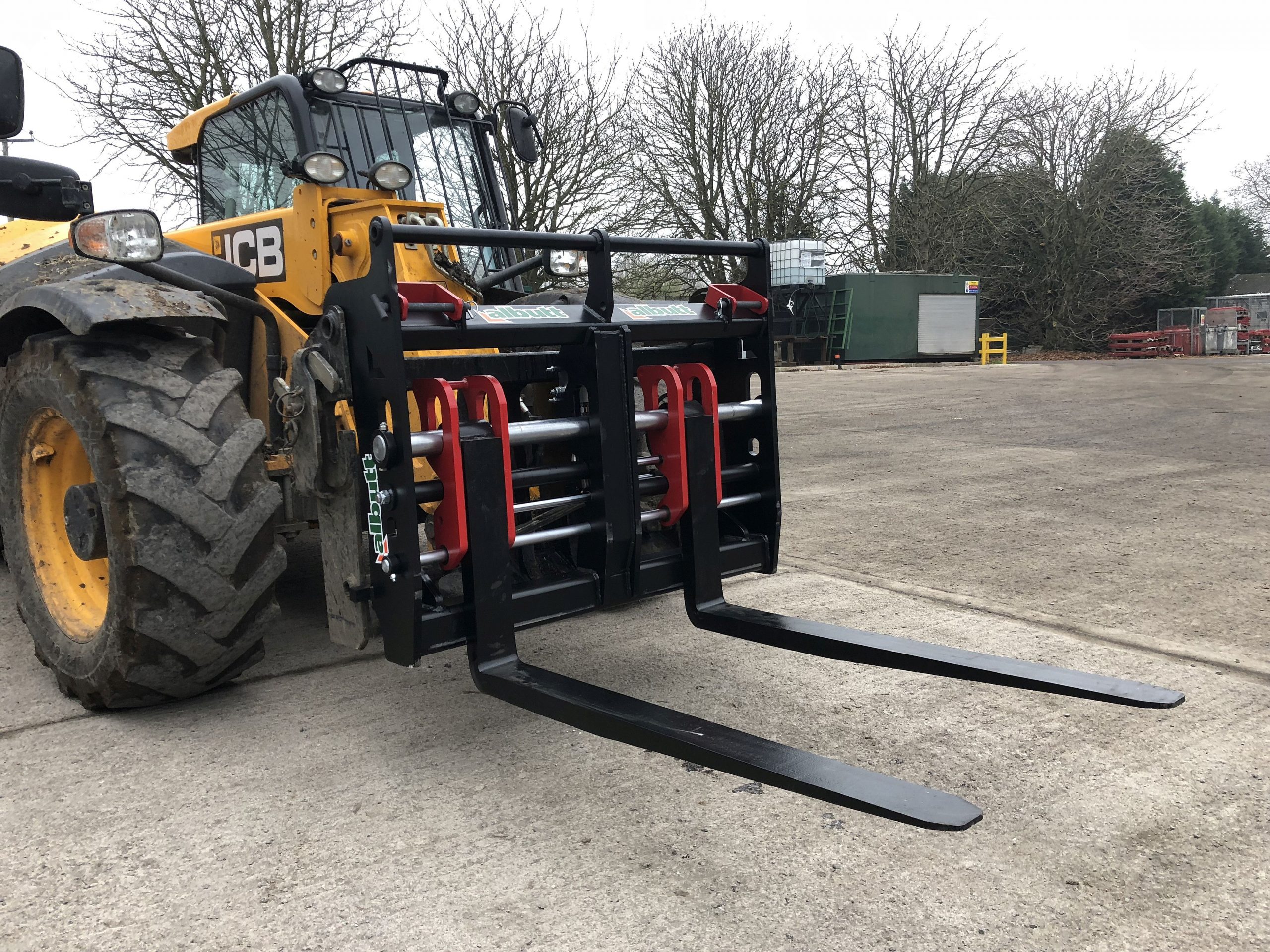

Pallet Fork Positioners

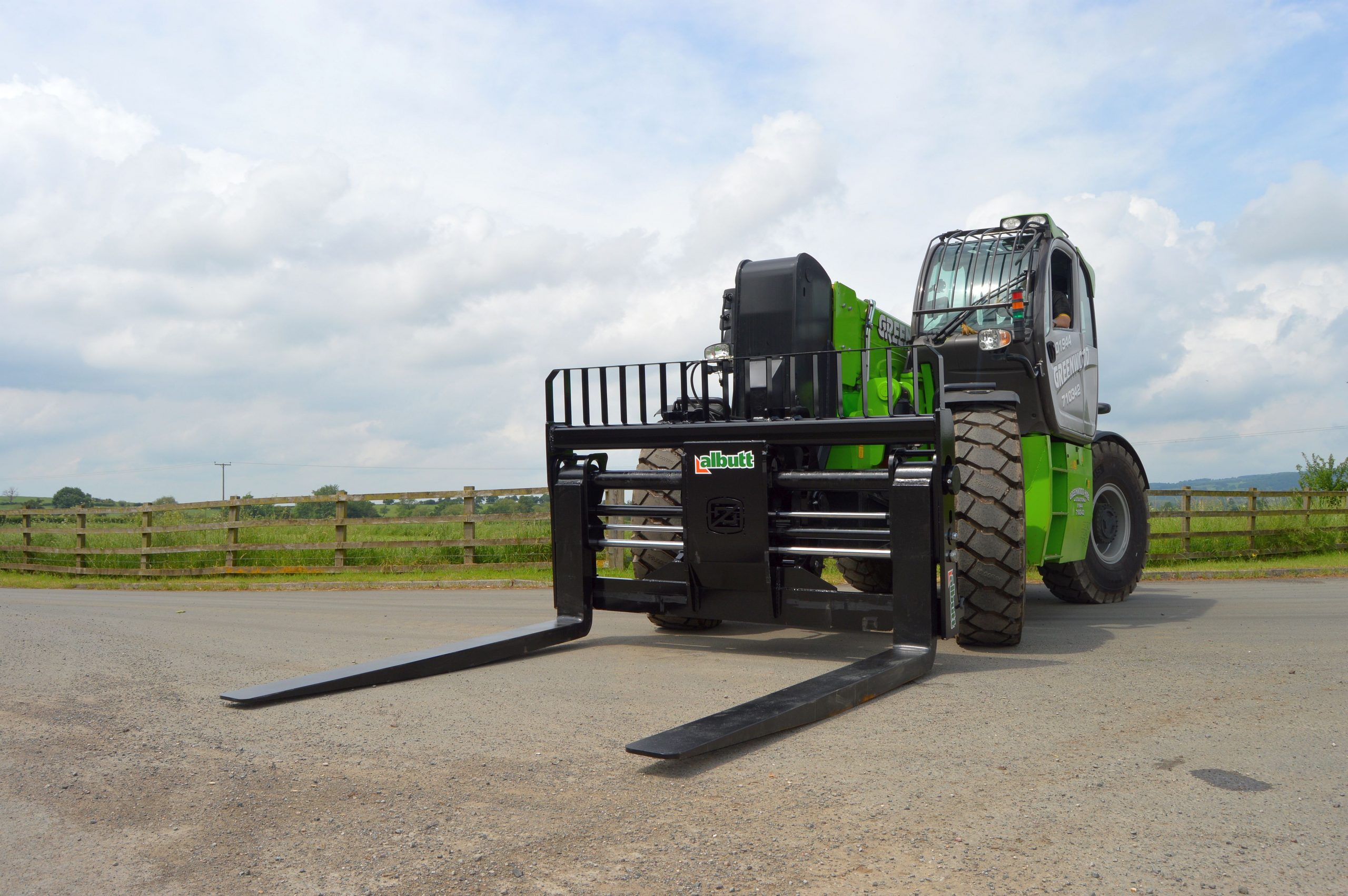

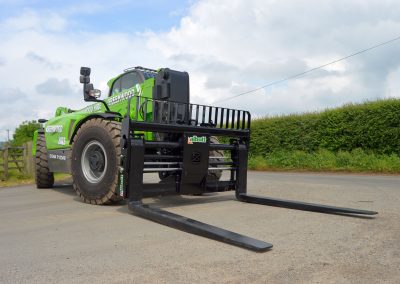

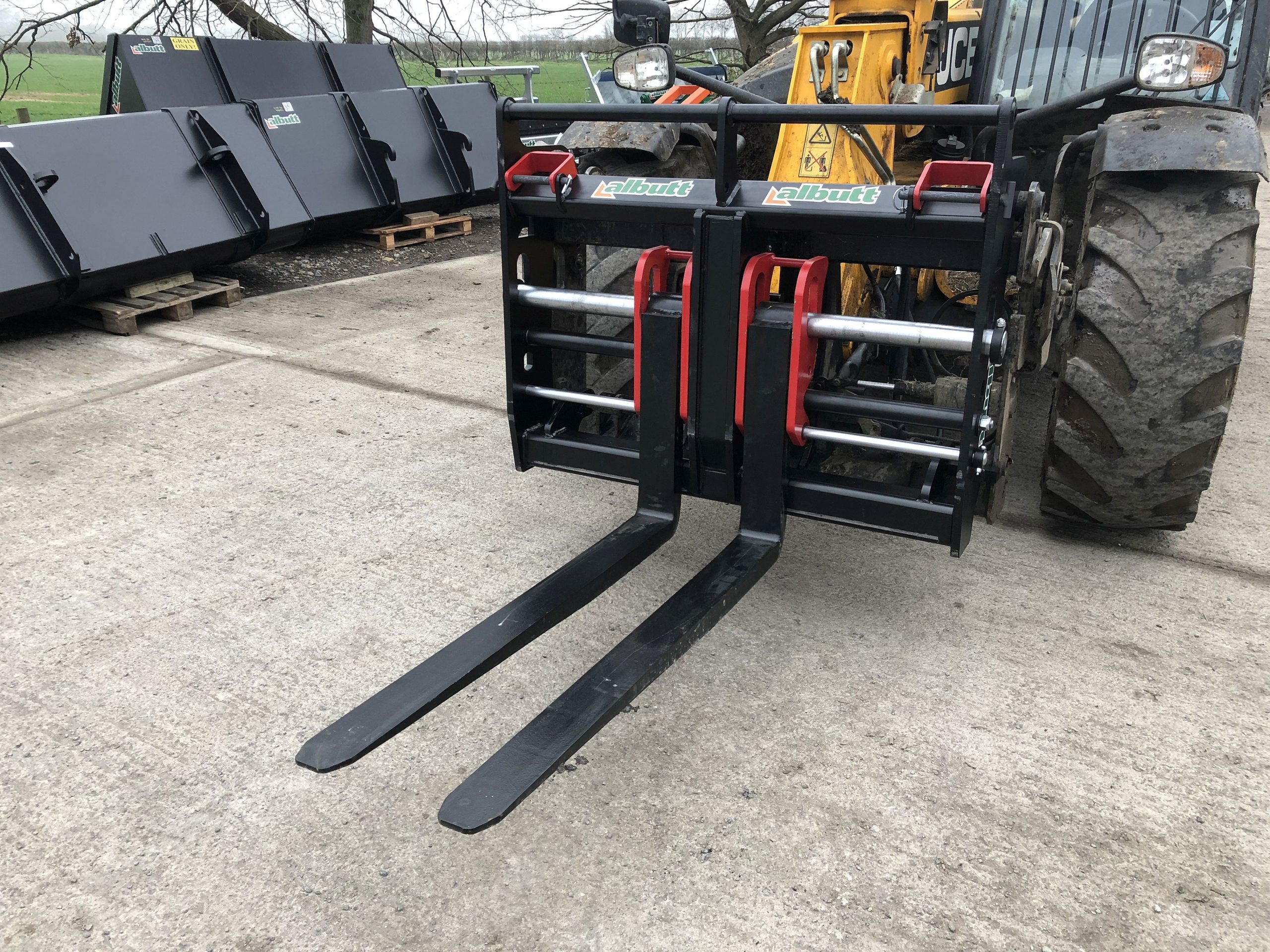

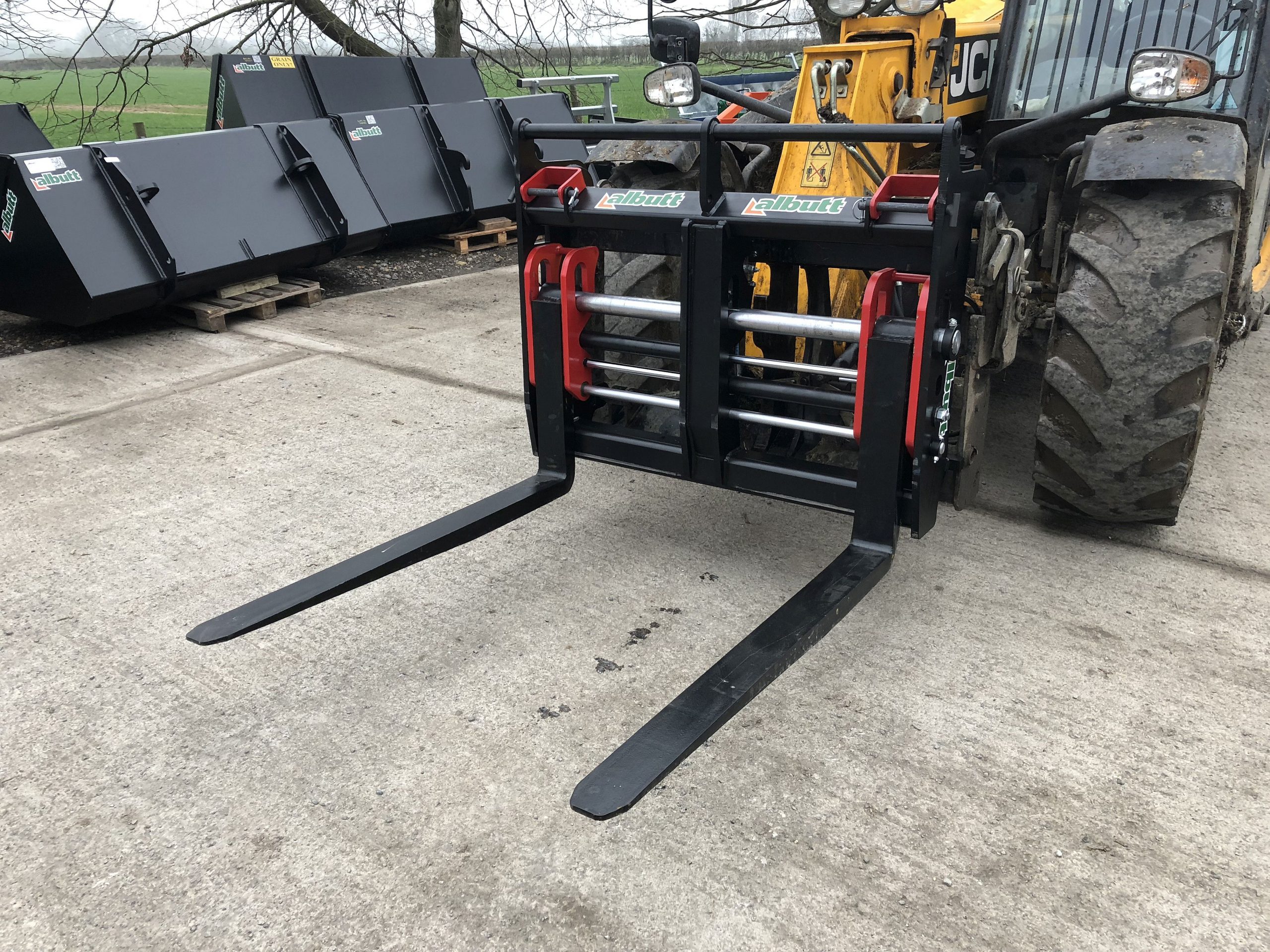

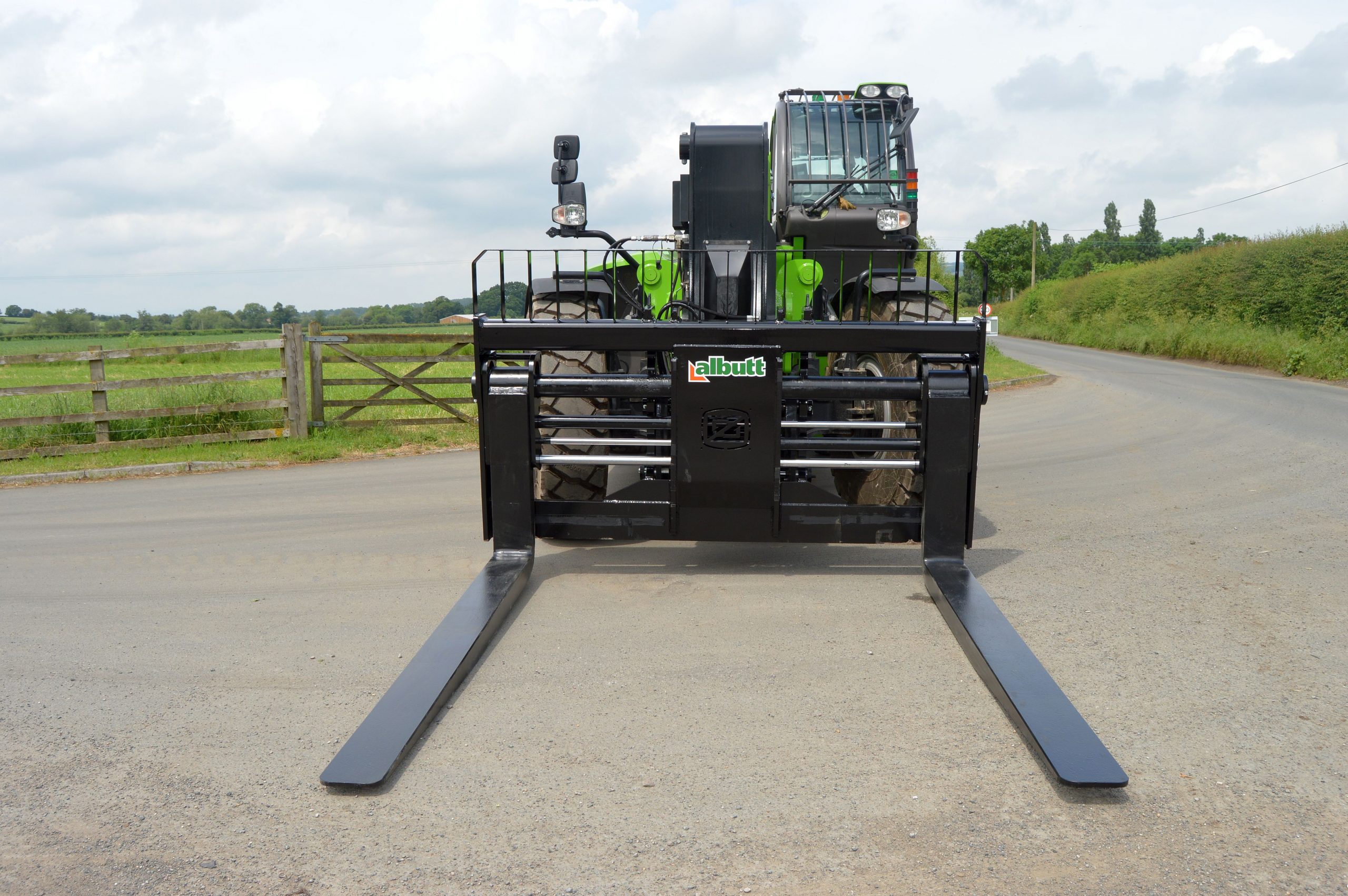

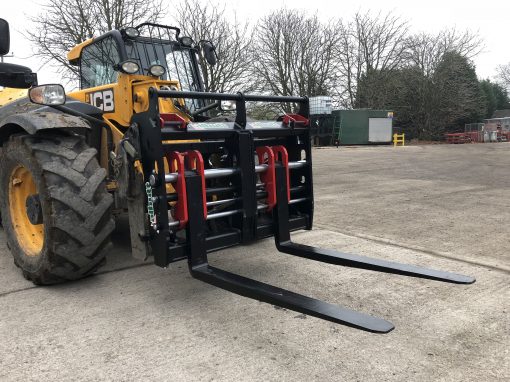

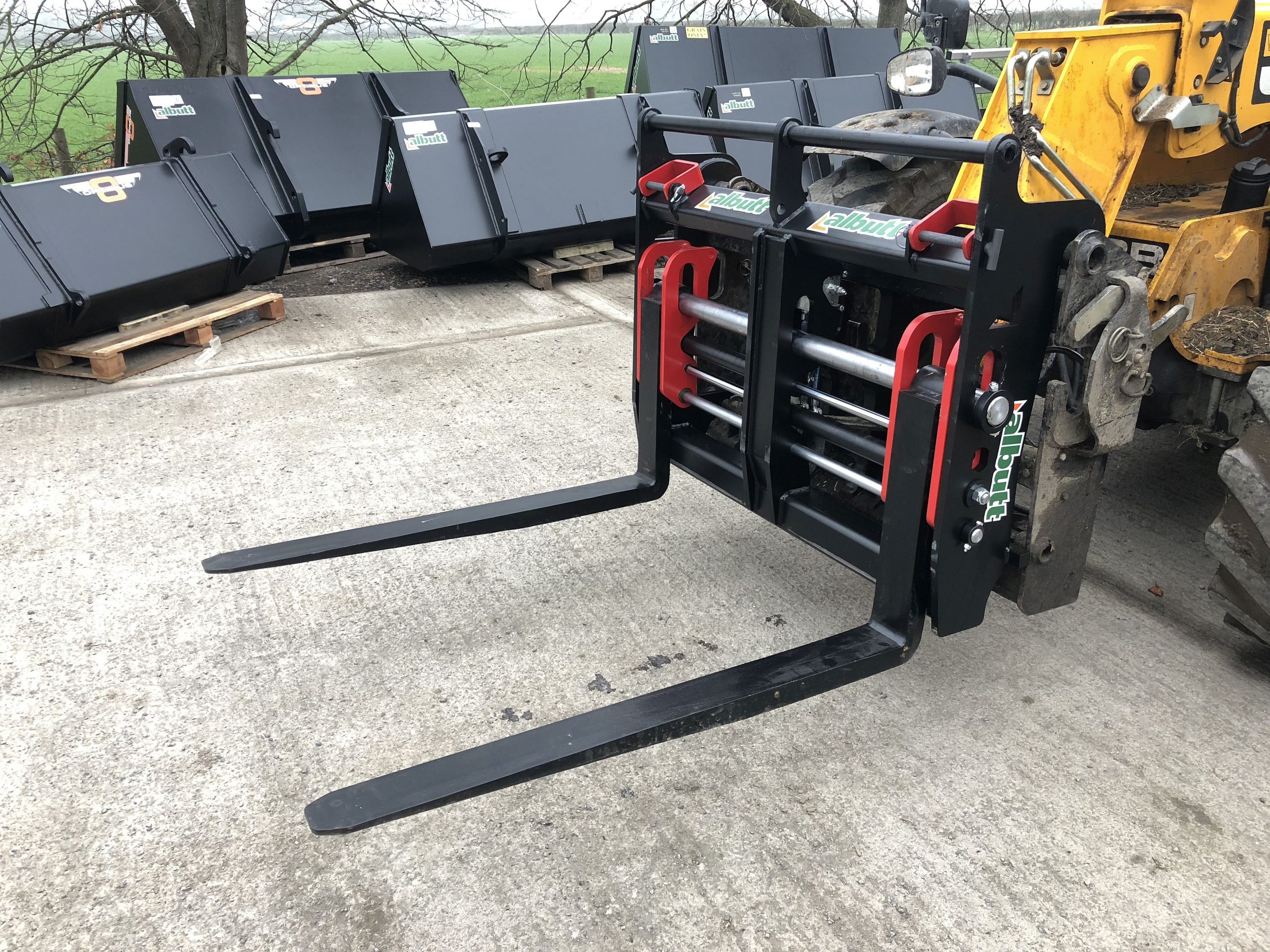

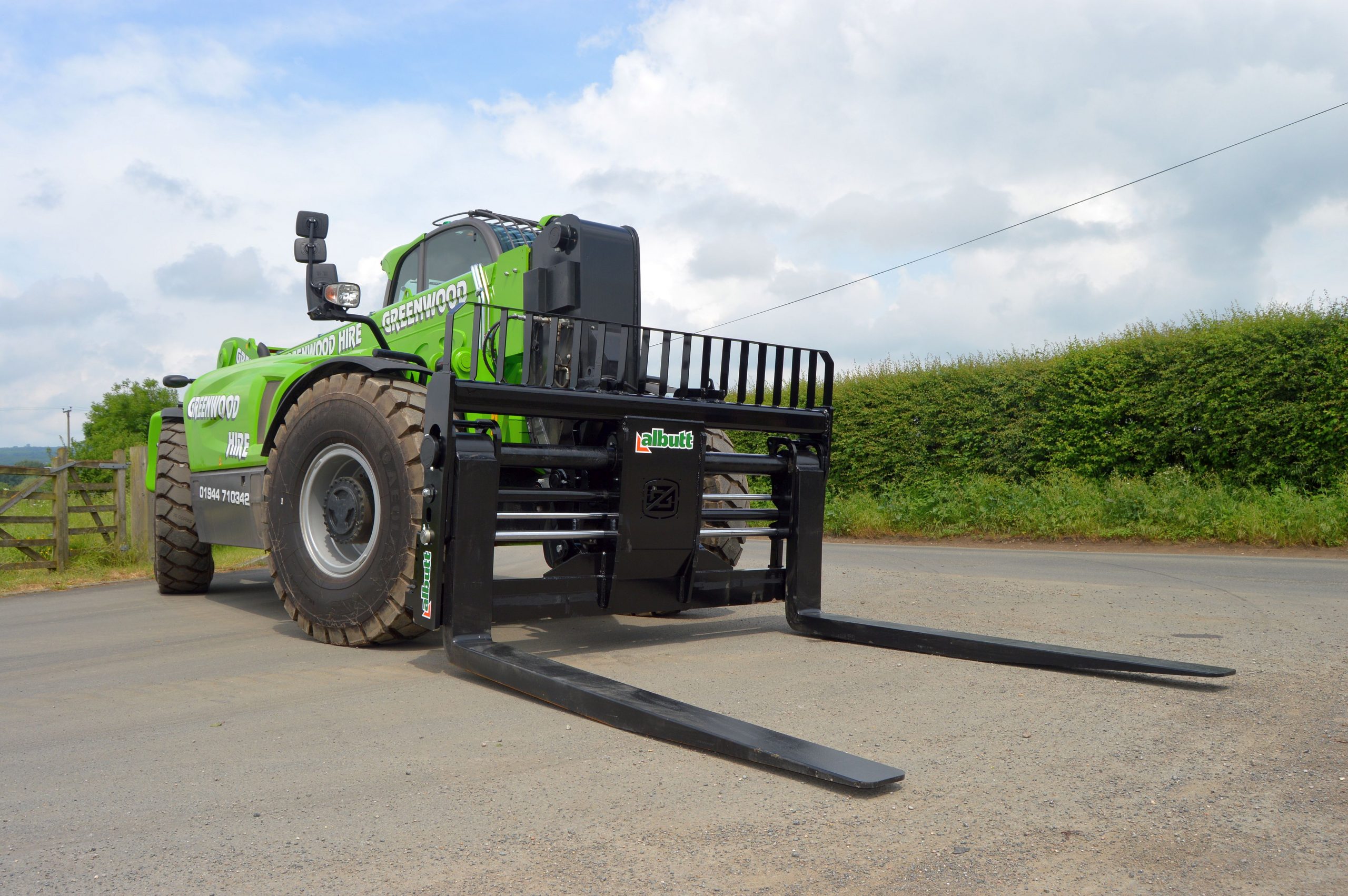

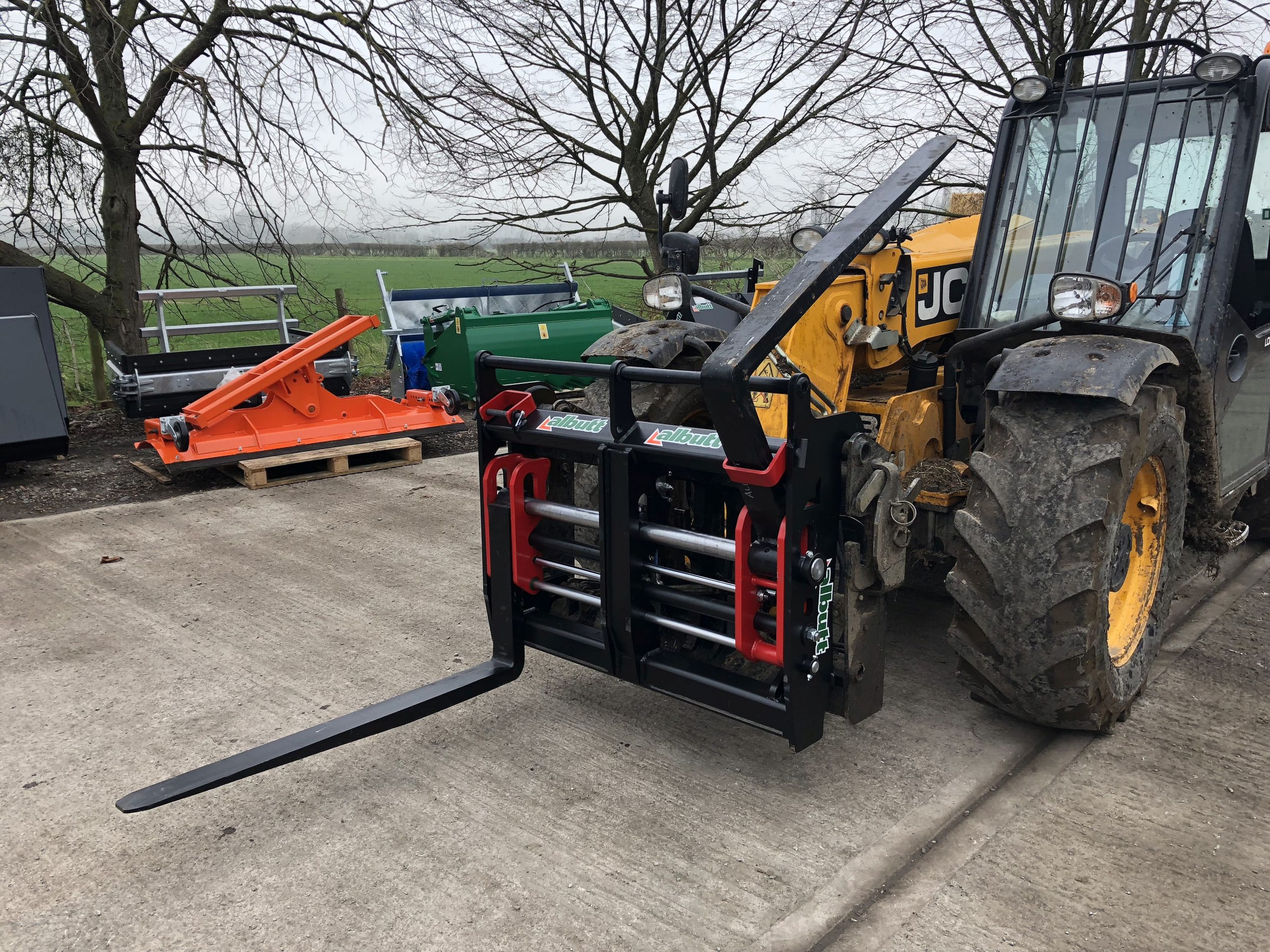

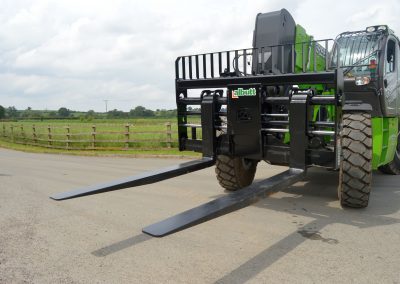

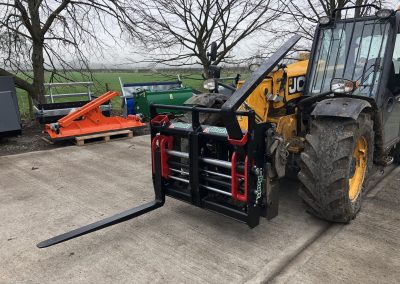

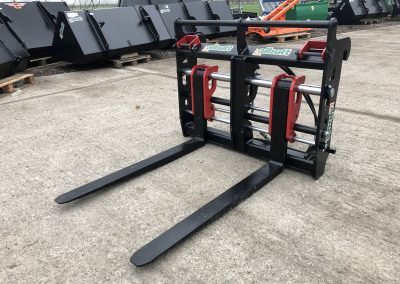

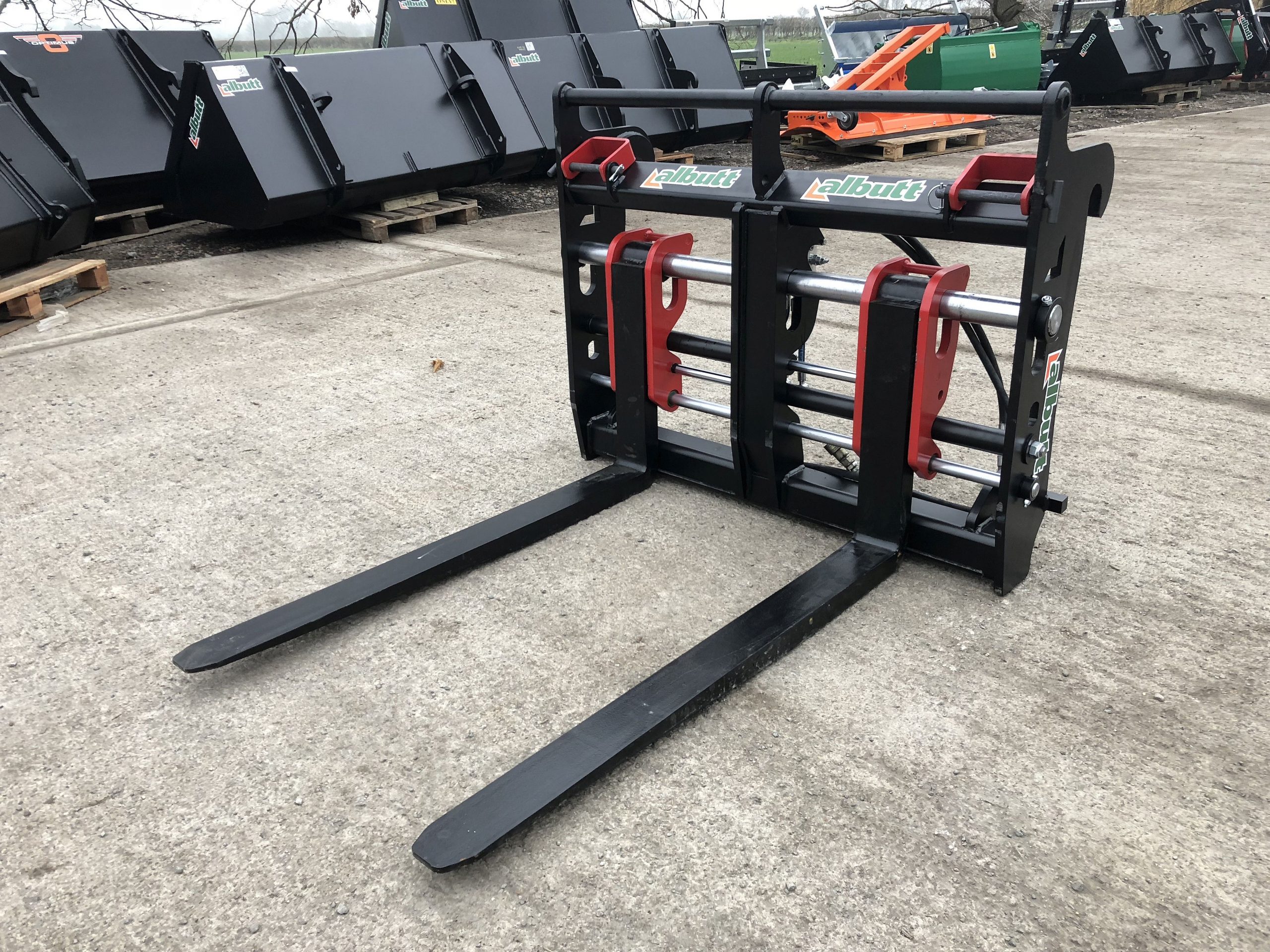

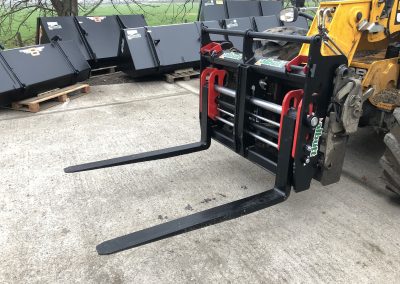

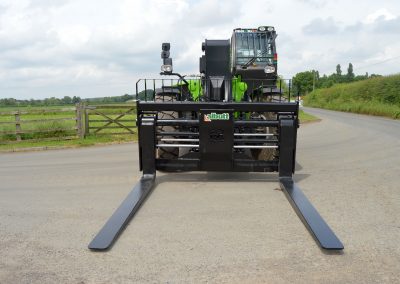

The Albutt Pallet Fork Positioner comes in 2 models. One simply allows the forks to move into the desired position and the second allows a side shift action to be achieved too. Ideal for construction sites, the fork positioner dramatically increases site efficiency by allowing the operator to stay in the comfort of the cab when moving various pallet sizes.

Both models comes with the Pallet Forks.



Features

  • Accurate fork positioning, control position of pallet forks from the cab.
  • Complete with pallet forks
  • Complete with side shift function
  • Excellent visibilty, strength and versatility
  • Move pallet forks when loaded (side shift function only)

Deluxe Models

DELUXE – Hydraulic spread; Fork Positioning & Side Shift
Model Fork Length Fork Width Fork Depth Max Fork Spread Capacity Weight
ADFP2900 1200mm 100mm 40mm 1200mm 2900kgs 185kgs
ADFP4100 1600mm 125mm 40mm 1600mm 4100kgs 375kgs
ADFP5800 1600mm 125mm 50mm 1600mm 5800kgs 455kgs
ADFP5800 1600mm 125mm 50mm 2000mm 5800kgs 520kgs
ADFP8400 1600mm 150mm 50mm 1600mm 8400kgs 615kgs
ADFP7000 1600mm 150mm 50mm 2000mm 7000kgs 640kgs
  • Operates from 3rd hydraulic serivce
  • Requires electric switch (not supplied) in cab to select fork positioning/side shift
  • Brackets included
  • Hoses not supplied

Standard Models

STANDARD – Hydraulic spread; No valve, Fork with least drag moves first. No side shift.
Model Fork Length Fork Width Fork Depth Max Fork Spread Capacity Weight
ASFP2900 1200mm 100mm 40mm 1200mm 2900kgs 185kgs
ASFP4100 1600mm 125mm 40mm 1600mm 4100kgs 375kgs
ASFP5800 1600mm 125mm 50mm 1600mm 5800kgs 455kgs
ASFP5800 1600mm 125mm 50mm 2000mm 5800kgs 520kgs
ASFP8400 1600mm 150mm 50mm 1600mm 8400kgs 615kgs
ASFP7000 1600mm 150mm 50mm 2000mm 7000kgs 640kgs
  • Operates from 3rd hydraulic serivce
  • Brackets included
  • Hoses not supplied
