Pallet Fork Carriage

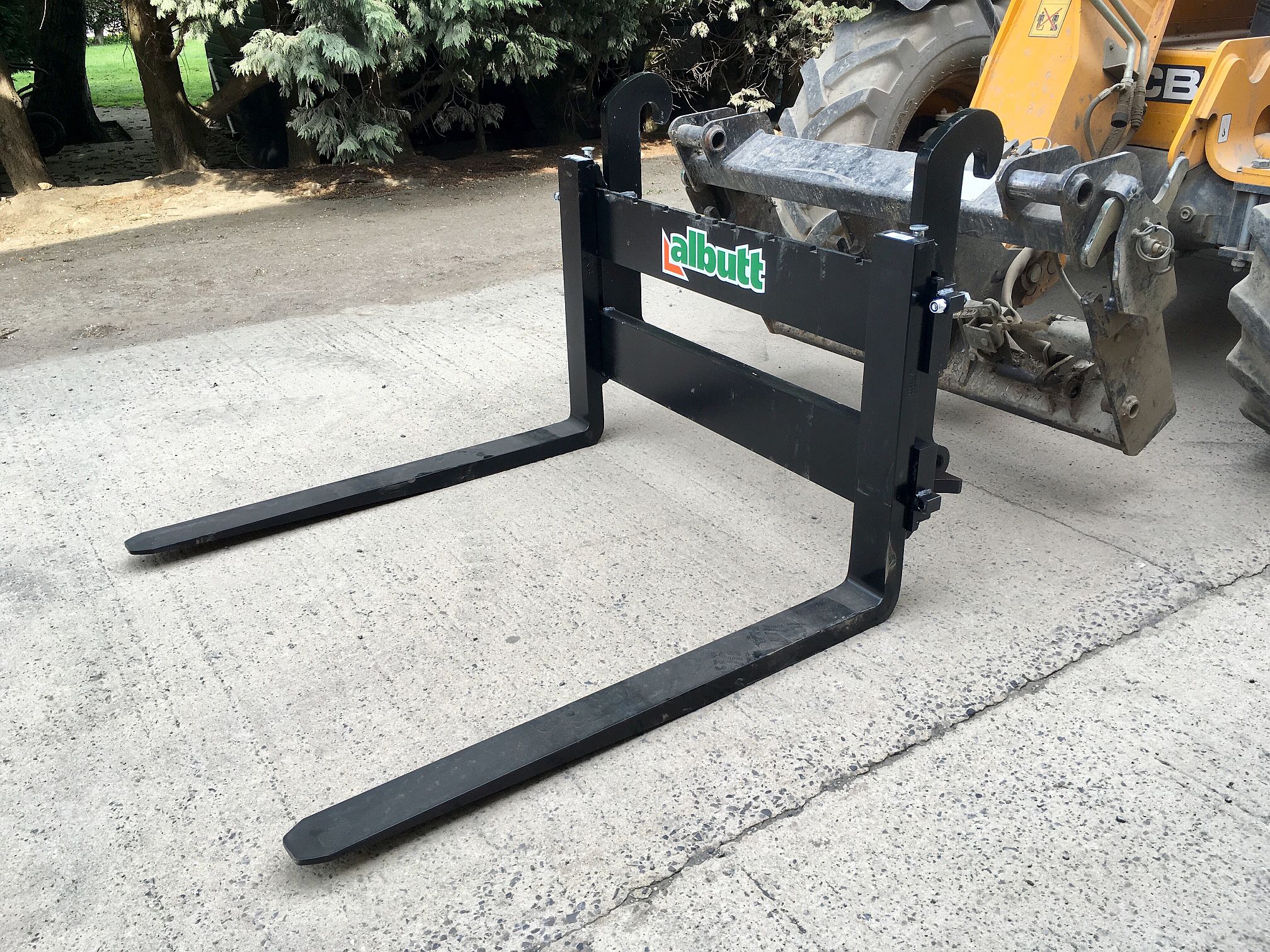

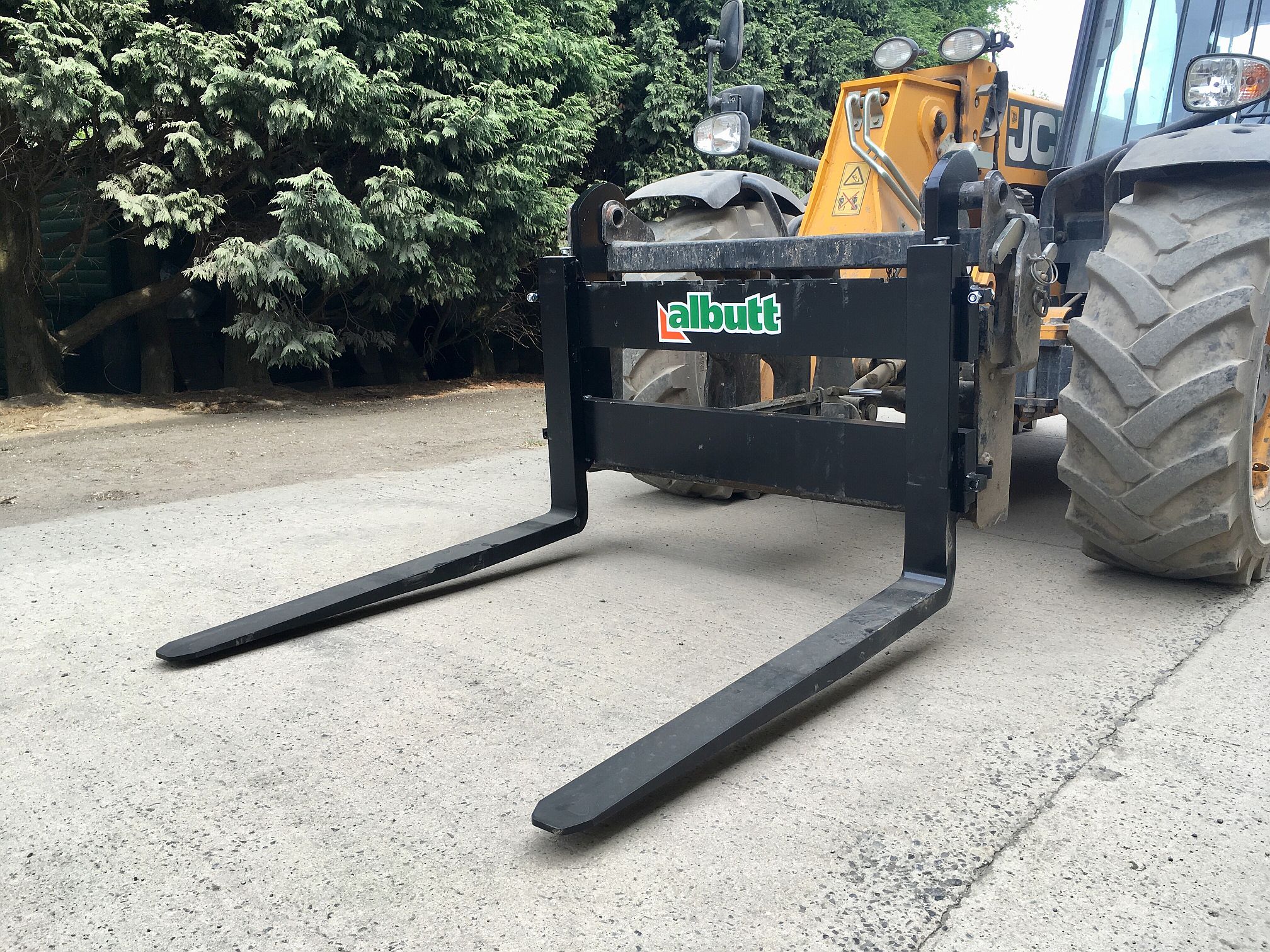

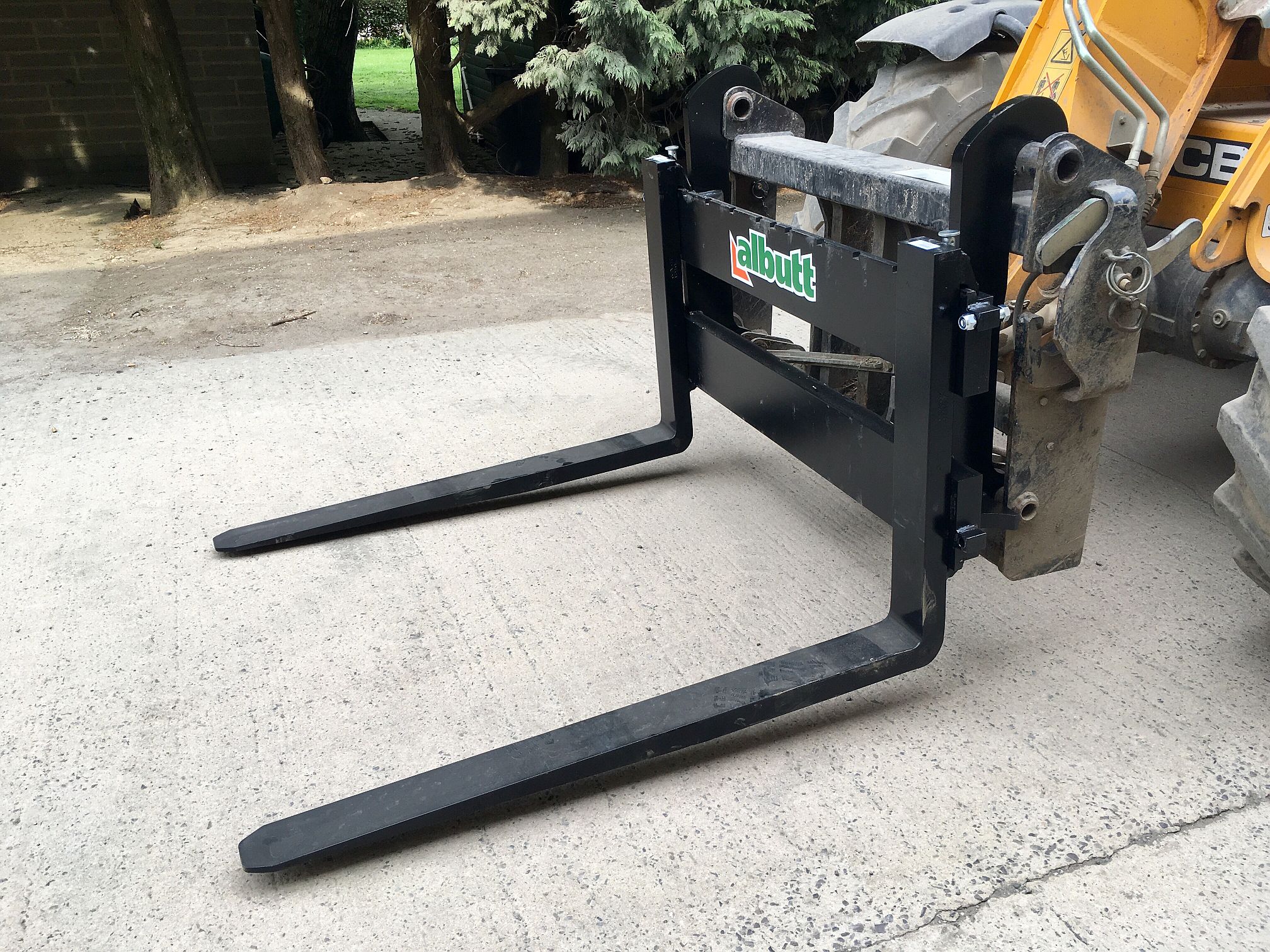

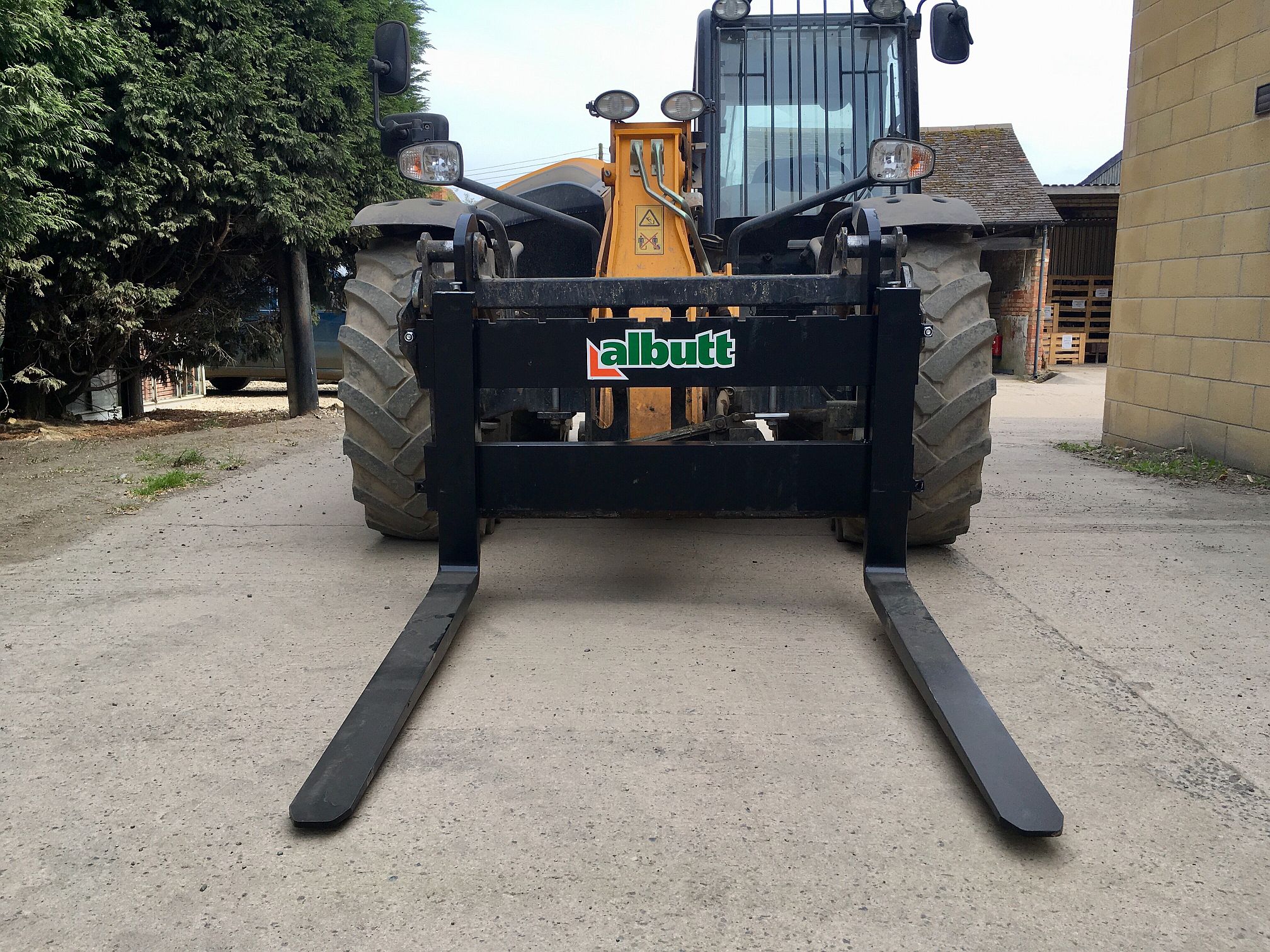

ITA Pallet Fork Carriage with Forks

The ITA castellated type carriage and forks allows loads of 1.5 tonne to 6 tonne to be moved depending on model. The forks can be moved across the carriage by lifting a latch and locking them in the desired position. All models are supplied with mounting brackets to suit your prime mover. The rails of the carriage are manufactured using high grade steel.



Features

  • Complete with pallet forks – ITA/FEM – 1220mm long
  • Complete with attachment brackets
  • Pallet forks can be postioned horizontally
  • Pallet forks secured with spring loaded plungers
  • Heavy duty design with high grade materials
  • Available with optional load guard

Models

Model Lift Capacity Class / ITA
P100PF 1.0 Tonne 2
P150PF 1.5 Tonne 2
P200PF 2.0 Tonne 2
P250PF 2.5 Tonne 2
P340PF 3.4 Tonne 3
P420PF 4.2 Tonne 3
P600PF 6.0 Tonne 4
