JCB Teletruk Buckets

The Albutt range of JCB Teletruk buckets have been designed beside a Teletruk machine to provide users with the correct attachment for their requirements. The range is made up of the standard bucket, the high tip bucket and the bucket grab. Each model is over engineered to give a heavy duty bucket option for your Teletruk machine. All models encorporate a boron 500 weld on toe plate for added strength across the front edge.



Ranges

  • Rehandling Bucket
  • Grab Bucket
  • High Tip Bucket

Features

  • Boron 500 weld on toe plates
  • Available with quick release brackets (class 2 or 3) or changeeze bracket style
  • Quick release bracket incorporates unique spring lock system
  • Suitable for a variety of applications
  • Designed alongside a JCB Teletruk machine
  • Crowd/Dump bias options available
  • Optional Bolt on reversible toe plate on all models
  • Optional mesh infill on bucket grab

Models

Rehandling Buckets

Model Width Capacity Height Depth Weight Crowd/ Dump Bias
A037-60CB 1.83 m 1.00 m3 840 mm 1,050 mm 340 kgs Crowd
A037-60DB 1.83 m 1.00 m3 820 mm 965 mm 320 kgs Dump
A025-50CB 1.52 m 0.70 m3 760 mm 955 mm 260 kgs Crowd
A021-43CB 1.30 m 0.60 m3 760 mm 955 mm 240 kgs Crowd

Bucket Grab

Model Width Capacity Height Depth Weight Crowd/ Dump Bias
A038-51BG 1.55m 1.08m3 786mm 1.010mm 540 kgs N/A

High Tip Bucket

Model Width Capacity Height Depth Weight Crowd/ Dump Bias
A028-50HT 1.52 m 0.80 m3 920 mm 1,050 mm 480 kgs N/A

Want to know more? Request a call back from a member of our Sales Team

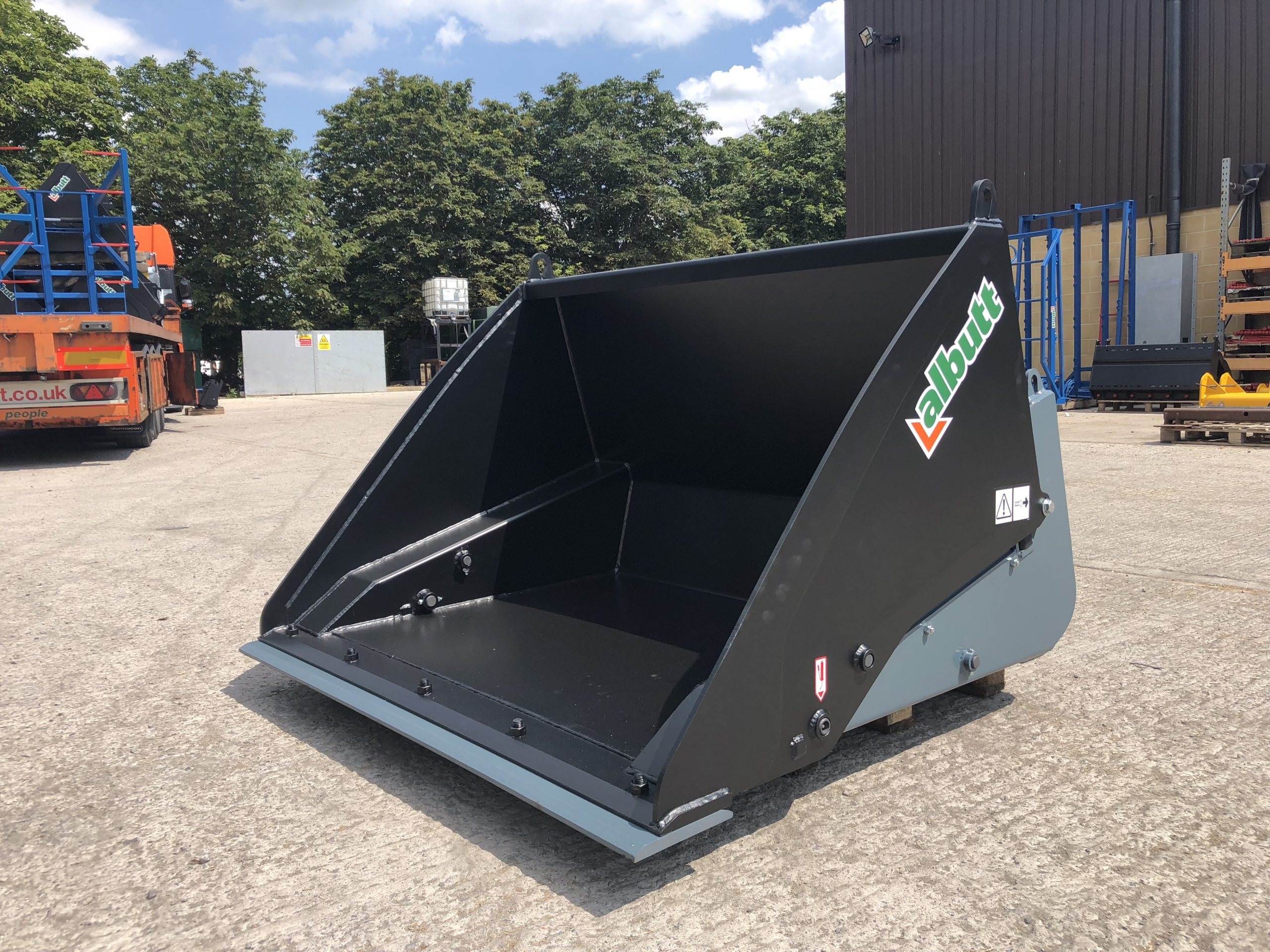

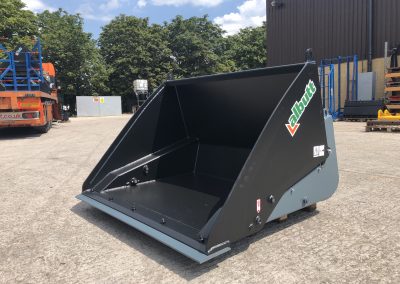

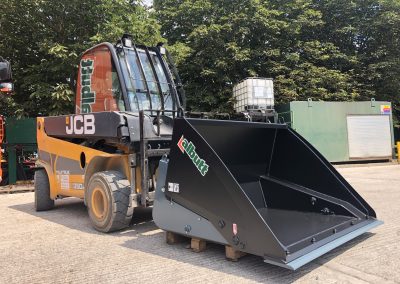

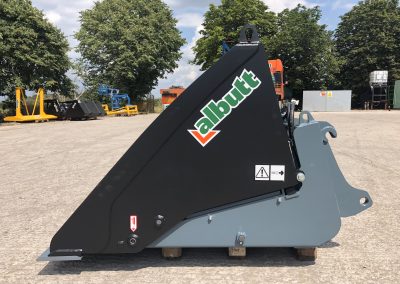

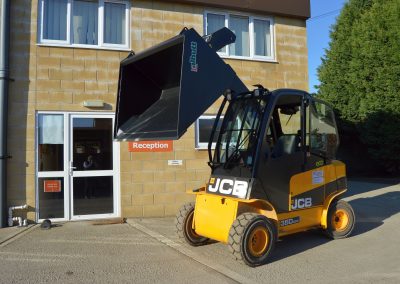

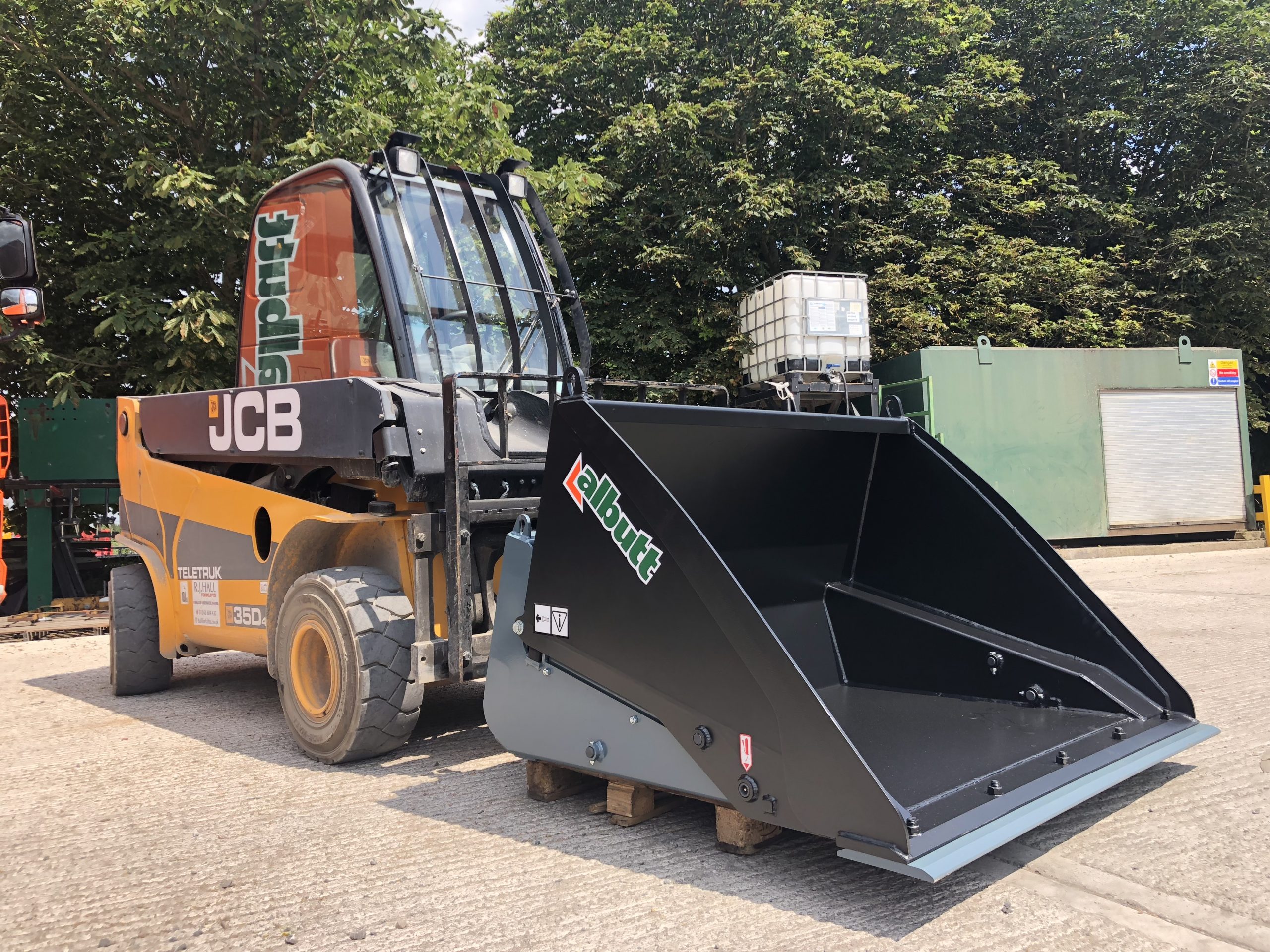

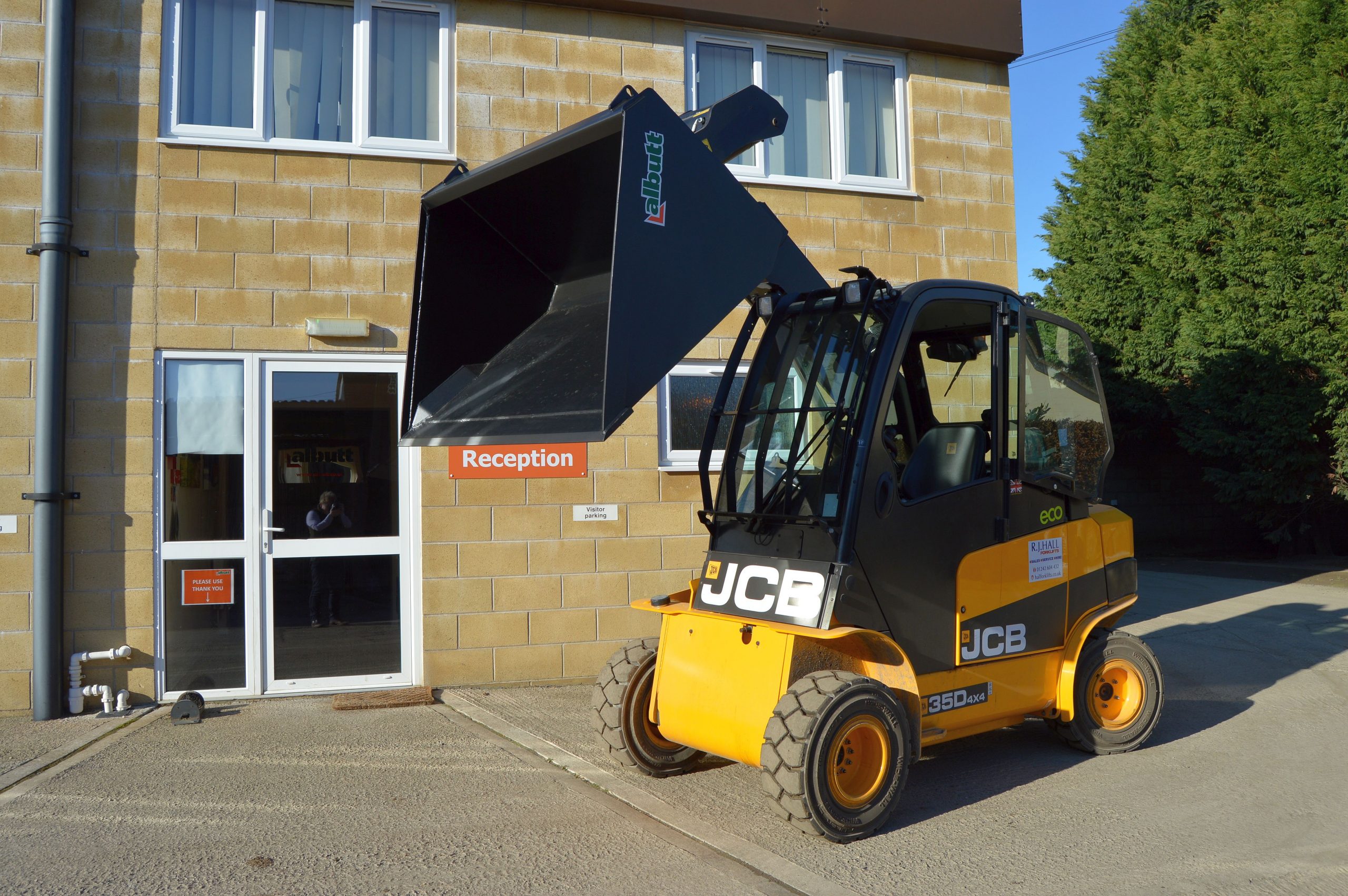

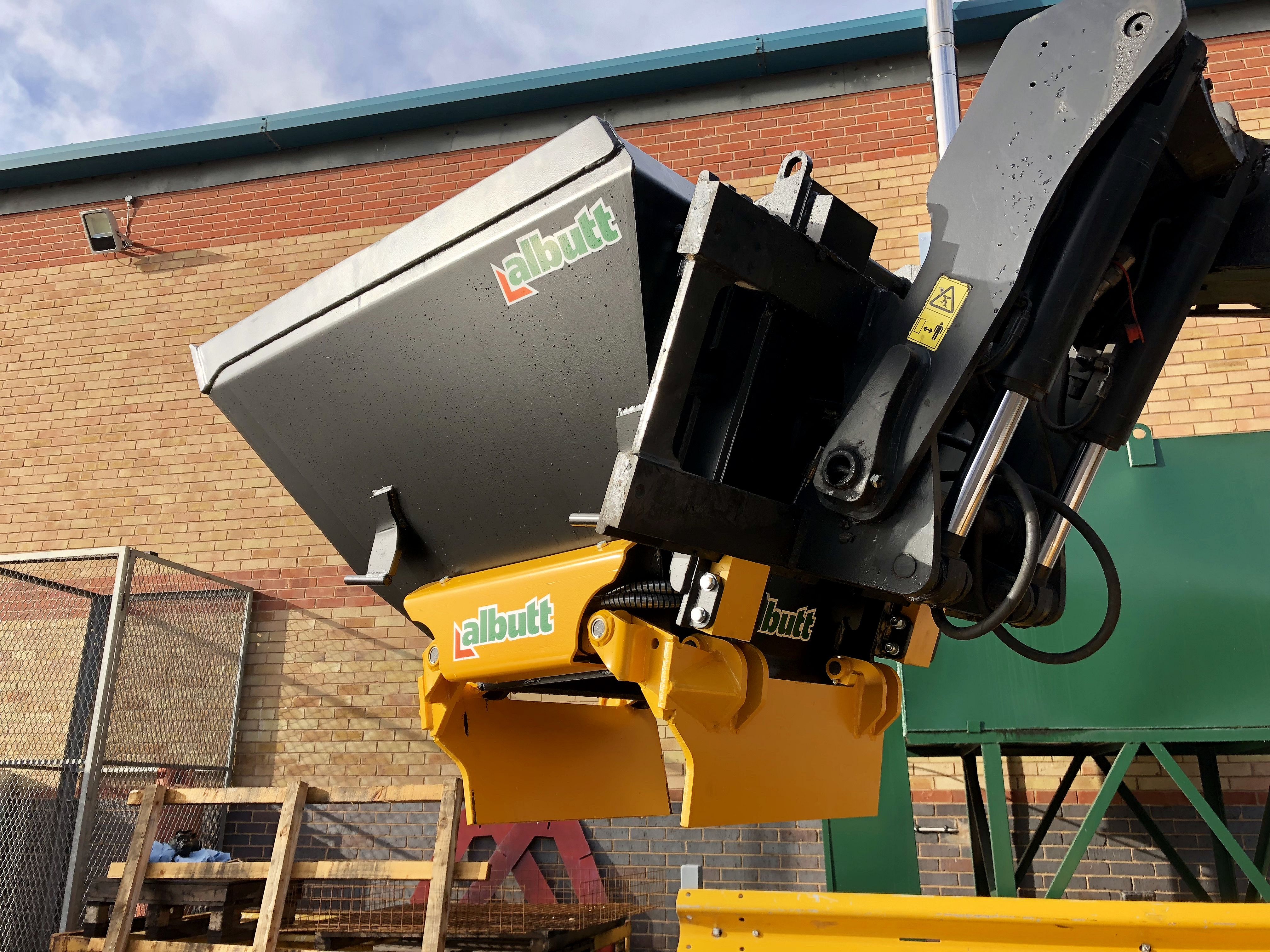

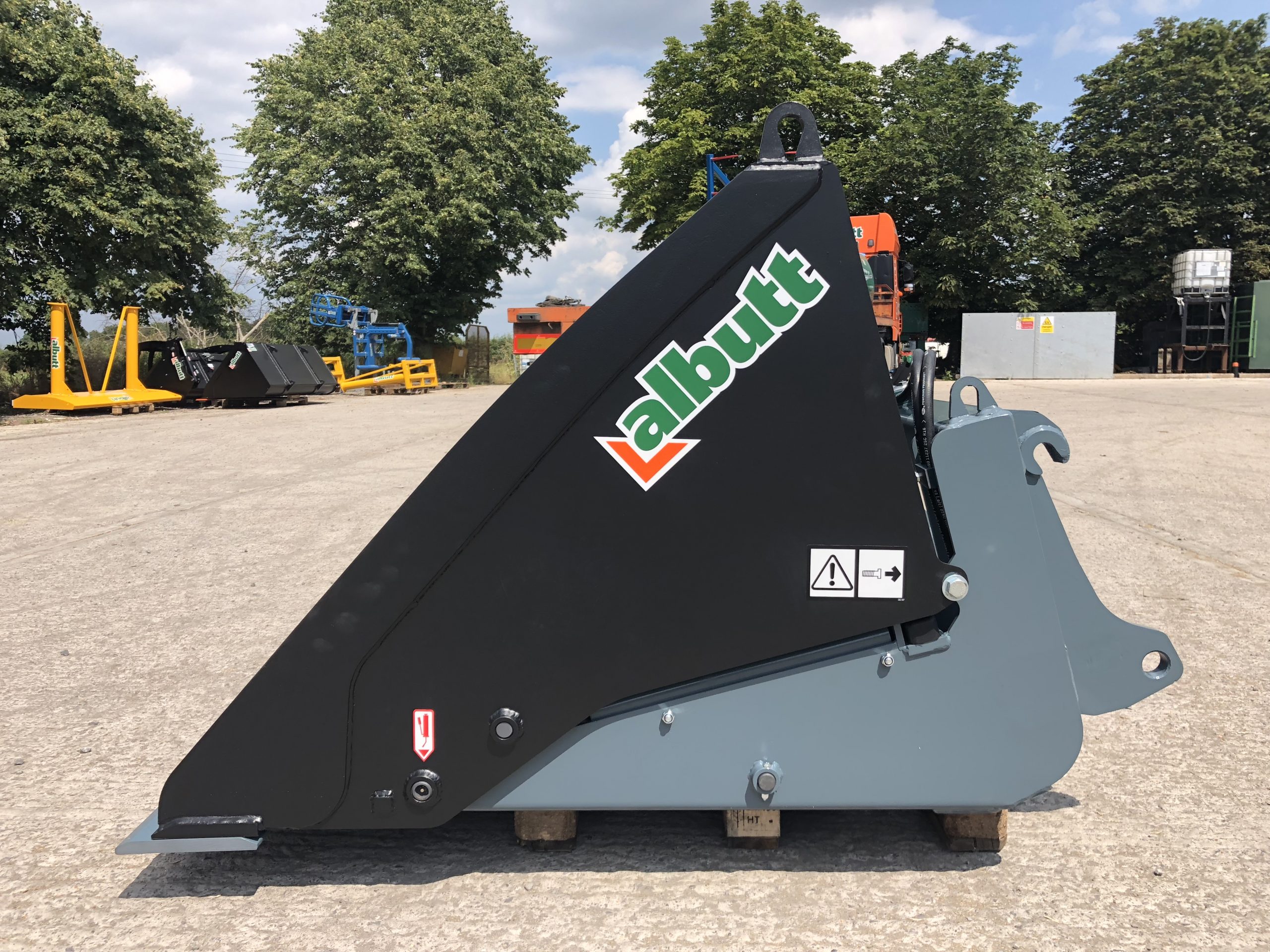

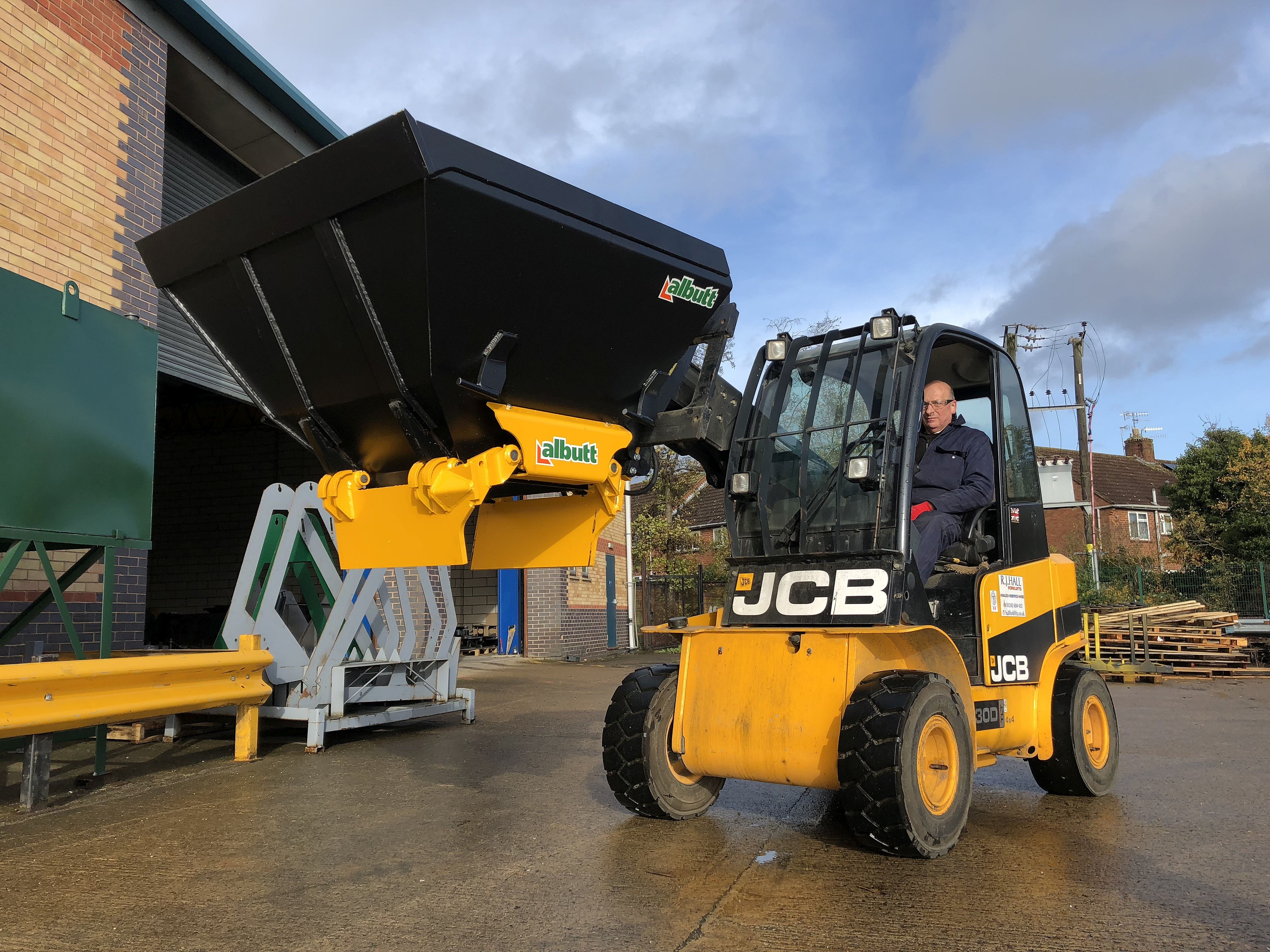

JCB Teletruk High Tip Buckets

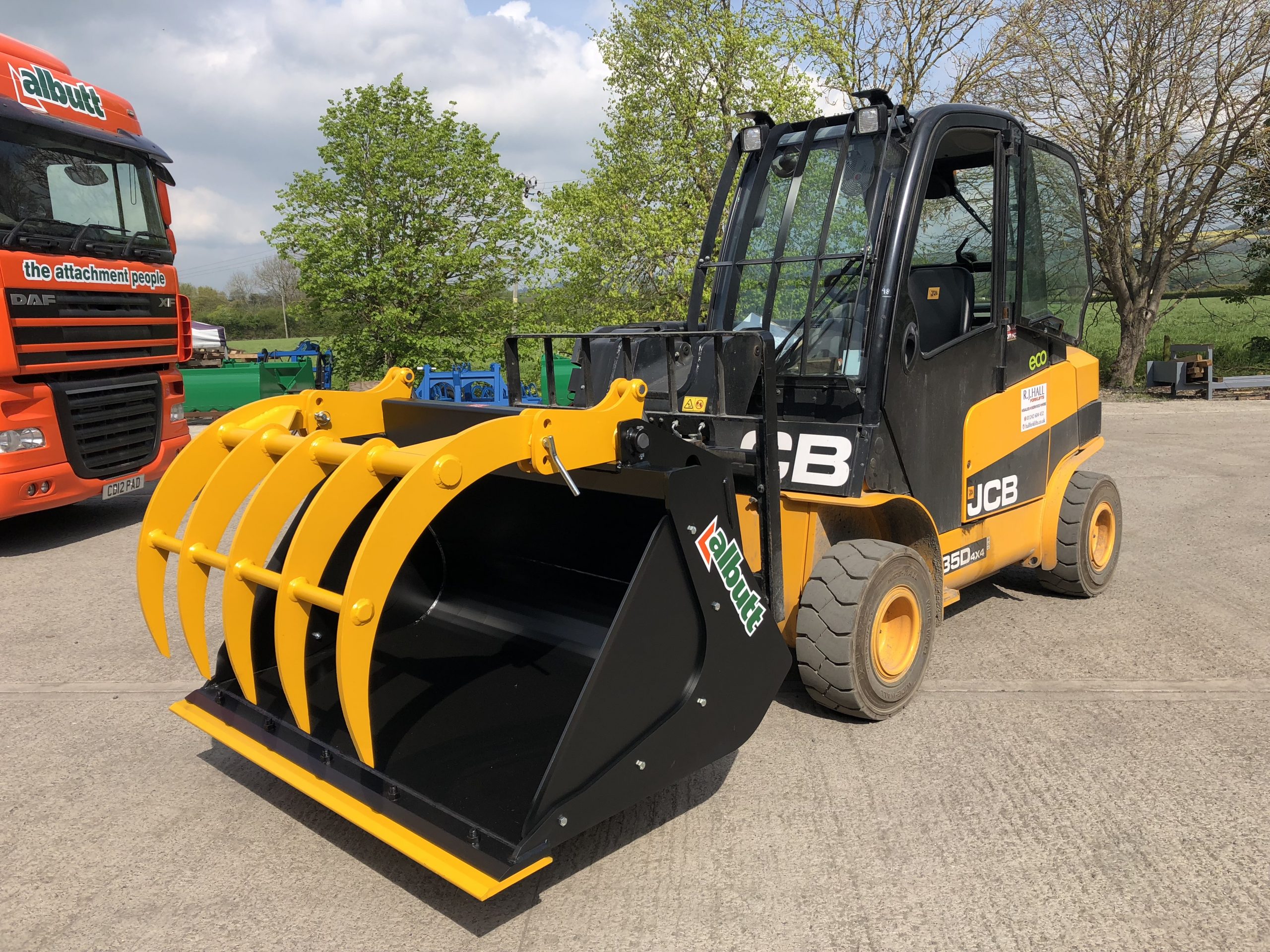

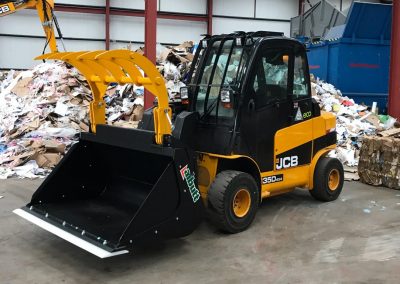

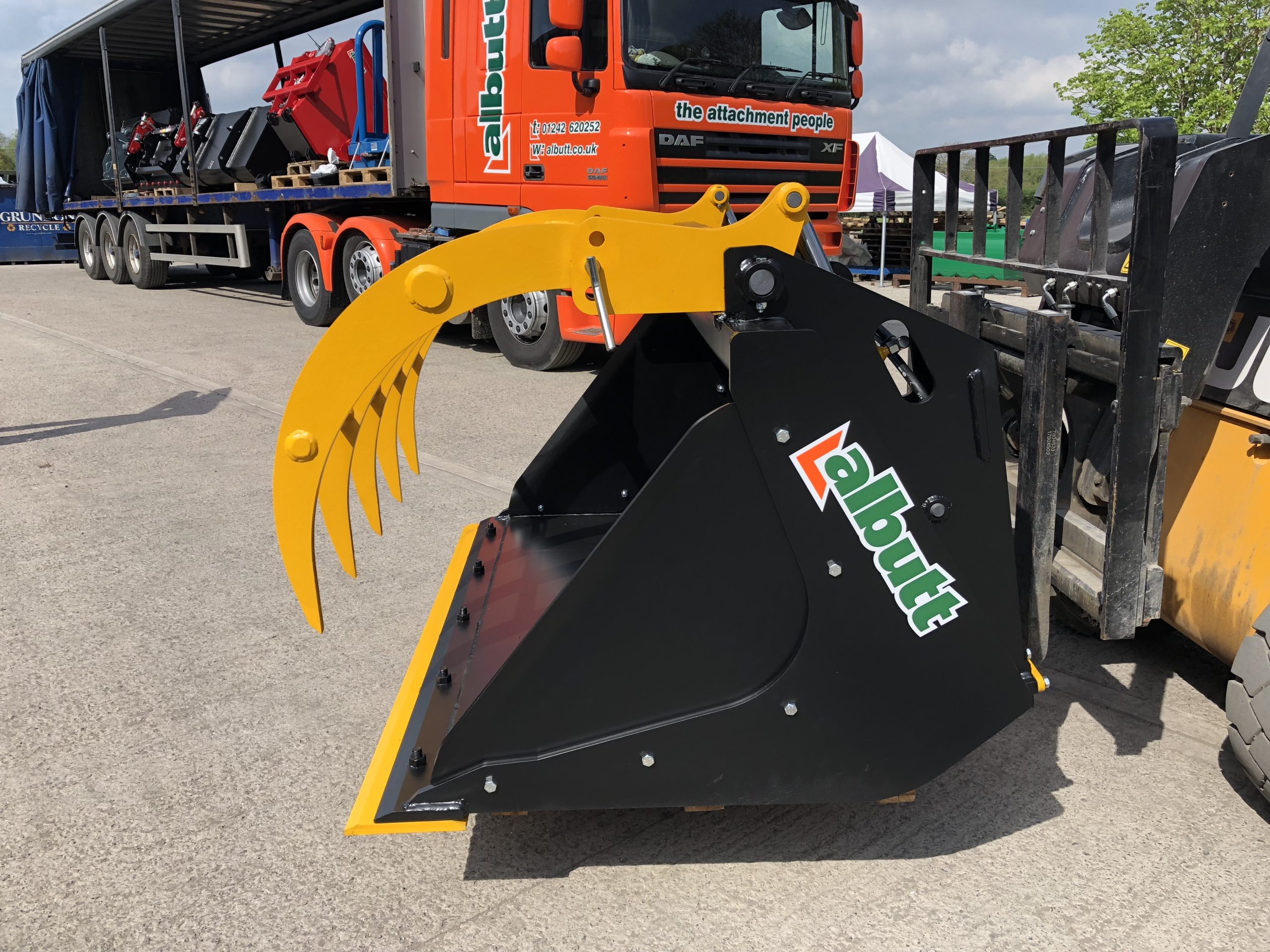

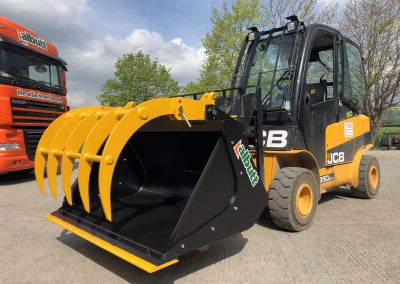

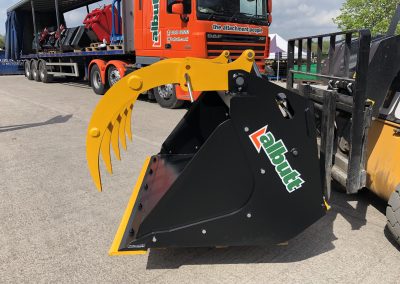

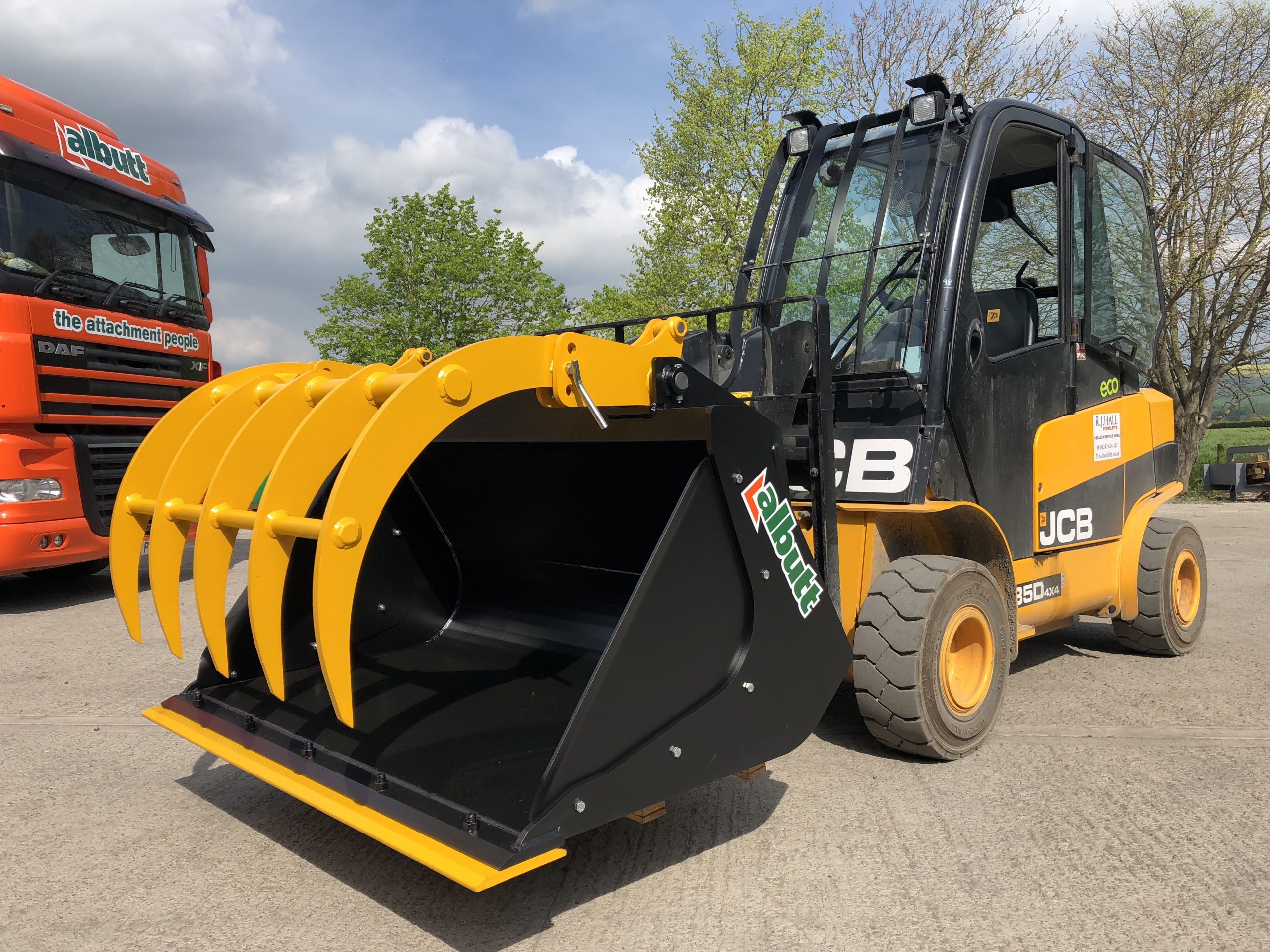

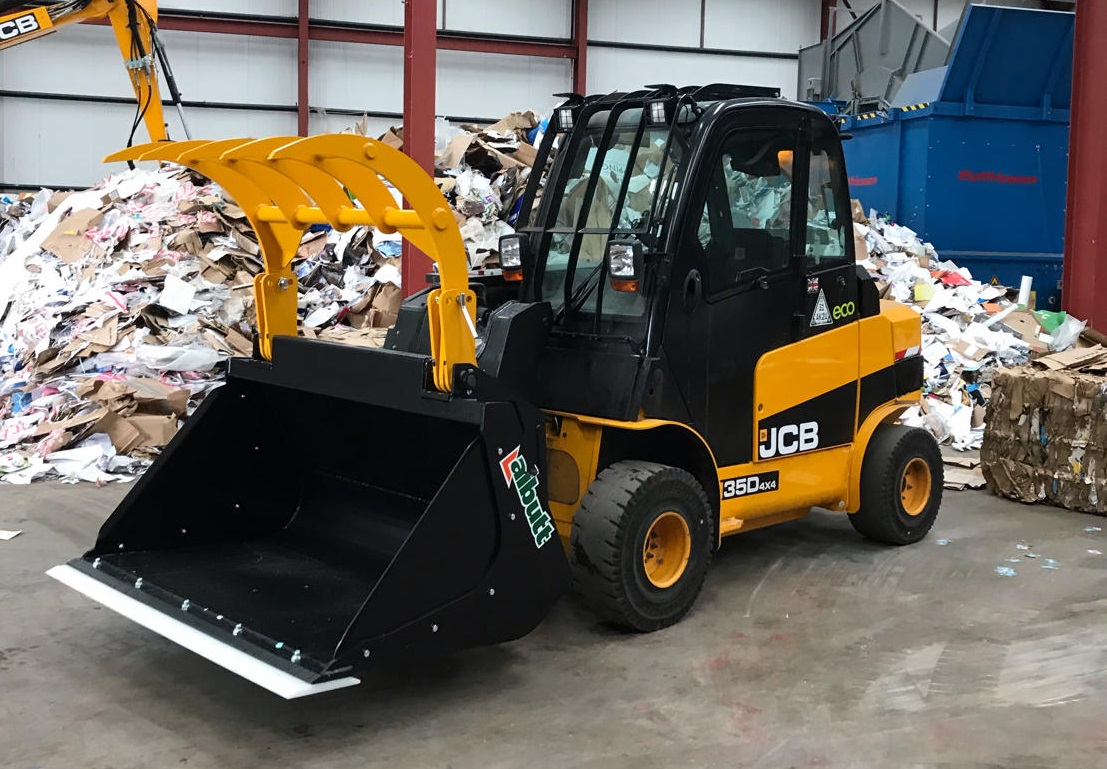

JCB Teletruk Bucket Grabs (red grab shows optional mesh infill)

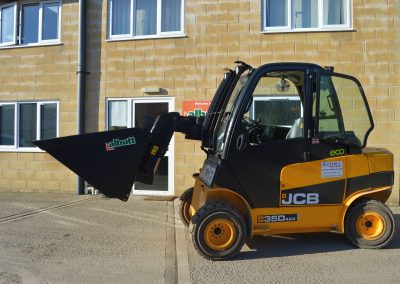

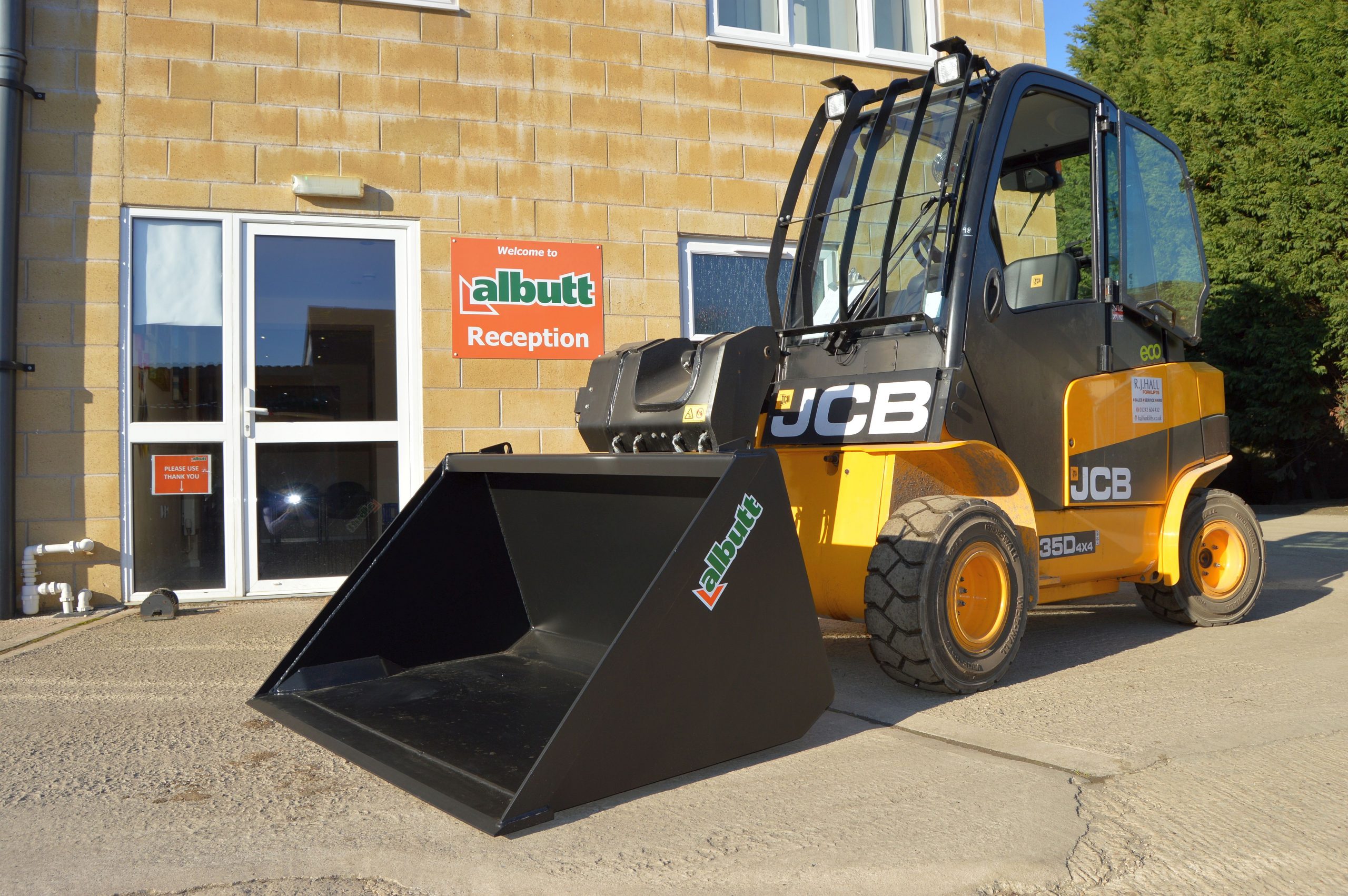

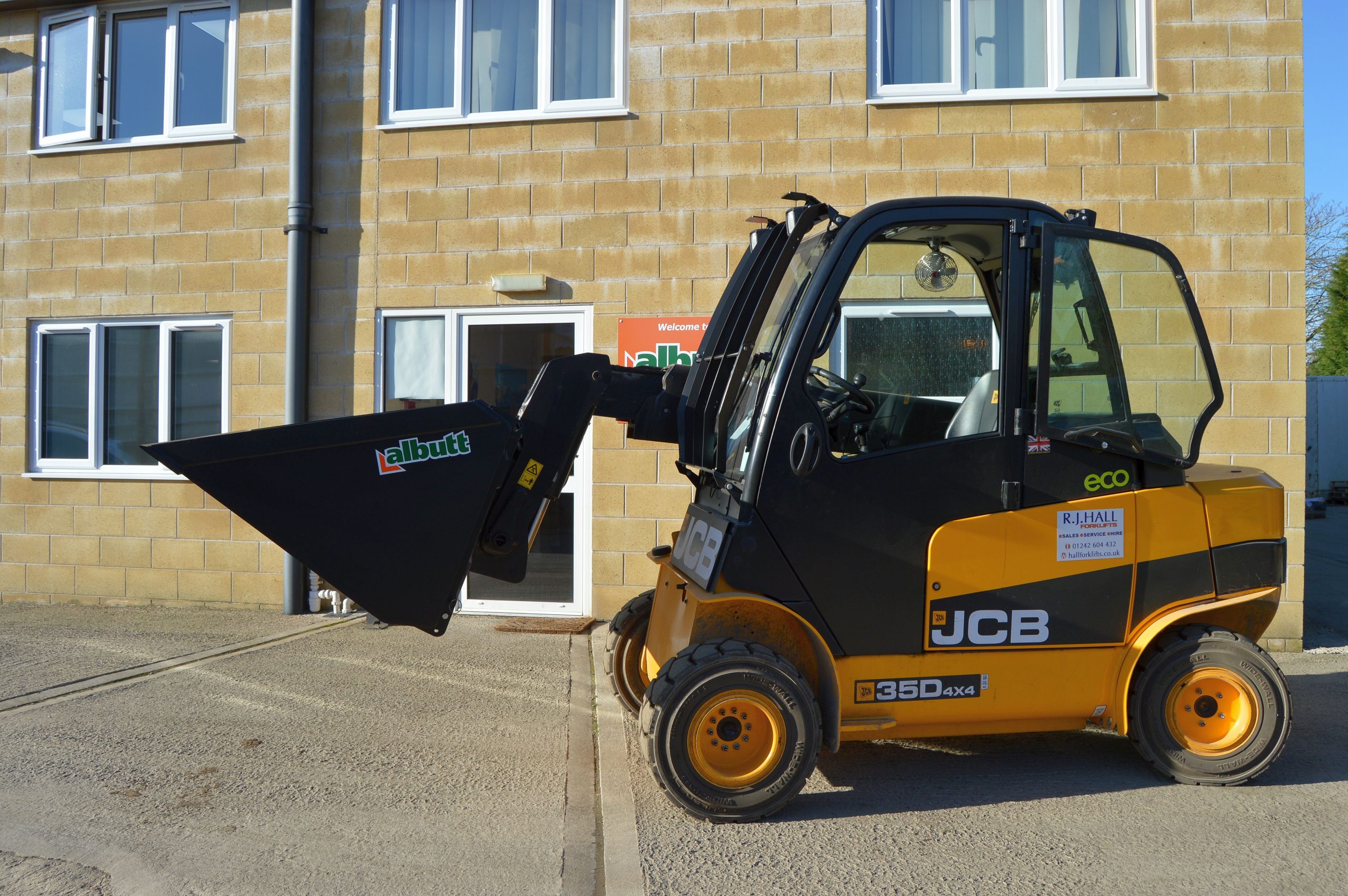

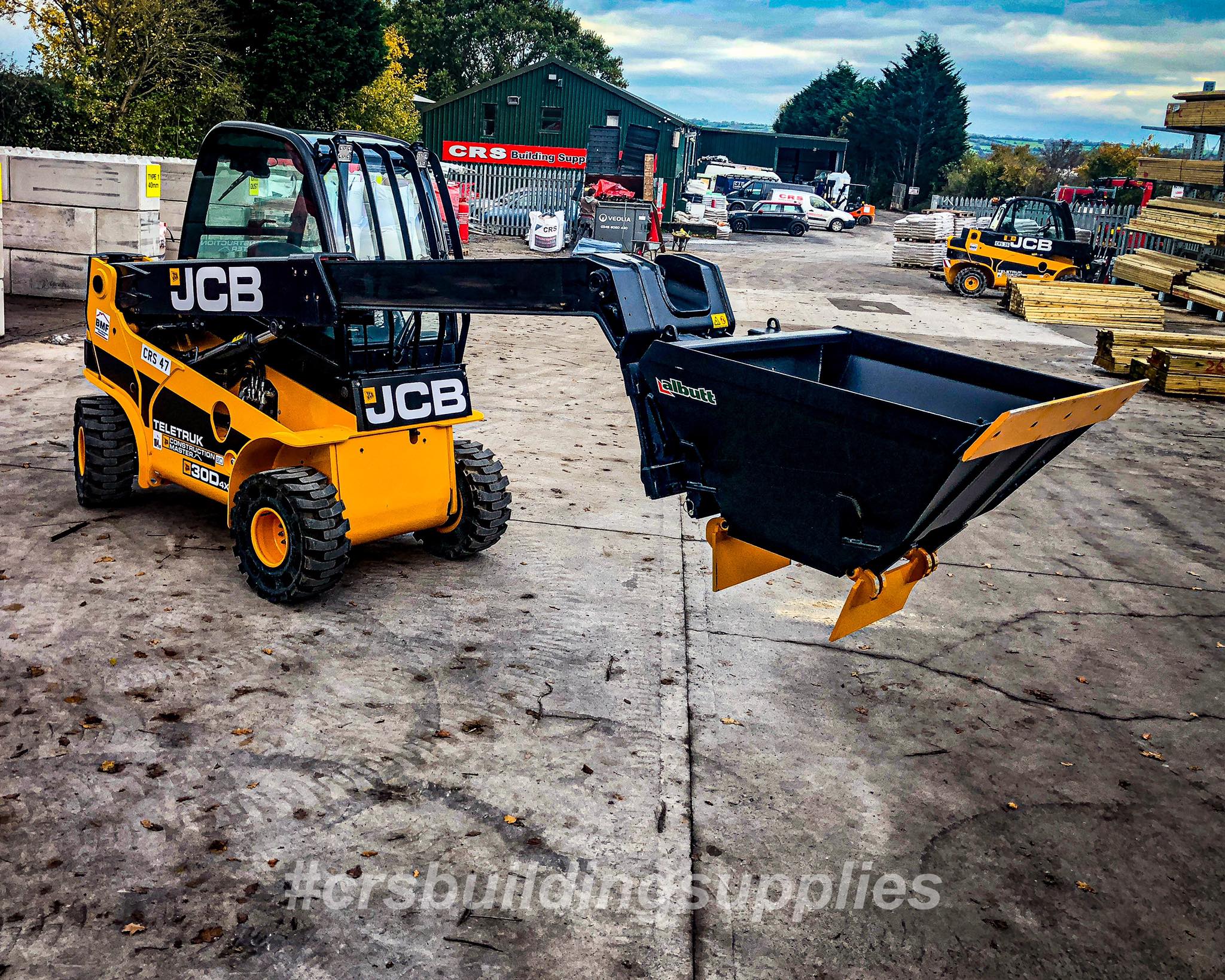

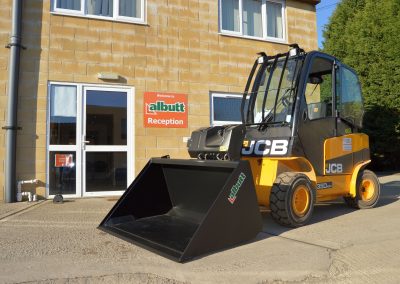

JCB Teletruk GP Buckets
