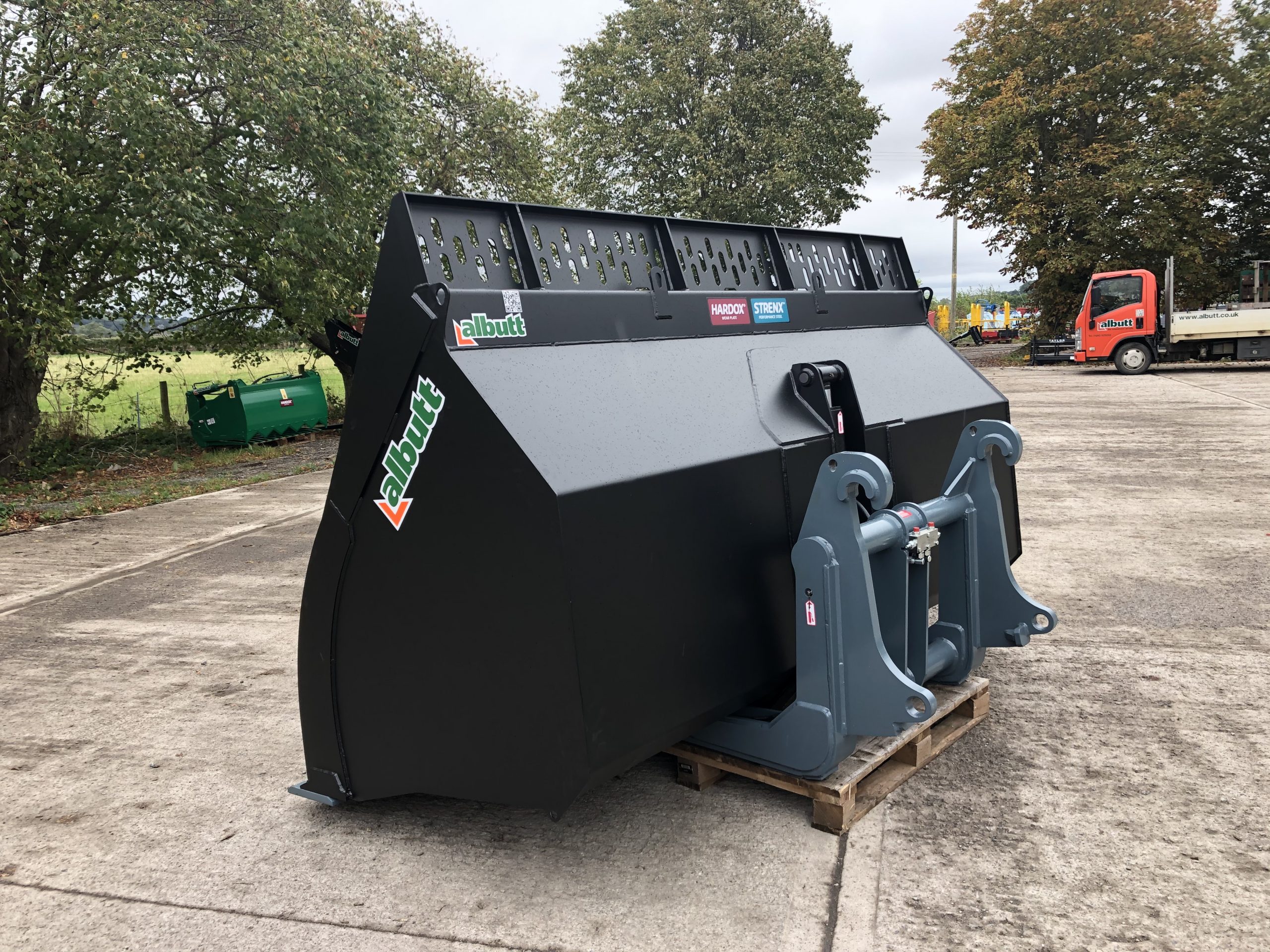

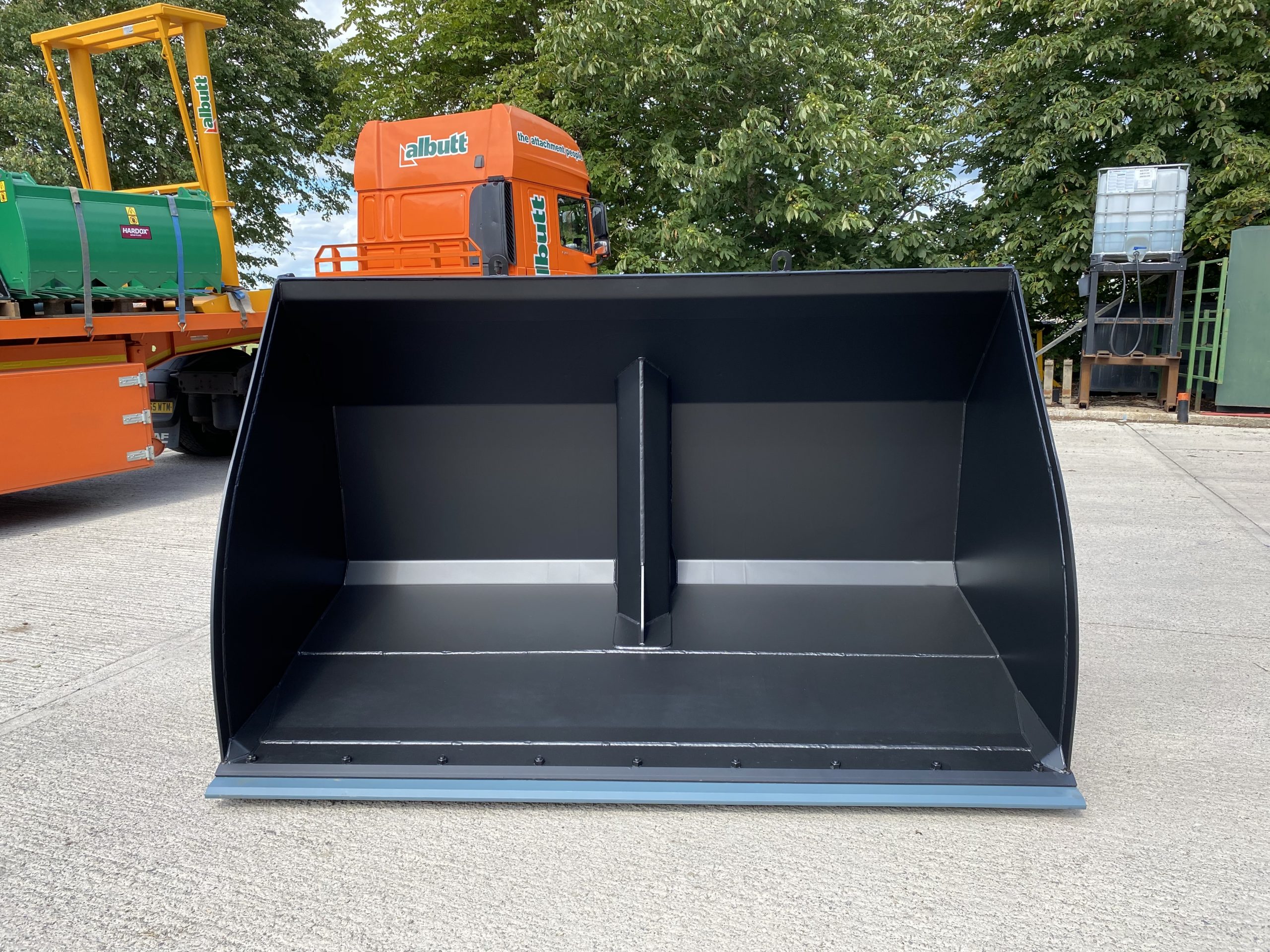

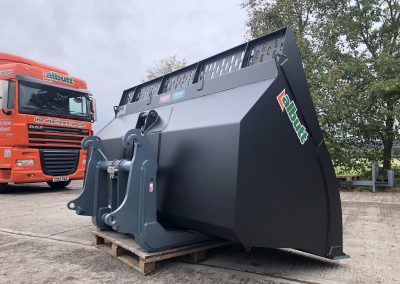

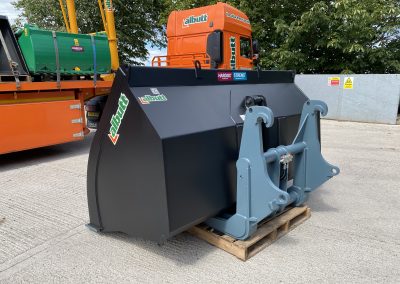

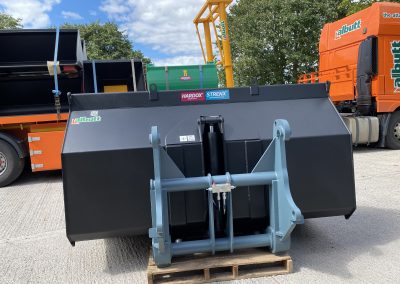

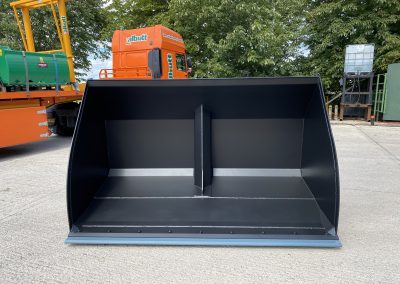

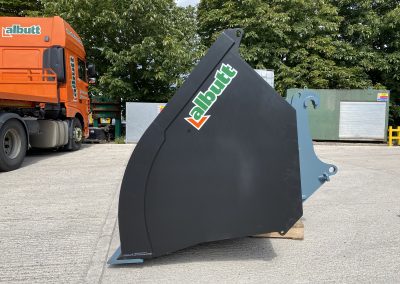

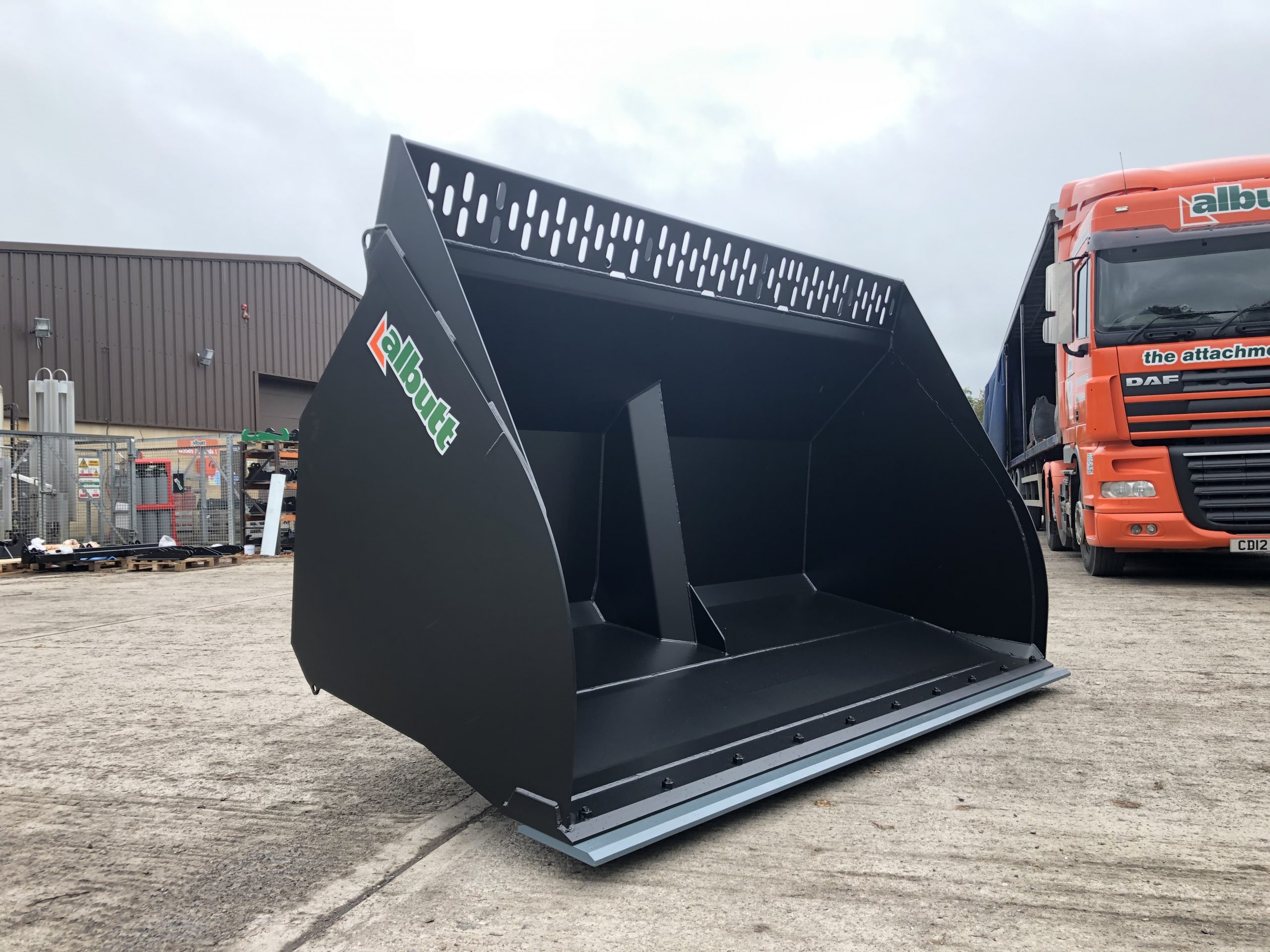

Albutt XL High Tip Bucket
Albutt XL High Tip BucketAlbutt XL High Tip BucketAlbutt XL High Tip Bucket

High Tip Buckets – XL Range

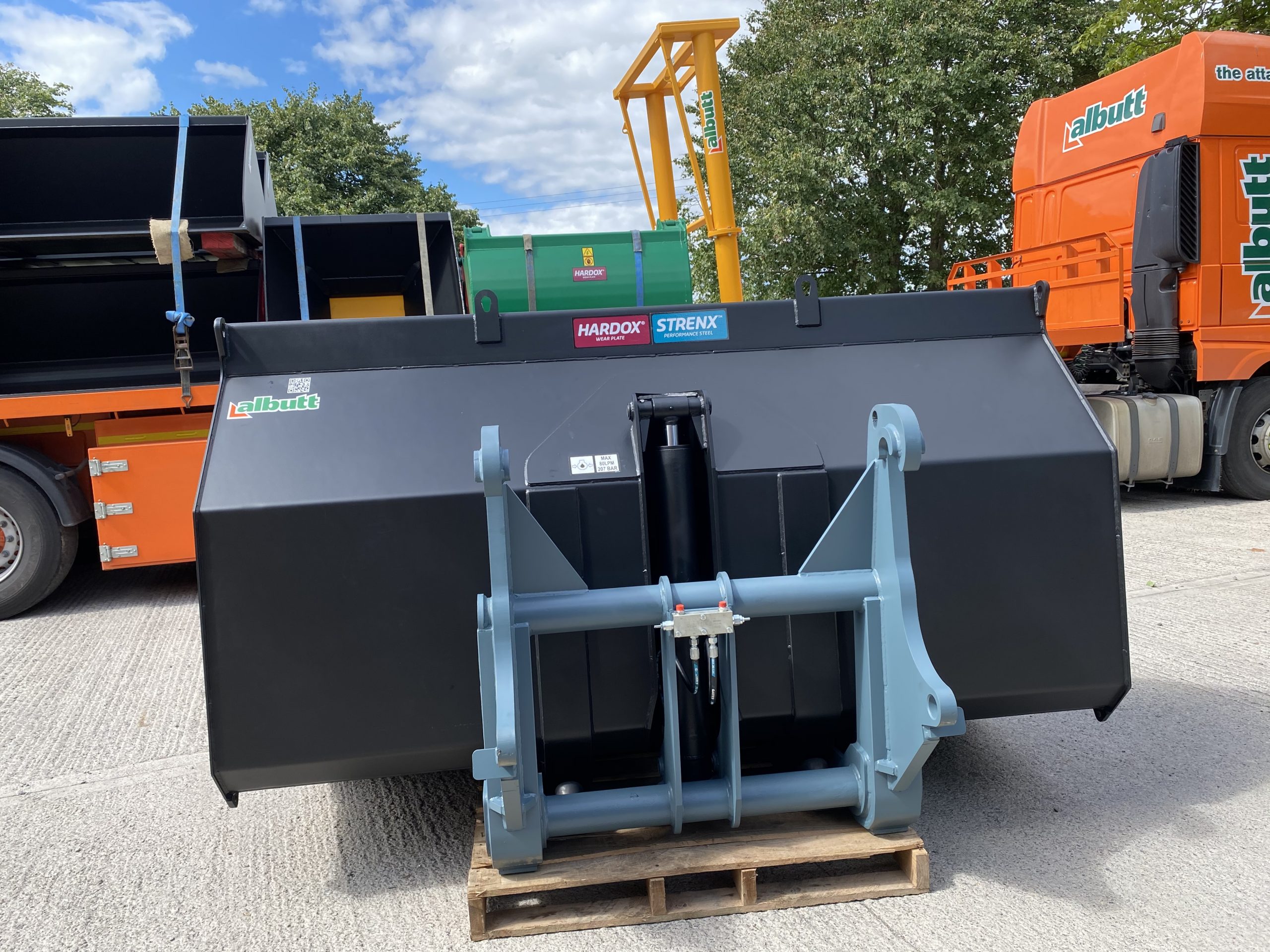

The Albutt XL range of High Tip Buckets are designed for high capacity shovels operating in intense cycle environments. Launching from a Hardox cradle, the high capacity, Domex shelled, bucket provides increased height and forward reach – improving both cycle times and productivity of its prime mover. Hardox wear pads are used throughout – both adding to the strength of the bucket and increasing its service life. Maintenance is also made easy with the remote greasing facility – no need to stretch into those hard to reach places to grease the attachment. Suitable for loading shovels with a 6.50 to 7.50 tonne lift capacity, the XL High Tip Bucket Range is available in 4.76m3, 4.98m3 and 5.26m3 capacities.





Features

  • Fitted with long life cutting edge 500 Brinell hardened boron steel

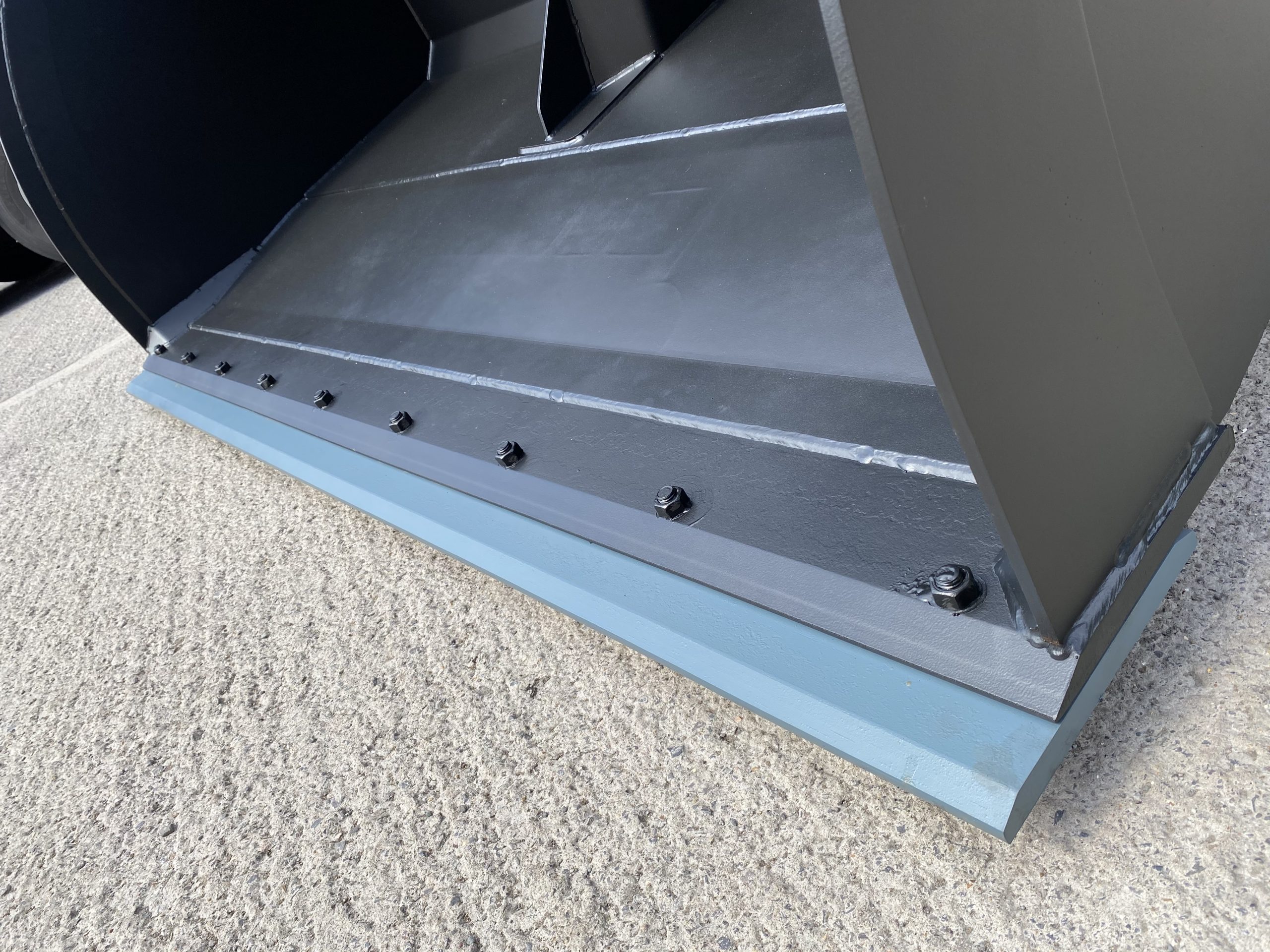

  • Extra 300 x 30mm 500 Brinnell Bolt on Toe Plate as standard

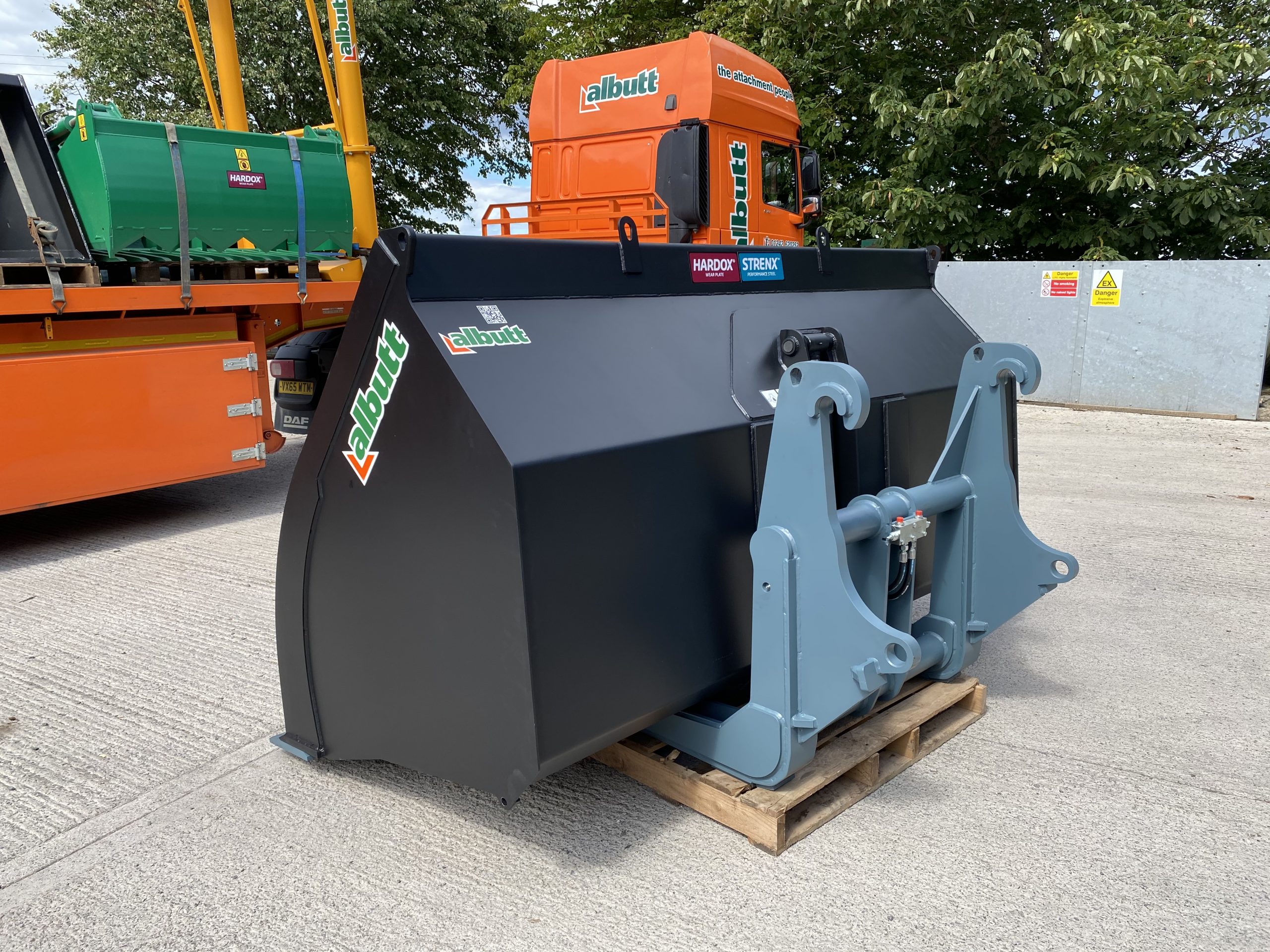

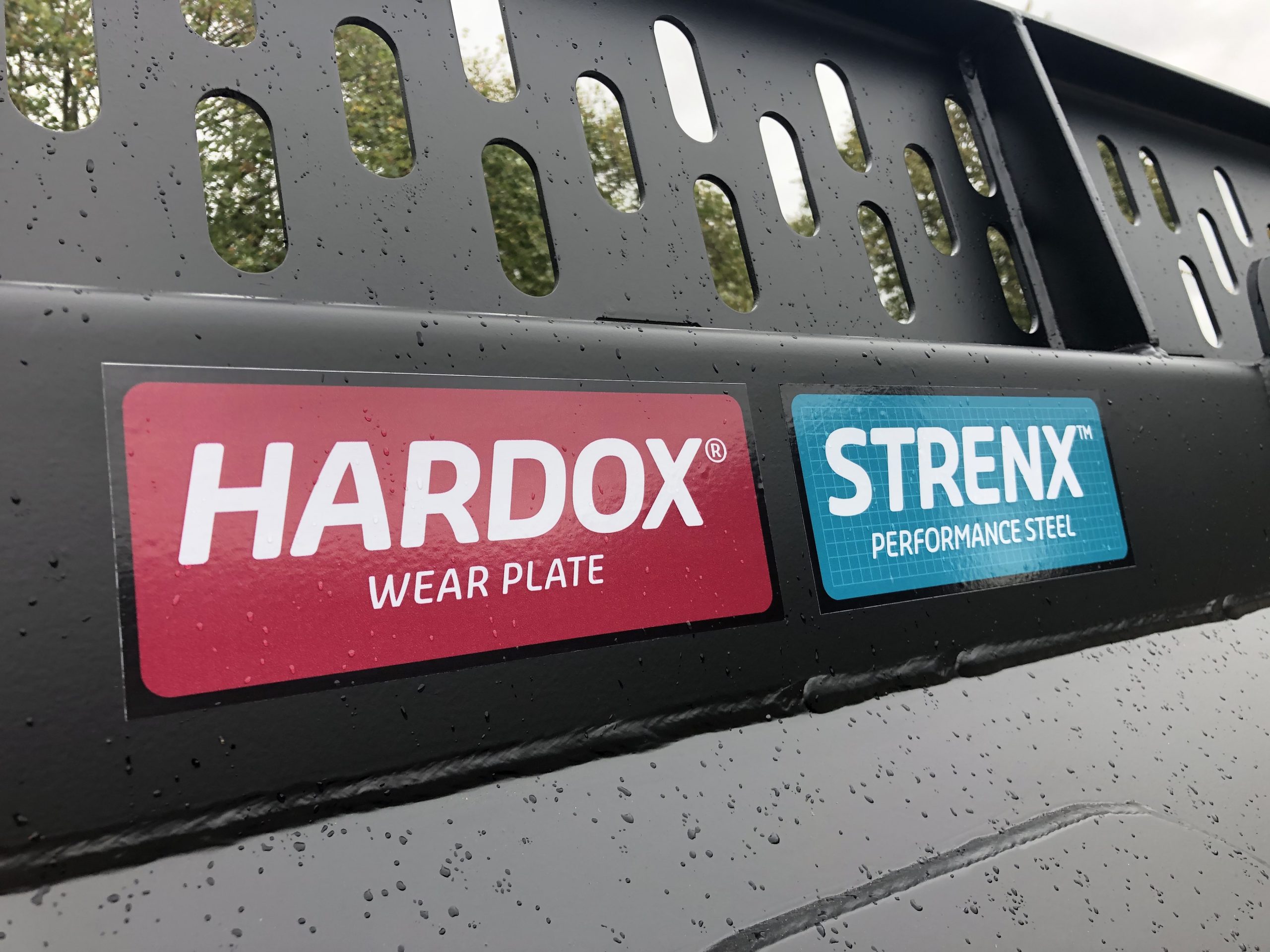

  • Cradle manufactured from Hardox 500
  • Twin hydraulic rams
  • Bucket cushioning – heavy duty rubber bump stops
  • Remote greasing points
  • Hardox wear pads
  • Domex Shell
  • Over centre valve
  • ALS pin system – better lubrication properties than zinc plated equivalents

Models

Model Width Capacity Weight Req. Loader Capacity*
A186-100HTBL 10’0″ 5.26 m3 2990 kg 7.50 tonne
A176-96HTBL 9’6″ 4.98 m3 2840 kg 7.00 tonne
A166-90HTBL 9’0″ 4.70 m3 2691 kg 6.50 tonne

*Based on grain handling at 730kg/m3
