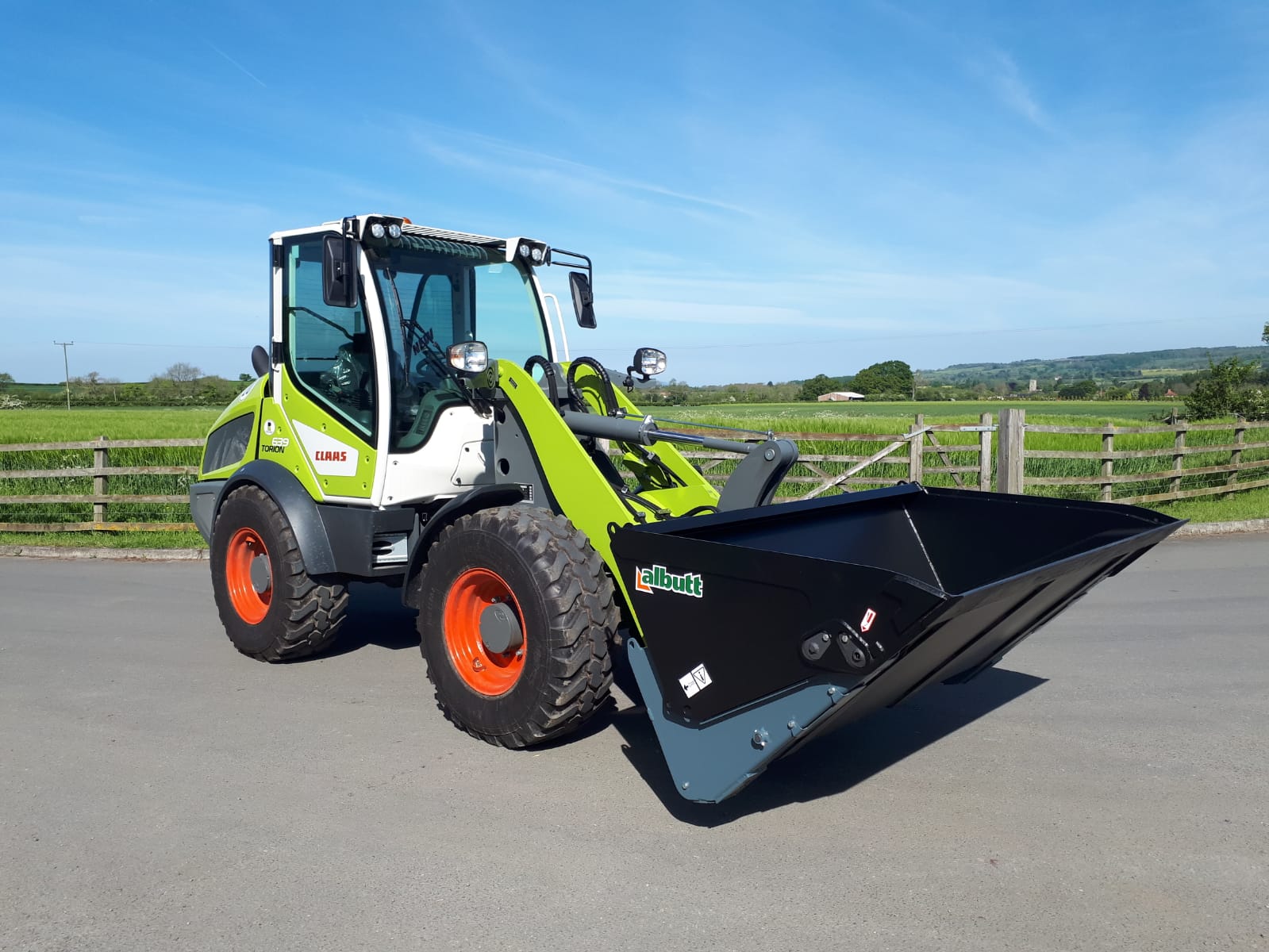

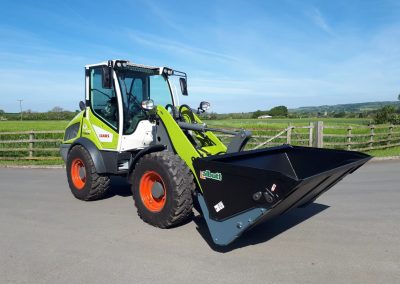

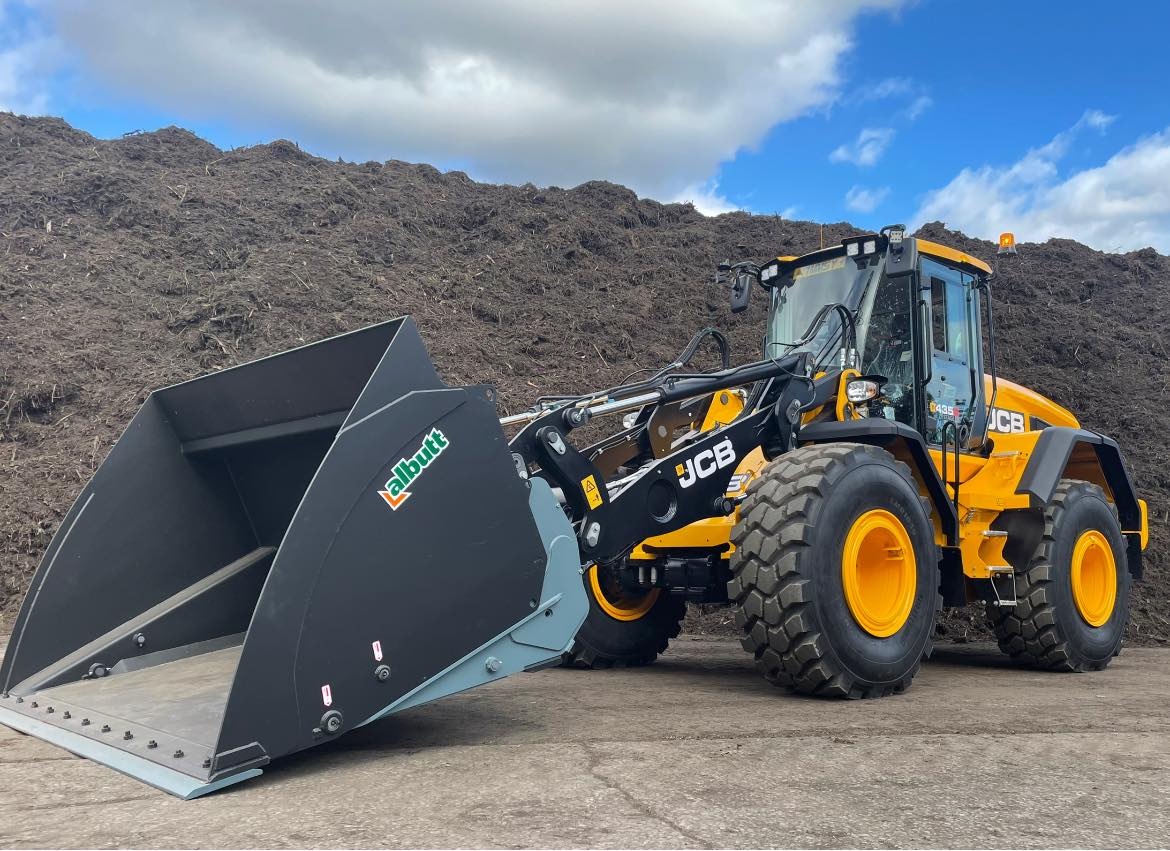

High Tip Buckets for Muck Handling

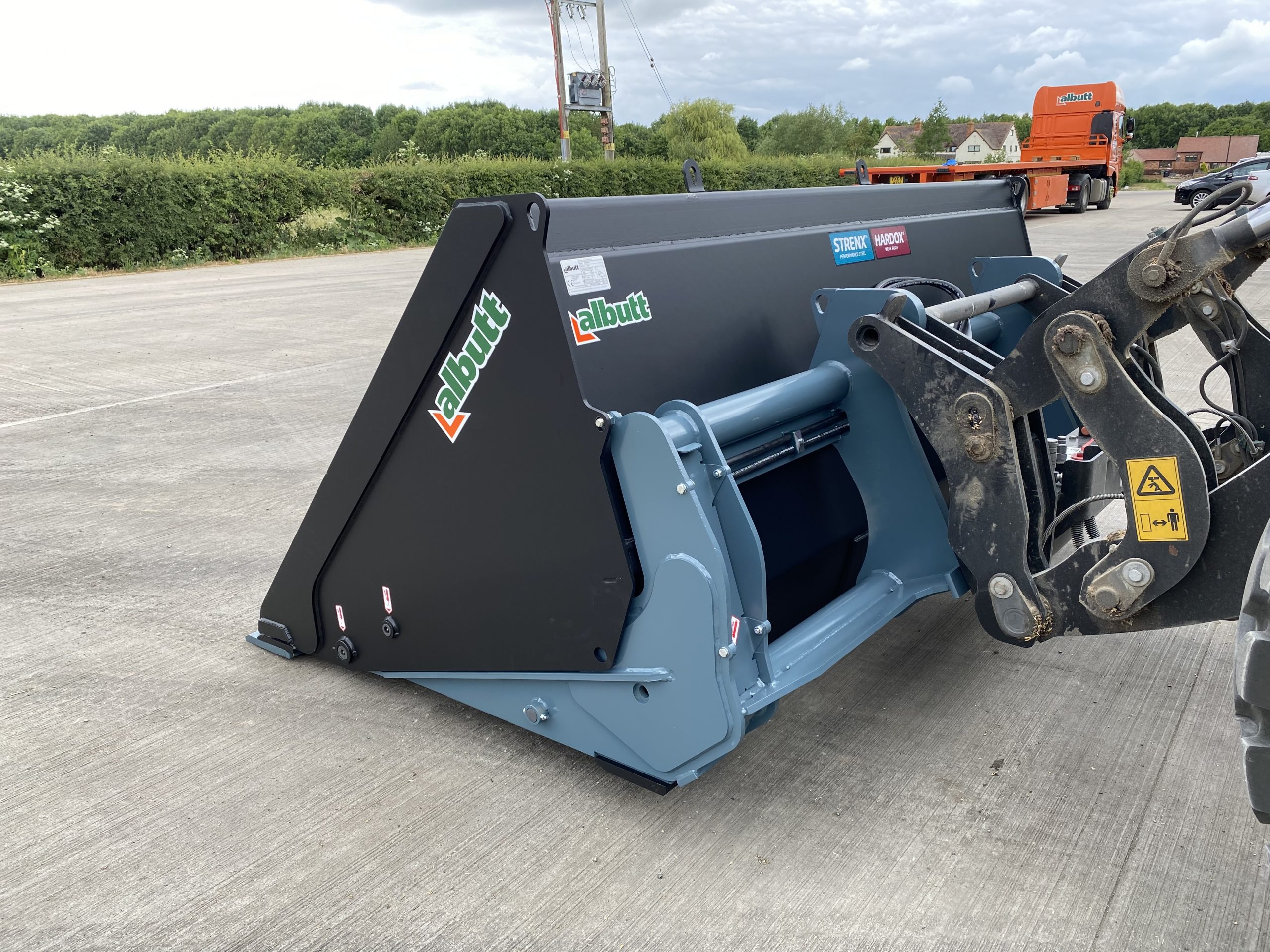

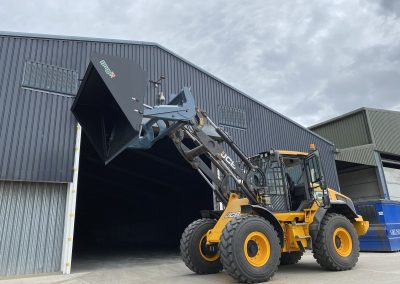

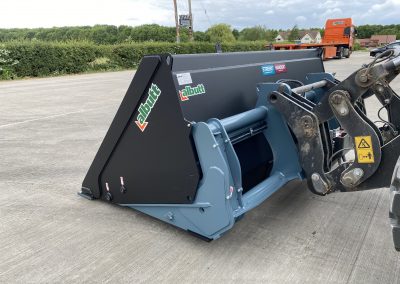

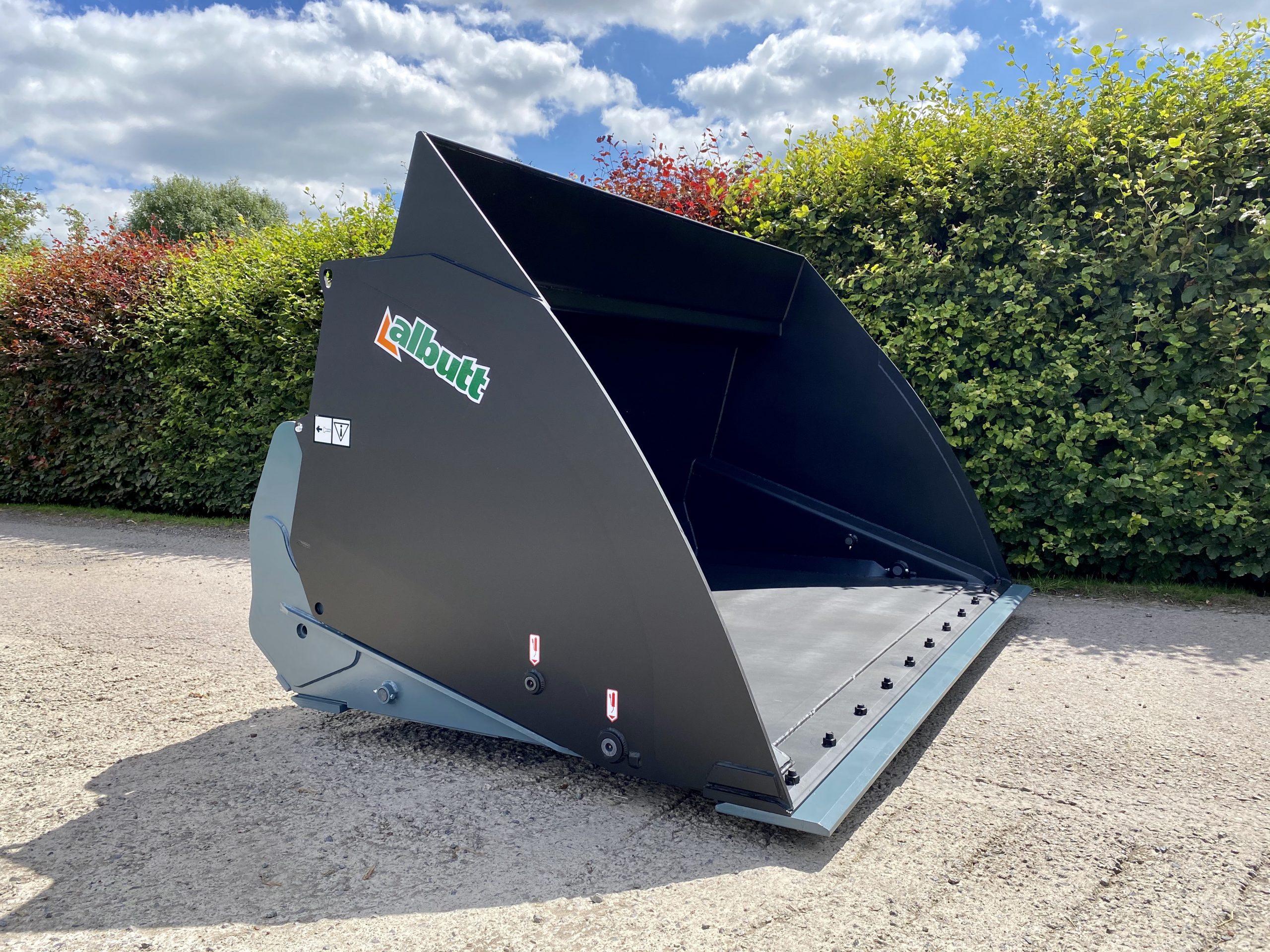

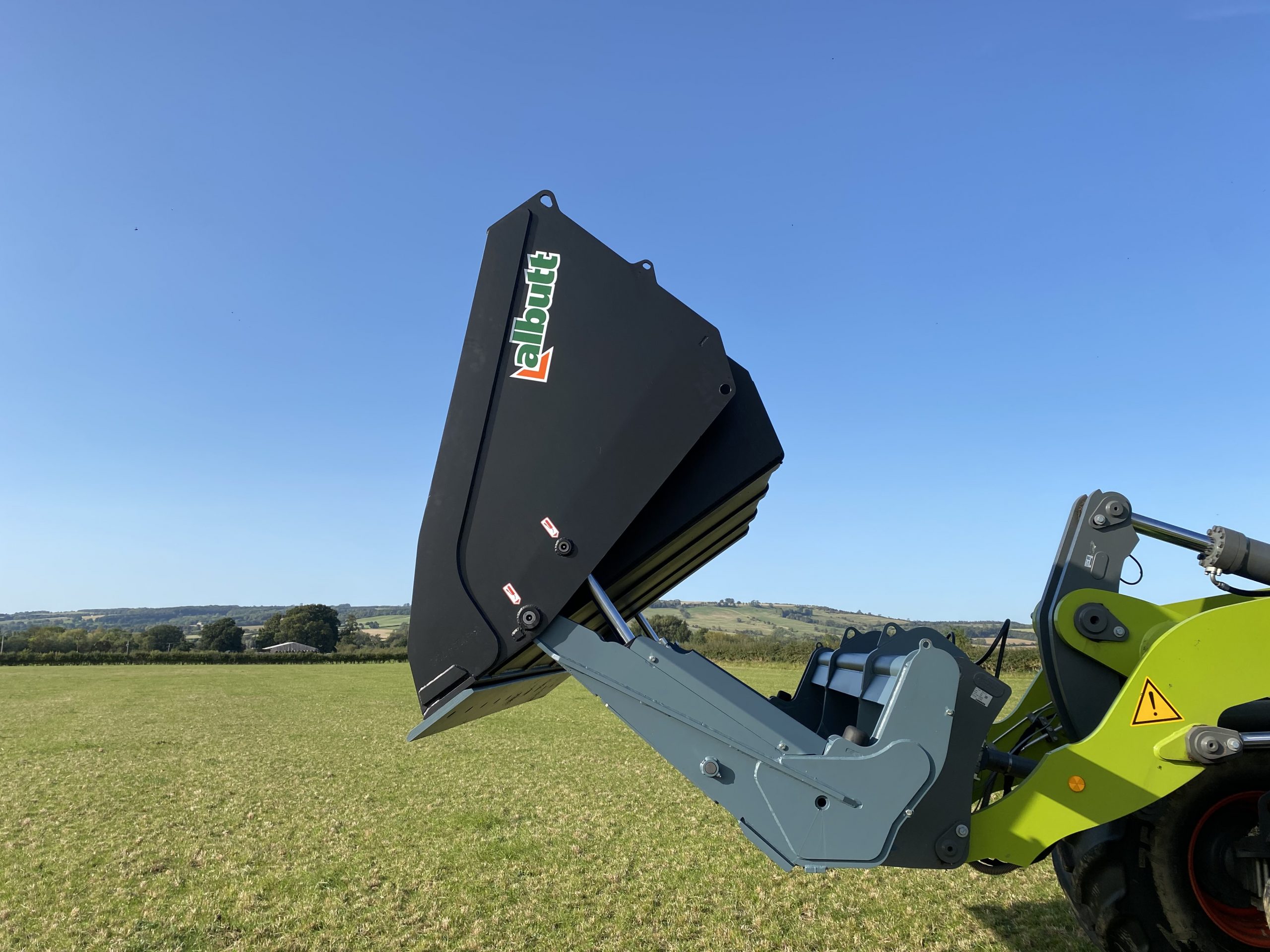

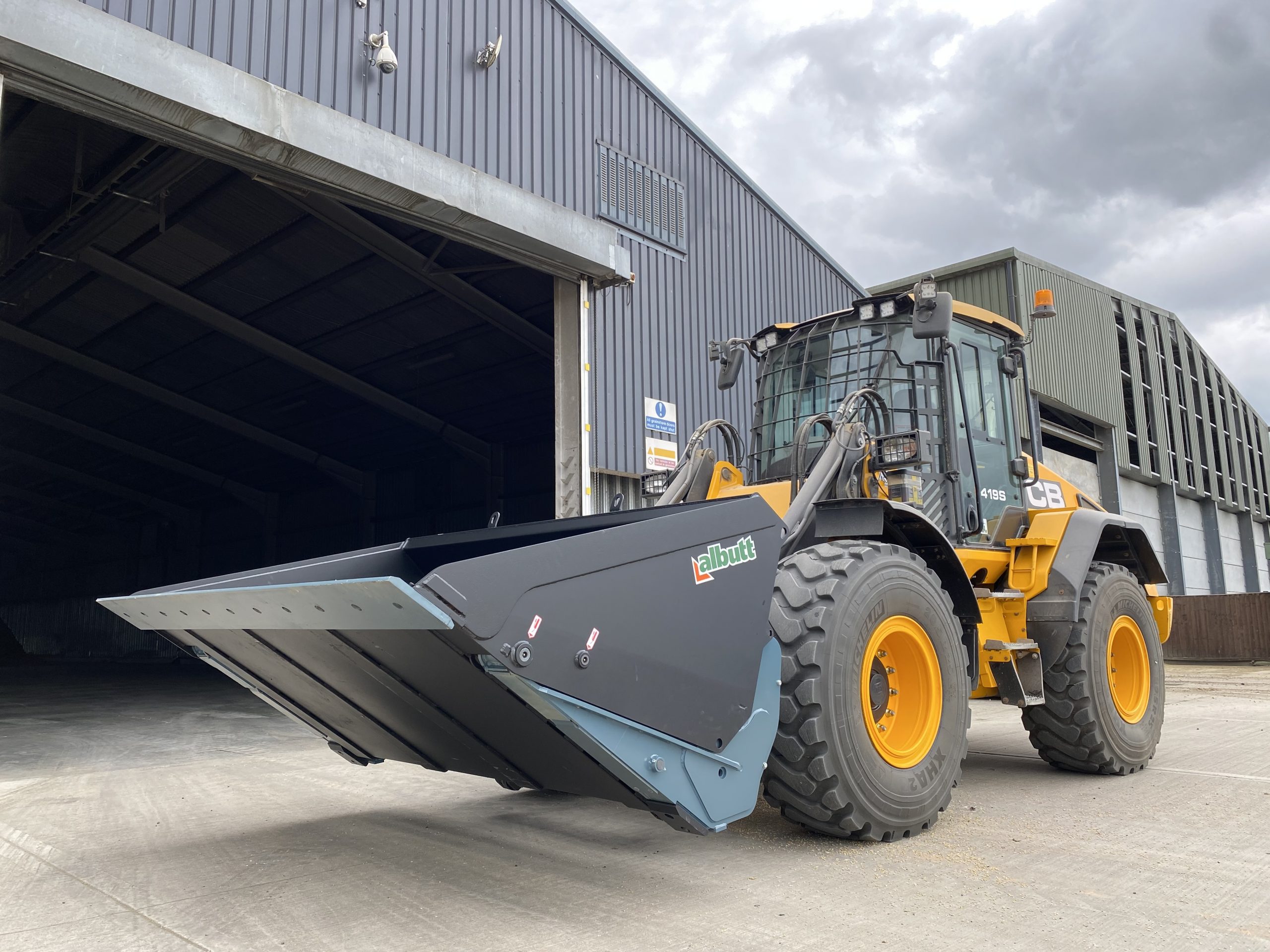

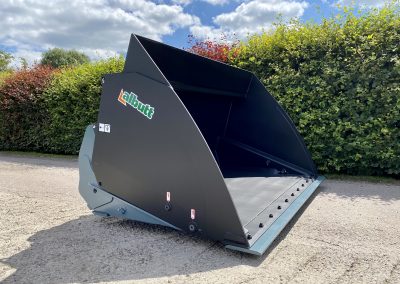

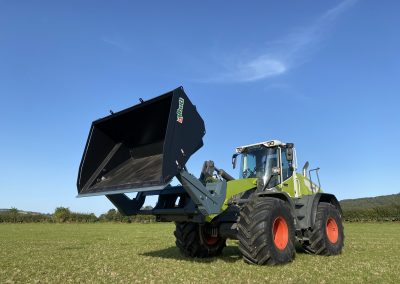

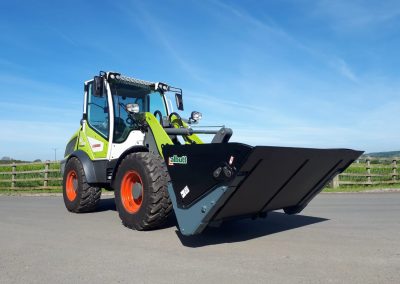

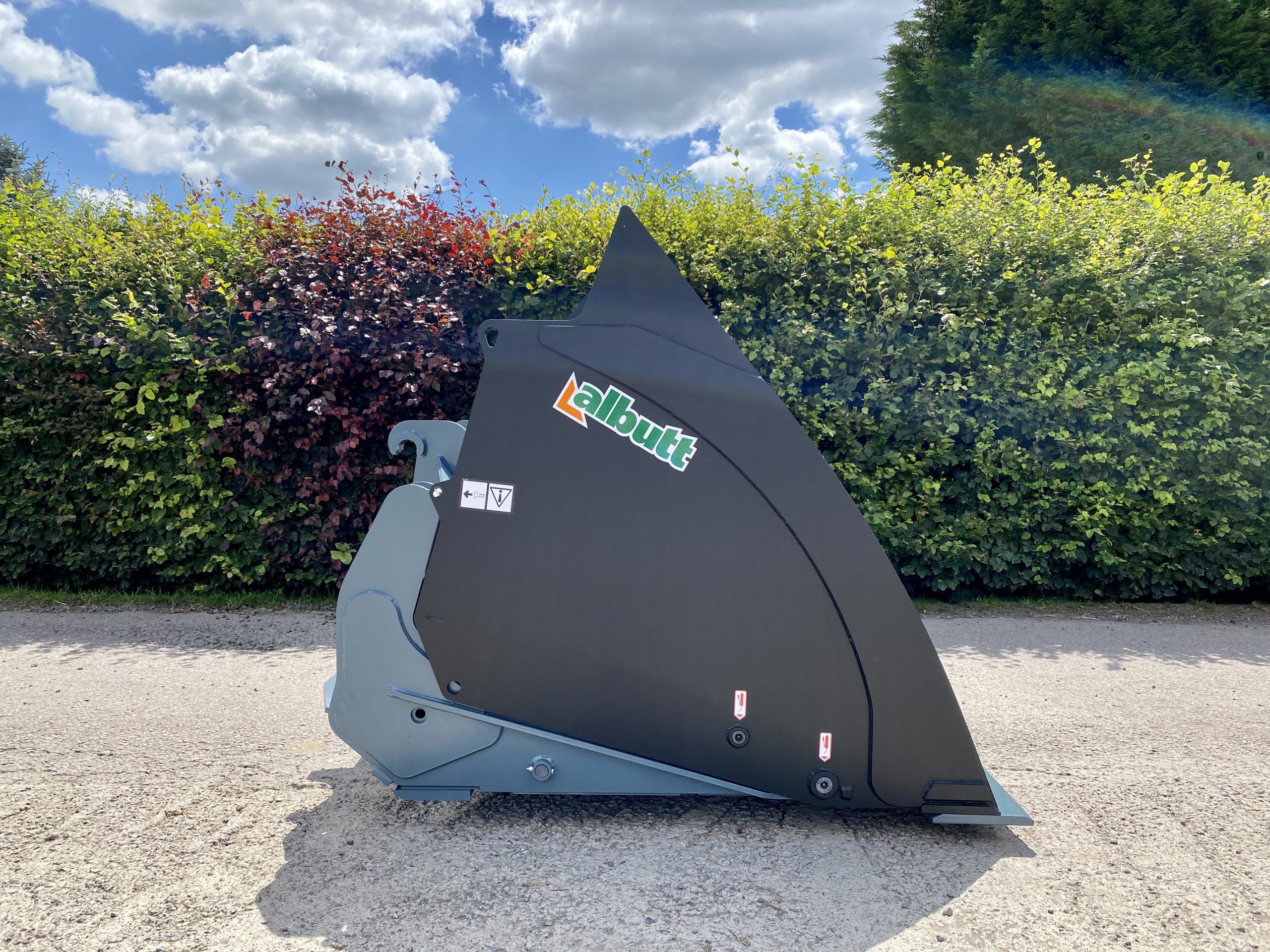

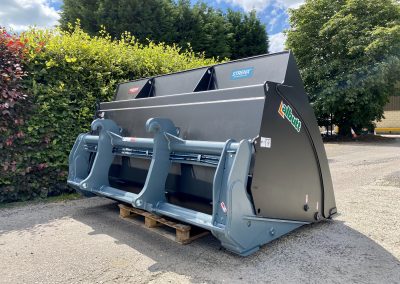

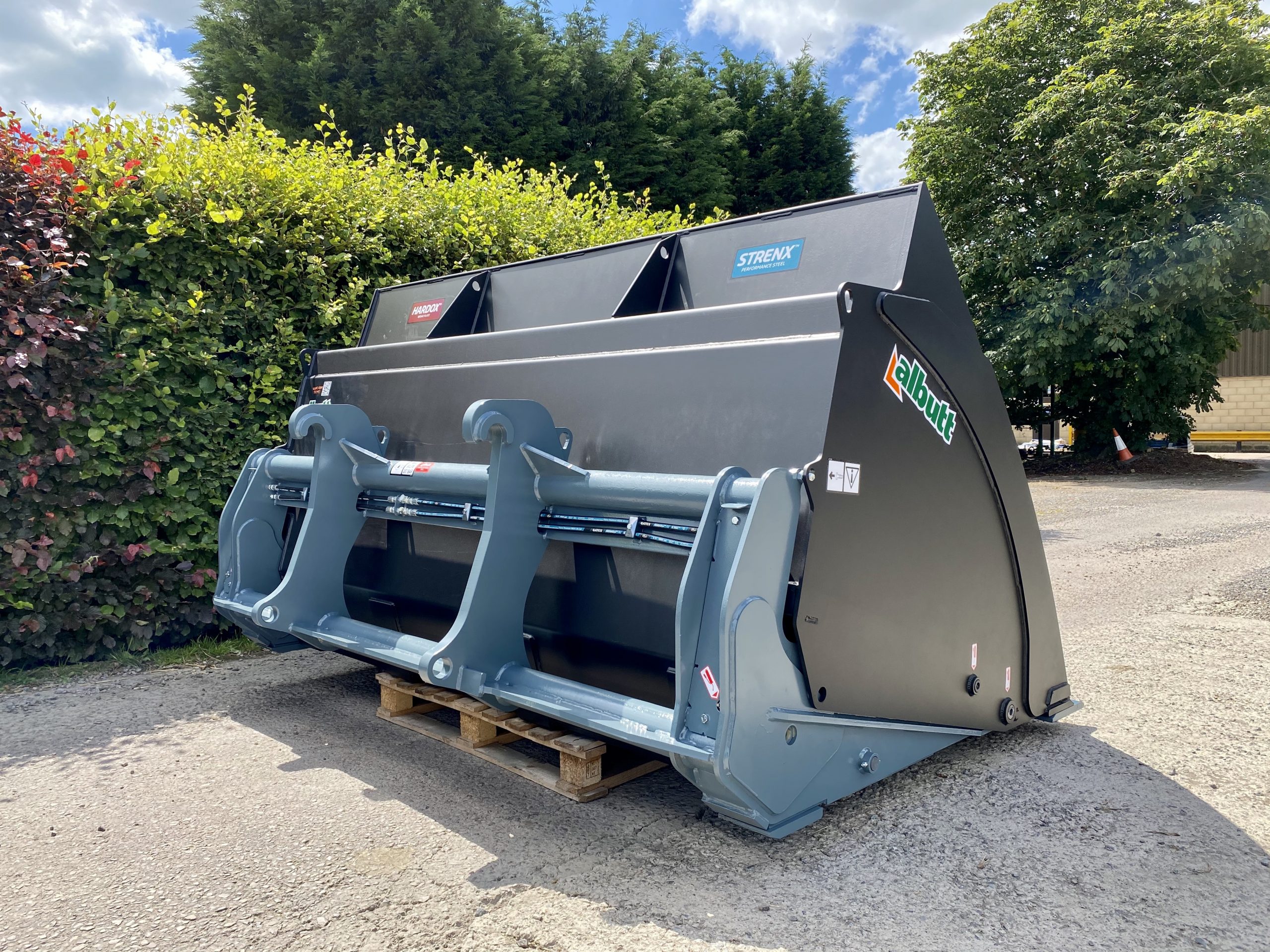

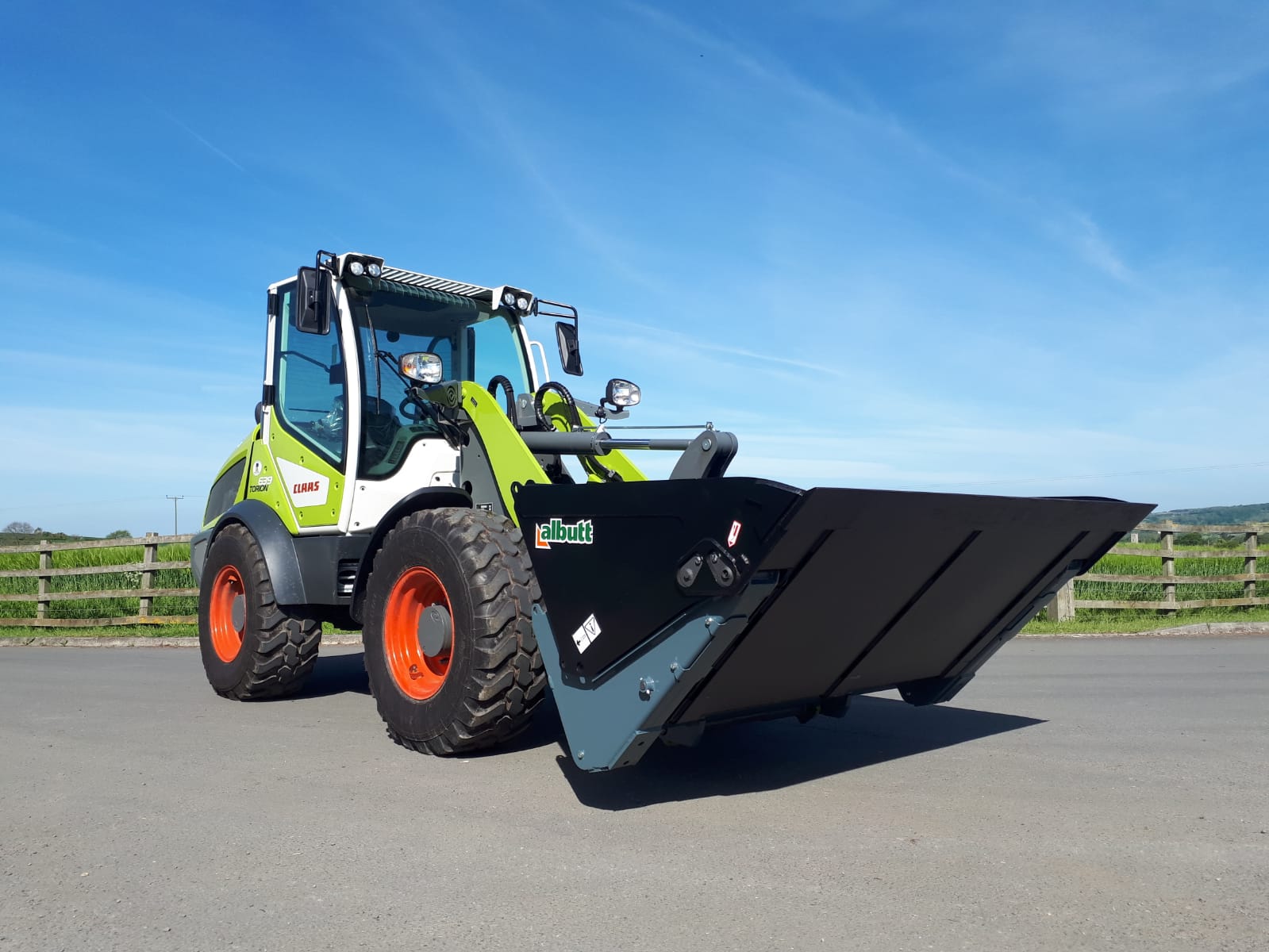

The Albutt ‘WA’ range of High Tip Buckets are based on an ultra heavy duty design – suitable for applications from muck to waste handling. Featuring a 6mm Strenx bucket shell and a Hardox 500 cradle, the use of high tensile steels throughout ensure maximum durability for those intense applications. Ideal for use on the loading shovels, the larger models in the range give an approximate 1 meter of extra height and forward reach – ideal for loading high sided trailers. The ‘WA’ range also incorporates bolt on protective ram covers and remote greasing points.







Features

  • Fitted with long life cutting edge 500 Brinell hardened boron steel.
  • Cradle manufactured from Hardox 500
  • STRENX high tensile steel bucket shell
  • Twin hydraulic rams.
  • Bucket cushioning

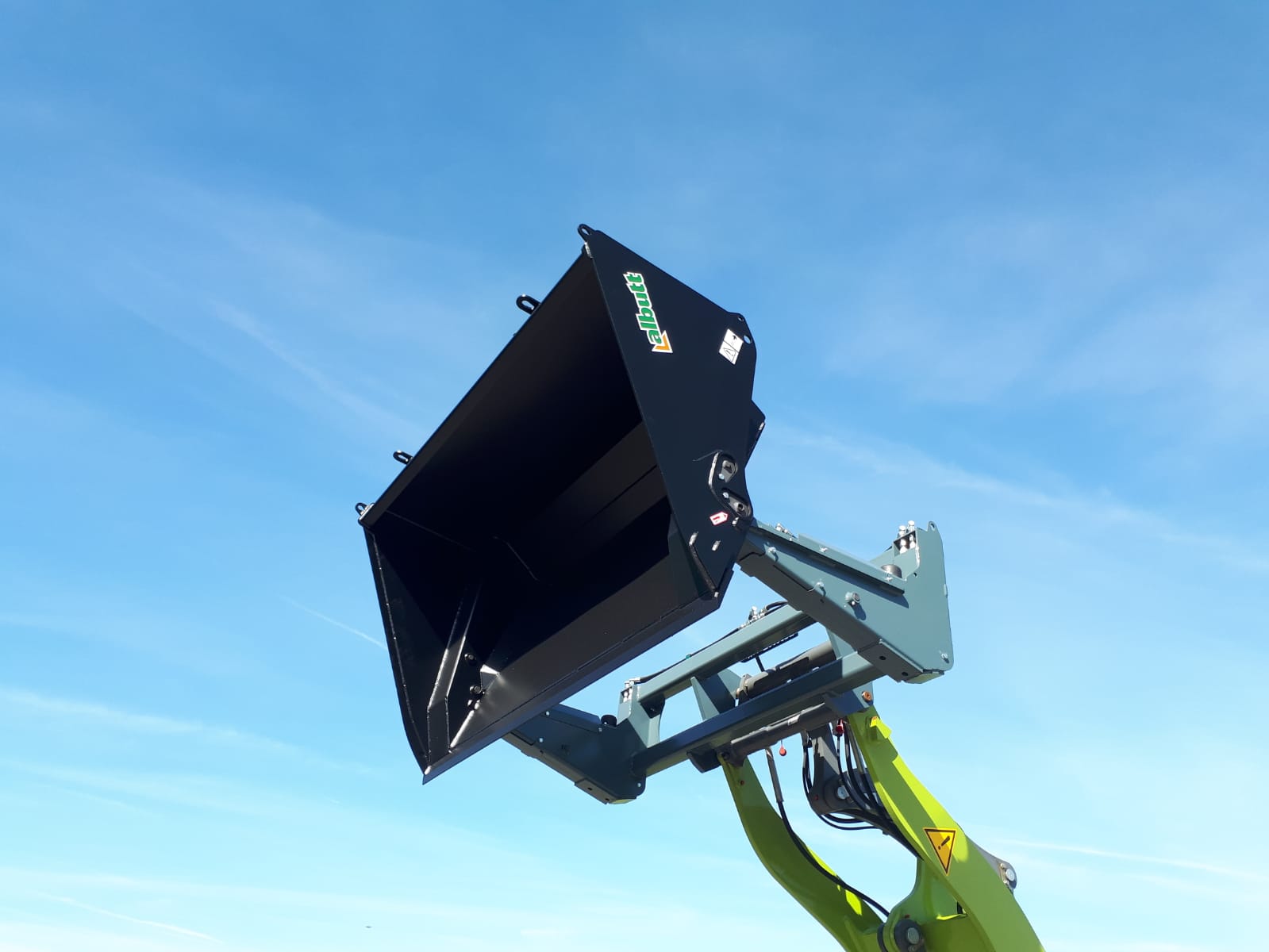

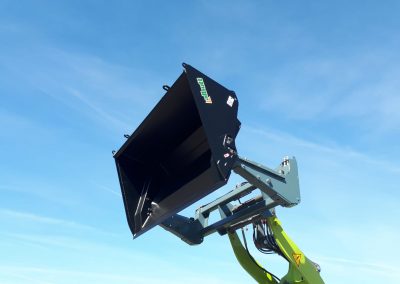

  • Increase tipping height and forward reach by 1.0m approx.
  • Ideal for loading high sided trailers.
  • Clean shell bucket
  • Bolt on protective ram covers
  • Remote greasing points
  • Bolt on replaceable heel pads – 500 brinnell
  • Bolt on reversible toe plate – 500 brinnell

Models

Model Width Capacity Weight Req. Loader Capacity
WA130-90HTBL 9’0″ 3.70 m3 1620 kg 5.5 tonne

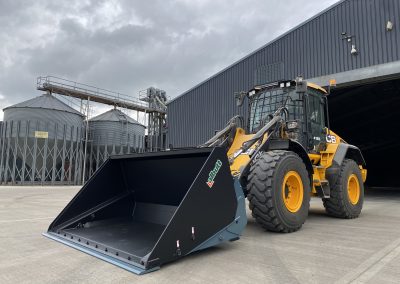

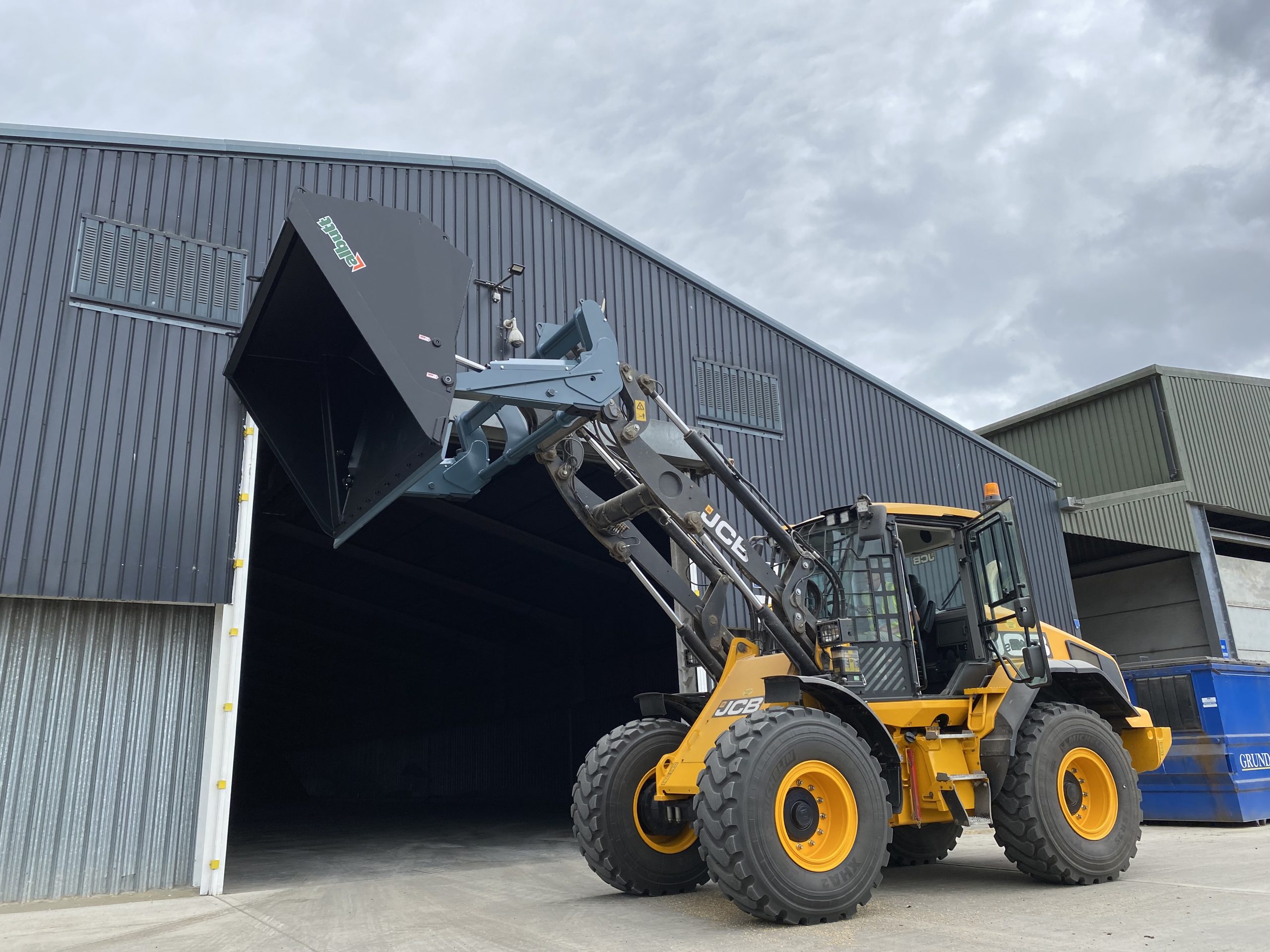

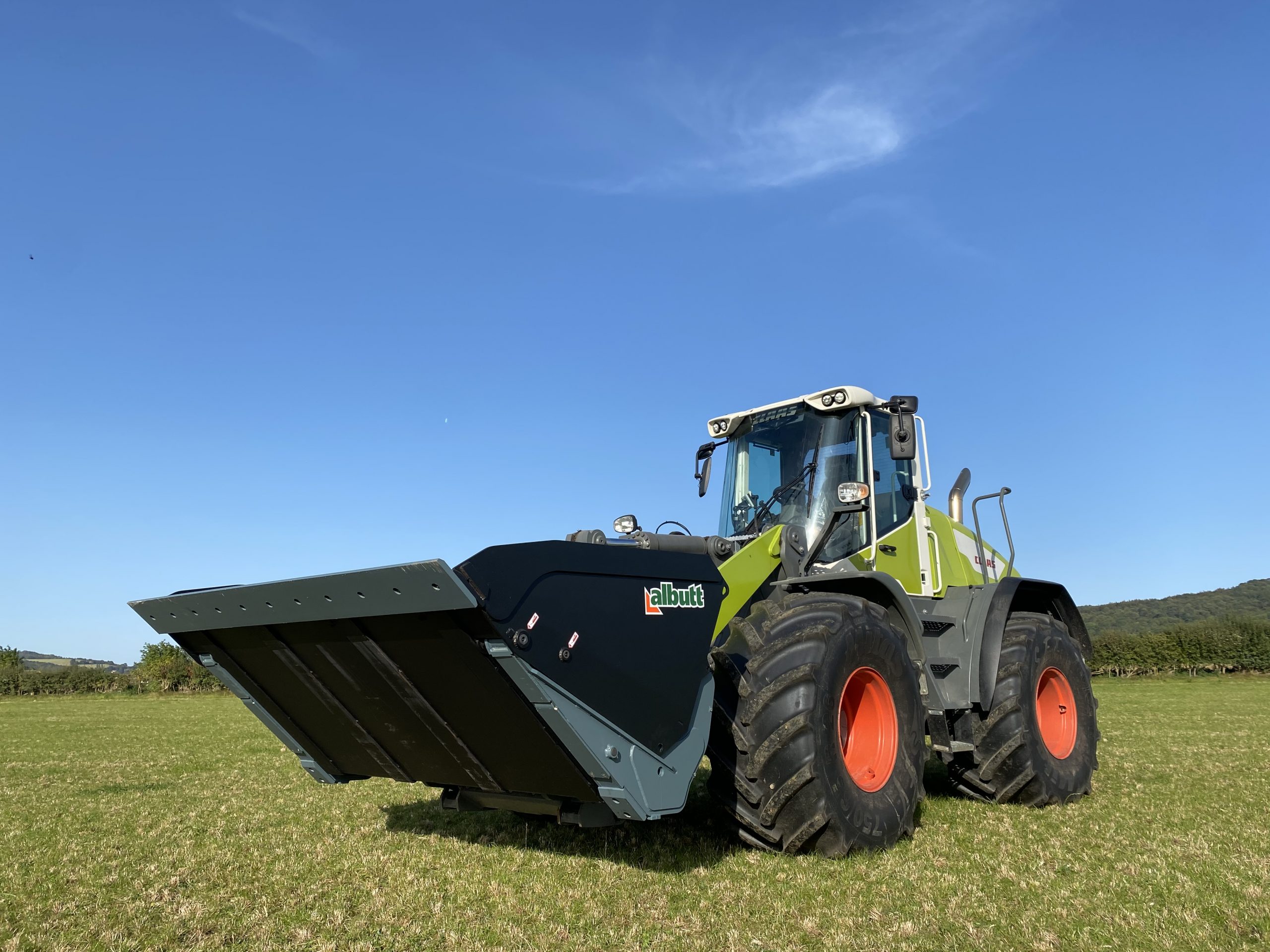

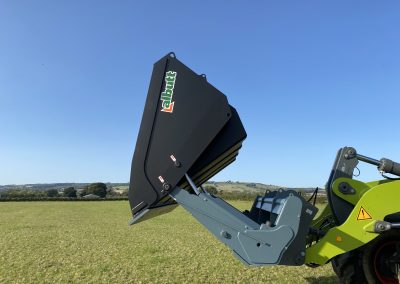

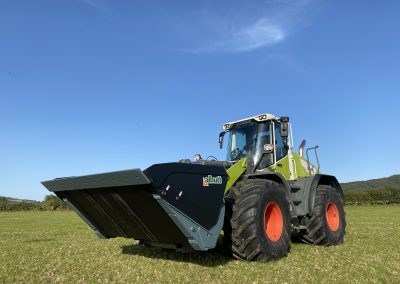

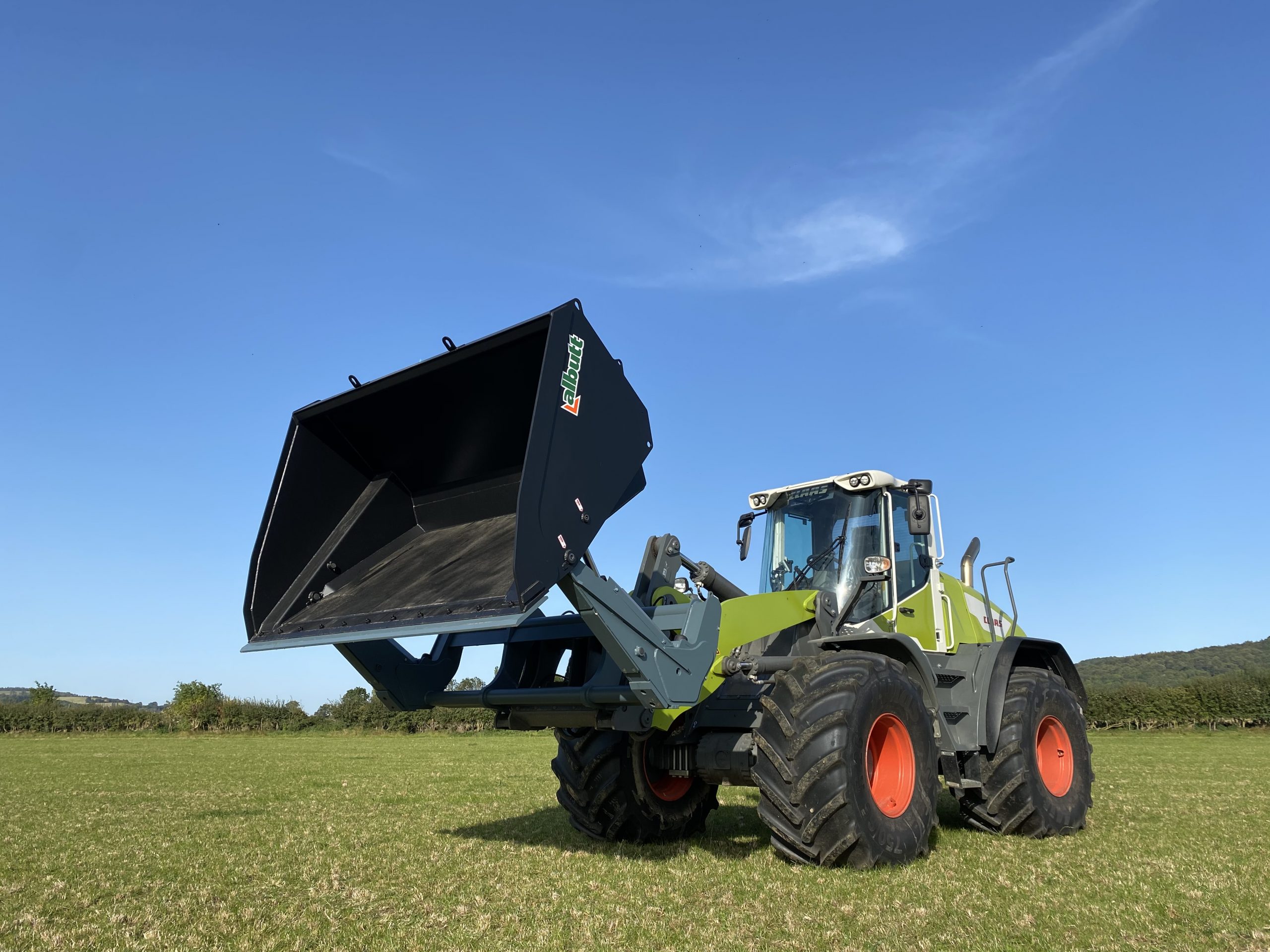

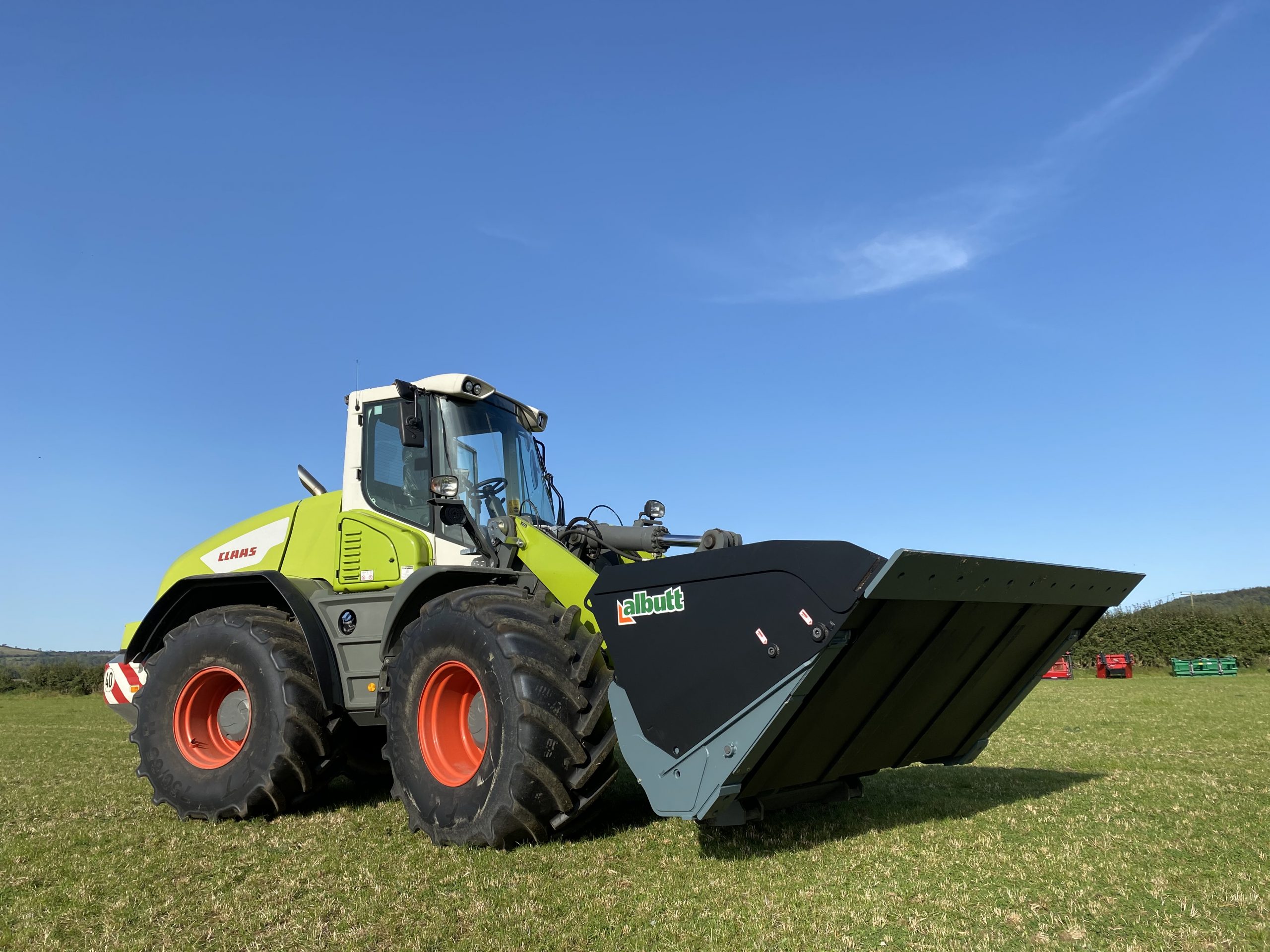

WA104-90HTBL 9’0″ 2.95 m3 1565 kg 4.7 tonne
WA123-86HTBL 8’6″ 3.50 m3 1540 kg 5.0 tonne
WA098-86HTBL 8’6″ 2.77 m3 1320 kg 4.5 tonne

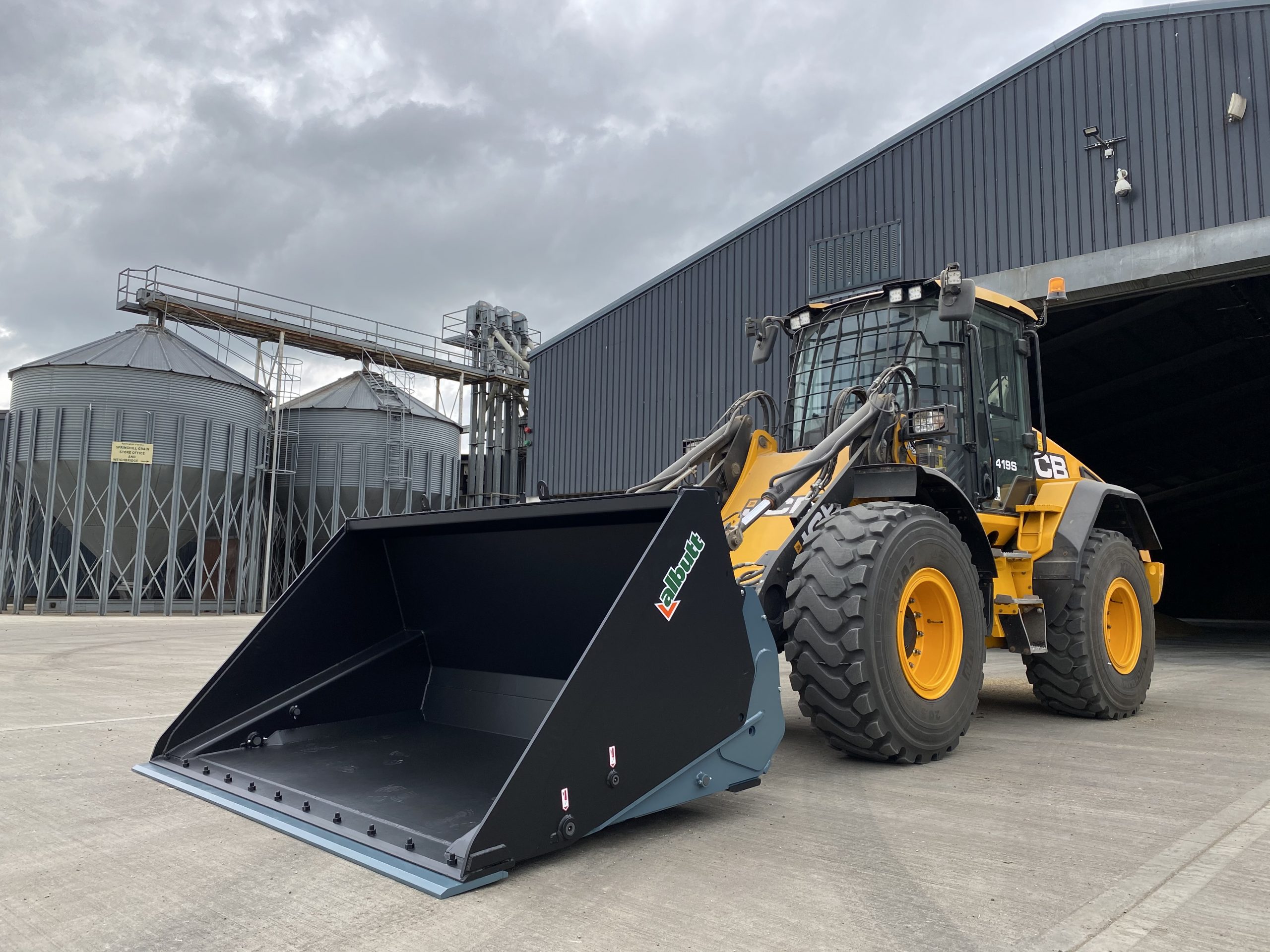

WA079-86HTBL 8’6″ 2.25 m3 1250 kg Suitable for JCB 419S
WA116-80HTBL 8’0″ 3.27 m3 1525 kg 5.0 tonne
WA092-80HTBL 8’0″ 2.60 m3 1330 kg 4.0 tonne

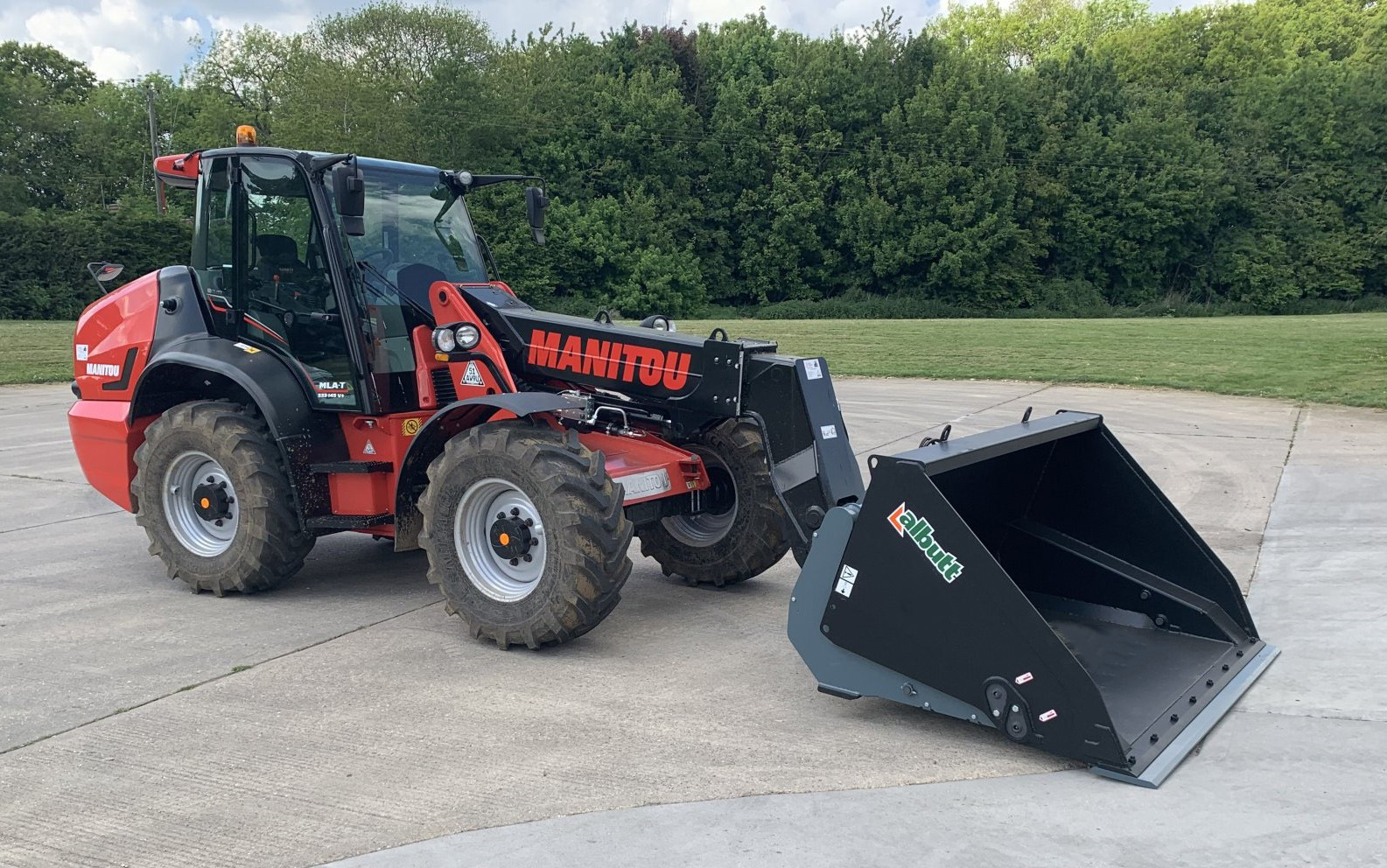

WA070-76HTBL 7’6″ 2.00 m3 975 kg 3.2 tonne
WA050-76HTBL 7’6″ 1.40 m3 870 kg 2.7 tonne
WA042-70HTBL 7’0″ 1.13 m3 650 kg 2.2 tonne
WA035-70HTBL 7’0″ 0.99 m3 610 kg 2.0 tonne
WA025-66HTBL 6’6″ 0.70 m3 495 kg 1.5 tonne
