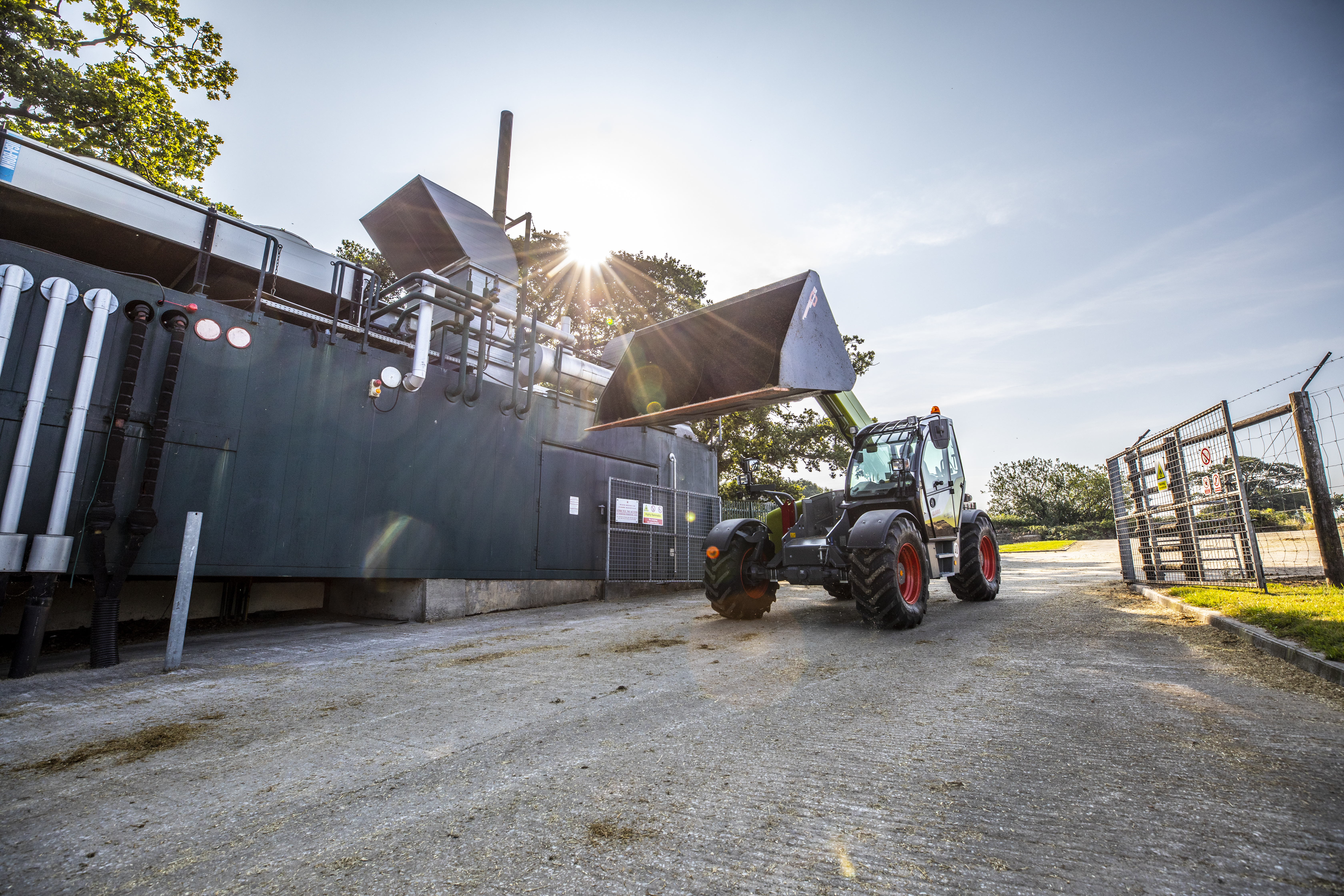

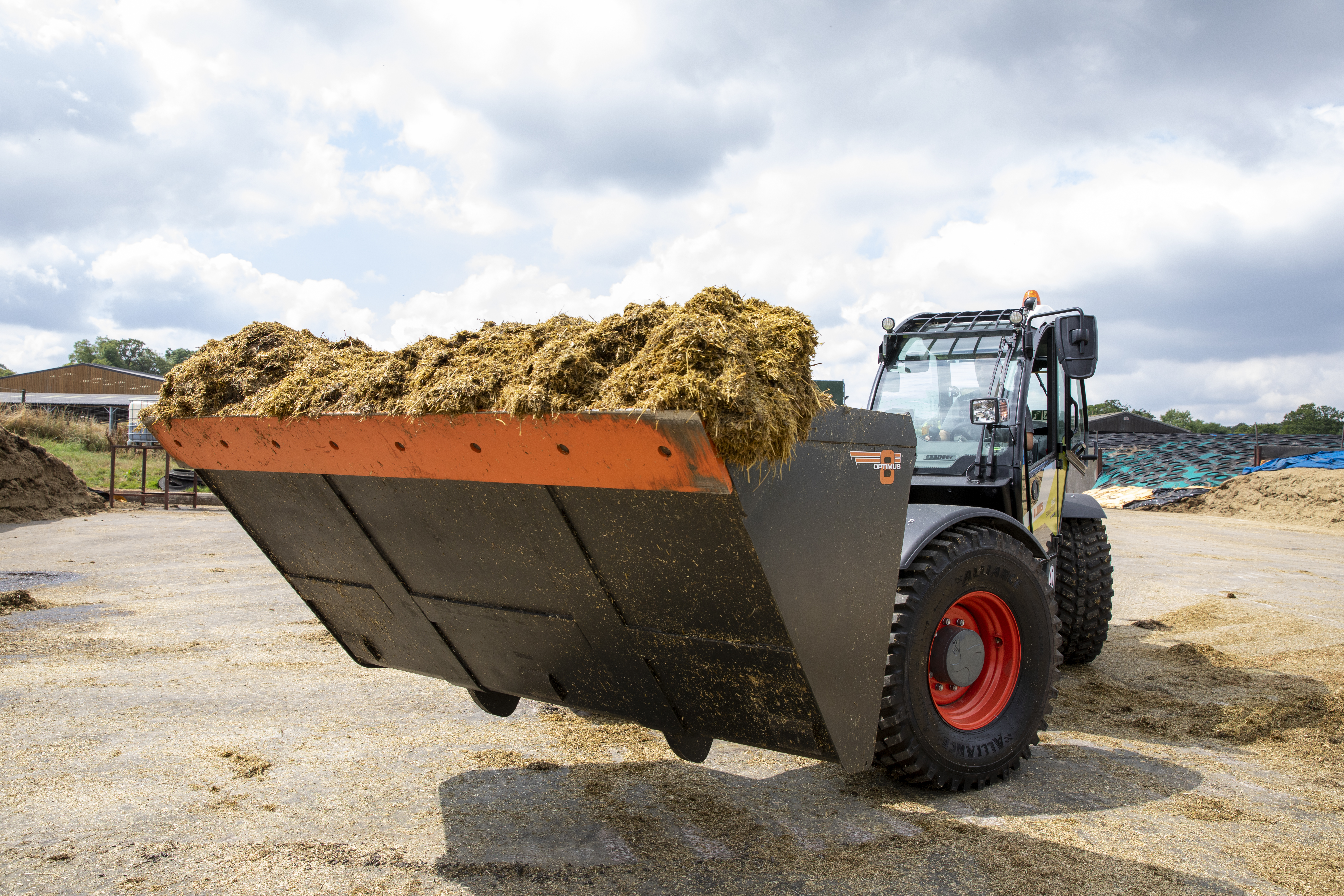

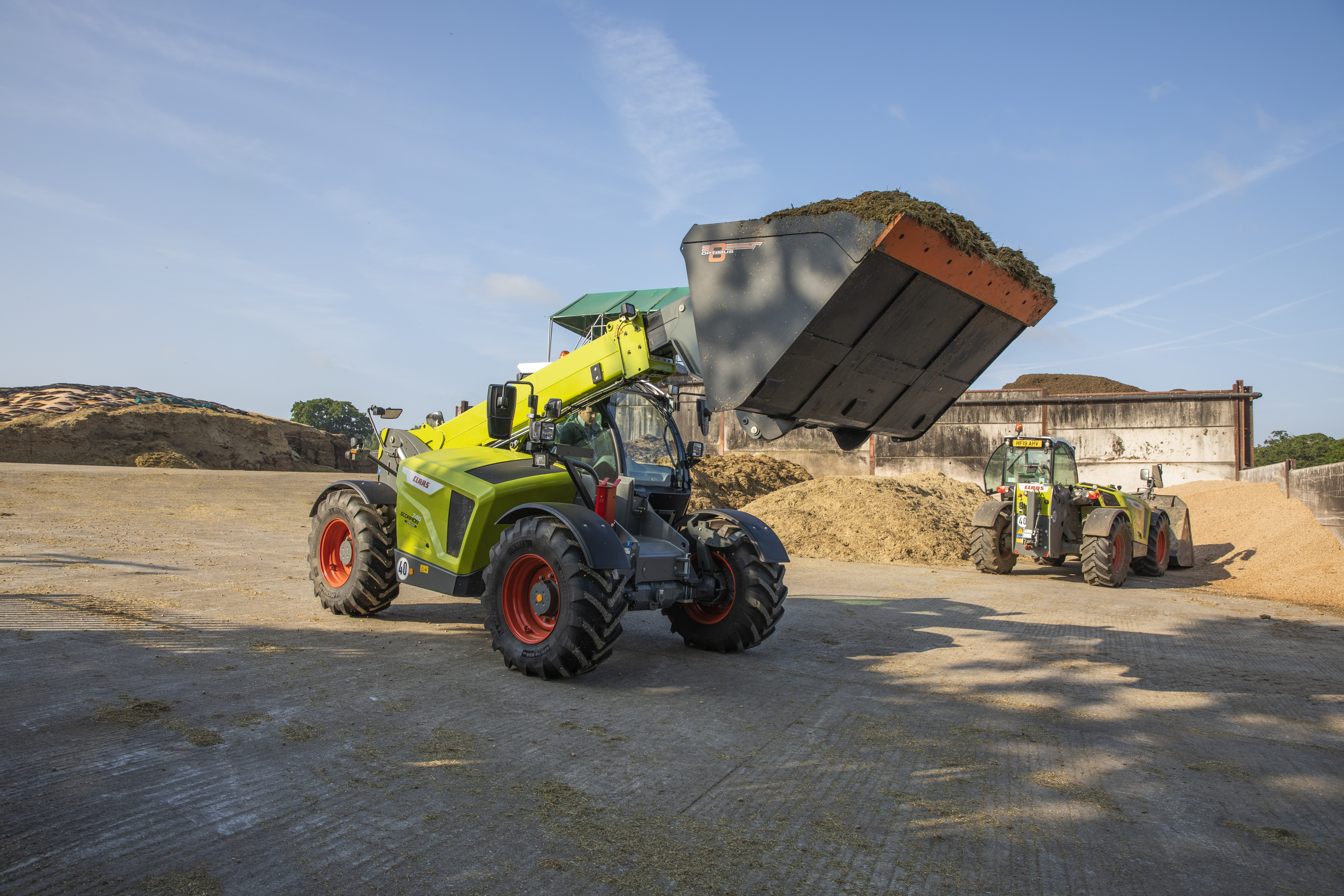

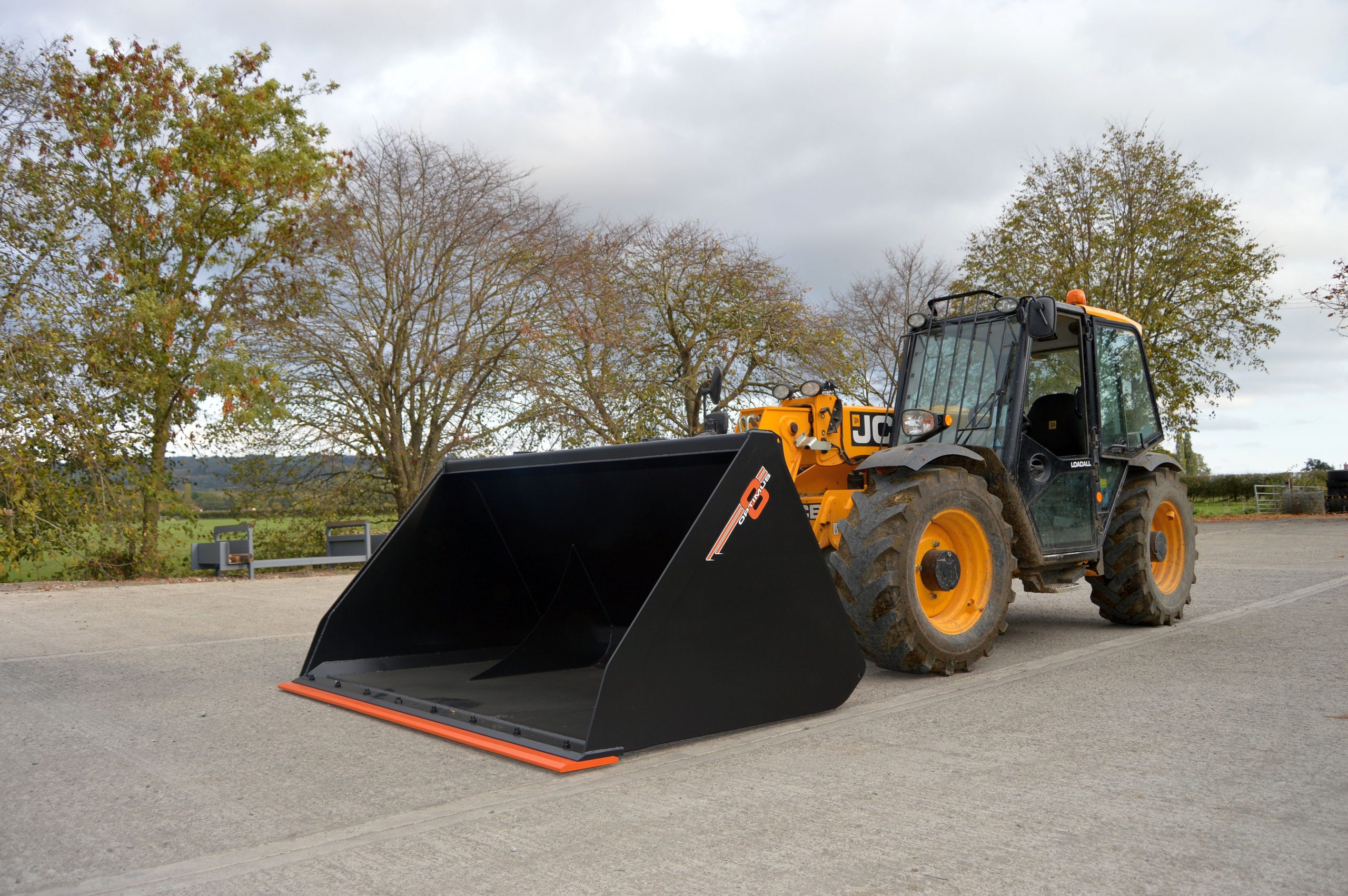

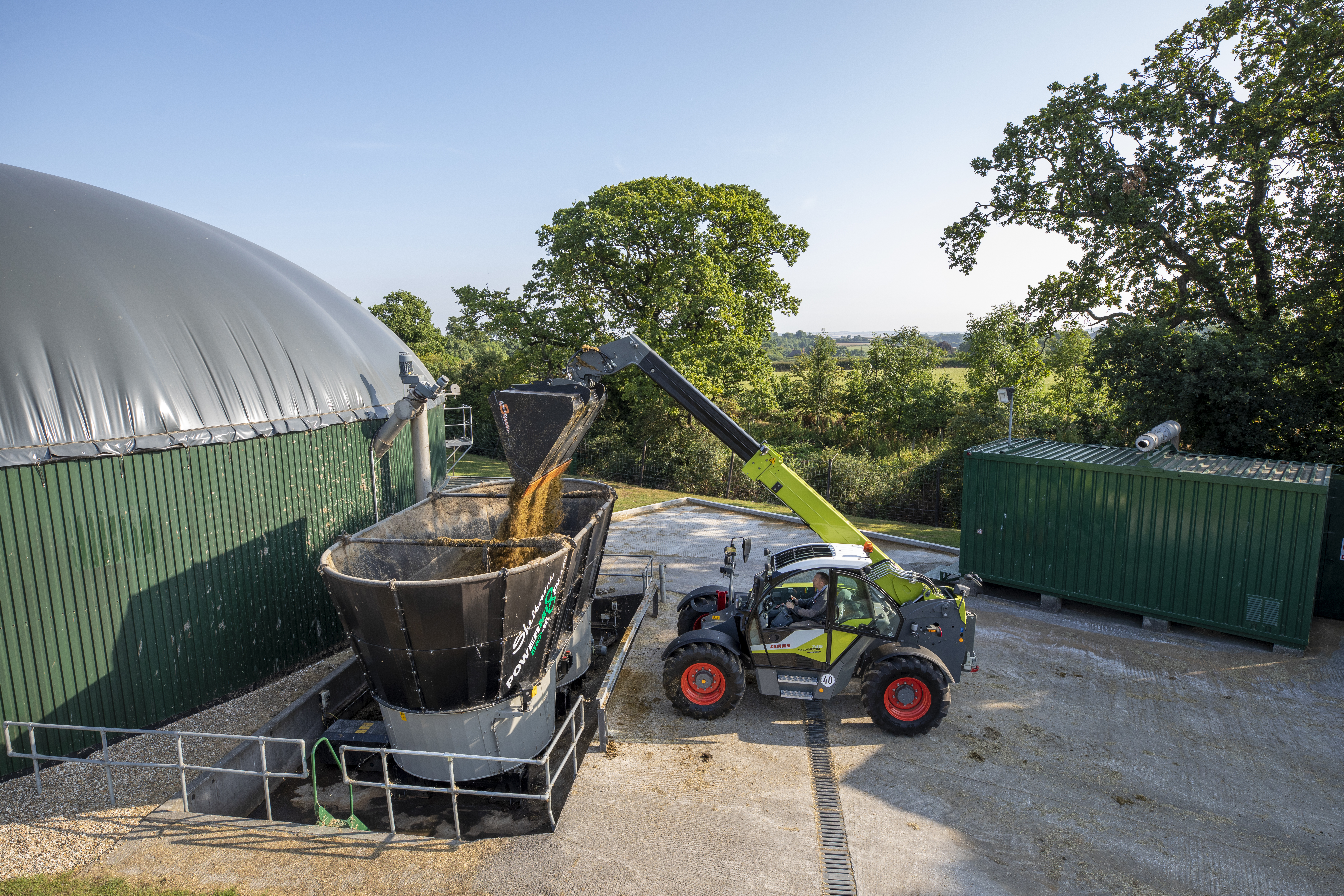

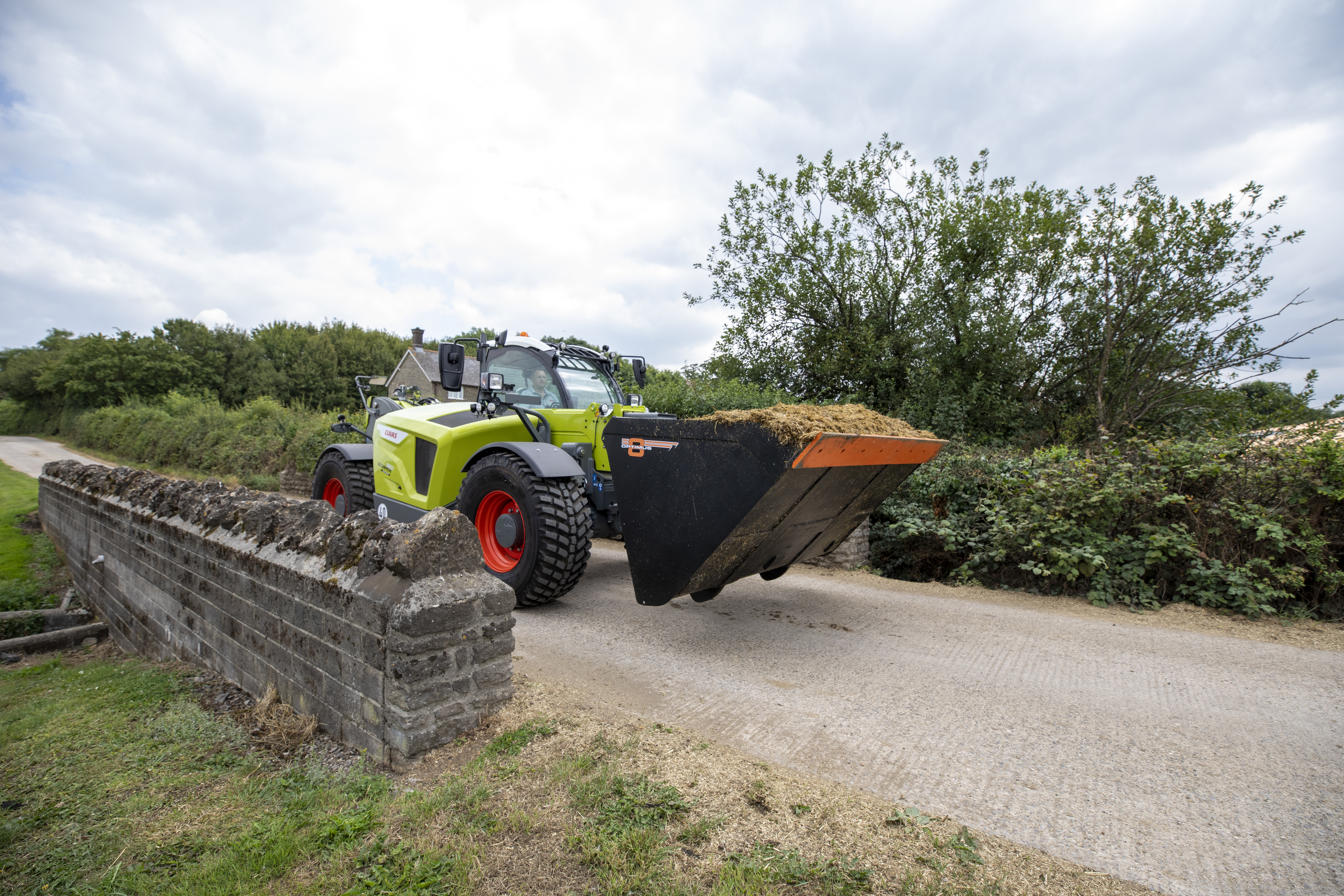

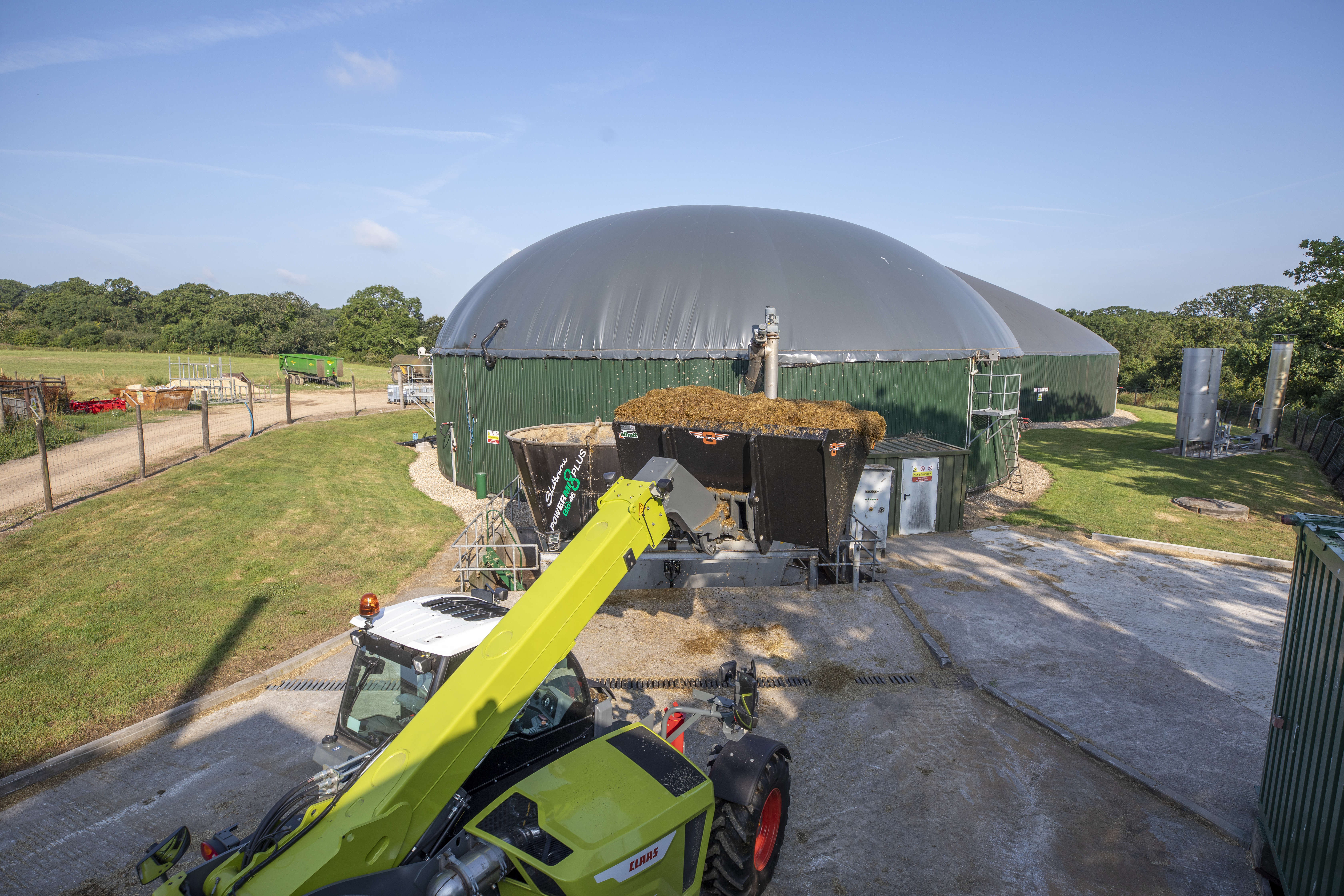

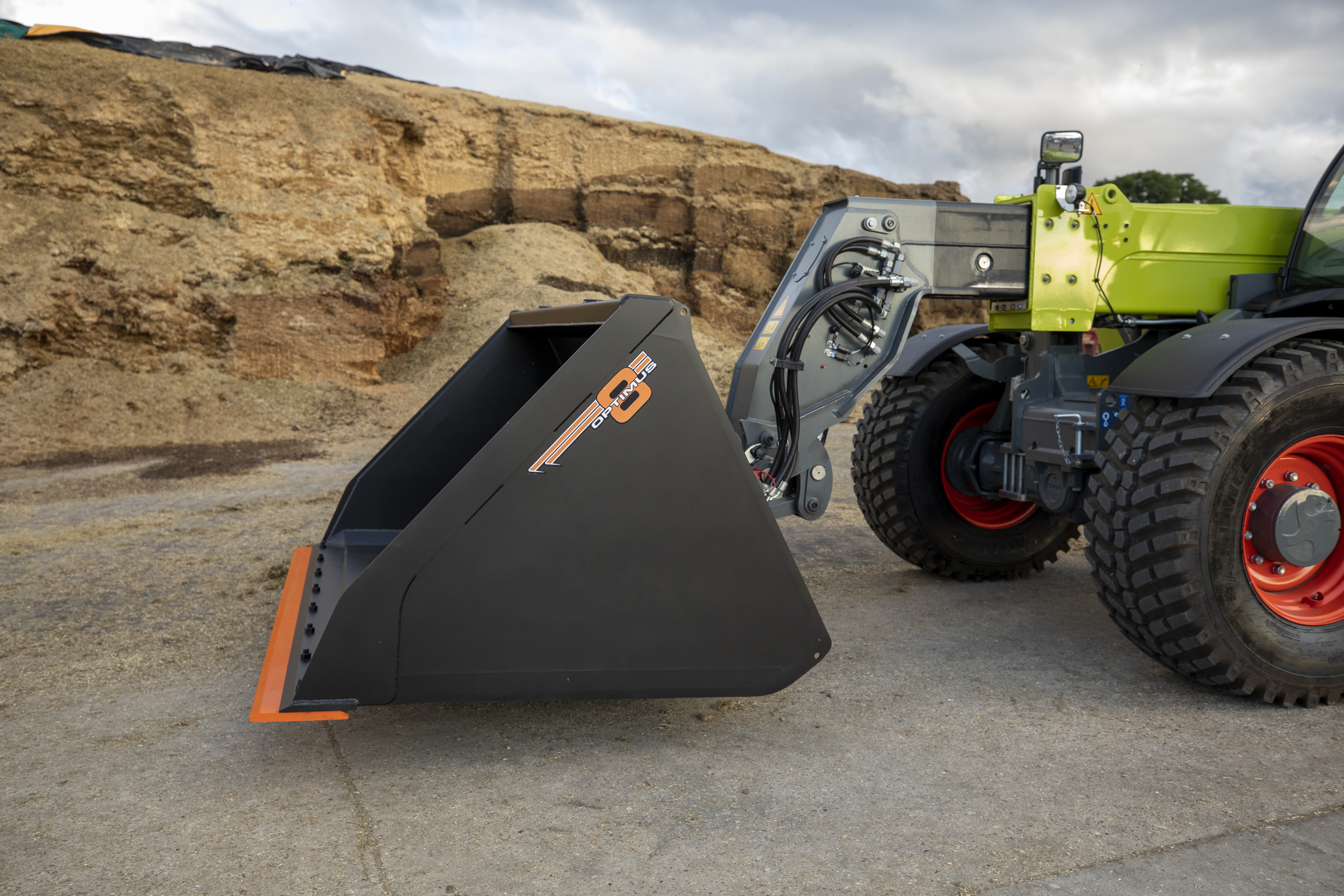

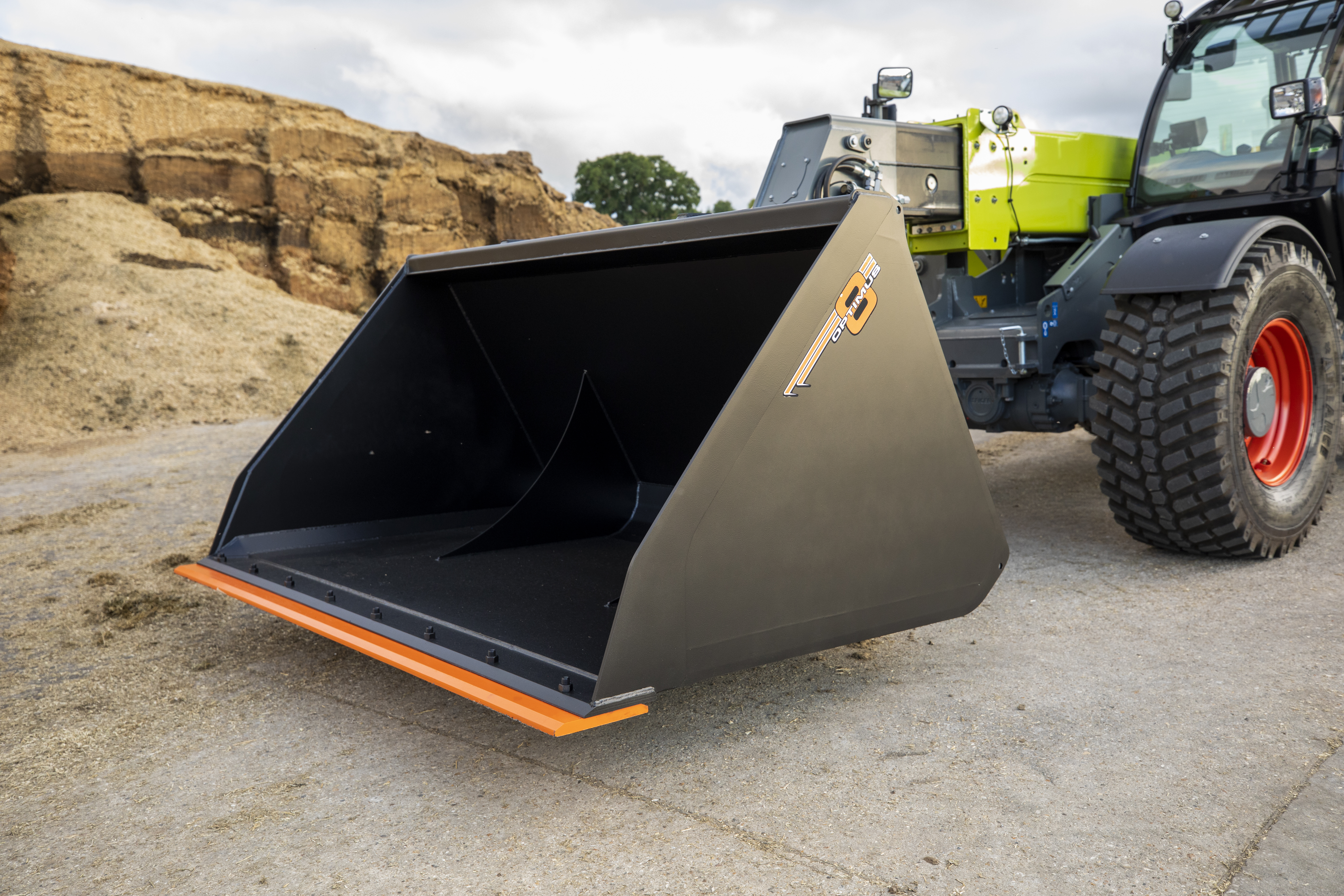

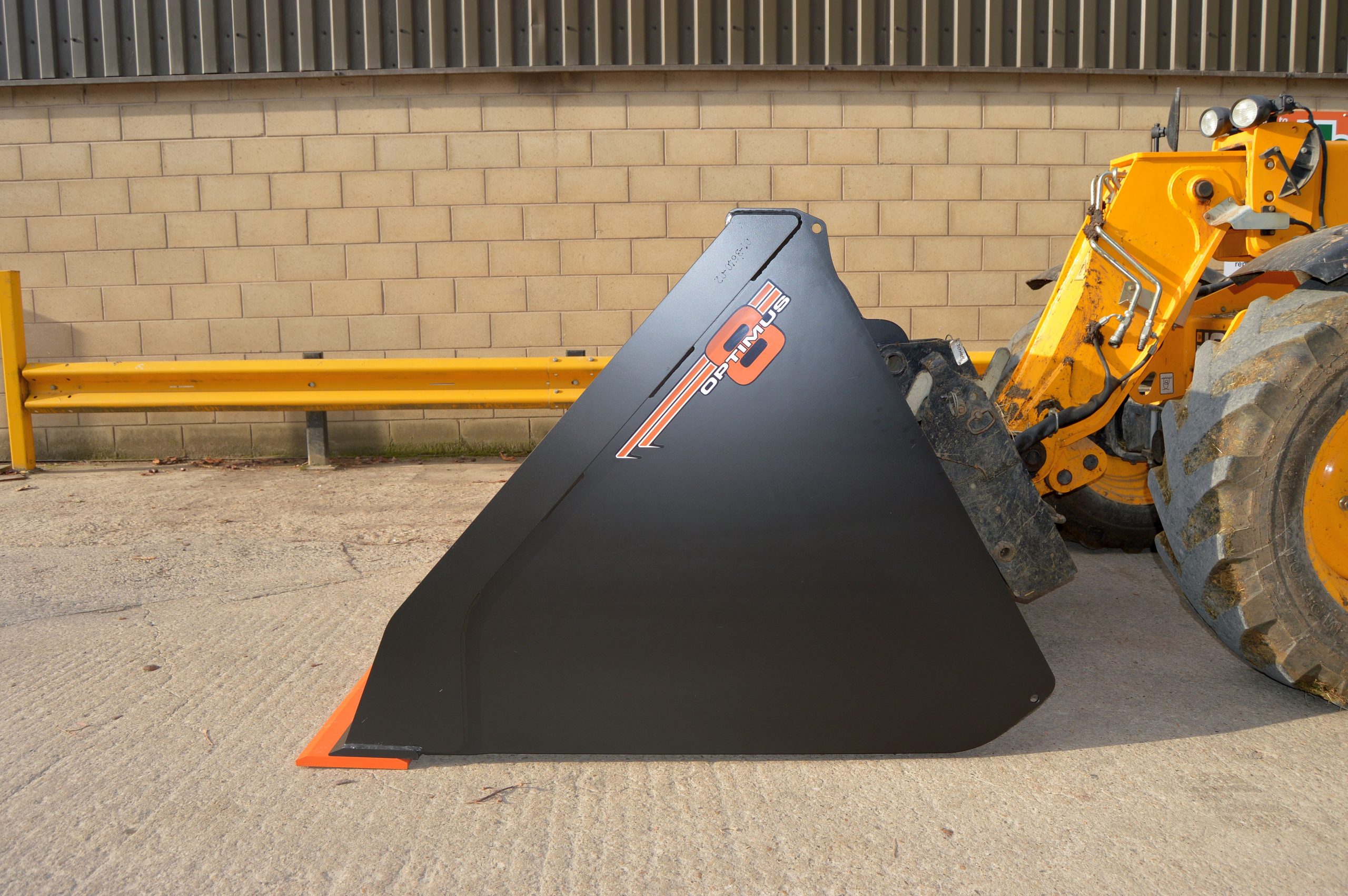

Optimus-8 HD Buckets
Designed to withstand the toughest of environments, the OPTIMUS-8 range of heavy duty 8mm buckets have a host of features specifically aimed at providing a longer operating life compared to 4mm buckets currently available in the UK. Used and trusted by many of the waste industry’s leading names, the OPTIMUS-8 range of buckets have the proven track record to perform in the toughest of farm applications. If reliability and strength are vital to your operation, be sure you ask your dealer about Albutt OPTIMUS-8.
Features
- 8mm bucket shell & sides
- HB500 long life leading edge and underside heel pads
- Heavy duty, full length side gussets
- 12mm thick side stiffeners
- Brackets mounted onto 12mm thick support straps
- 150 x 12mm thick underfloor straps
- Pressed rolled bucket back
- Vertical support gussets - A095-80 and larger buckets
- Optional Spill Guards & Bolt on Toe Plates
Models
9′ to 8′ 6” wide models
| Model | Width | Capacity | Height | Depth | Weight |
|---|---|---|---|---|---|
| A201-96HD | 9’6” | 5.68m3 | 1,575mm | 2,073mm | 1,671kg |
| A171-96HD | 9’6” | 4.84m3 | 1,425mm | 1,728mm | 1,592kg |
| A190-90HD | 9′ | 5.38m3 | 1,575mm | 2,073mm | 1,620kg |
| A162-90HD | 9 | 4.60m3 | 1,425mm | 1,728mm | 1,530kg |
| A141-90HD | 9′ | 4.00m3 | 1,337mm | 1,621mm | 1,300kg |
| A129-90HD | 9′ | 3.66m3 | 1,314mm | 1,471mm | 1,120kg |
| A063-90HD | 9′ | 1.78m3 | 900mm | 1,092mm | 720kg |
| A179-86HD | 8’6” | 5.00m3 | 1,575mm | 2,073mm | 1,570kg |
| A152-86HD | 8’6” | 4.30m3 | 1,425mm | 1,728mm | 1,480kg |
| A133-86HD | 8’6” | 3.77m3 | 1,337mm | 1,621mm | 1,205kg |
| A120-86HD | 8’6” | 3.40m3 | 1,314mm | 1,471mm | 1,045kg |
| A112-86HD | 8’6” | 3.20m3 | 1,233mm | 1,472mm | 1,035kg |
| A060-86HD | 8’6” | 1.70m3 | 900mm | 1,092mm | 620kg |
8′ to 7′ wide models
| Model | Width | Capacity | Height | Depth | Weight |
|---|---|---|---|---|---|
| A144-80HD | 8′ | 4.10m3 | 1,425mm | 1,728mm | 1,424kg |
| A125-80HD | 8′ | 3.54m3 | 1,337mm | 1,337mm | 1,130kg |
| A115-80HD | 8′ | 3.25m3 | 1,314mm | 1,471mm | 990kg |
| A105-80HD | 8′ | 2.97m3 | 1,233mm | 1,472mm | 960kg |
| A095-80HD | 8′ | 2.70m3 | 1,181mm | 1,357mm | 870kg |
| A075-80HD | 8′ | 2.10m3 | 1,054mm | 1,227mm | 688kg |
| A063-80HD | 8′ | 1.78m3 | 960mm | 1,090mm | 635kg |
| A056-80HD | 8′ | 1.60m3 | 901mm | 1,030mm | 587kg |
| A043-80HD | 8′ | 1.20m3 | 784mm | 857mm | 545kg |
| A032-80HD | 8′ | 0.90m3 | 678mm | 702mm | 430kg |

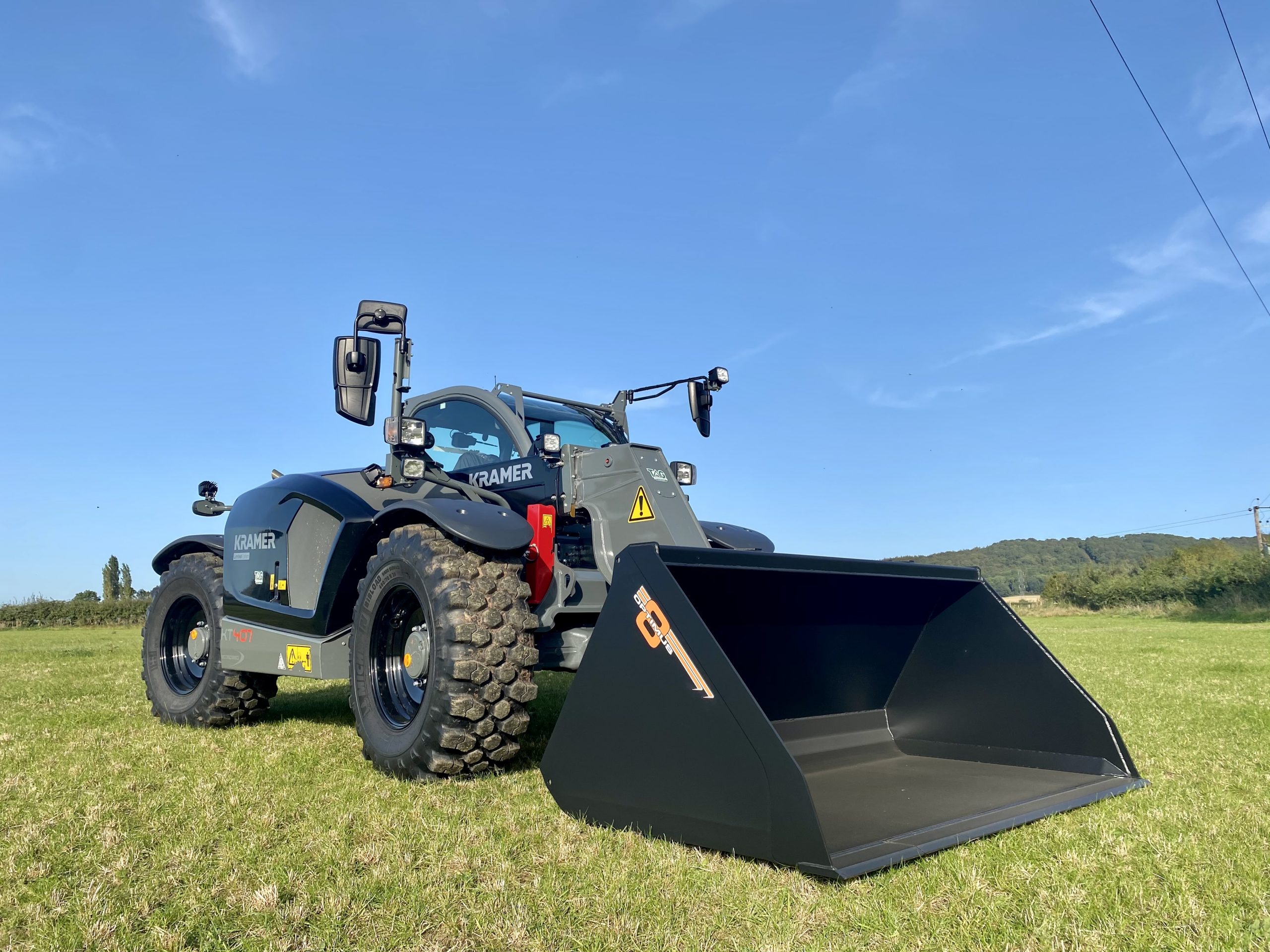

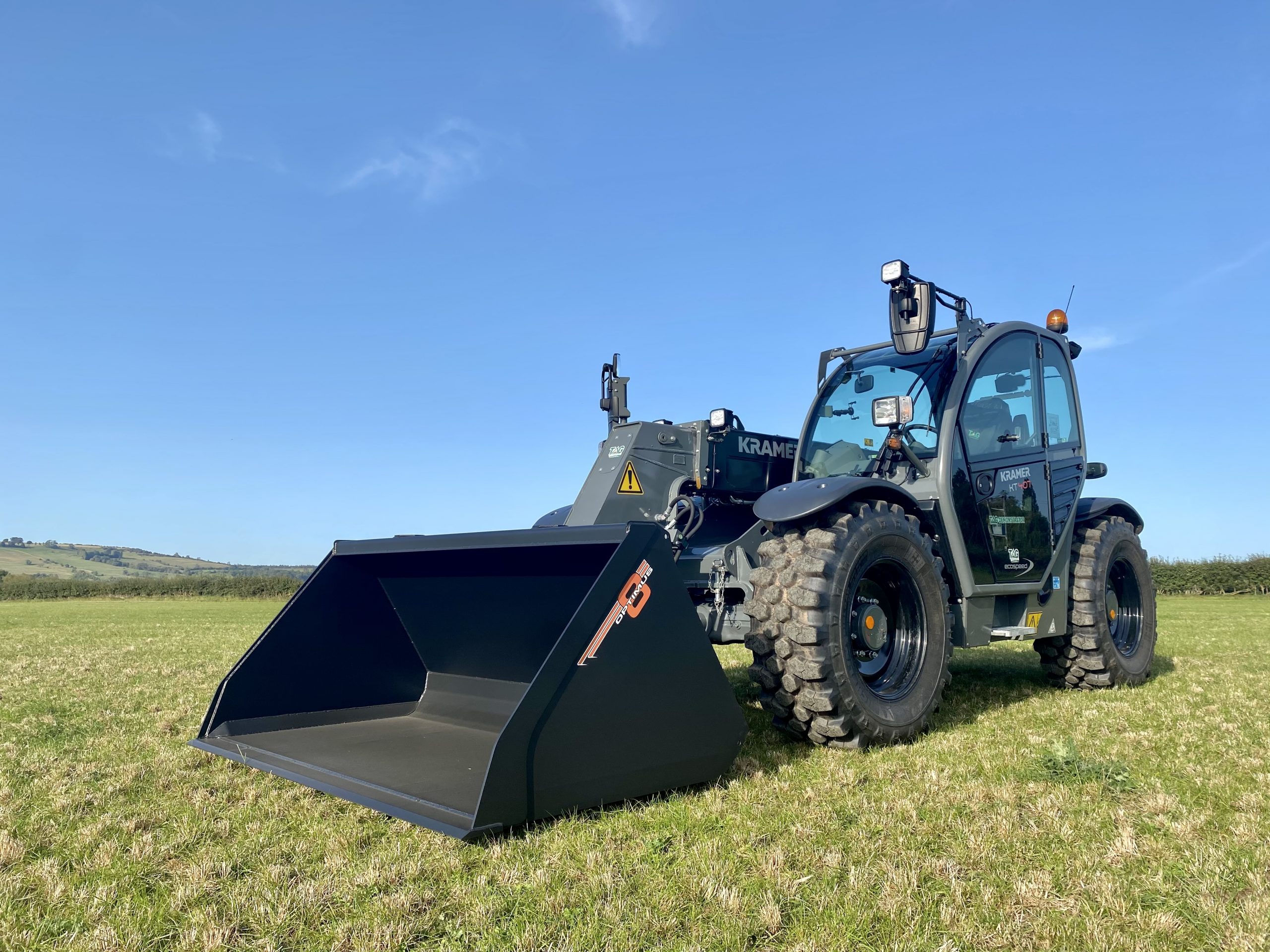

| A070-76HD | 7’6” | 2.00m3 | 1,054mm | 1,227mm | 660kg |
| A060-76HD | 7’6” | 1.70m3 | 960mm | 1,090mm | 610kg |
| A053-76HD | 7’6” | 1.50m3 | 901mm | 1,030mm | 562kg |
| A040-76HD | 7’6” | 1.13m3 | 784mm | 857mm | 525kg |
| A066-70HD | 7′ | 1.90m3 | 1,054mm | 1,227mm | 643kg |
| A056-70HD | 7′ | 1.60m3 | 960mm | 1,090mm | 593kg |
| A049-70HD | 7′ | 1.40m3 | 901mm | 1,030mm | 545kg |
| A044-70HD | 7′ | 1.25m3 | 850mm | 1,030mm | 535kg |
| A037-70HD | 7′ | 1.05m3 | 784mm | 857mm | 470kg |
