Grain Buckets

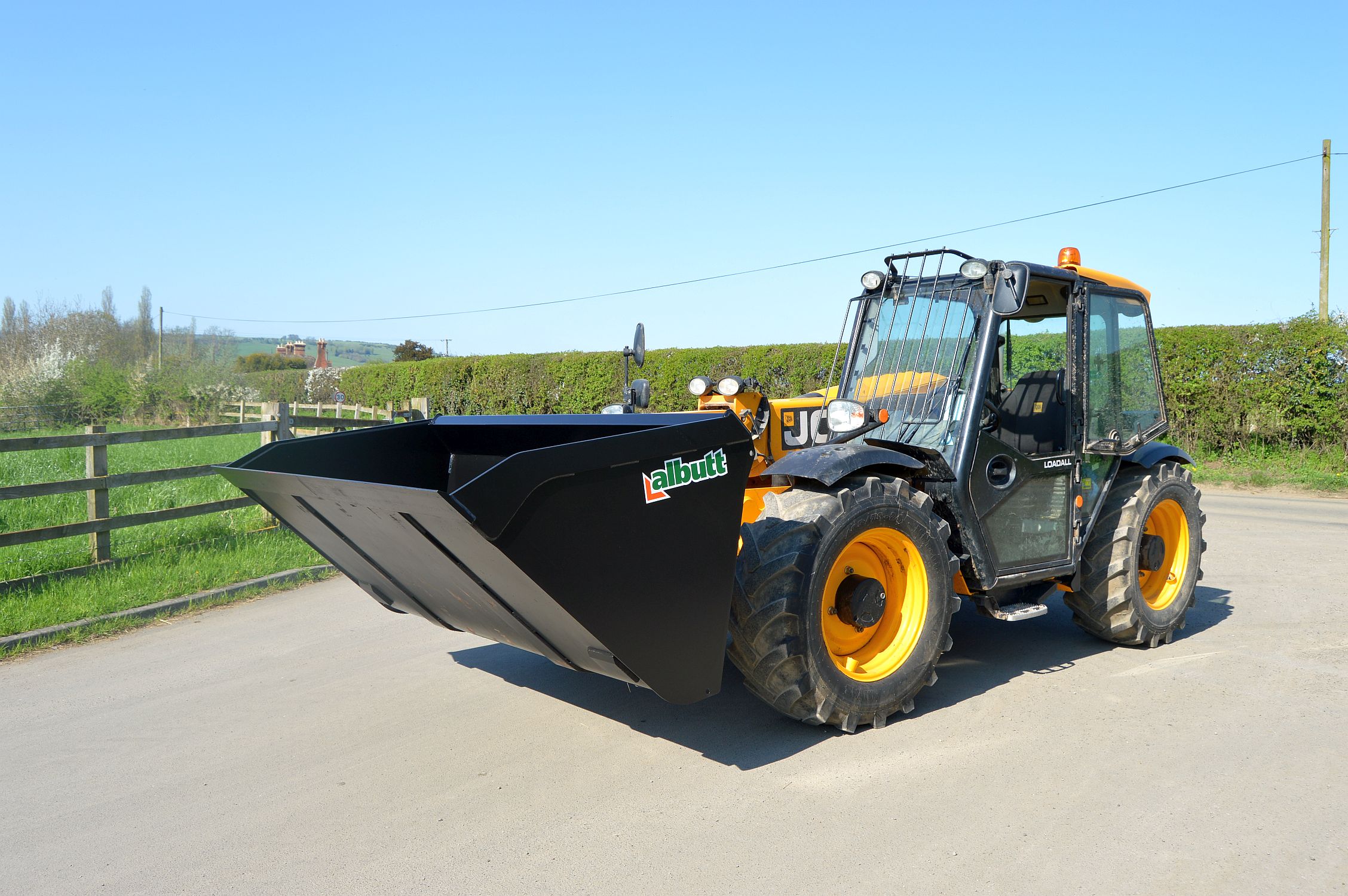

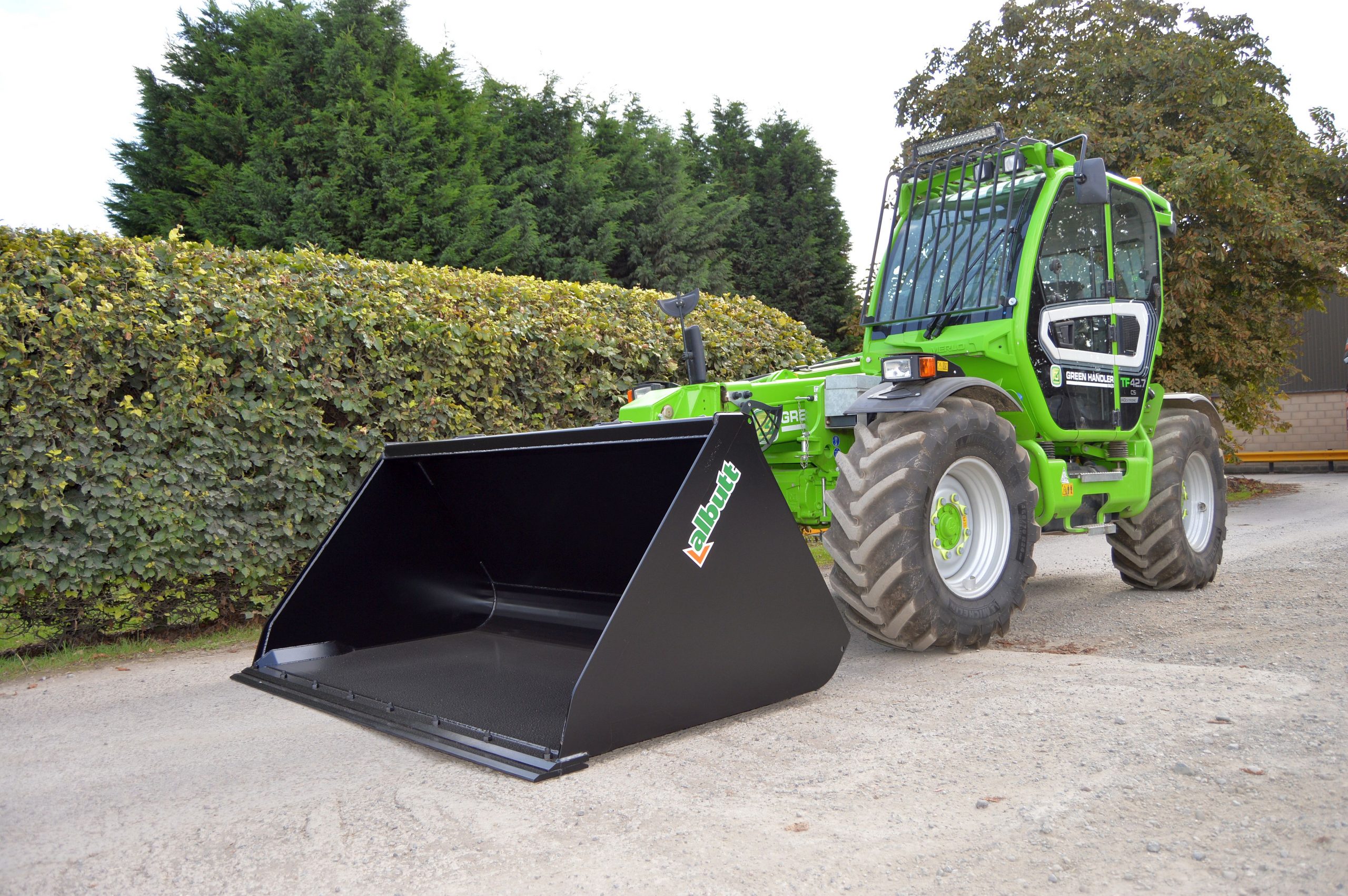

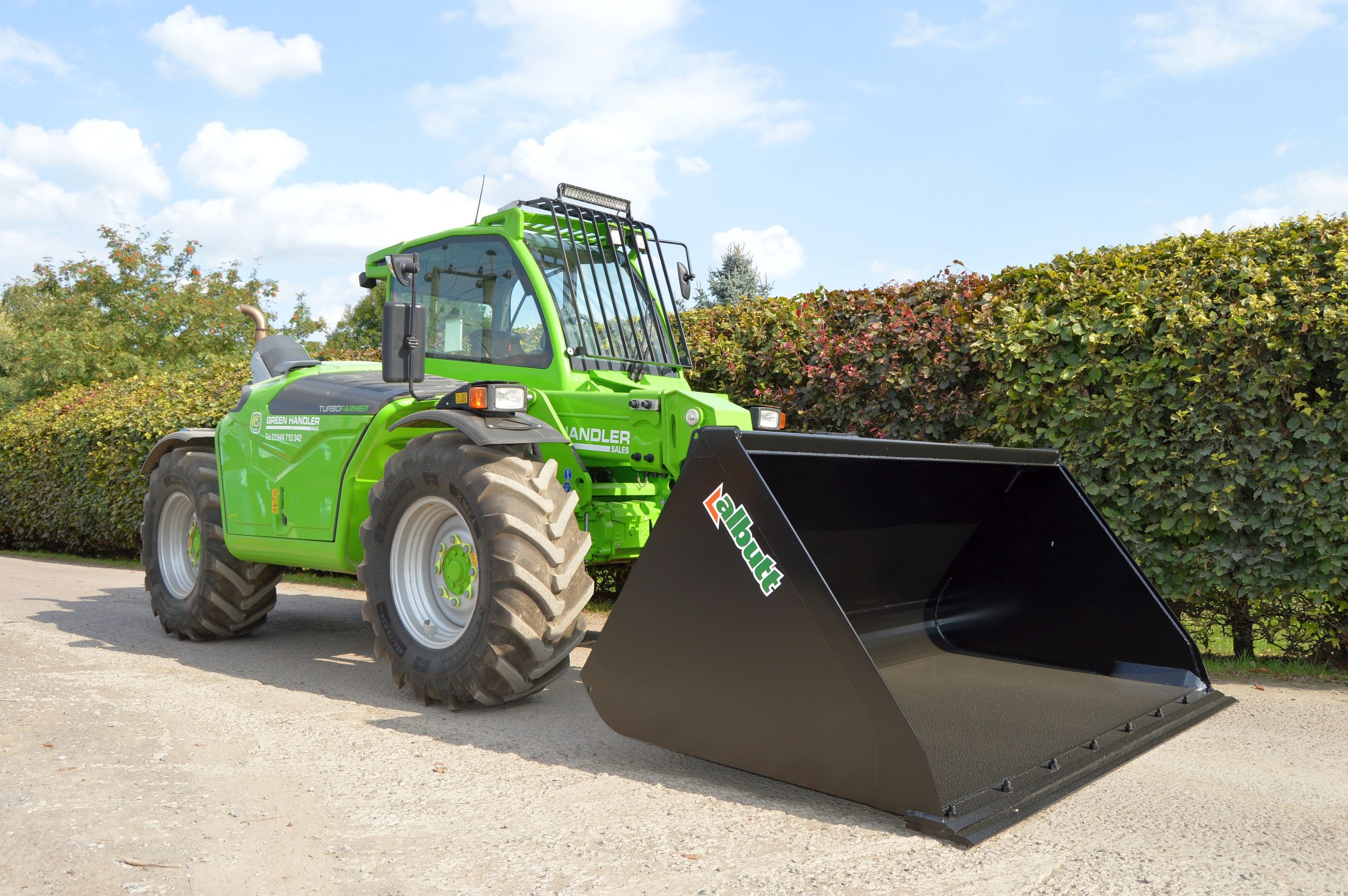

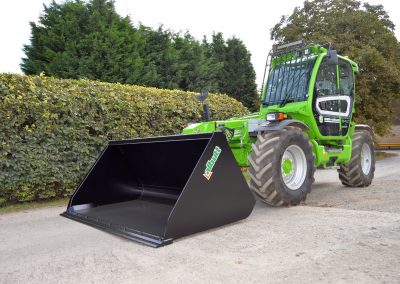

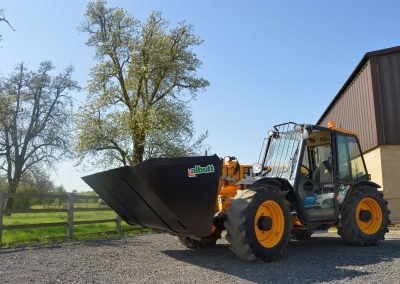

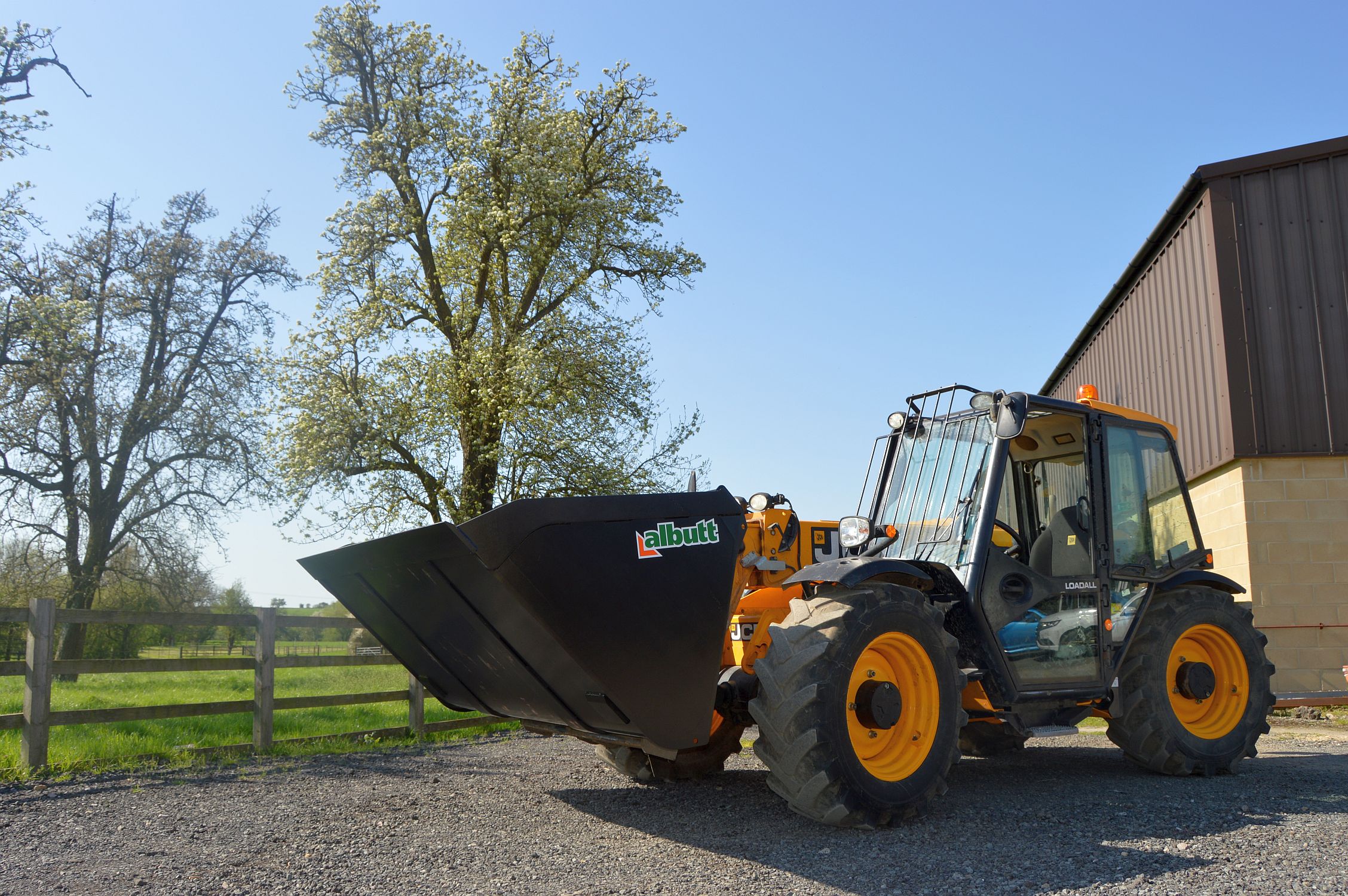

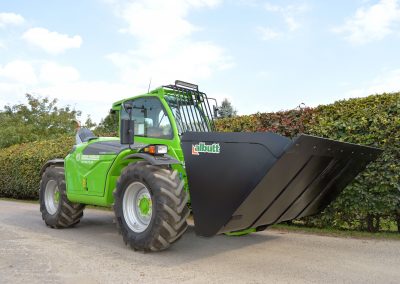

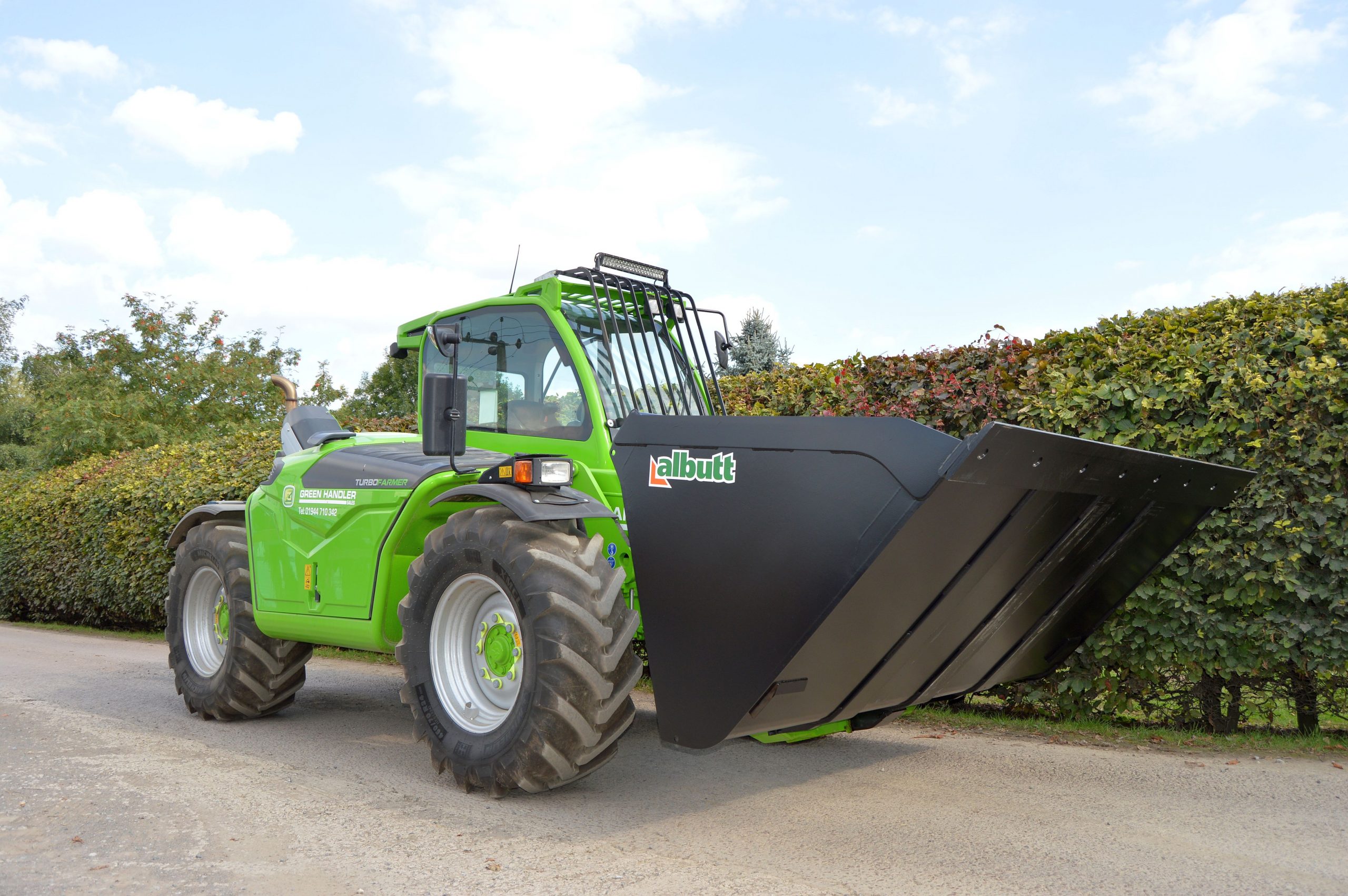

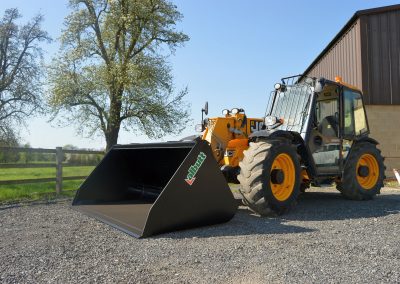

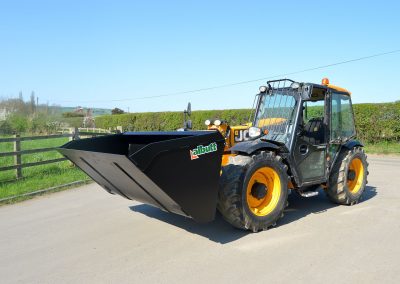

The Albutt range of Grain Buckets have been expertly designed on over 45 years of attachment building experience. A host of standout features truly make the Albutt Grain Buckets market leaders for specification, design and build quality. With brackets designed specifically for the machine and headstock type required, the grain bucket range is able to achieve the maximum crowd and dump angles available.

Available with optional bolt on toe plate – 500 brinell steel or nylon



Categories: ,

Features

  • Fitted with long life cutting edge and corner wear pads, made from 500 Brinell hardened boron steel.

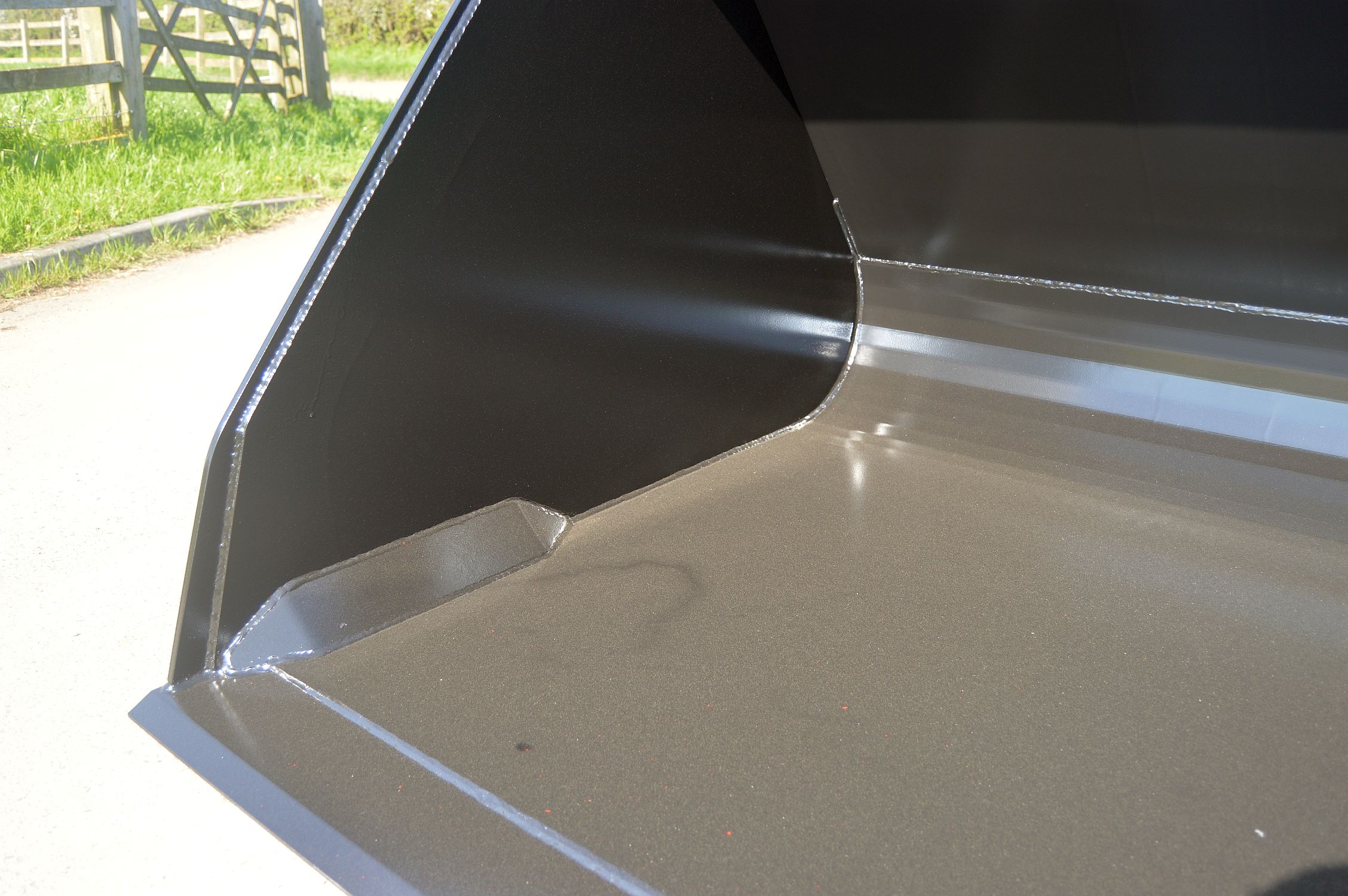

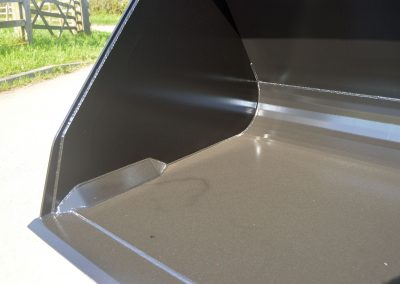

  • Corner gussets

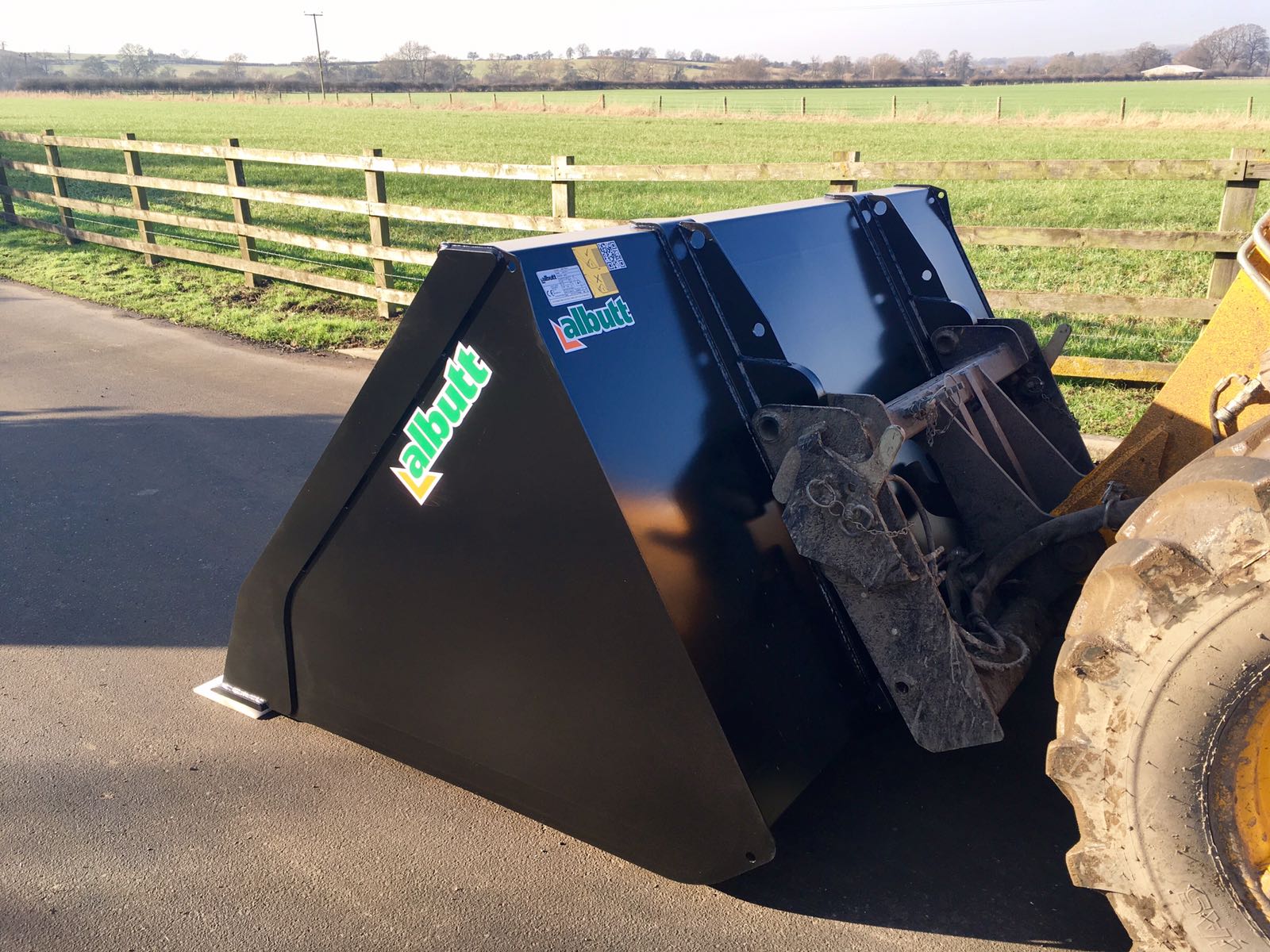

  • Brackets mounted on straps for even load distribution
  • Side stiffeners
  • Under floor strapping plates
  • Vertical inside gussets fitted to A095-80GB and larger capacity grain buckets
  • Optional bolt on cutting edge – 500 brinell or plastic

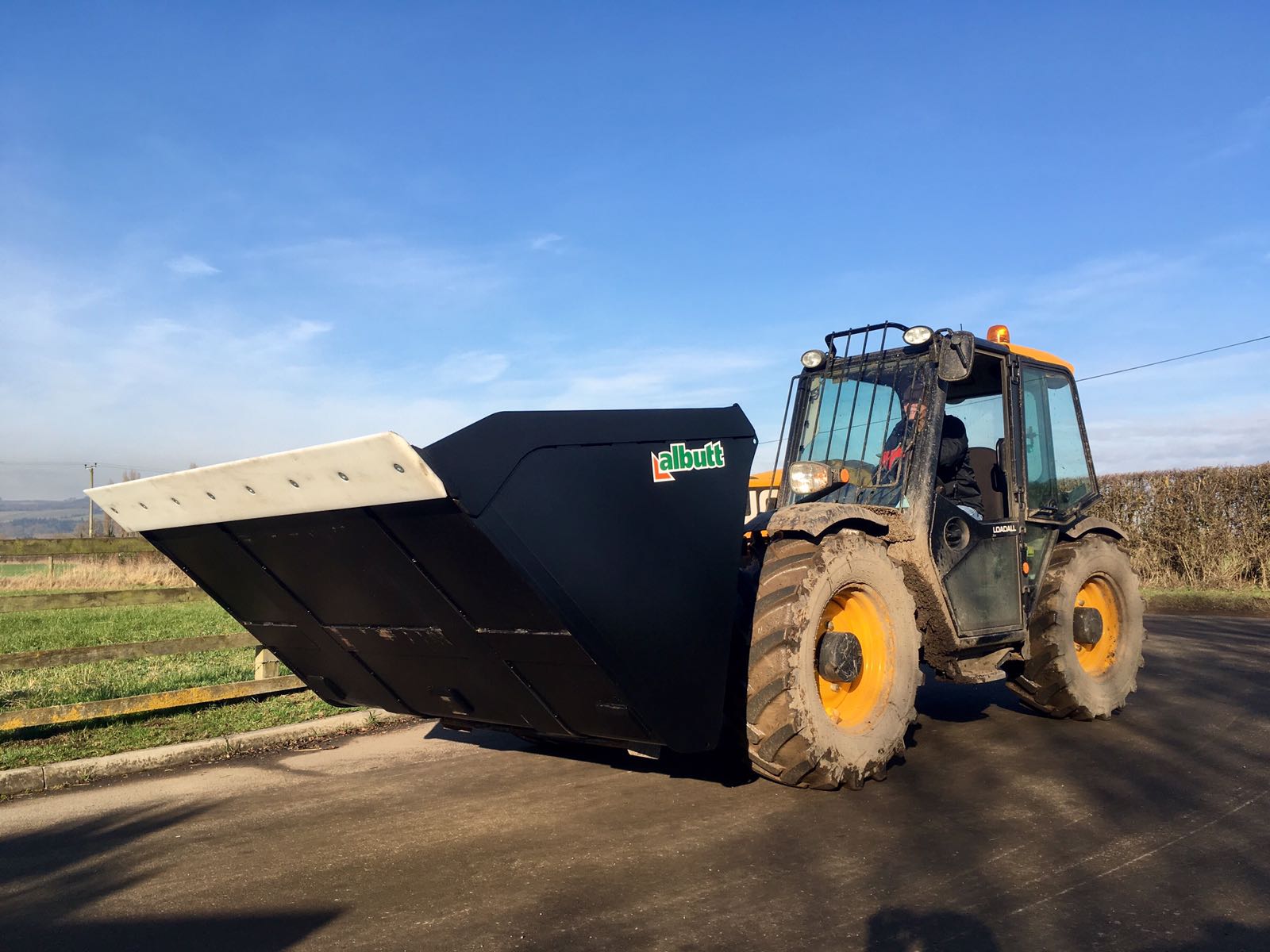

  • Available with plastic cutting edge for wooden floors

Models

Model Width Capacity Height Depth Weight
A197-96GB 9’6″ 5.68 m3  1,575 mm  2,073 mm 1,296 kg
A171-96GB 9’6″ 4.84 m3  1,425 mm  1,728 mm 1,098  kg
A190-90GB 9’0″ 5.38 m3  1,575 mm  2,073 mm 1,258 kg
A162-90GB 9’0″ 4.60 m3 1,425 mm 1,728 mm 1,041 kg
A141-90GB 9’0″ 4.00 m3 1,337 mm 1,621 mm 890 kg

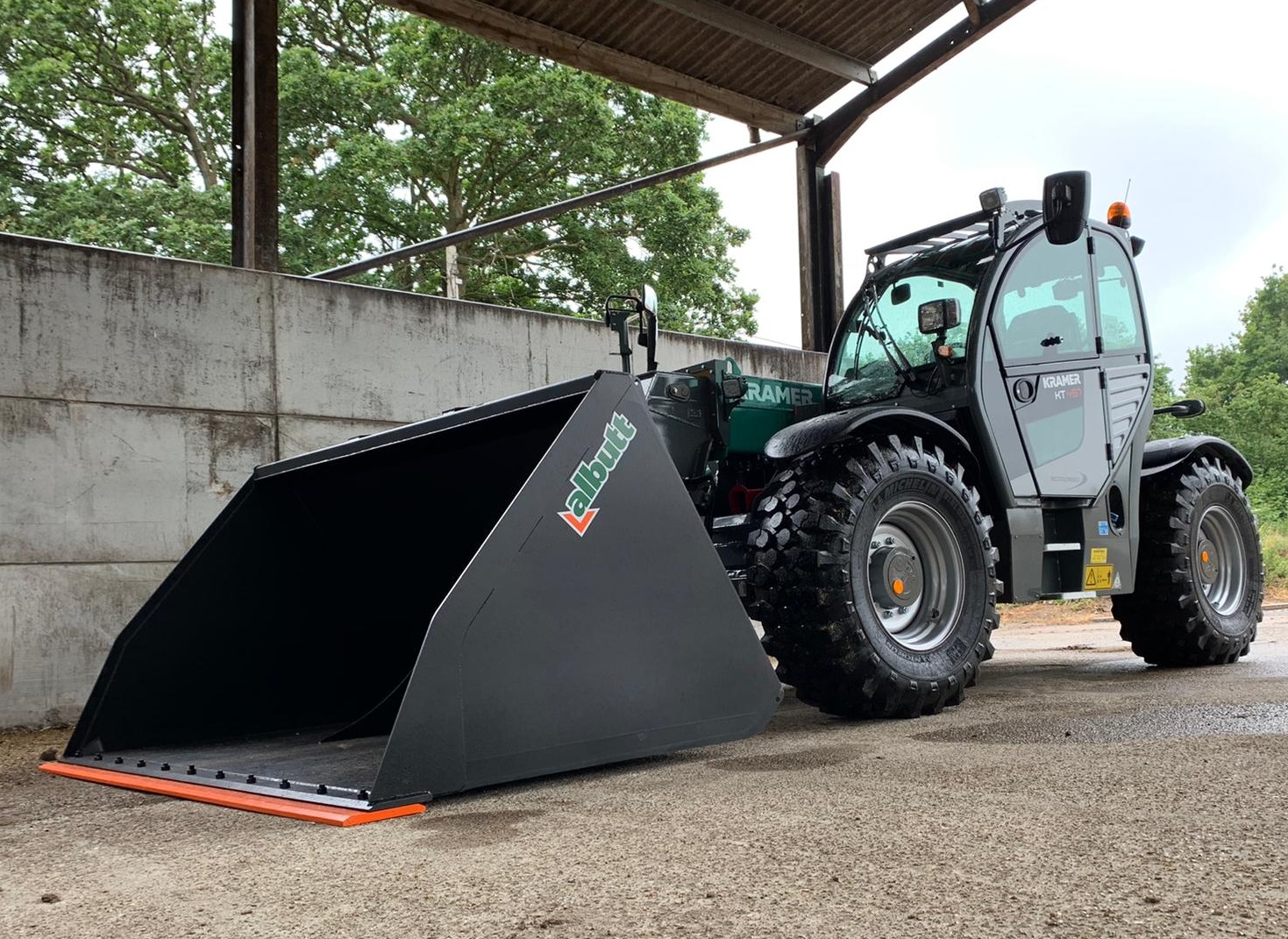

A129-90GB 9’0″ 3.66 m3 1,314 mm 1,471 mm 761 kg
A179-86GB 8’6″ 5.00 m3 1,575 mm  2,073 mm  1,220 kg
A152-86GB 8’6″ 4.30 m3 1,425 mm 1,728 mm 1,005 kg
A133-86GB 8’6″ 3.77 m3 1,337 mm 1621 mm 820 kg

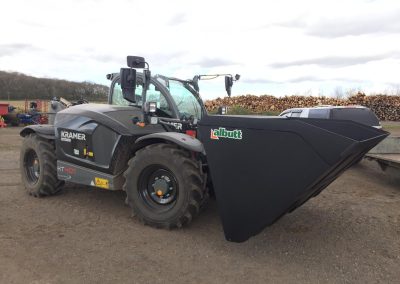

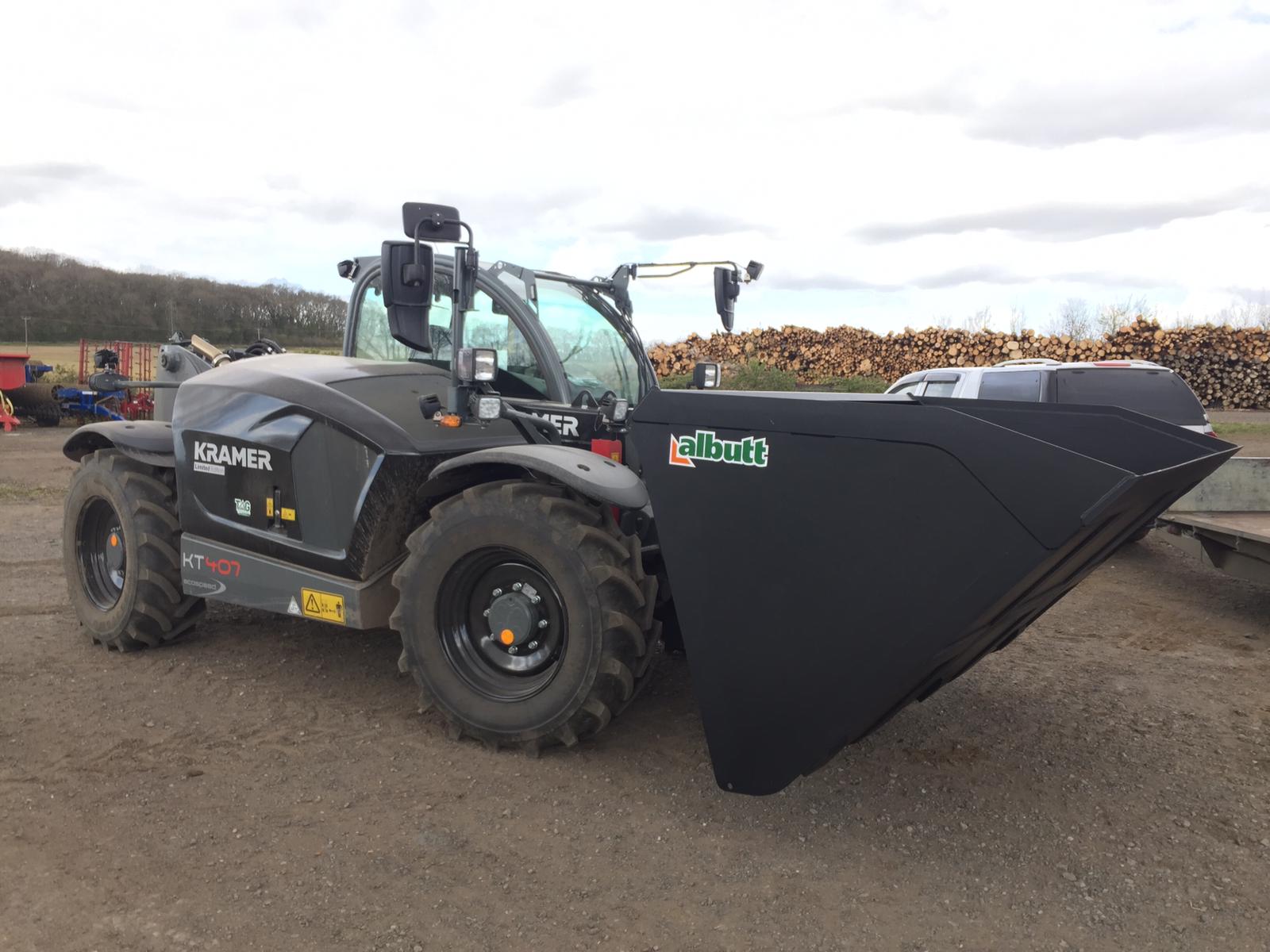

A120-86GB 8’6″ 3.40 m3 1,314 mm 1,471 mm 695 kg
A112-86GB 8’6″ 3.20 m3 1,233 mm 1,472 mm 705 kg
A100-86GB 8’6″ 2.85 m3 1,181 mm 1,357 mm 667 kg
A125-80GB 8’0″ 3.54 m3 1,337 mm 1,621 mm 766 kg
A115-80GB 8’0″ 3.25 m3 1,314 mm 1,472 mm 671 kg
A105-80GB 8’0″ 2.97 m3 1,233 mm 1,472 mm 647 kg
A095-80GB 8’0″ 2.70 m3 1,181 mm 1,357 mm 614 kg
A075-80GB 8’0″ 2.10 m3 1,054 mm 1,227 mm 546 kg
A070-76GB 7’6″ 2.00 m3 1,054 mm 1,227 mm 523 kg
