Folding Forks

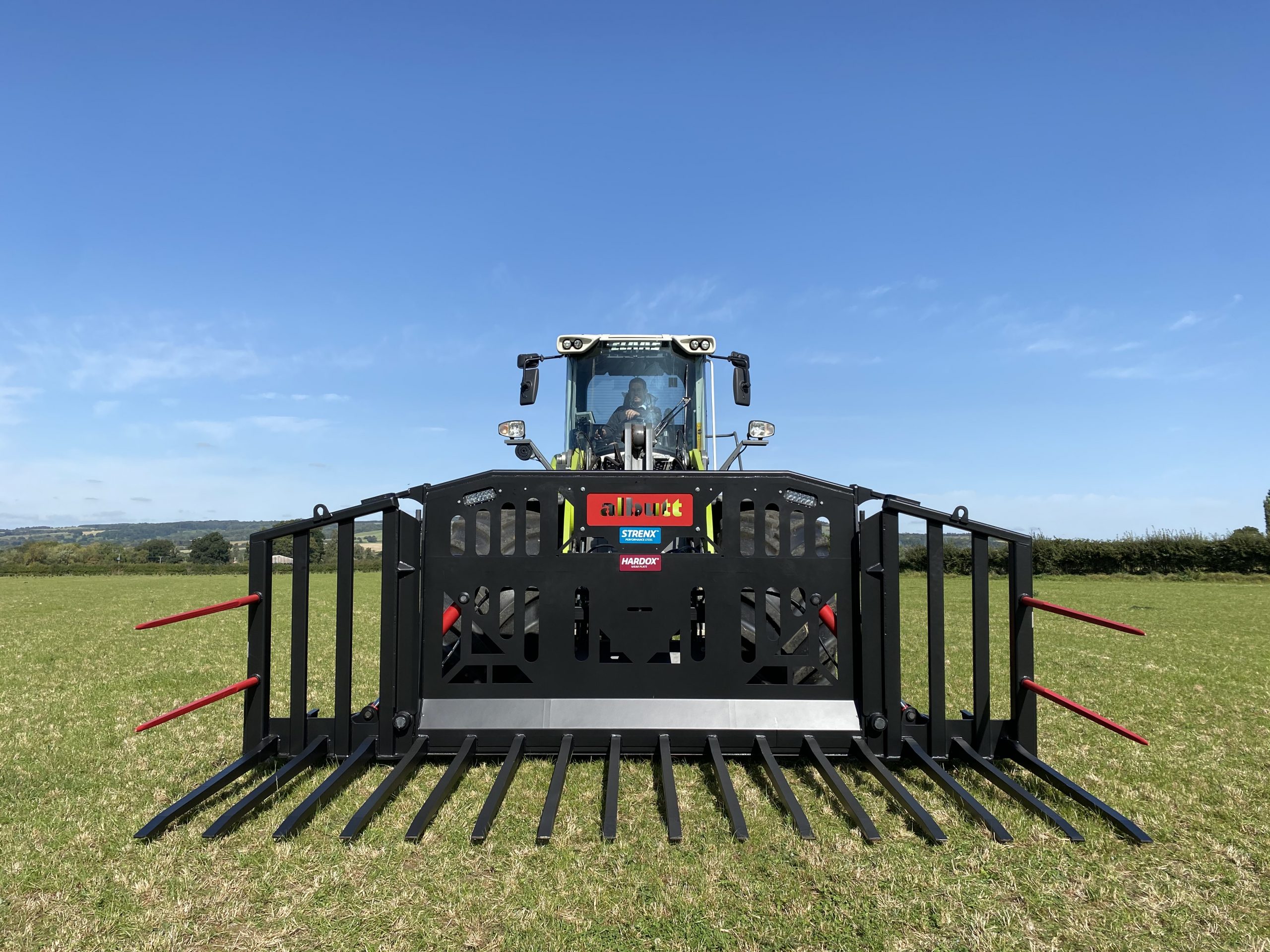

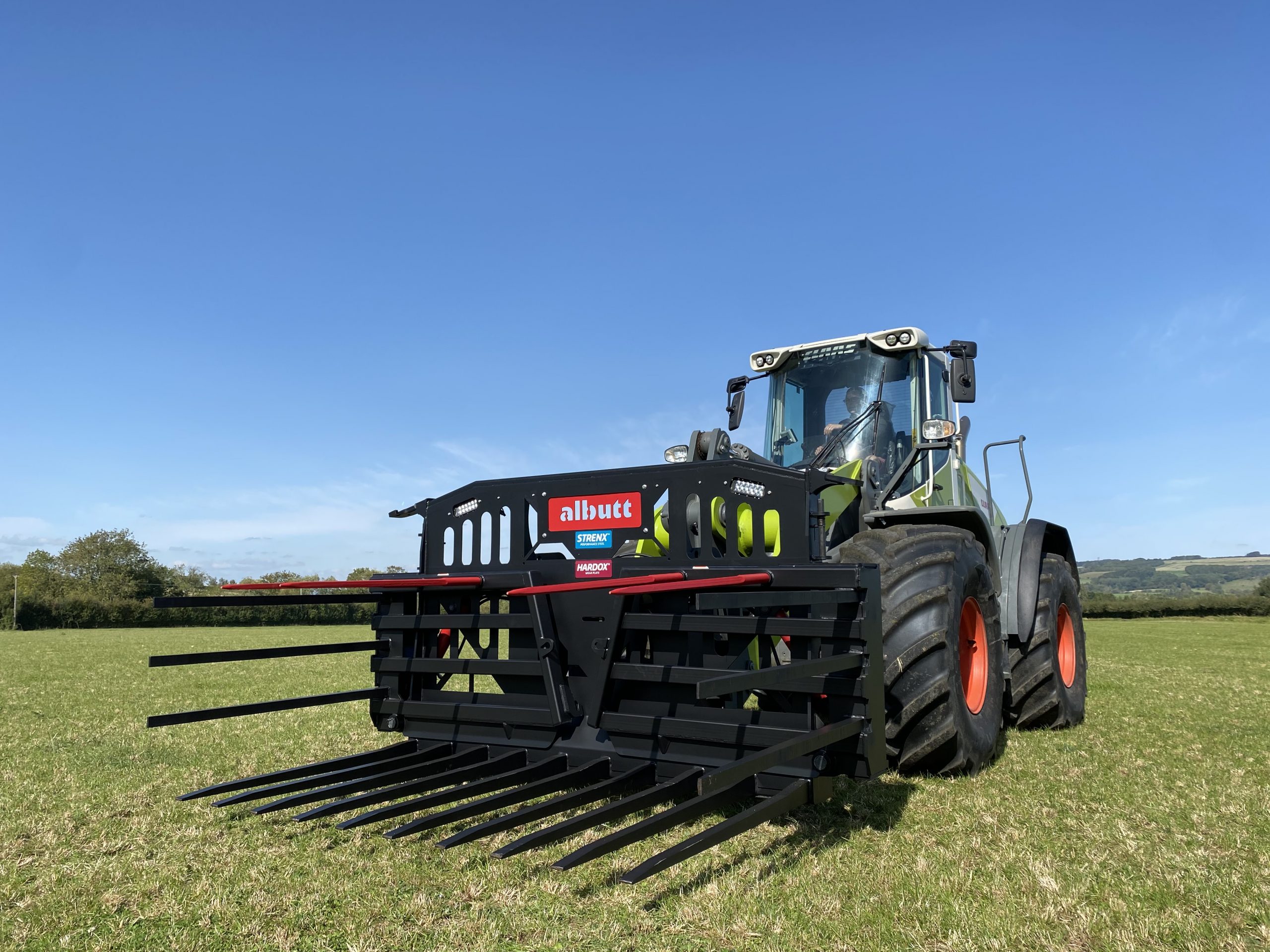

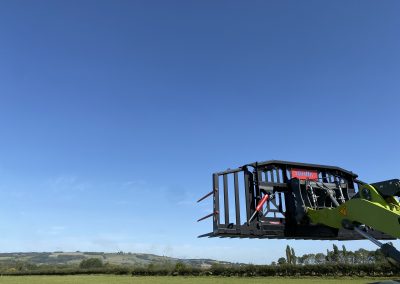

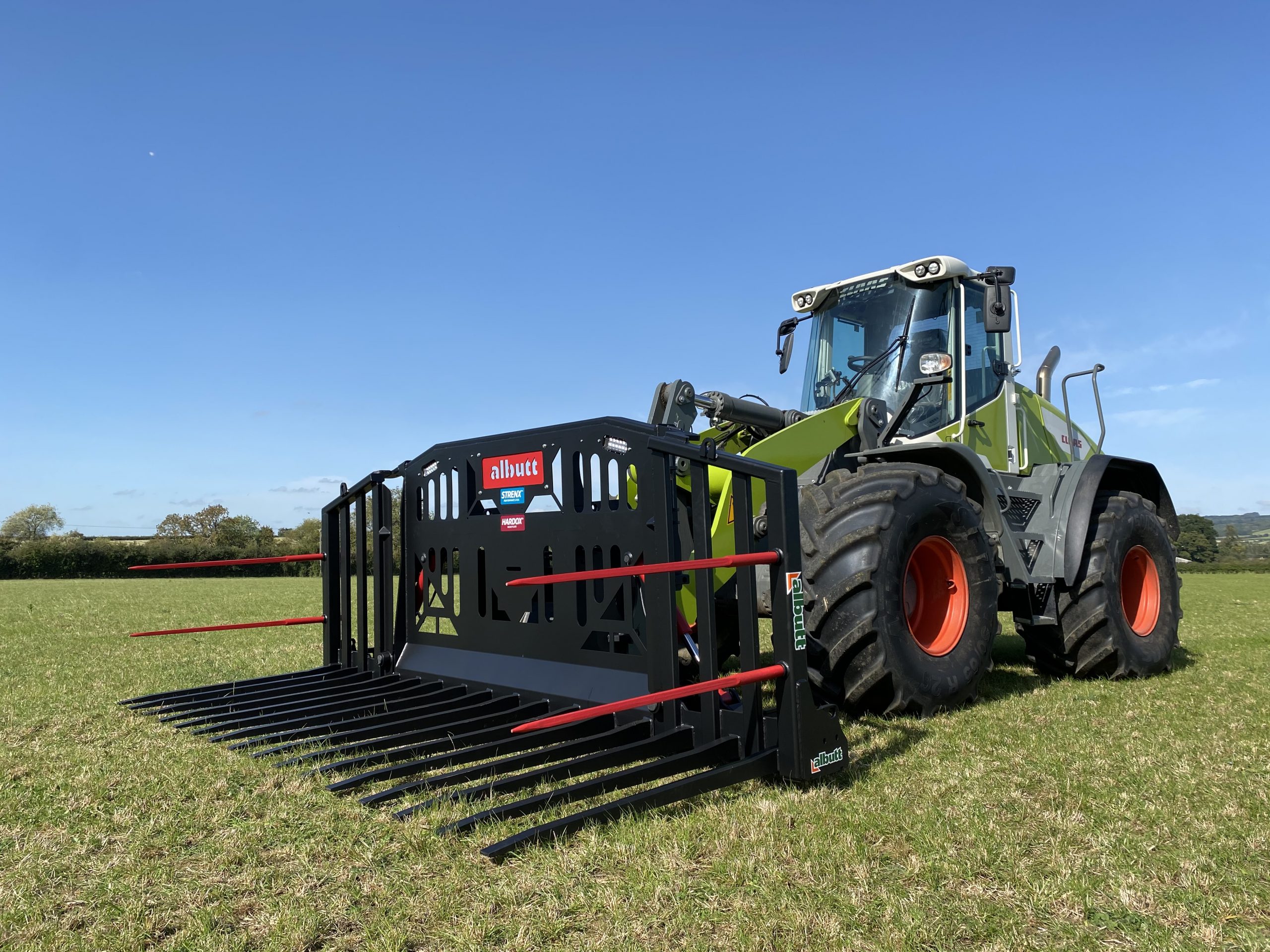

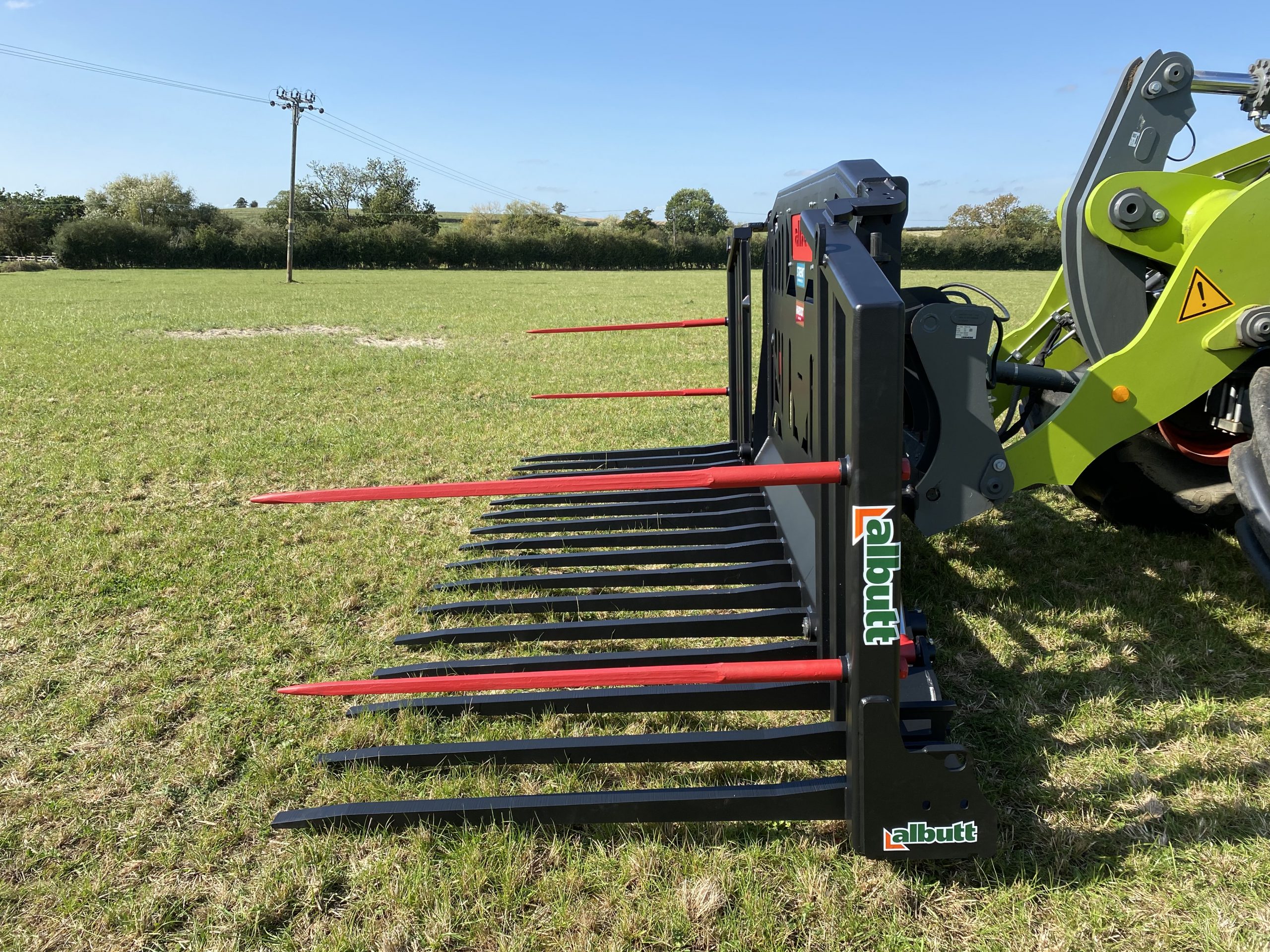

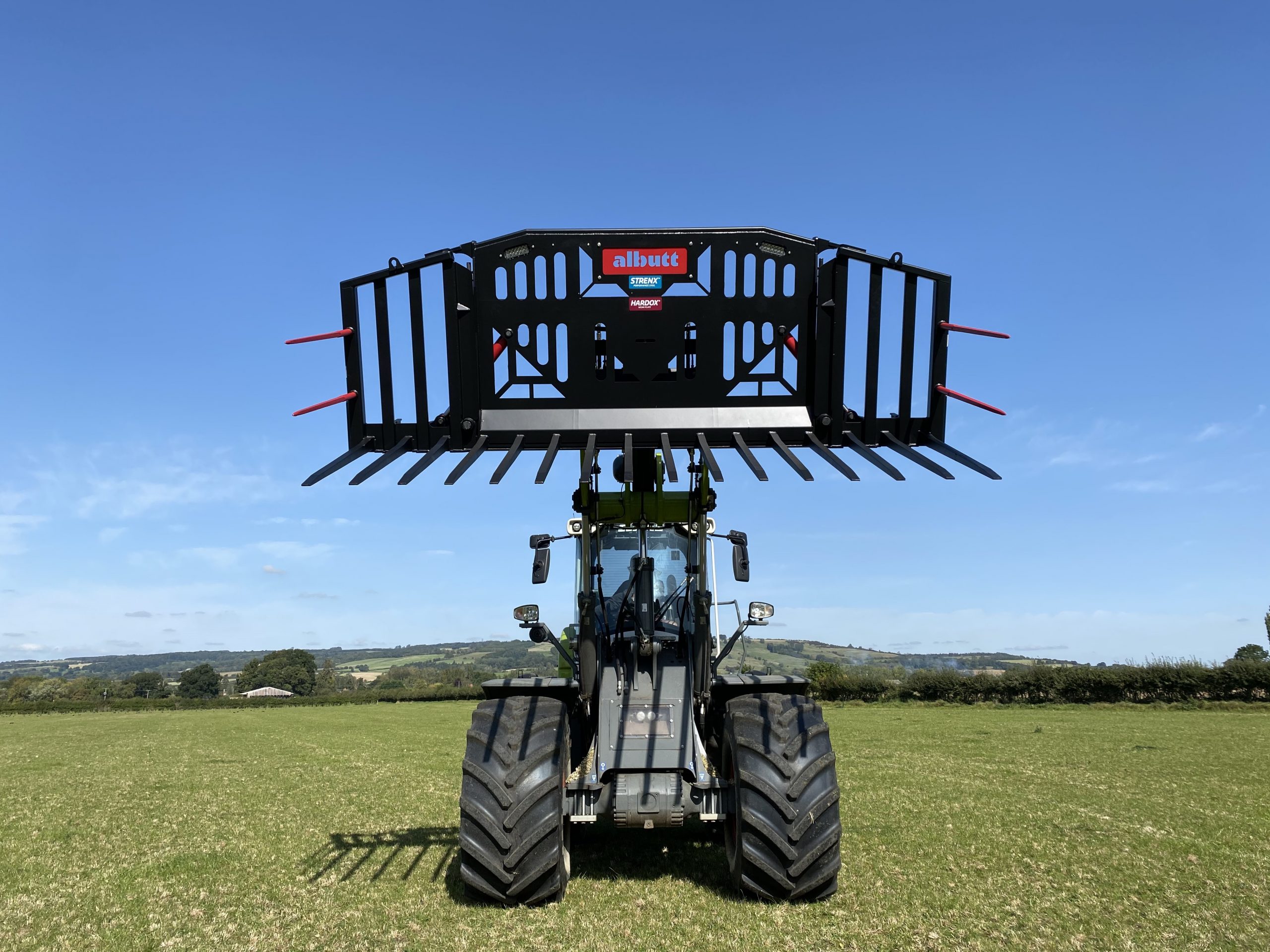

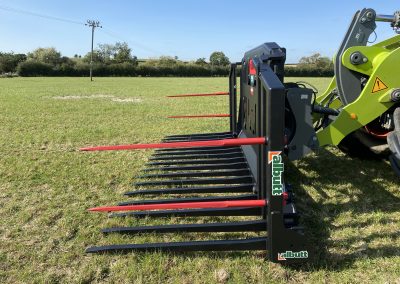

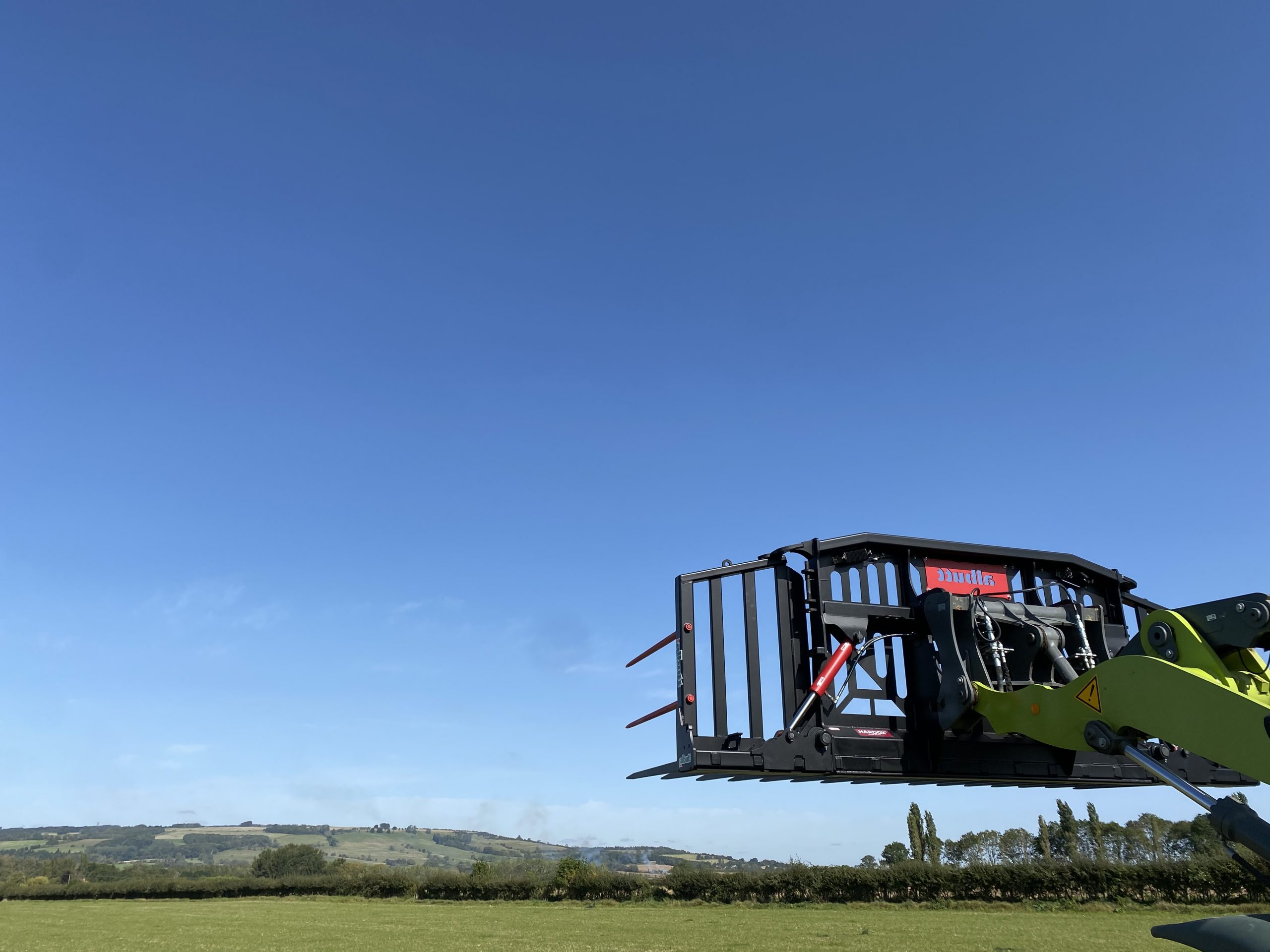

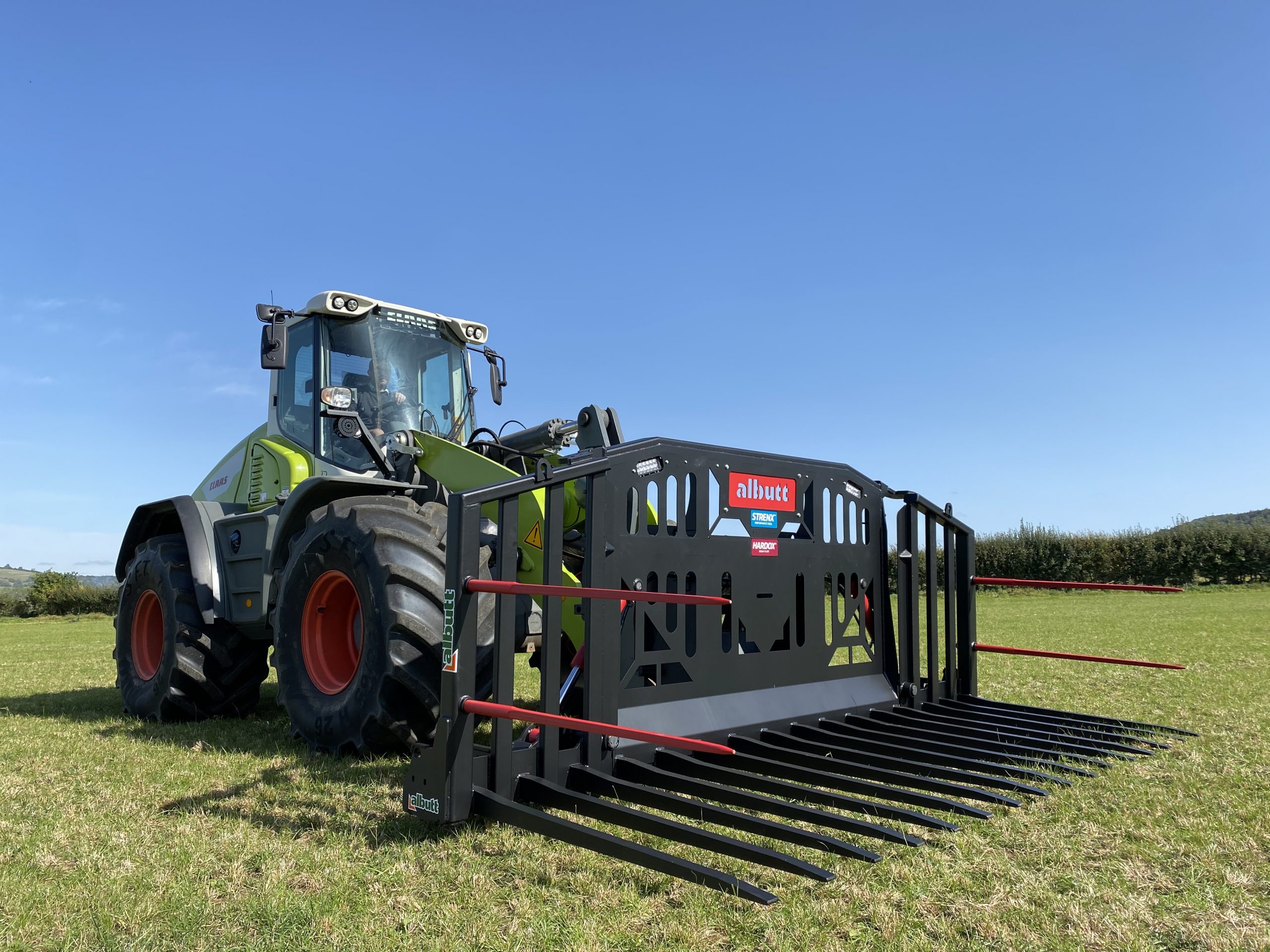

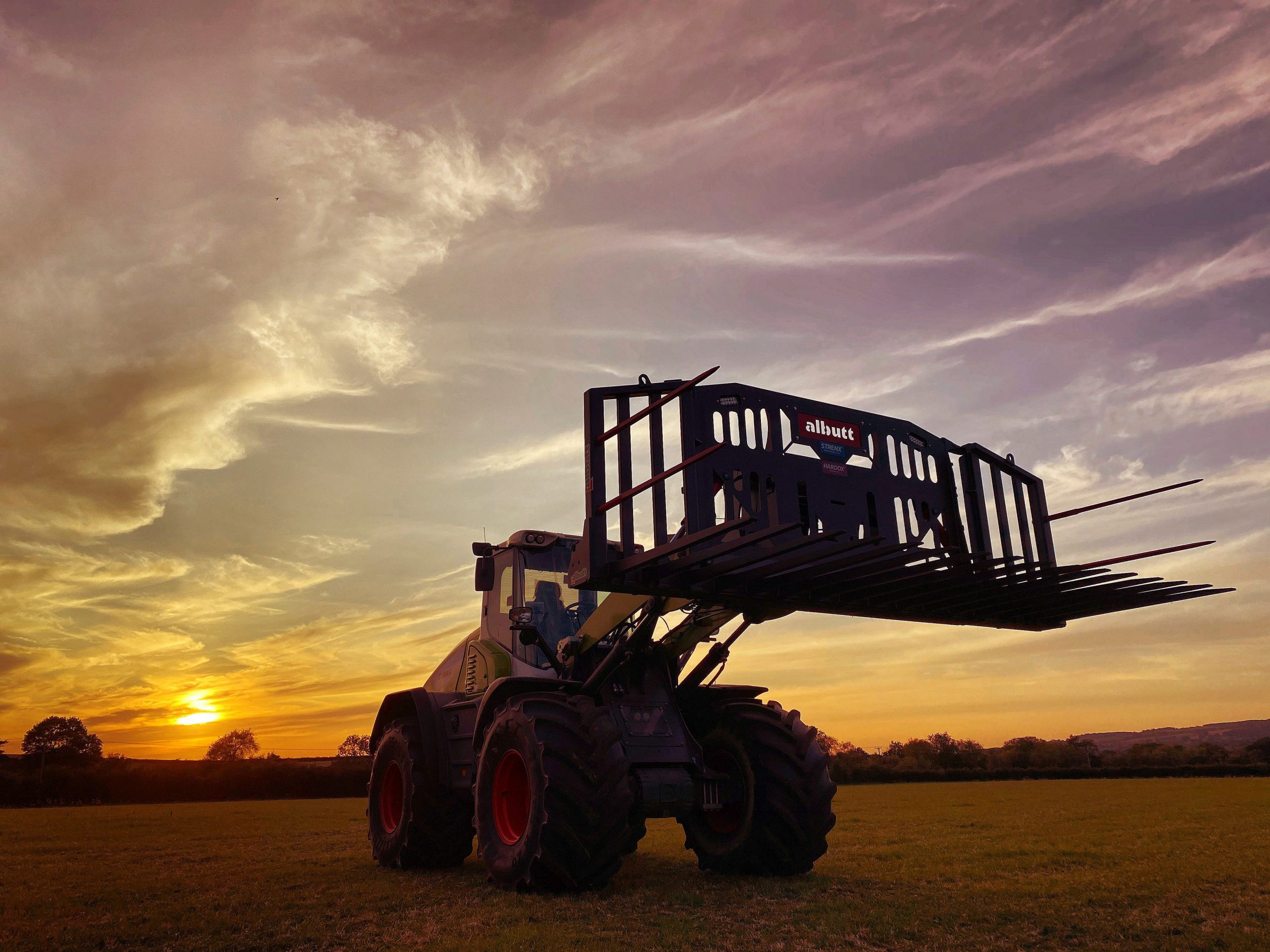

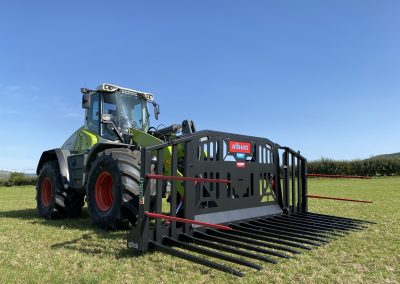

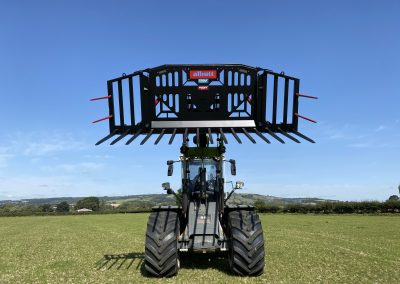

The Albutt Folding Fork is designed to maximise the potential of your clamp machine. By featuring wings that close during road transport, the Folding Fork can spread its wings for clamp use and such considerably increase its capacity. A market leading specification includes a 200 x100mm base tine holder, 1650mm genuine Hardox base tines, a shock protecting hydraulic accumulator as standard and use of Strenx and Hardox in key stress areas. Trusted the world over, the Fork is regularly sent abroad and used by major OEM’s on their demonstration machines.









Categories: , ,

Features

  • 1650mm long genuine Hardox base tines
  • 1530mm tall

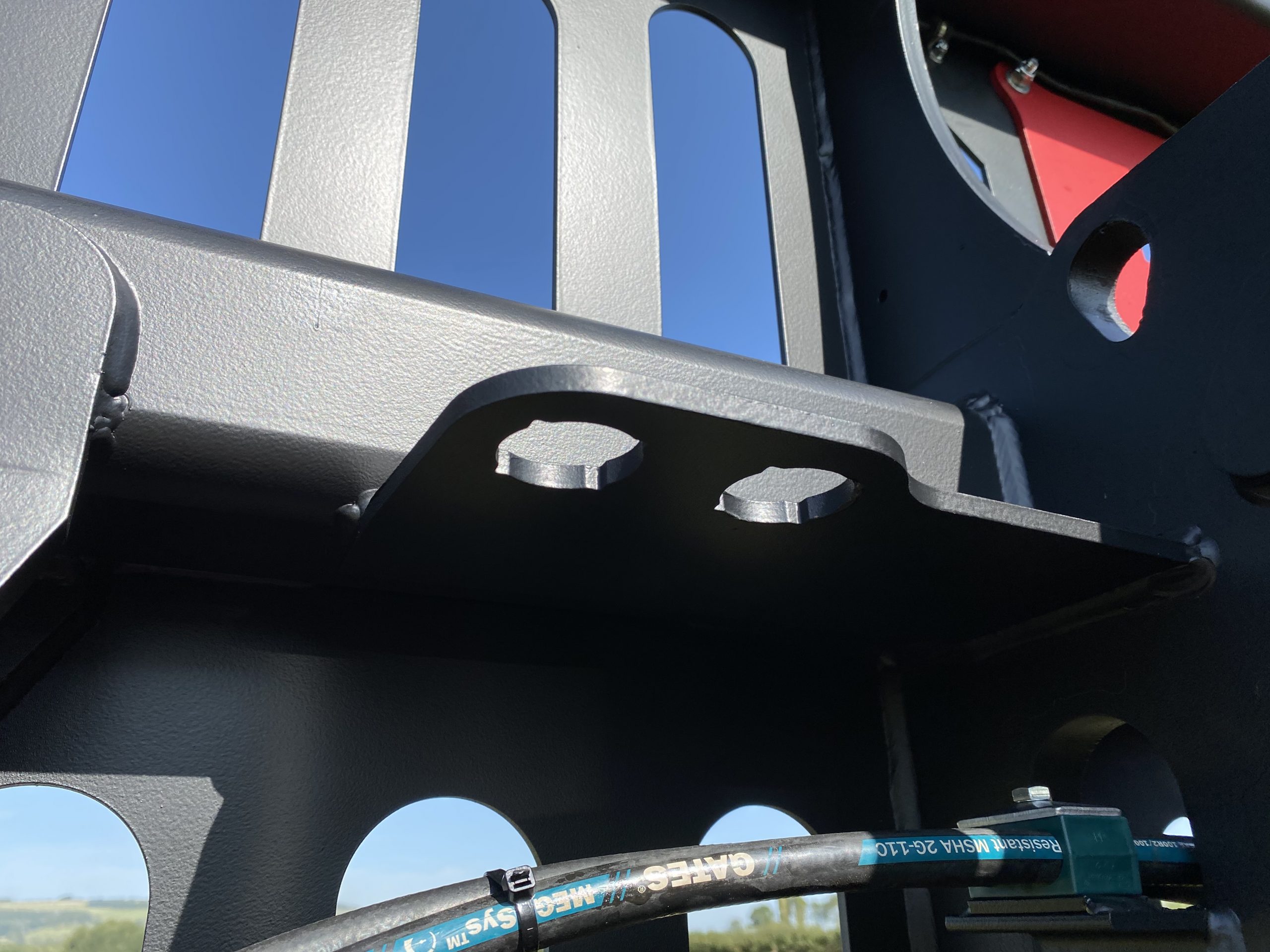

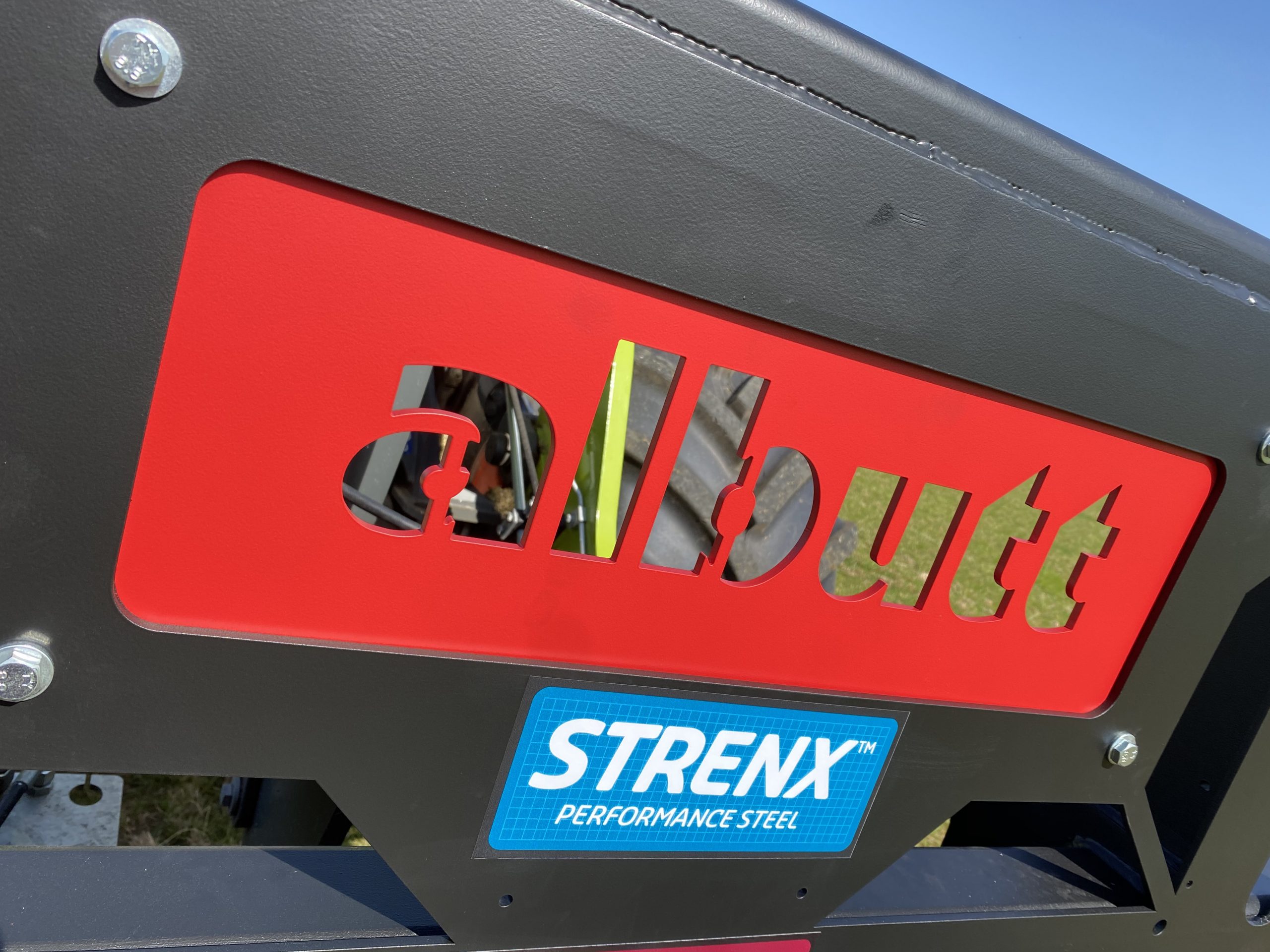

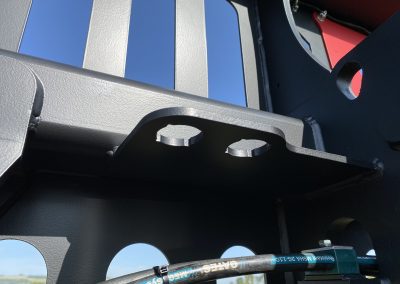

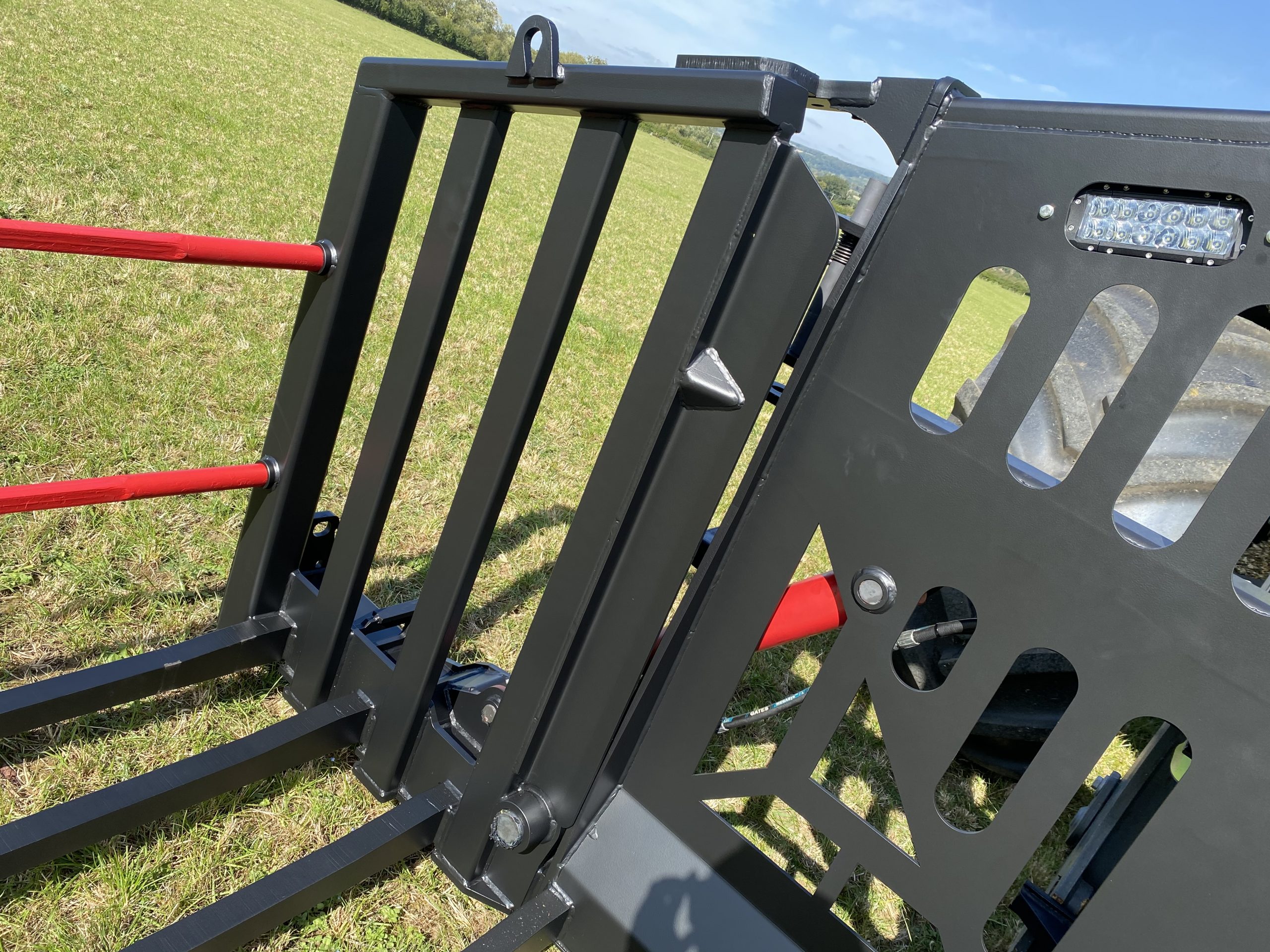

  • STRENX high tensile fork back with cut outs for visibility
  • Double side tines
  • The highest specification and capacities – recognised global market leader

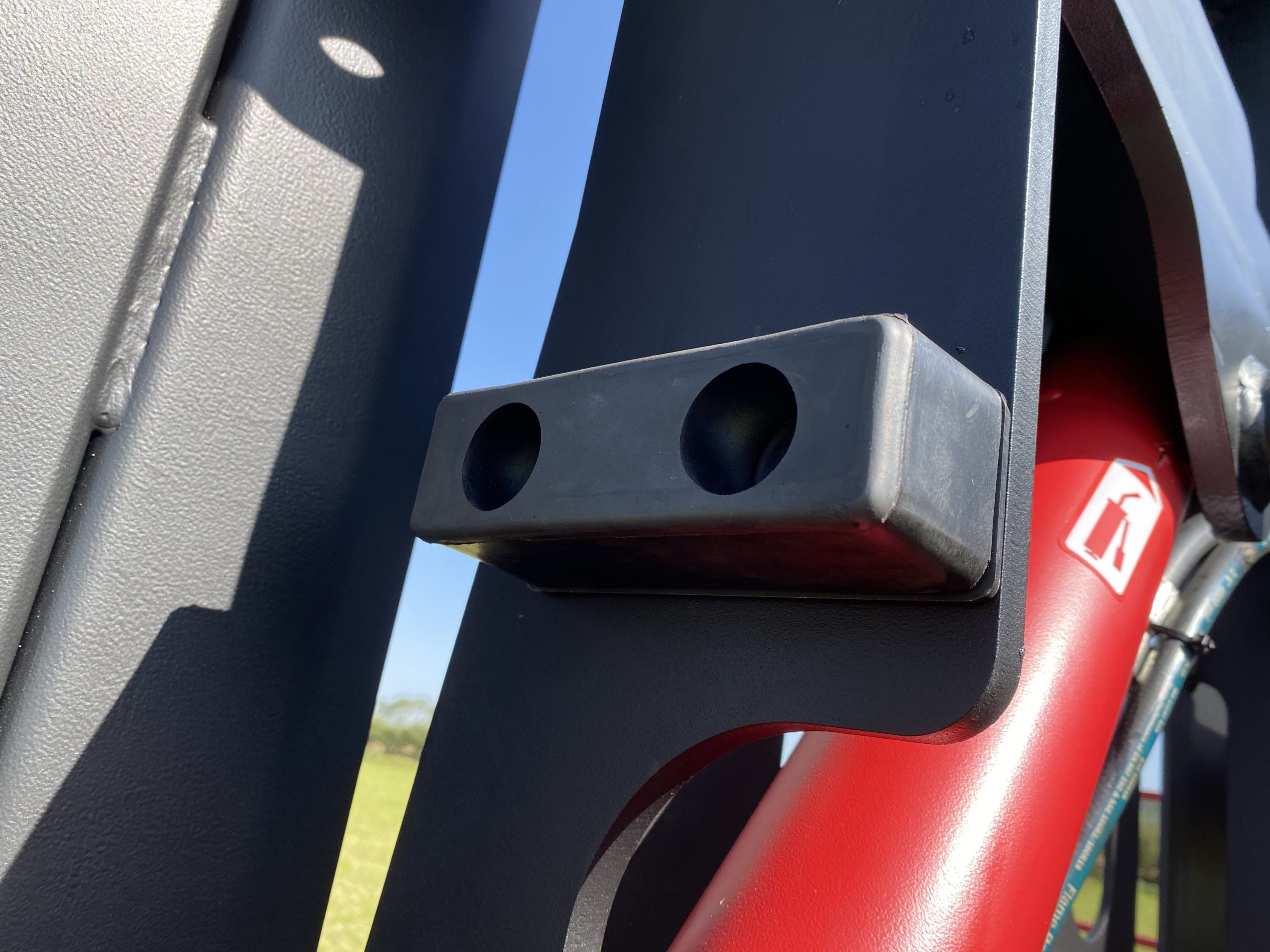

  • Cushioned rams
  • Hydraulic accumulator for shock protection – standard

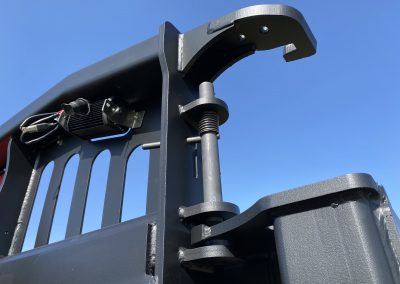

  • Wings lock when in transport position
  • Complete with quick hitch brackets
  • 200 x 100mm tine holder

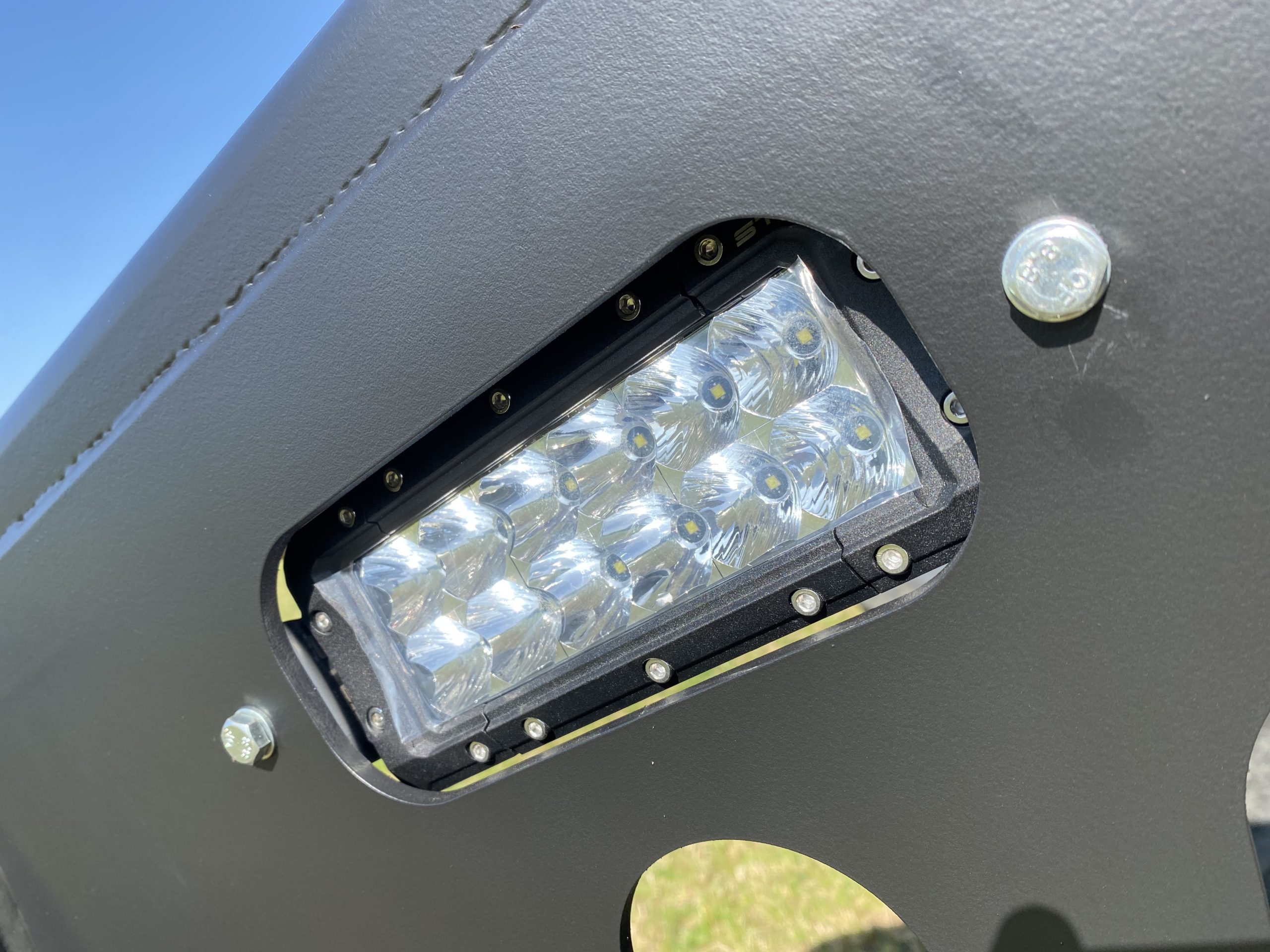

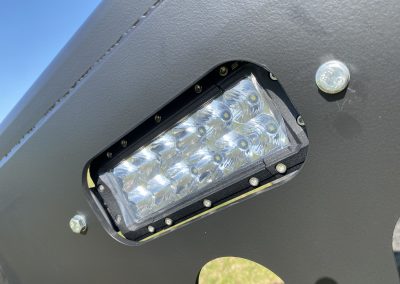

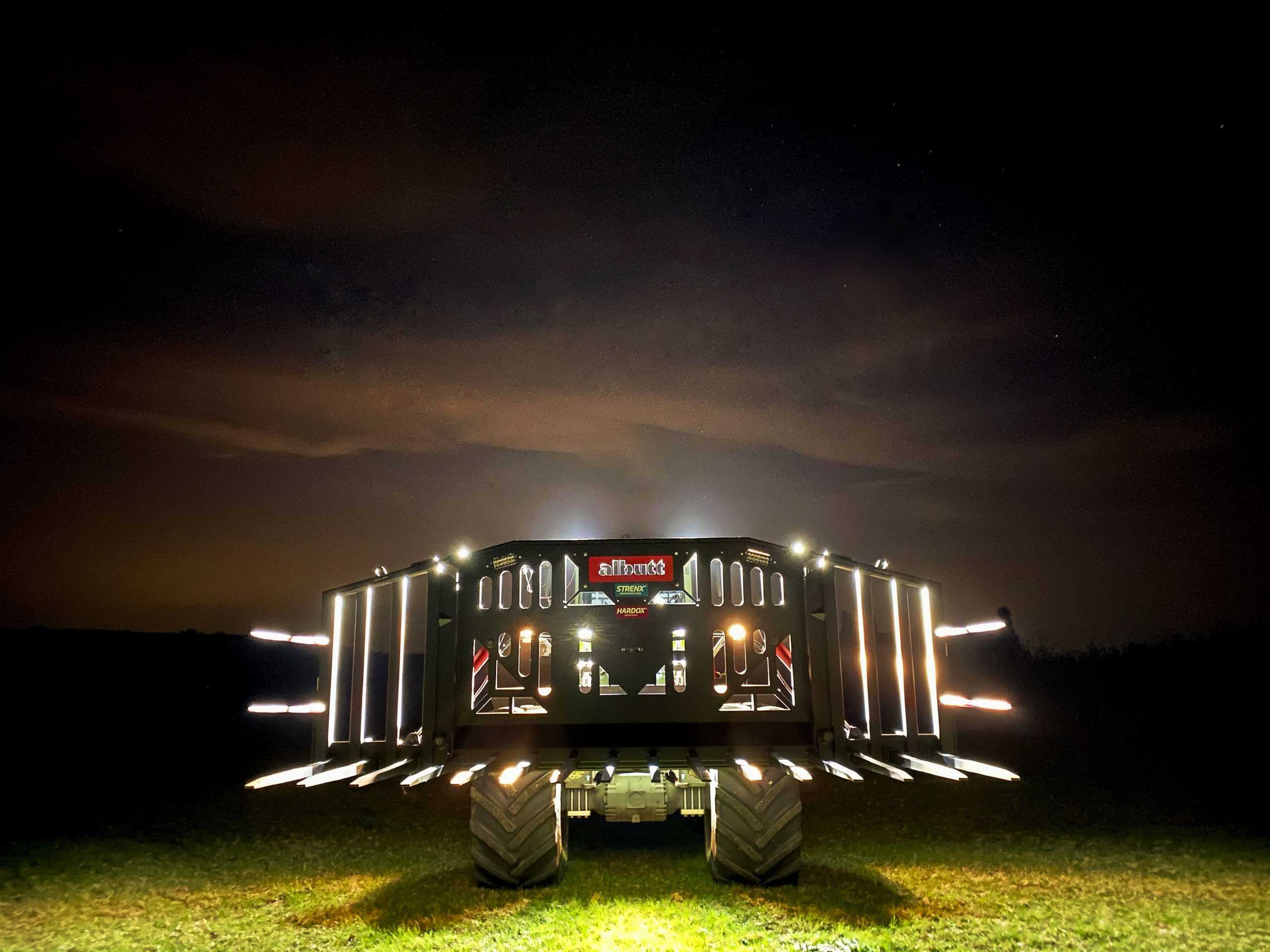

  • Tine guard and lighting kit; optional
  • Used and trusted worldwide
  • Full width base wear strip

Featuring our ALS pin system – better lubrication properties than zinc plated pins

Models

Model Open Closed Capacity Weight Tines
B912HX 12′ 9’9″ 6.90m3 1570kgs 14
B914HX 14′ 9’9″ 8.00m3 1690kgs 16
B916HX 16′ 9’9″ 9.30m3 1820kgs 18

Want to know more? Request a call back from a member of our Sales Team

Videos

Gallery

Extras

Model Description

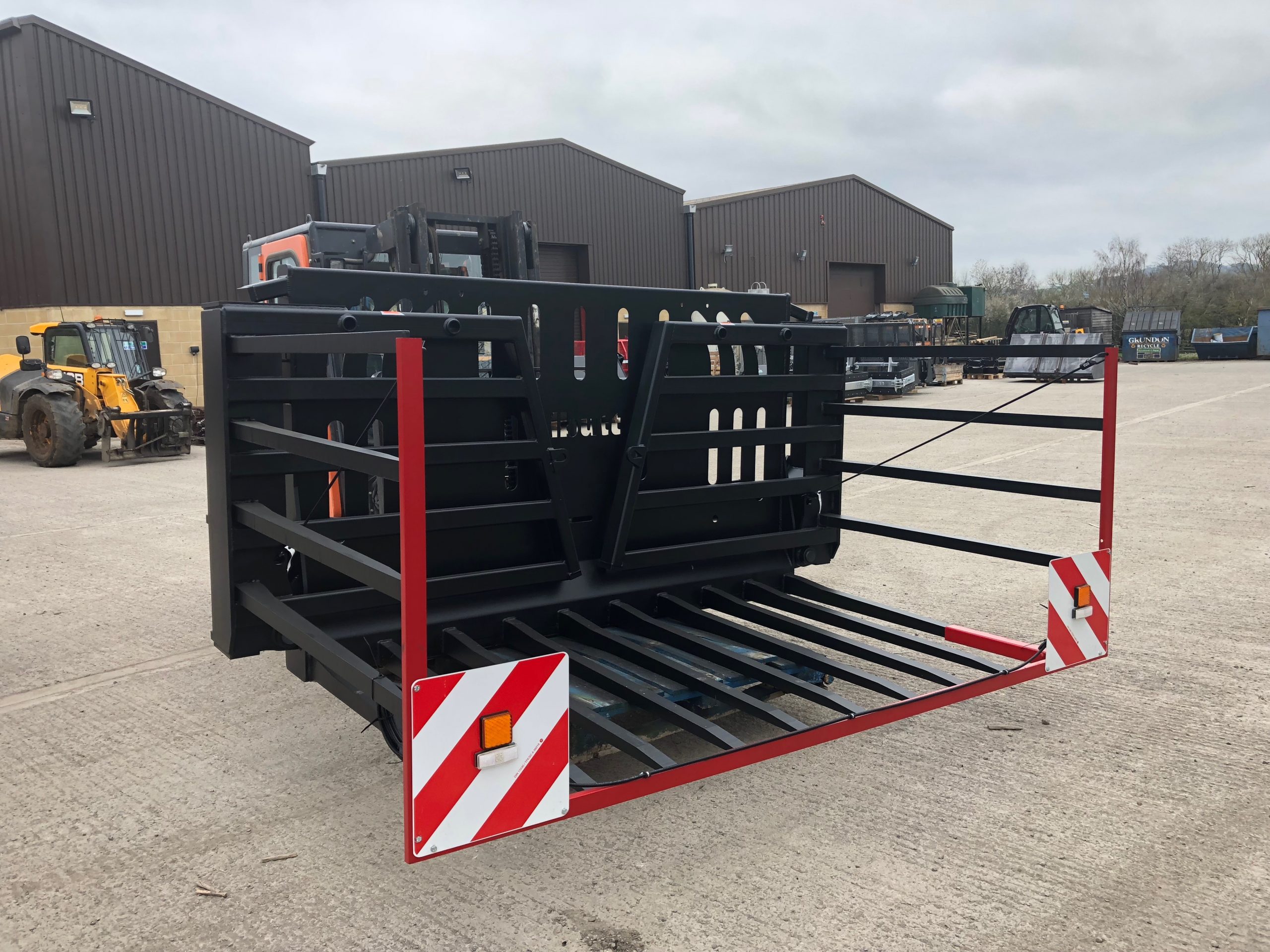

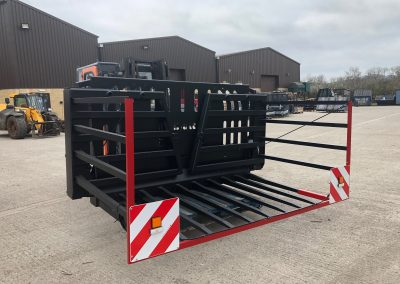

BFFTGLK Tine guard with marker lights

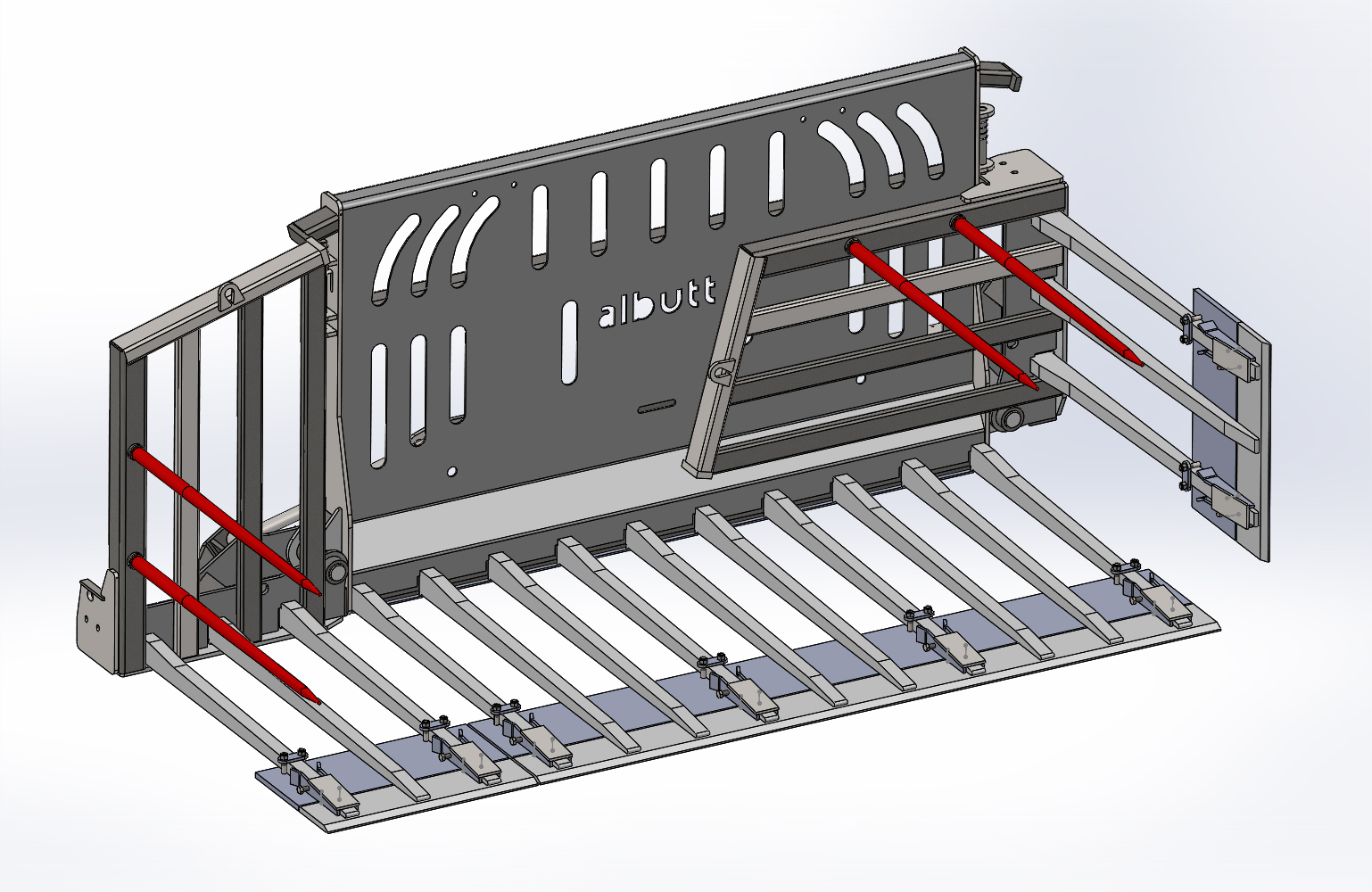

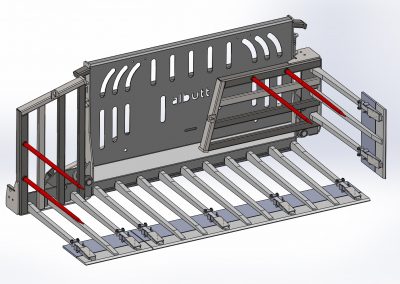

01-0285-LIP Maize plates

  • Tine Guard Kit

  • Tine Guard Kit

  • Tine Guard Kit

  • Maize Plates

2019 Models

All of the market leading features of our original Folding Fork with;-

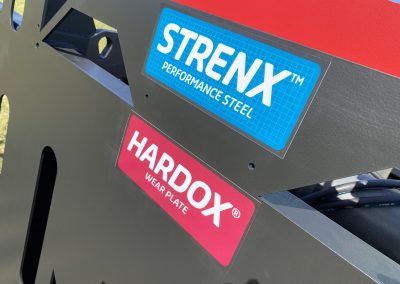

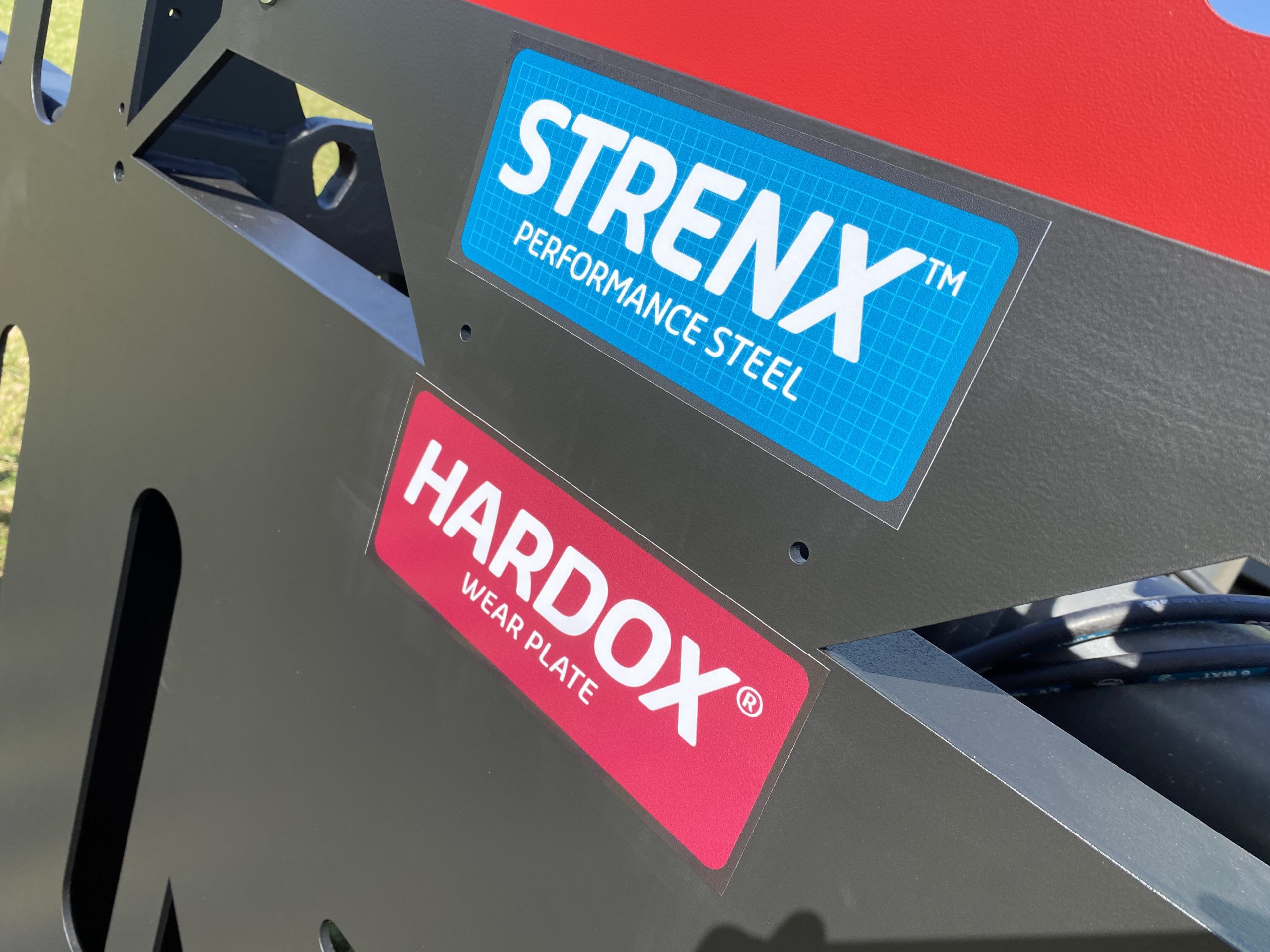

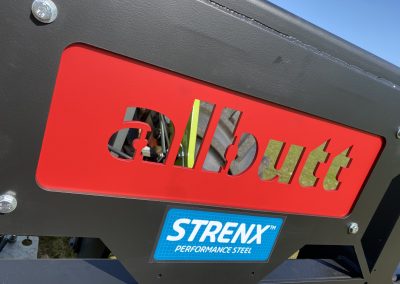

  • STRENX high tensile fork back; increased grade
  • Larger visibility slots
  • More efficient wing operation
  • Option for Volvo and JCB Q Fit dual fittings
