Bag Lifters Adjustable

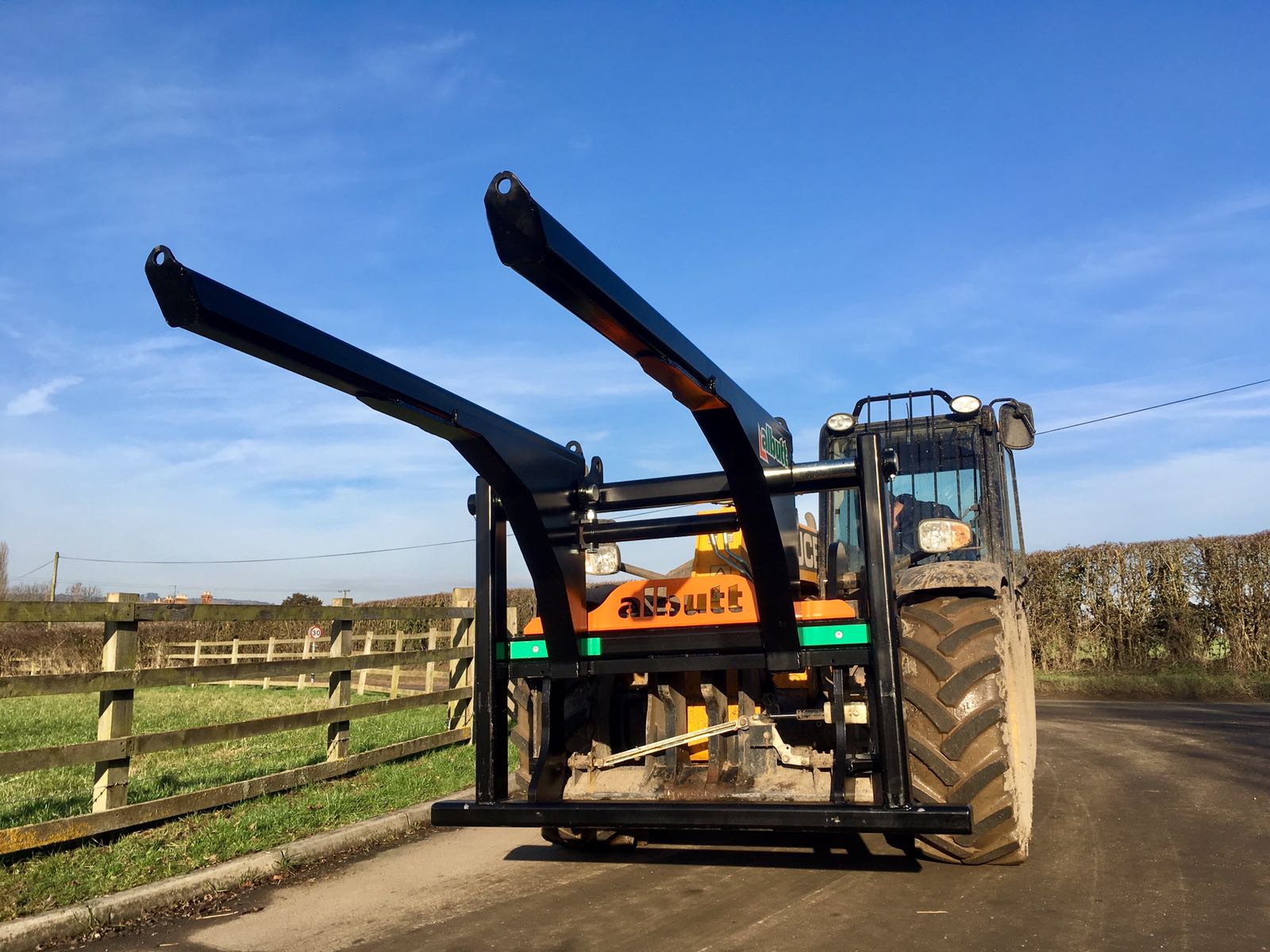

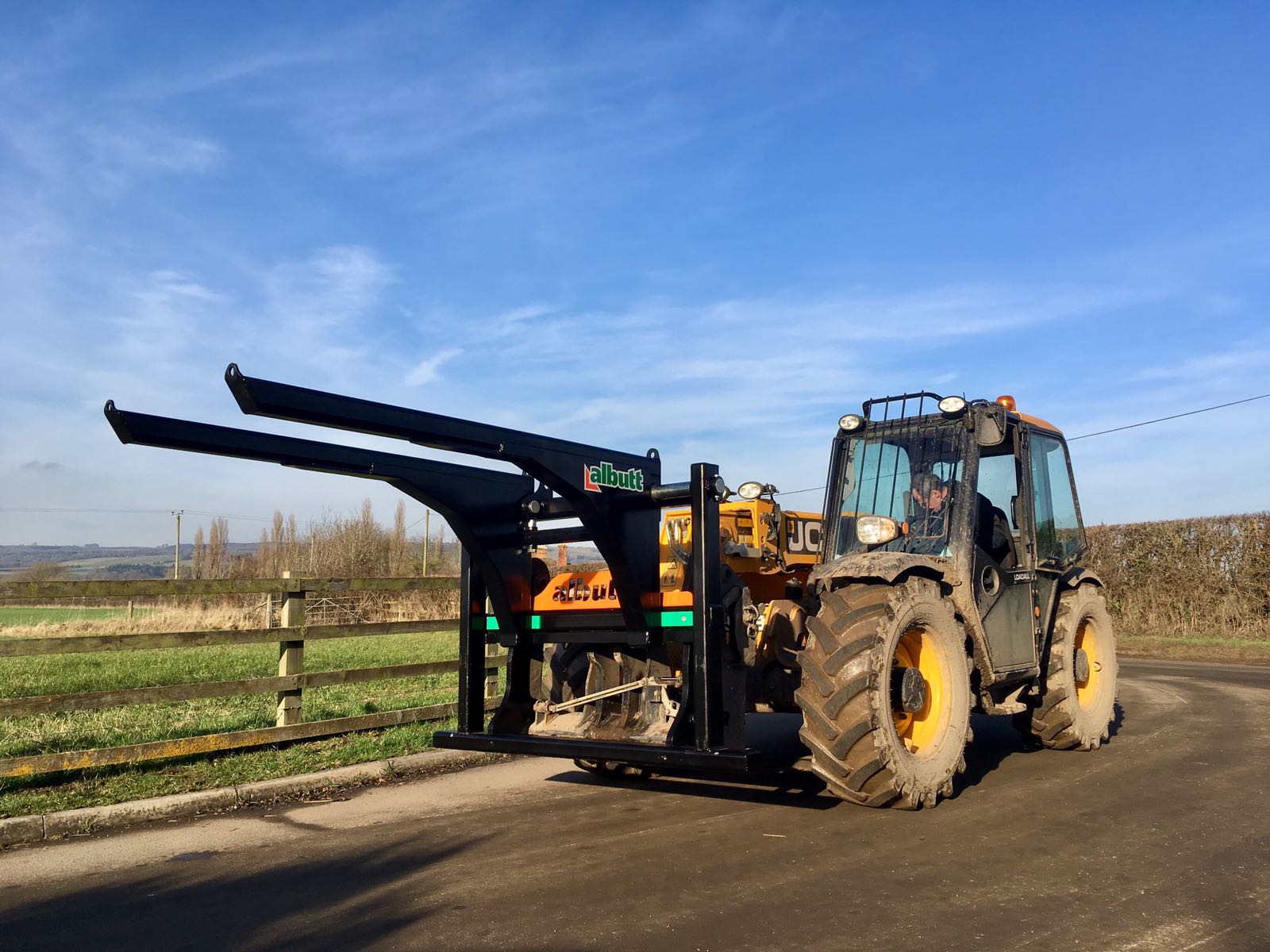

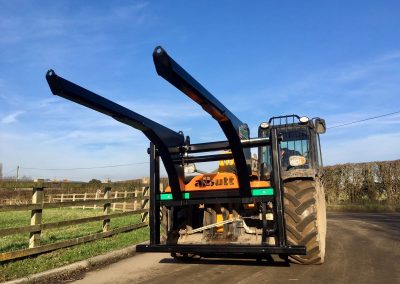

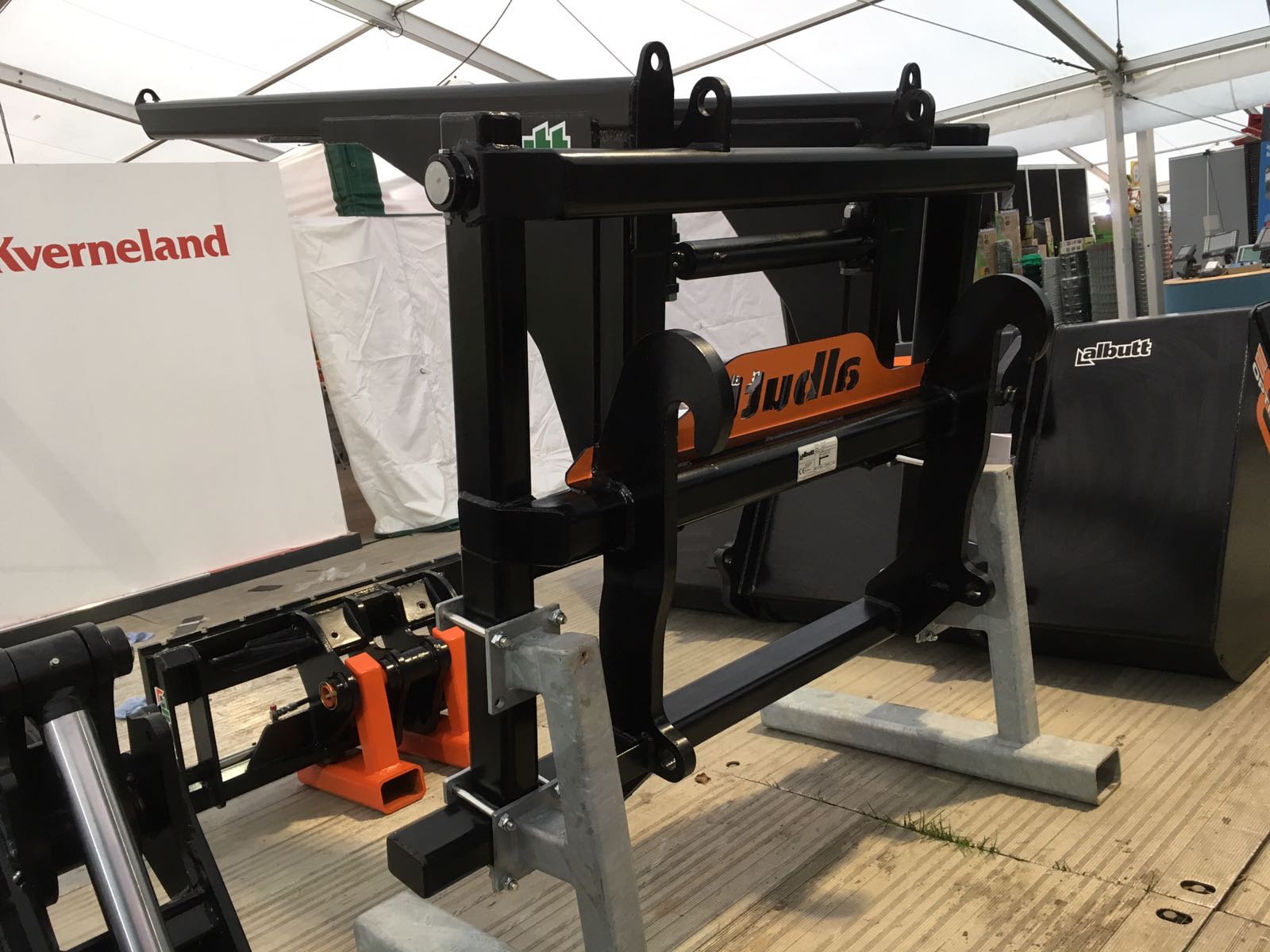

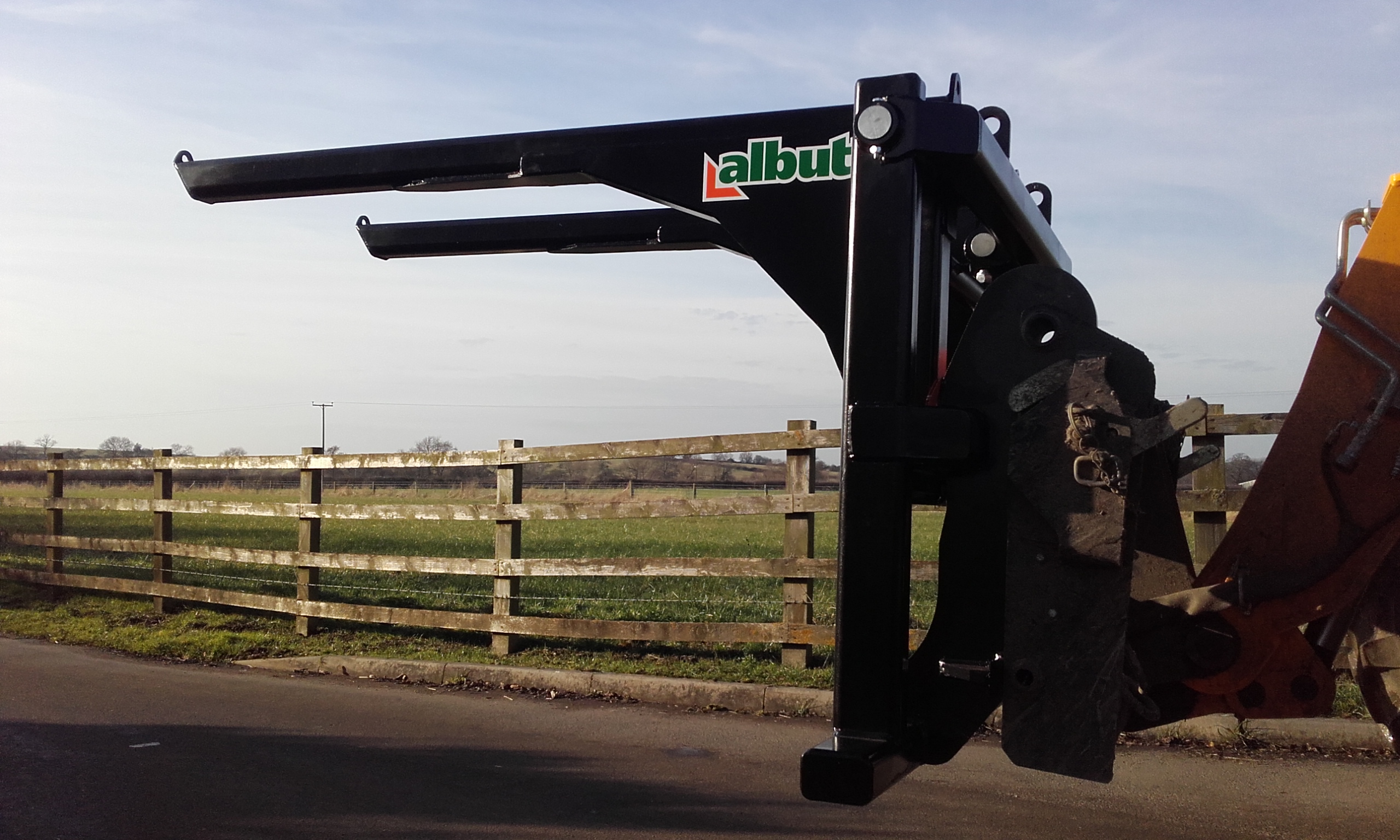

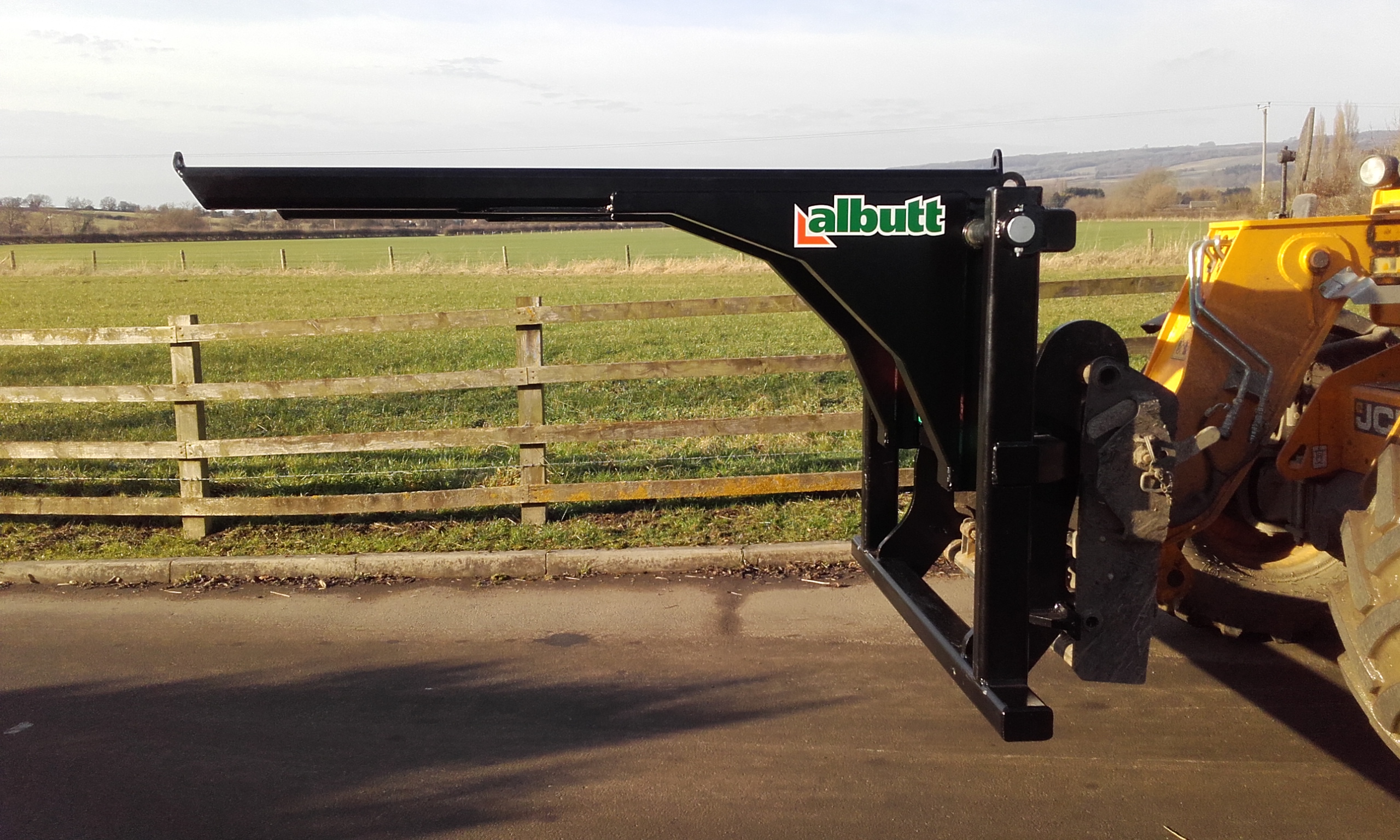

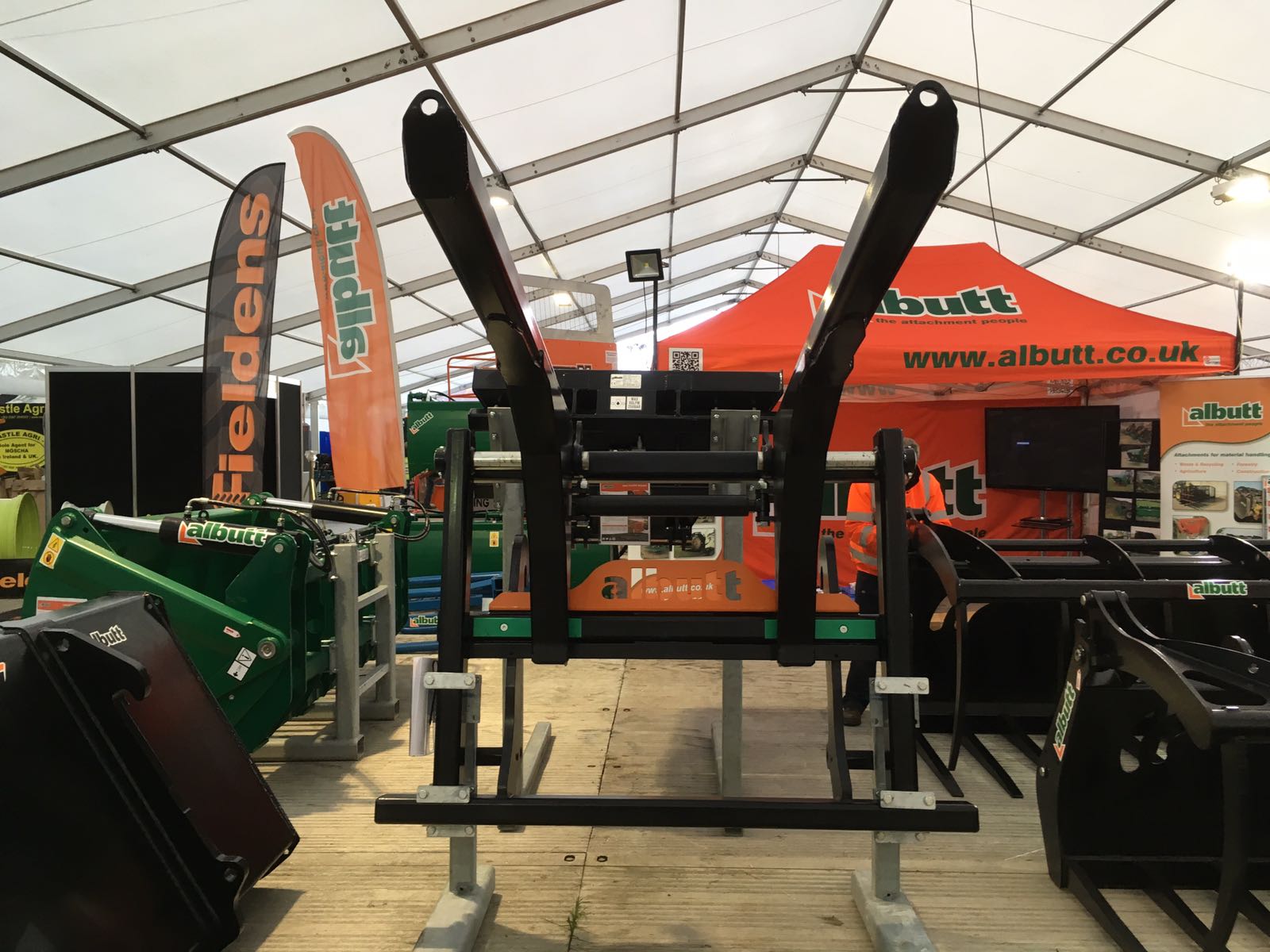

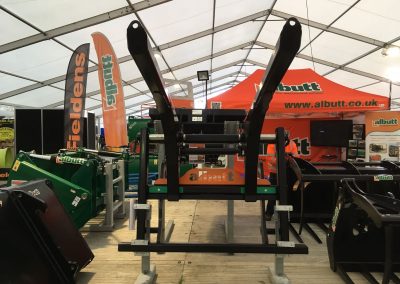

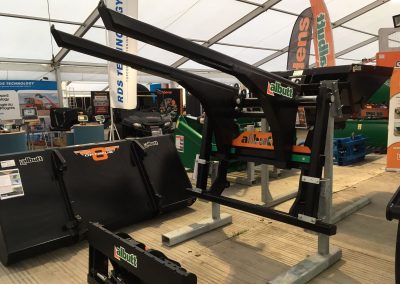

The new Albutt Bag Lifter is designed to provide a safe, efficient and versatile method of moving seed and fertiliser bags. Suitable for all known bag sizes, the arms can be adjusted by a manual or hydraulic operation; reducing bag swing in transit and keeping bags tight when stacked. The attachment also features nylon wear strips and bushes within the moving areas.

Will Handle;-

4 x 1000kg bags
4 x 600kg bags
4 x 500kg bags



Features

  • Will handle;- – 4 x 1000kgs bags – 4 x 600kgs bags – 4 x 500kgs seed bags

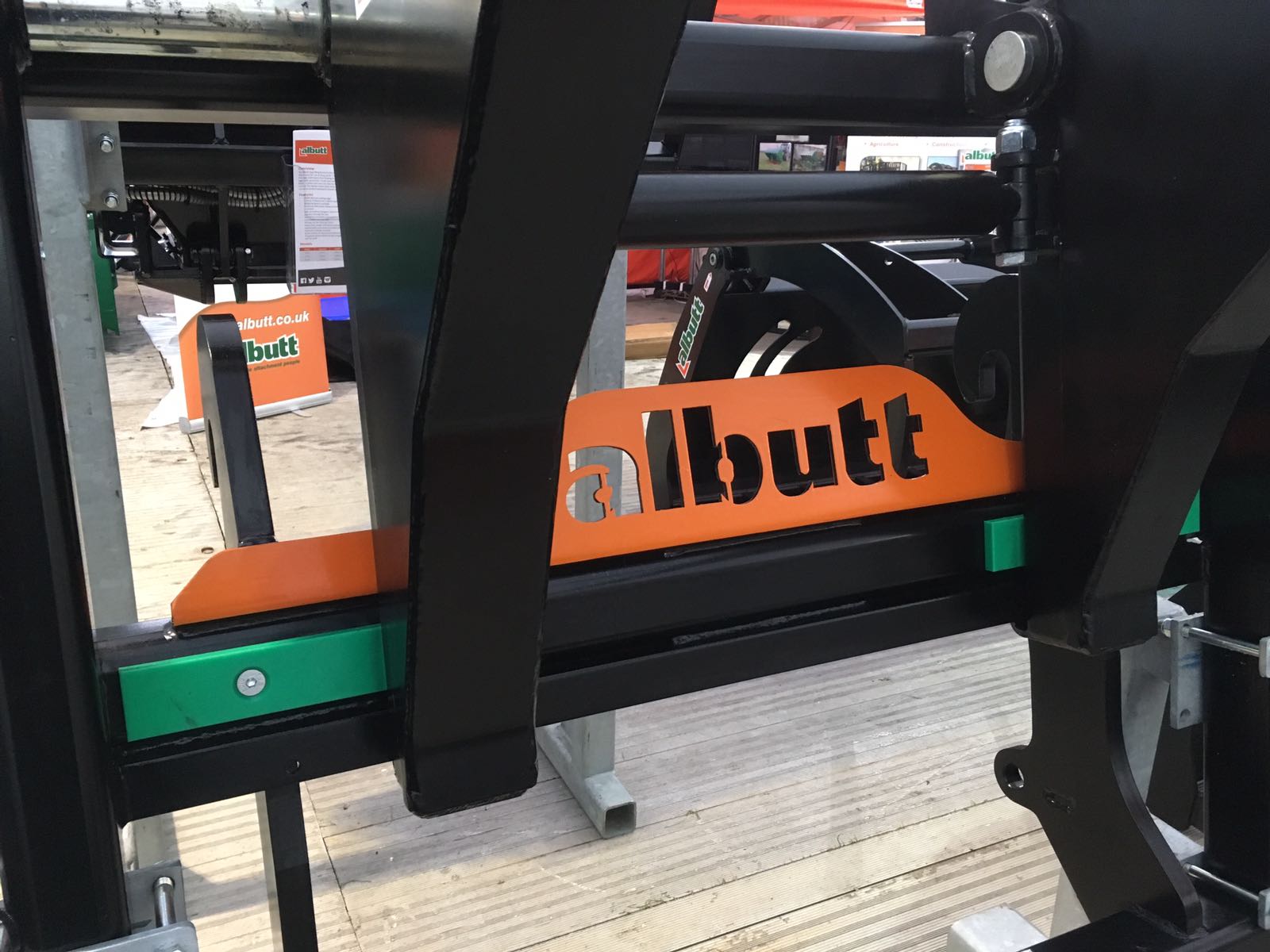

  • Nylon wear pads and bushes
  • SWL tested with certificate
  • 1800mm wide anti swing bar
  • Stopping plates to help prevent bags sliding from end of arms
  • Hydraulic or Manual arm movement
  • Pre-set positions on Manual options for perfect arm spacing
  • Heavy duty weld on brackets
  • 2000mm long arms
  • No protruding U section for bags to catch on
  • Heavy wall box section arms; Bag Lifter has 4tonne lift capacity
  • Hydraulic kit can be retro fitted

Models

Model Arm Movement Arm Length Weight
BL4M-1000 Manual 2000mm 490kgs
BL4H-1000 Hydraulic 2000mm 500kgs
