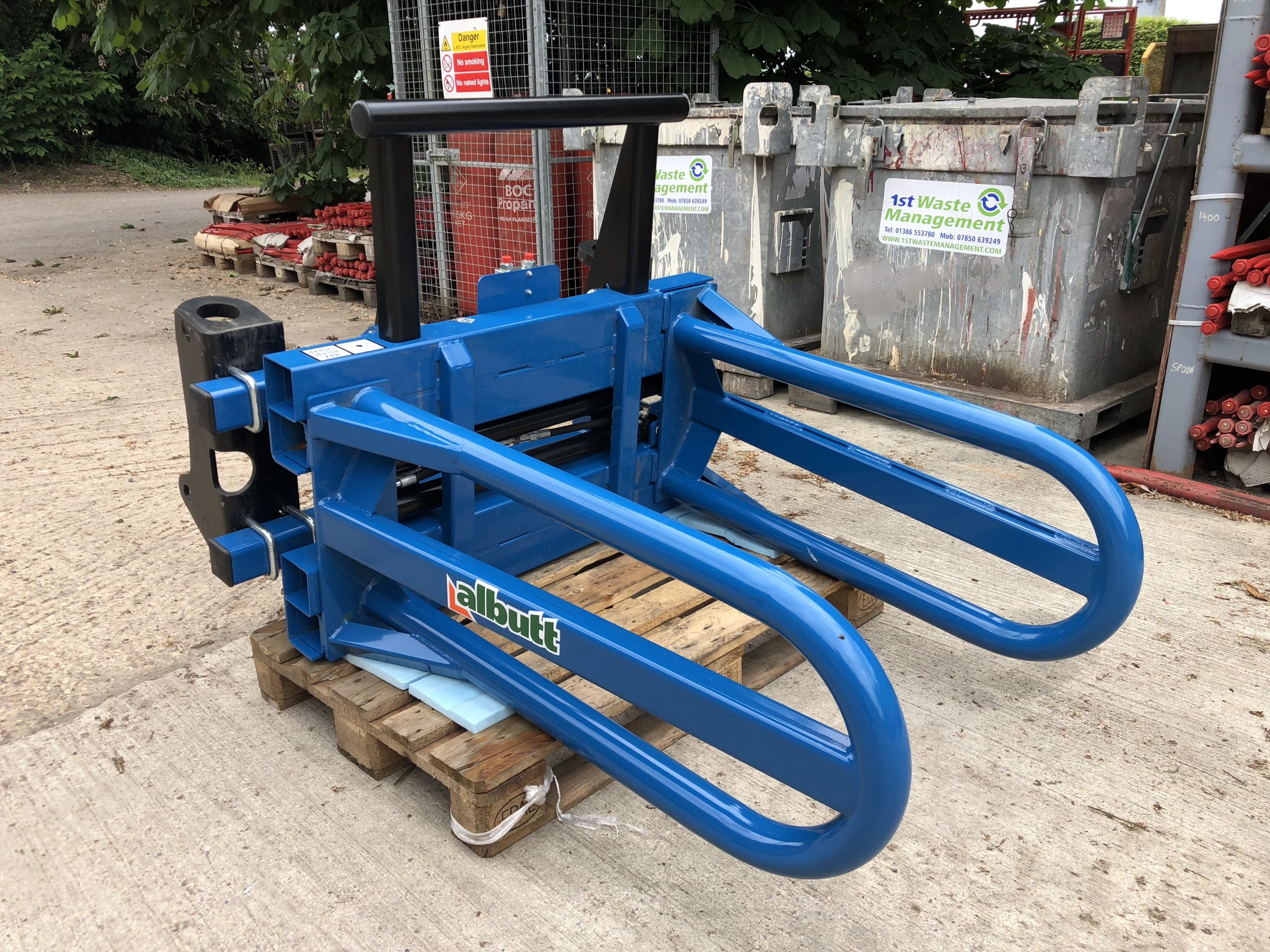

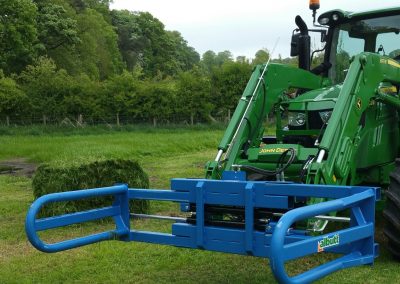

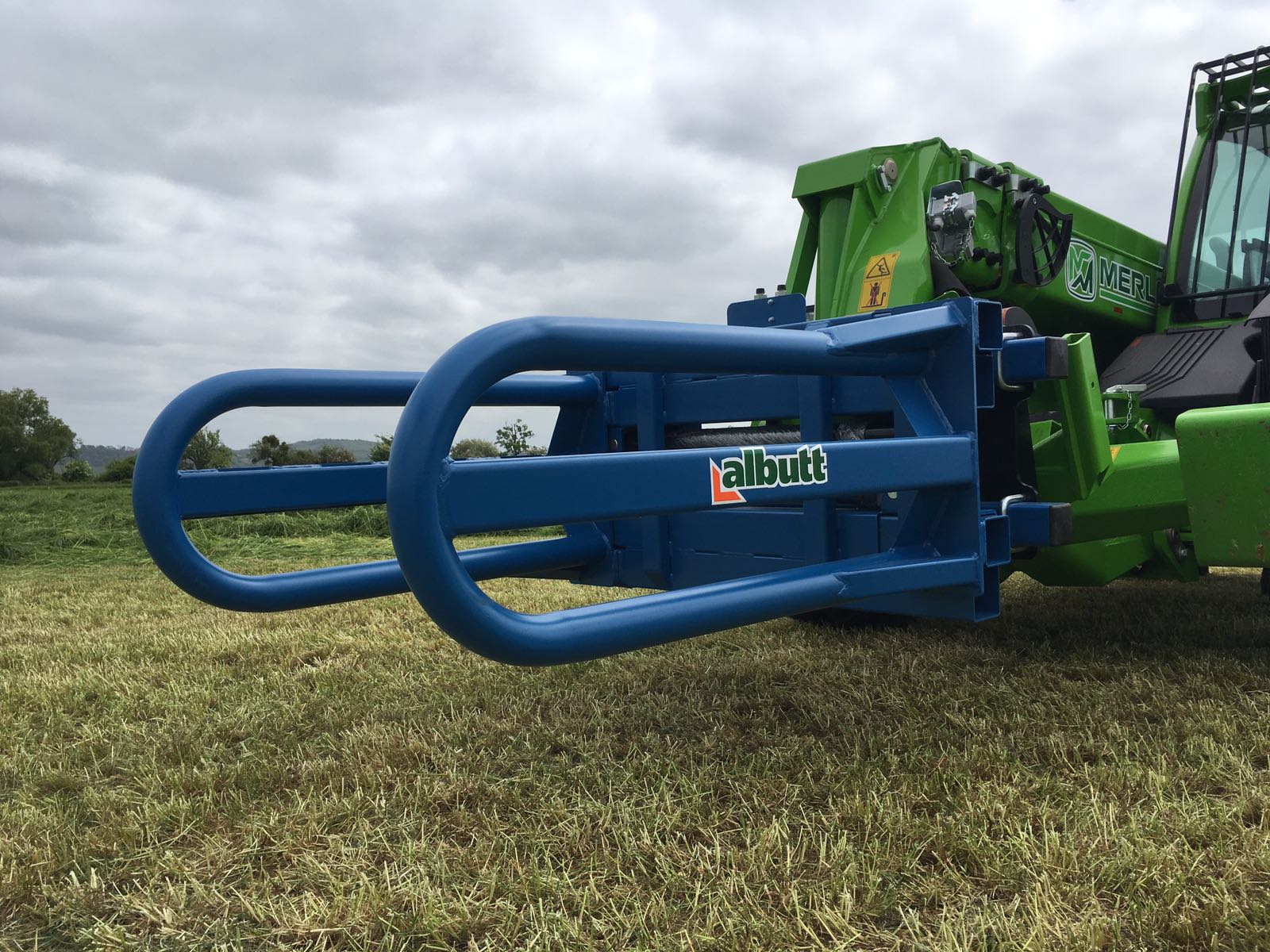

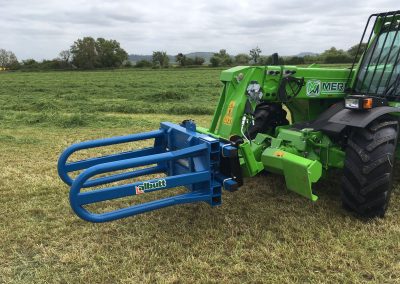

F450 Side Squeeze Bale Grab

F450 Bale Handler

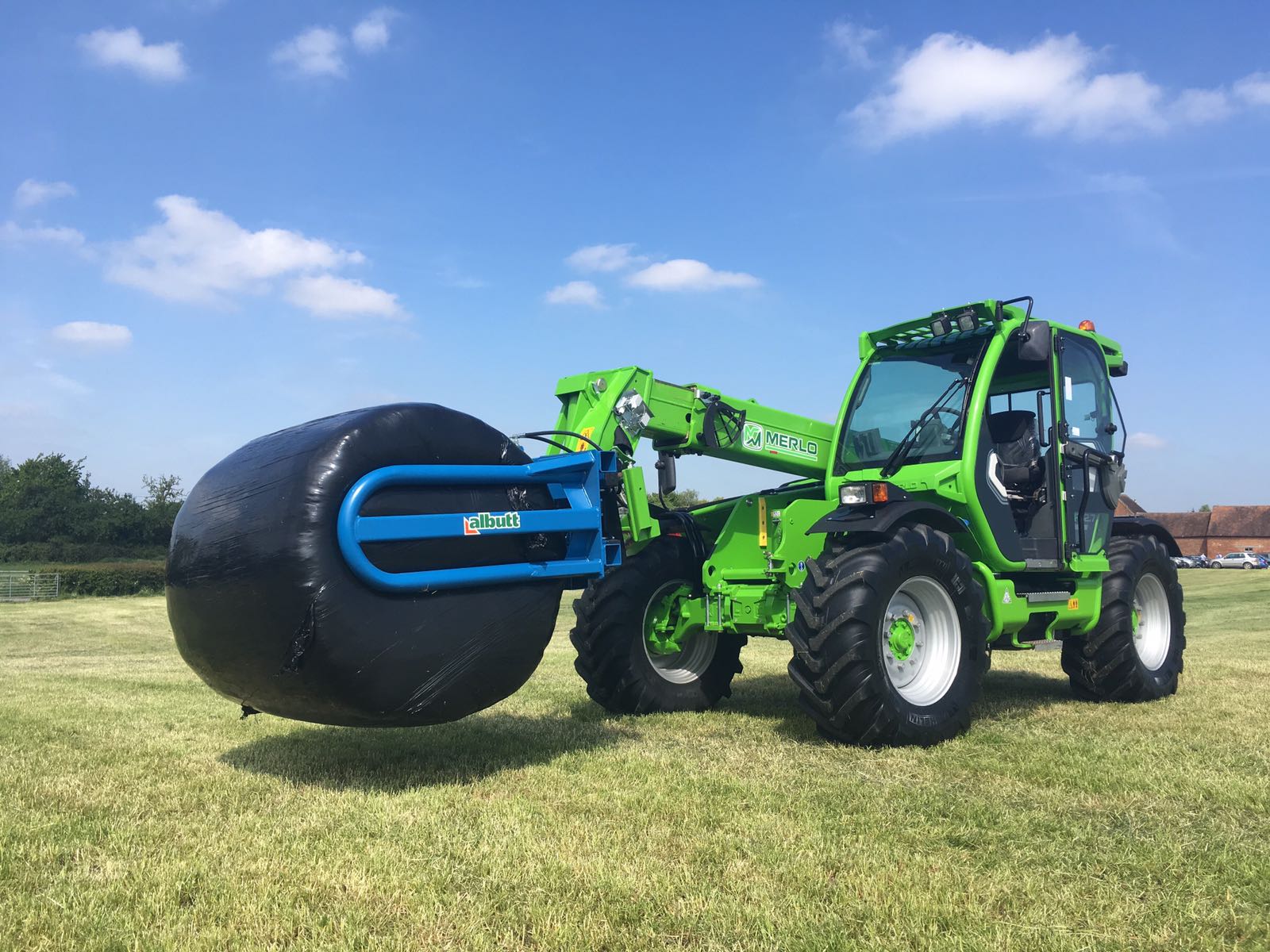

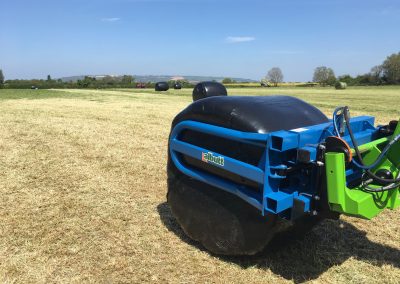

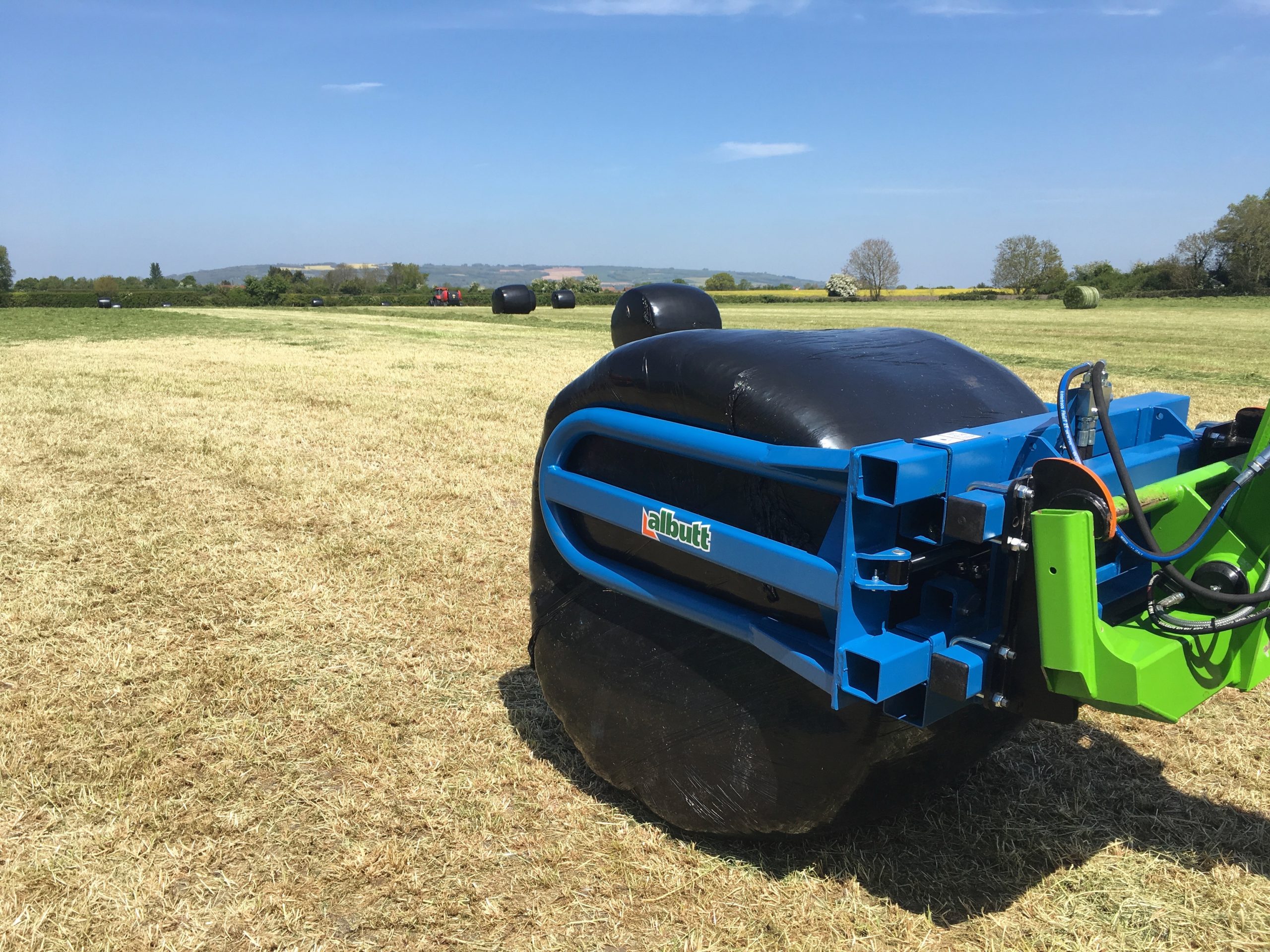

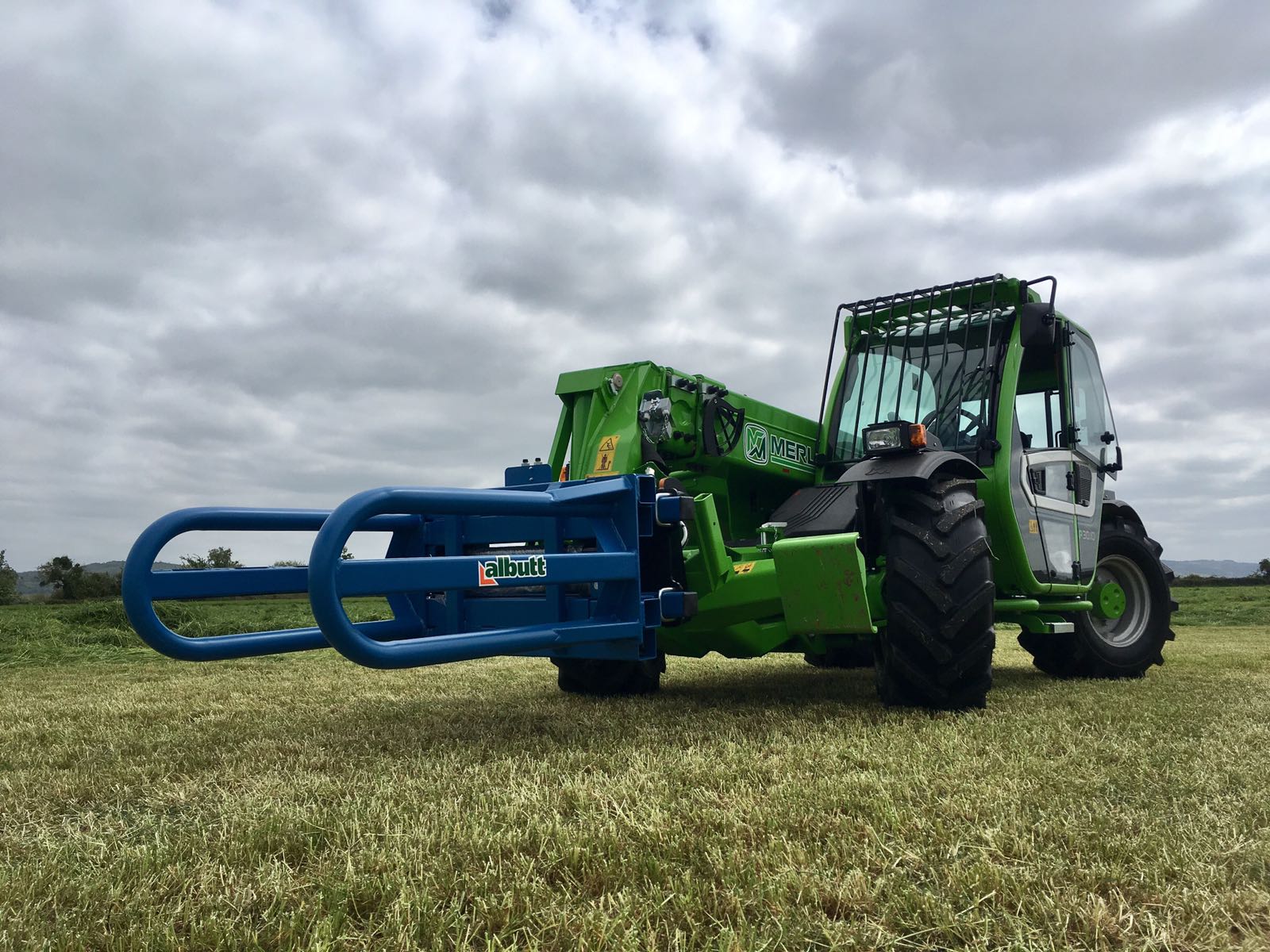

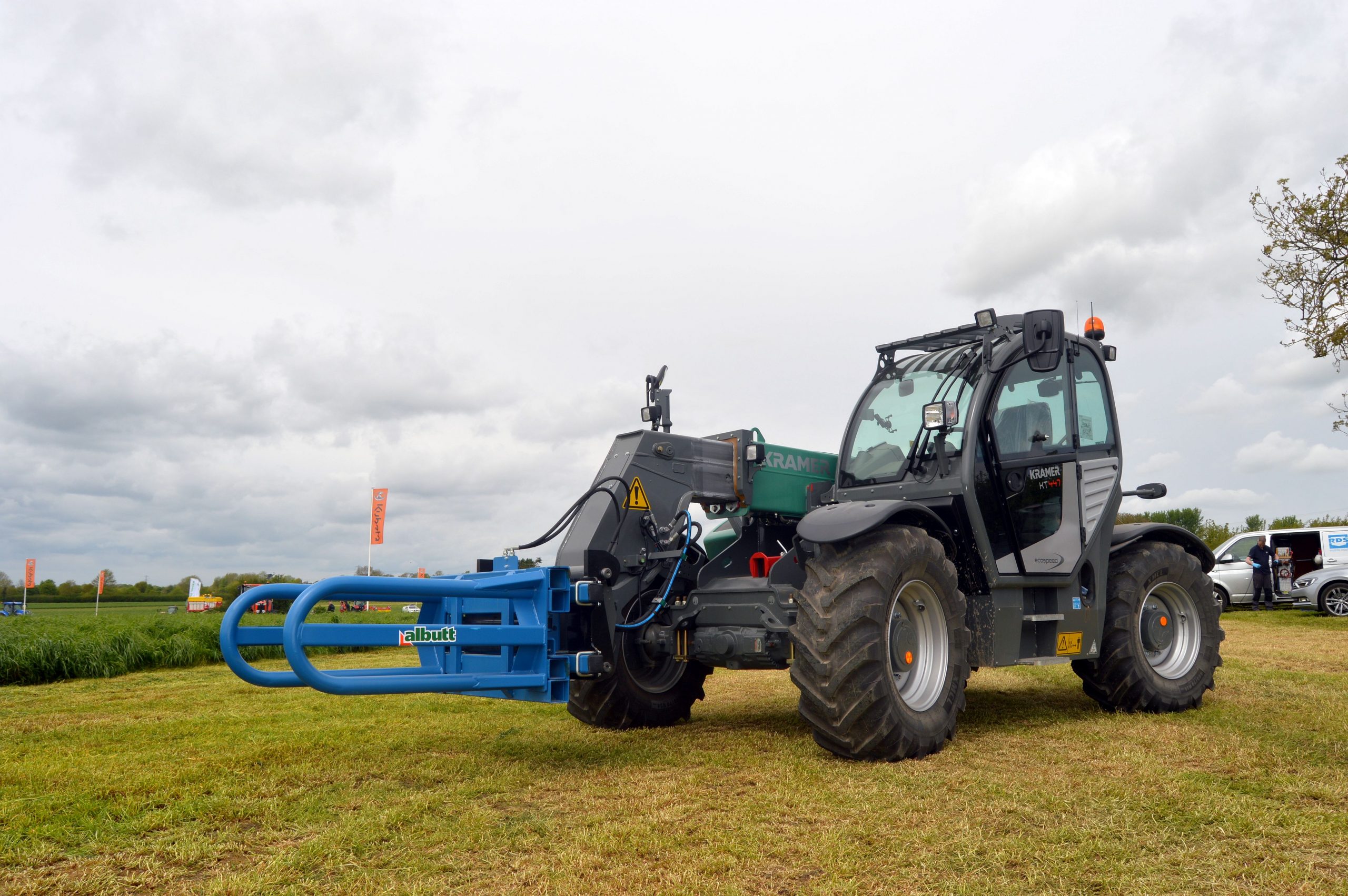

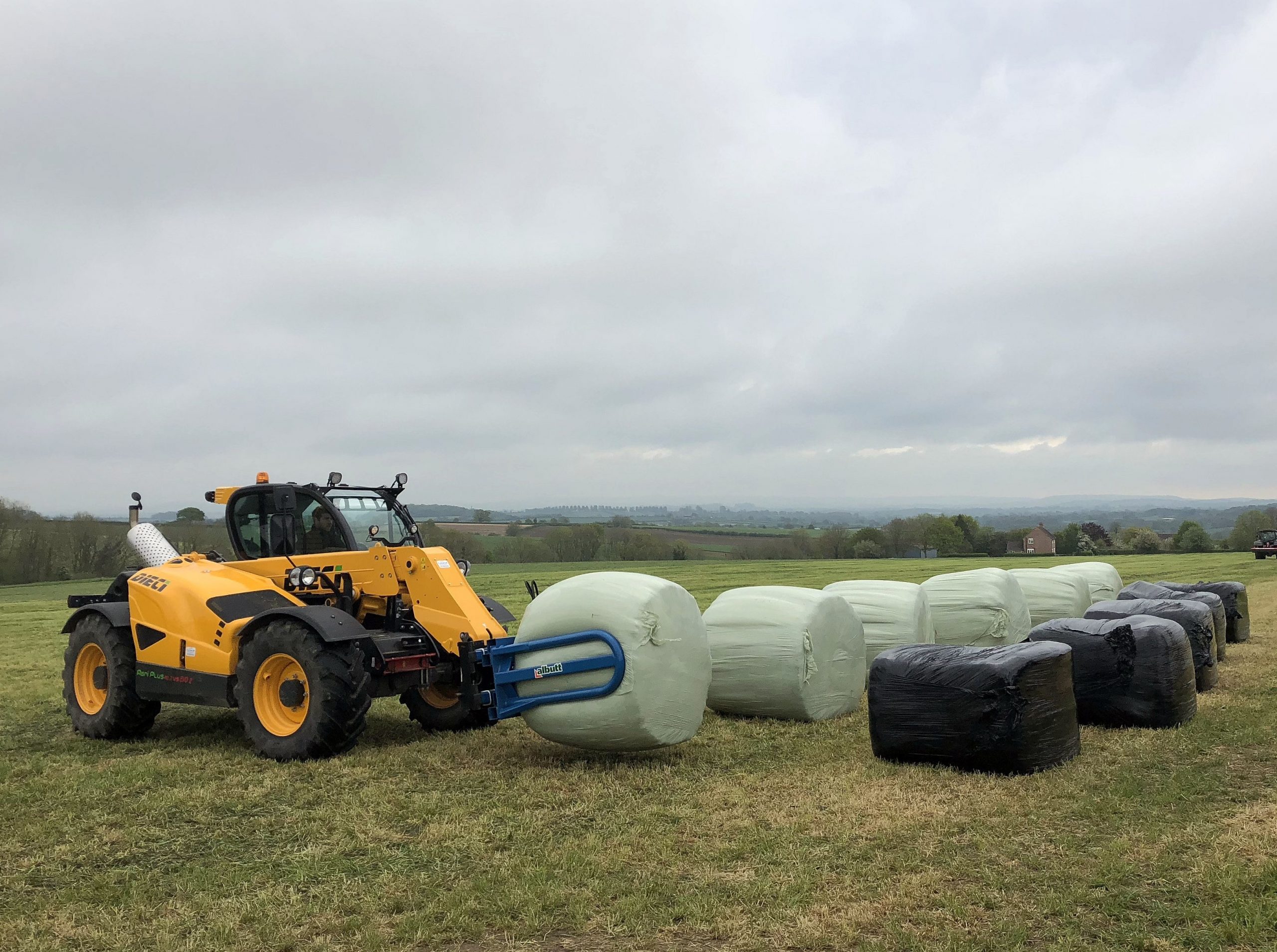

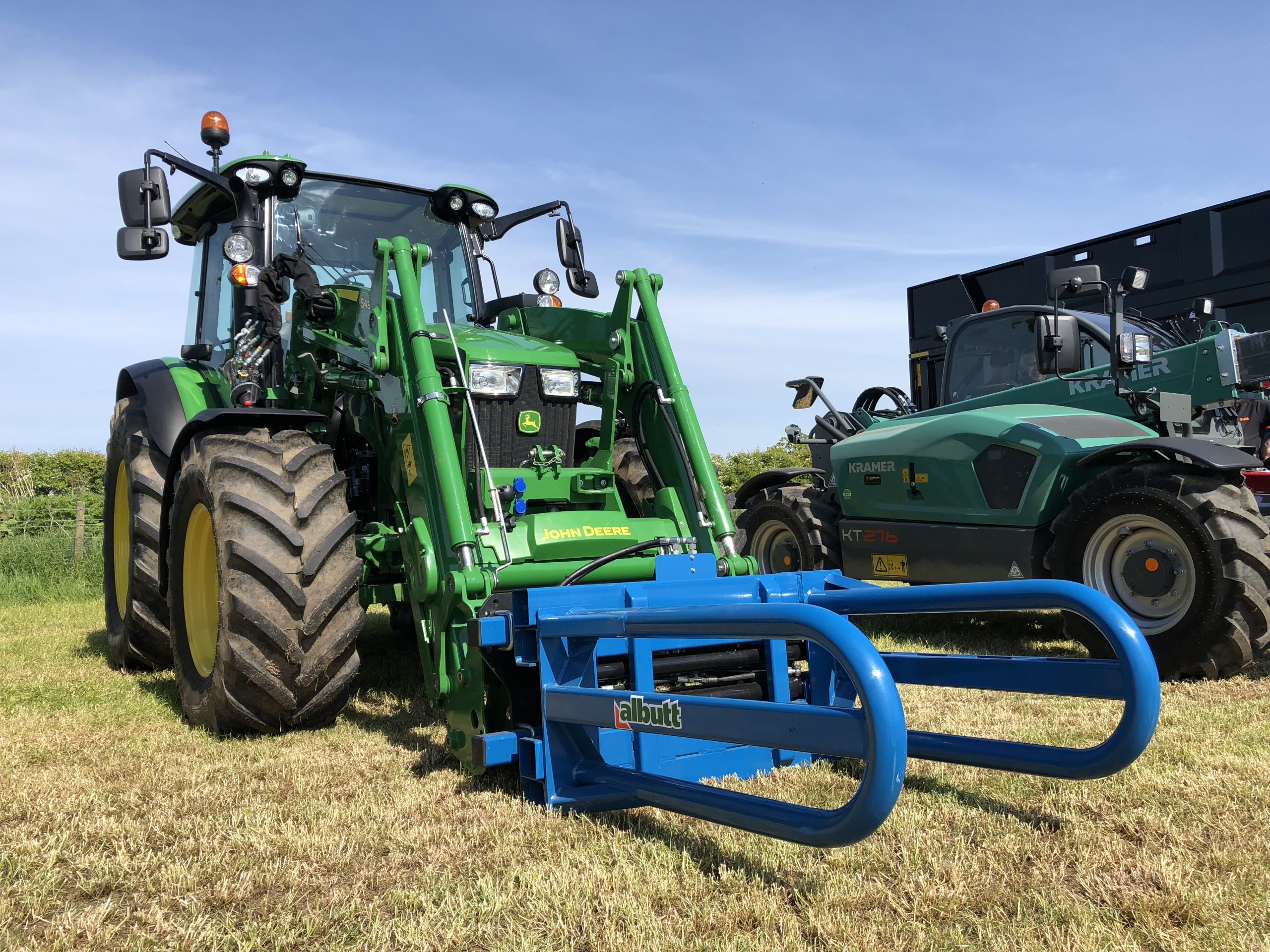

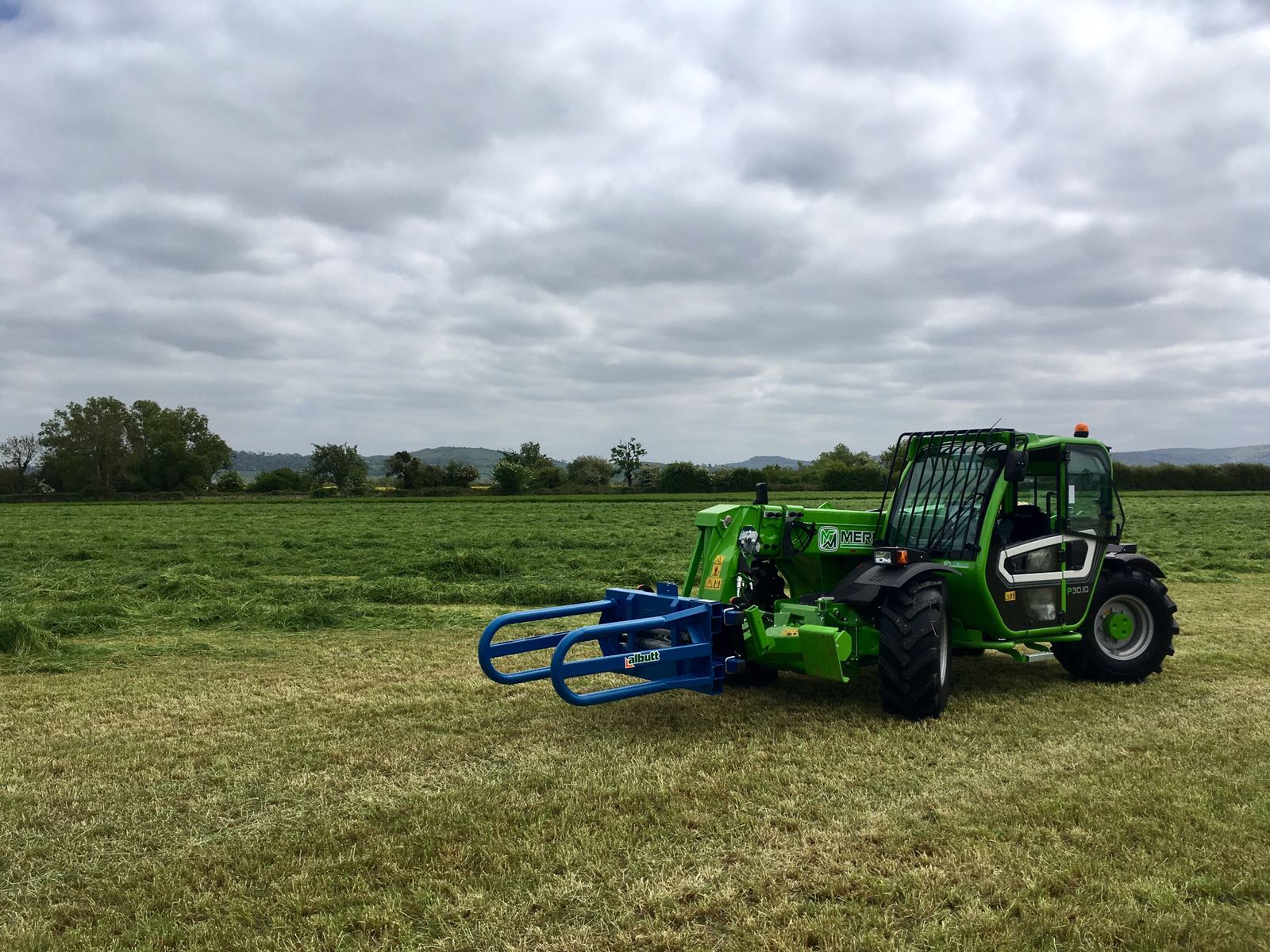

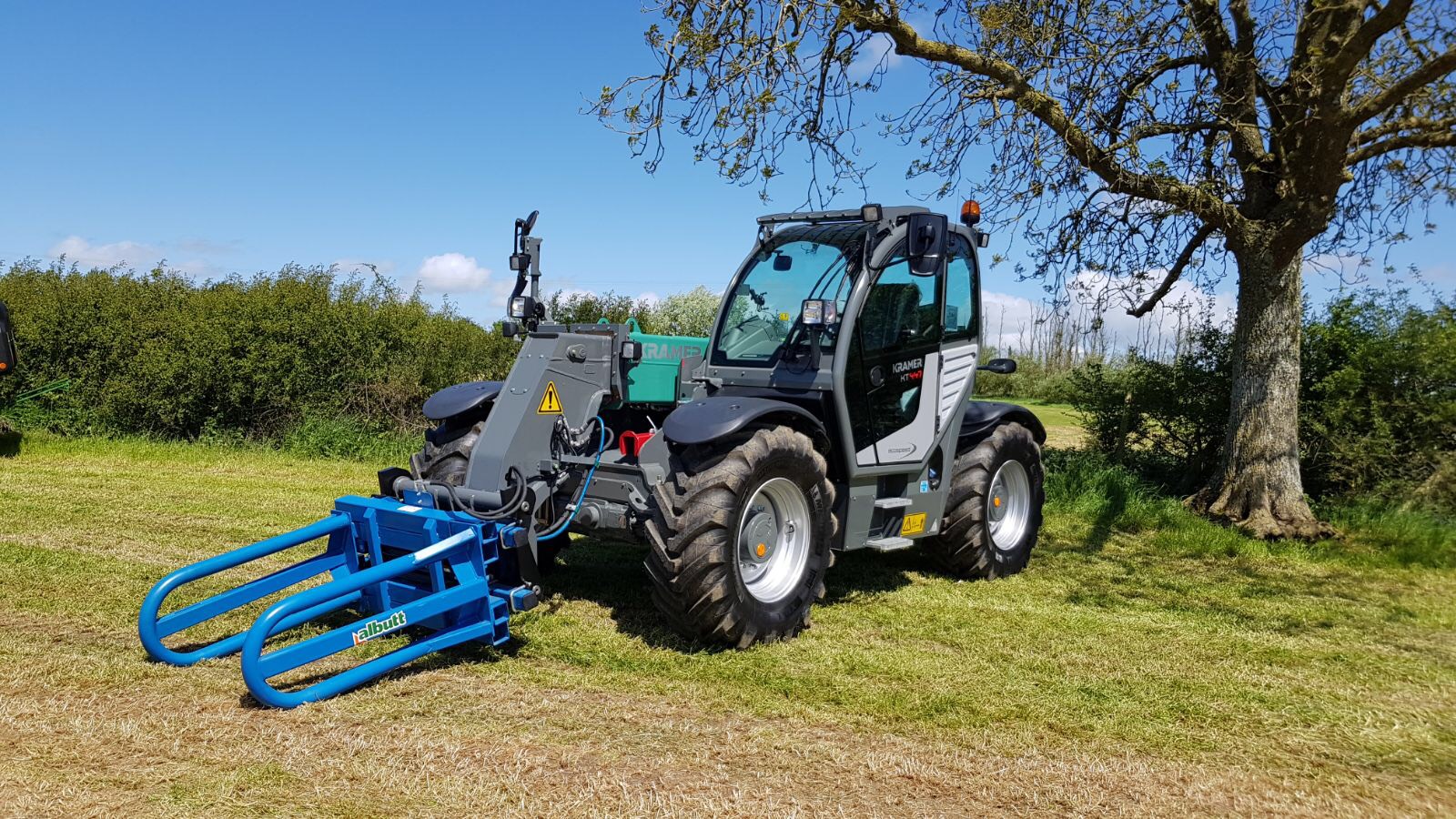

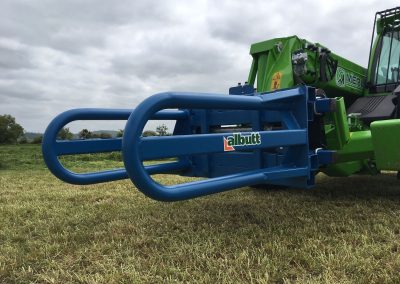

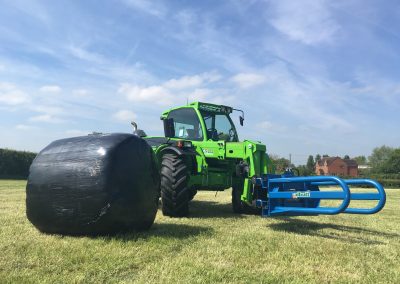

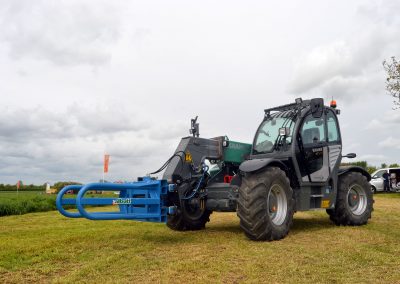

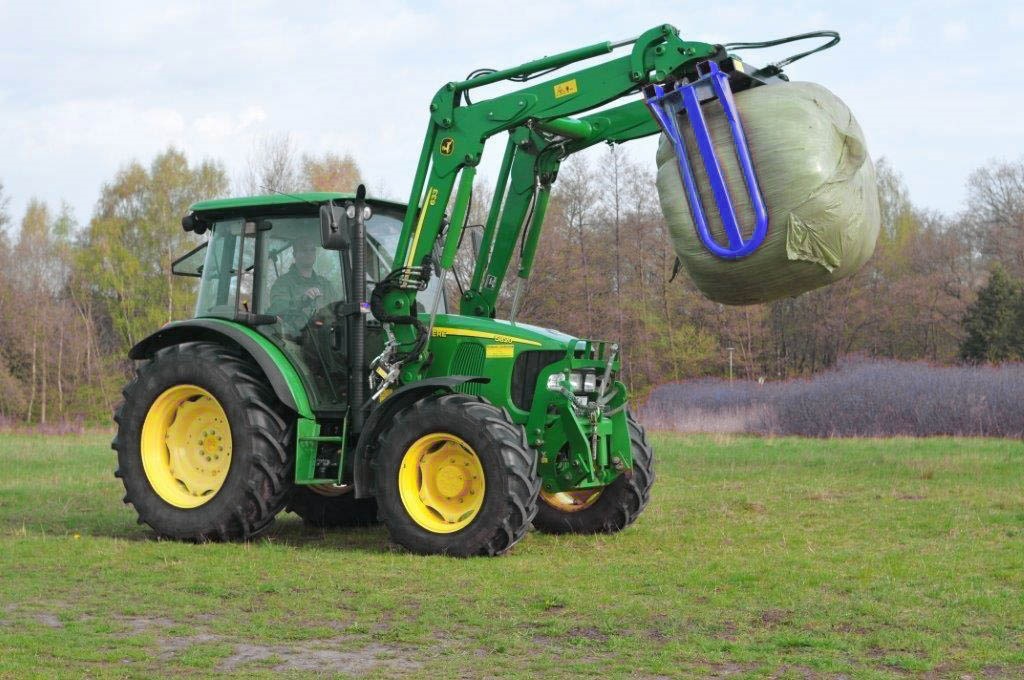

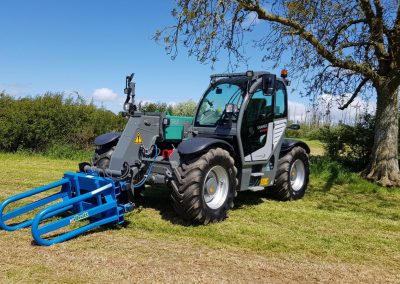

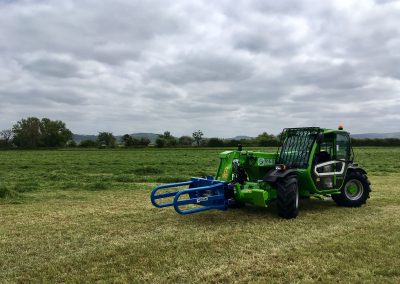

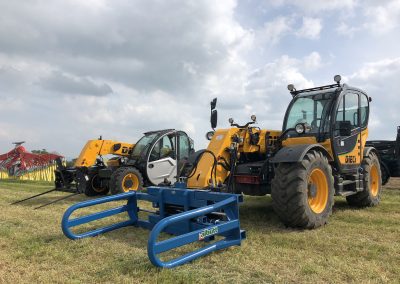

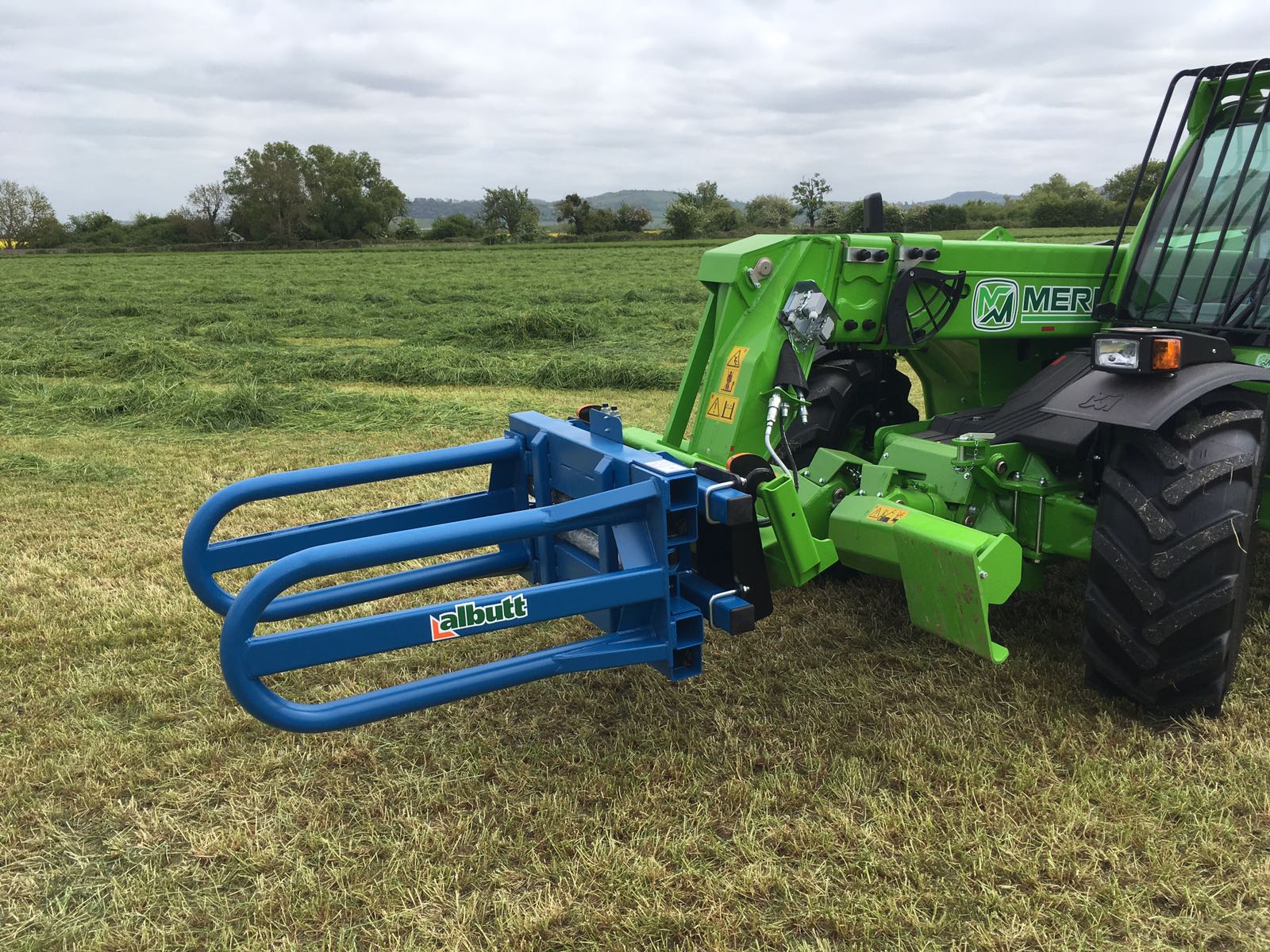

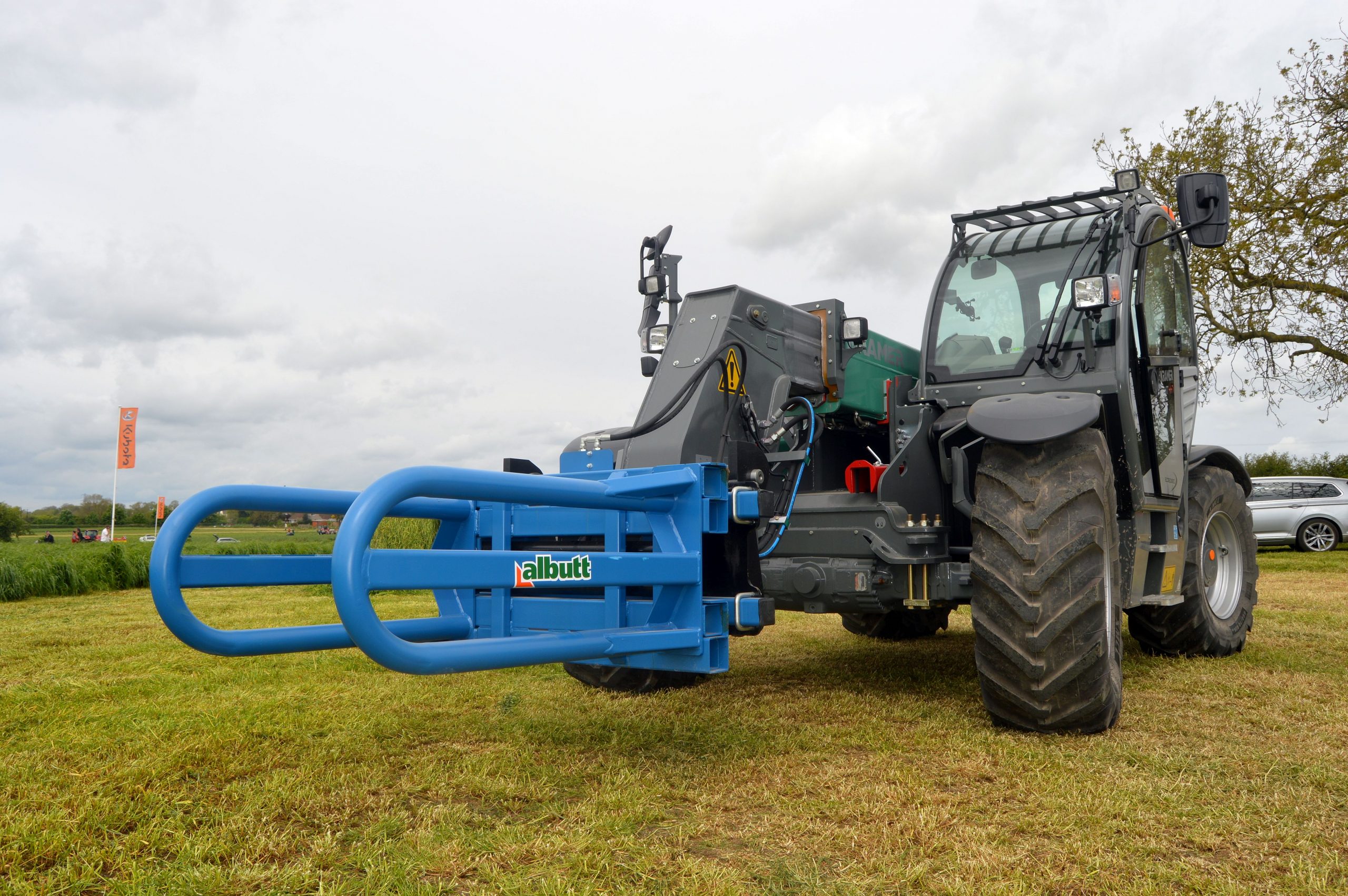

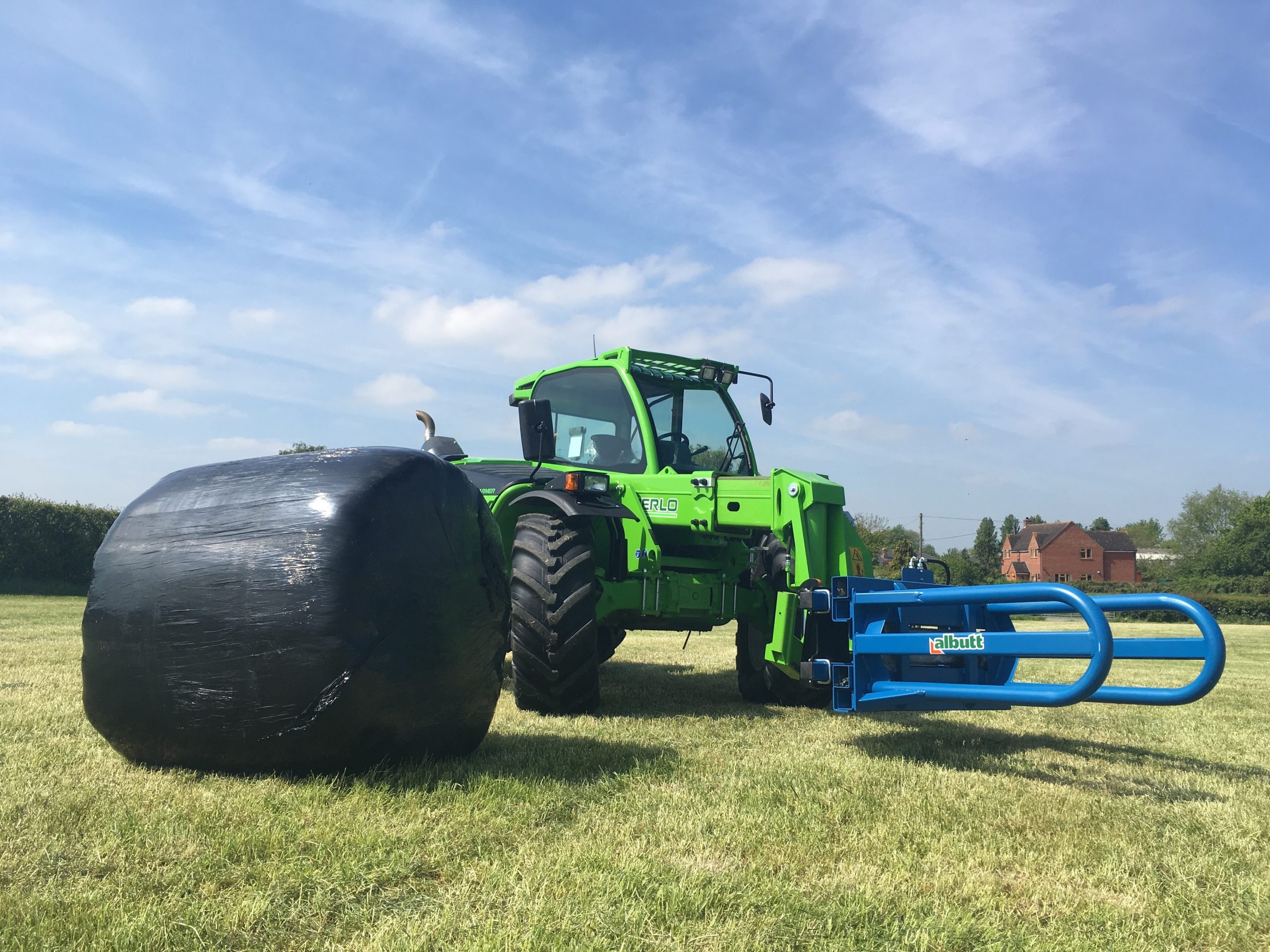

The Albutt F450 heavy duty side squeeze bale grab handles wrapped silage or straw bales, round or square. Smooth surfaces on the gripper arms protect the bale wrap. Square bales can be gripped from side or end on (dependent on bale length) and round bales can be turned on their ends.

An optional frame can allow 2 bales to be carried. As standard the grab is supplied with an adjustable pressure relief valve and hydraulic lock valve to protect against burst pipes.



  • Handle square or round bales
  • Handle wrapped silage or straw bales

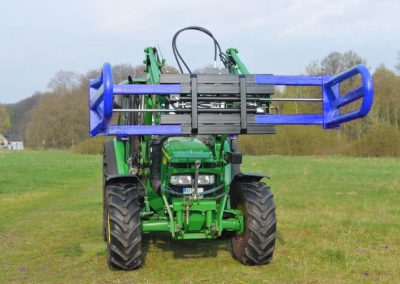

  • Opens from 750mm to 2050mm
  • Lift capacity 1000kgs
  • Weight 278kgs

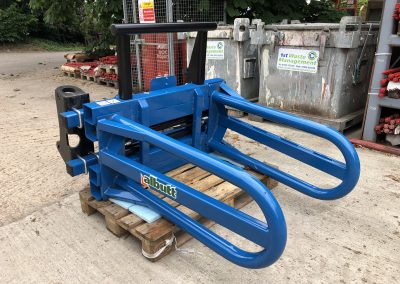

  • Optional bolt on back frame allows 2 bales to be carried
  • Compact width when closed allows access to restricted areas
  • Recommended to be used with Albutt’s bolt on bracket system – ask your dealer for details
  • Normally in stock


Model Open width Closed Weight Capacity
F450 2050mm 750mm 278kgs 1000kgs

Want to know more? Request a call back from a member of our Sales Team


Model Retail 1 off nett 3 off nett 6 off nett
F450** £1,891 £1,418 £1,383 £1,348
Spill Guard F450 £200 £150
** bolt on brackets nett cost £300 + VAT
** bolt on brackets retail cost £400 + VAT



Model Description

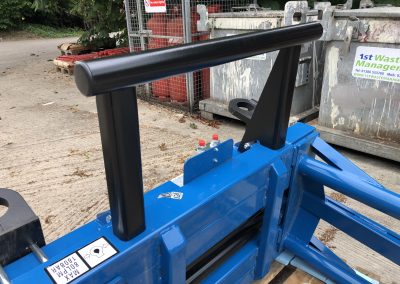

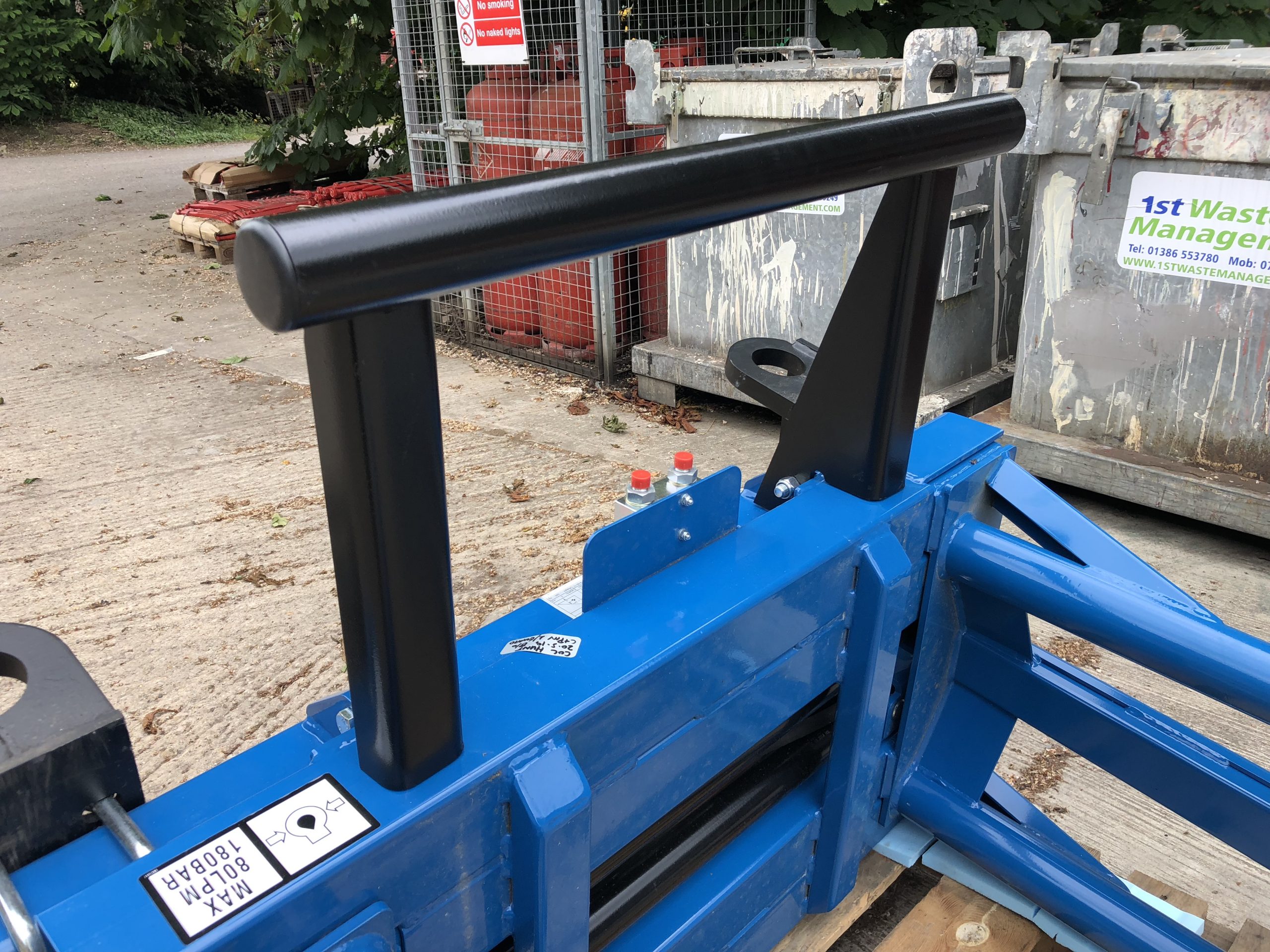

BALE-SUPPORT (F450) Spill frame for second bale
