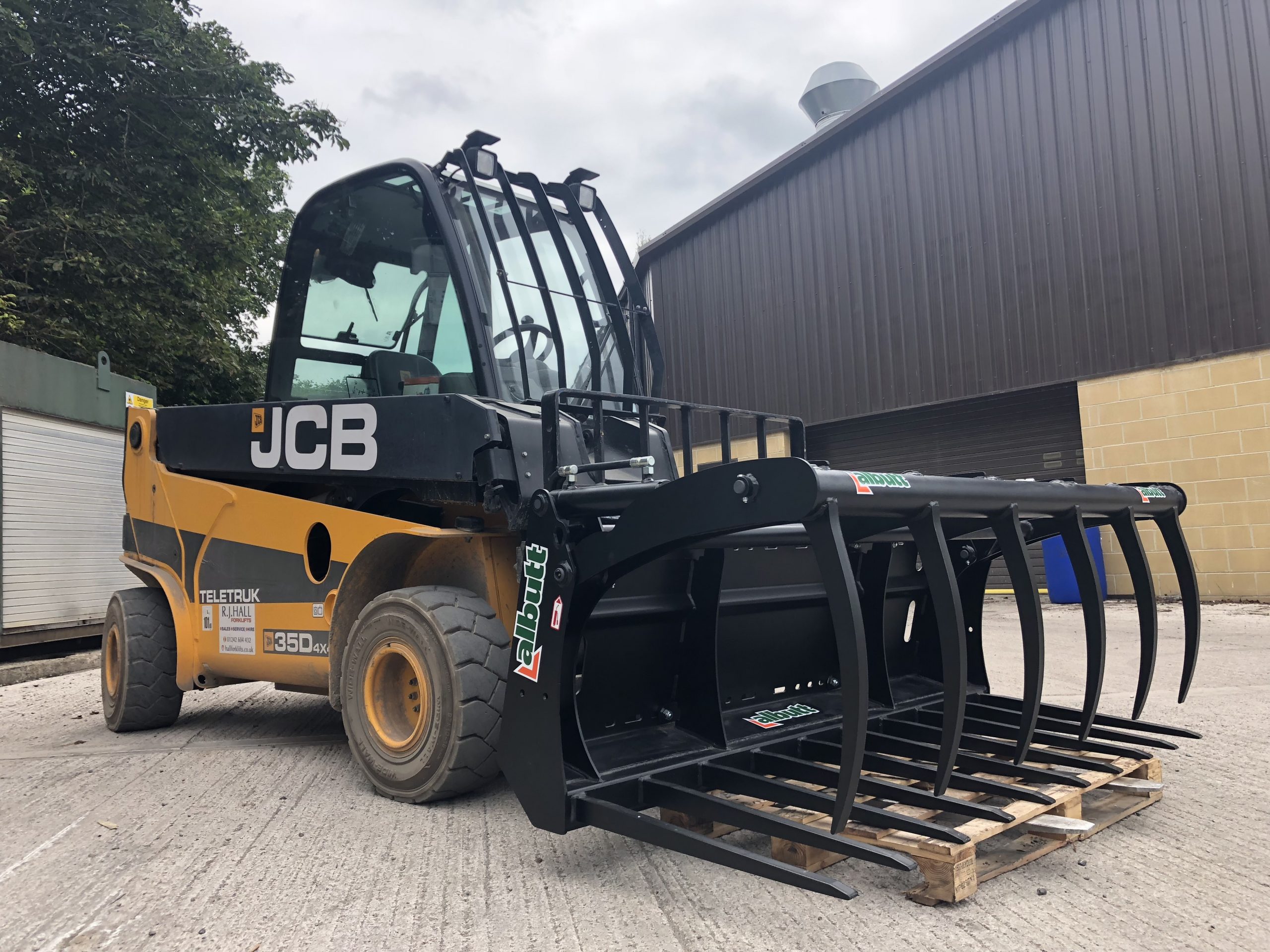

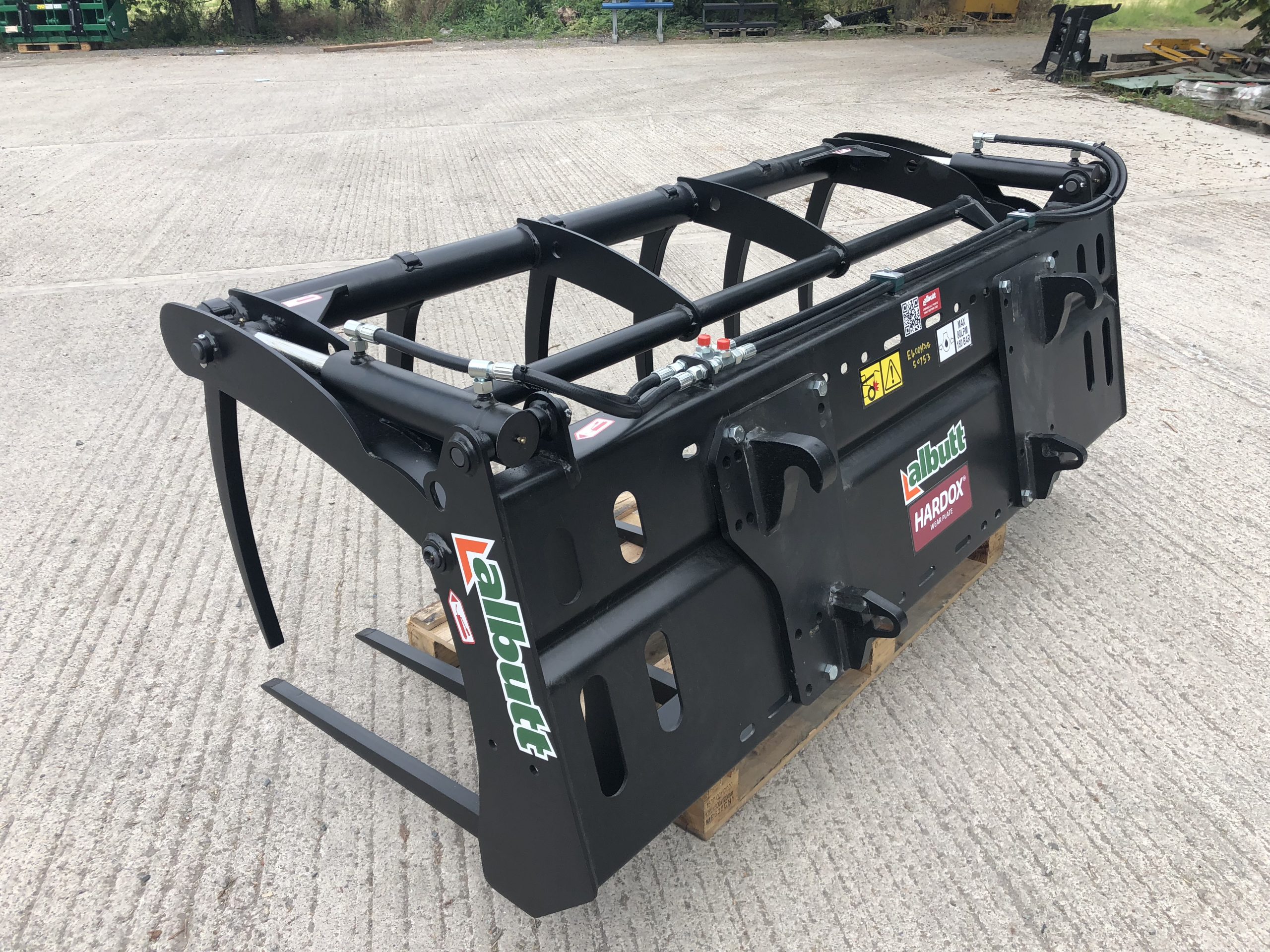

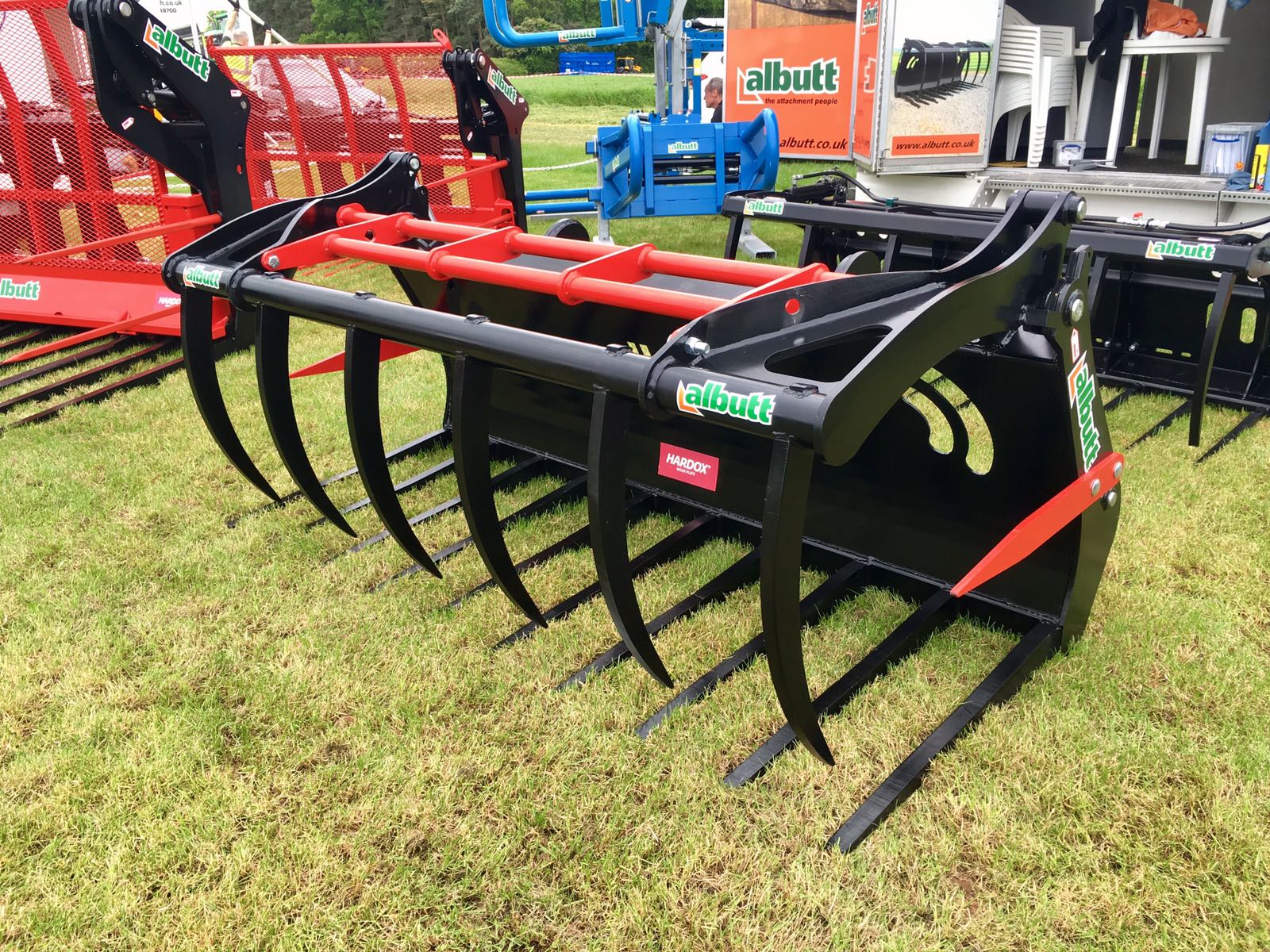

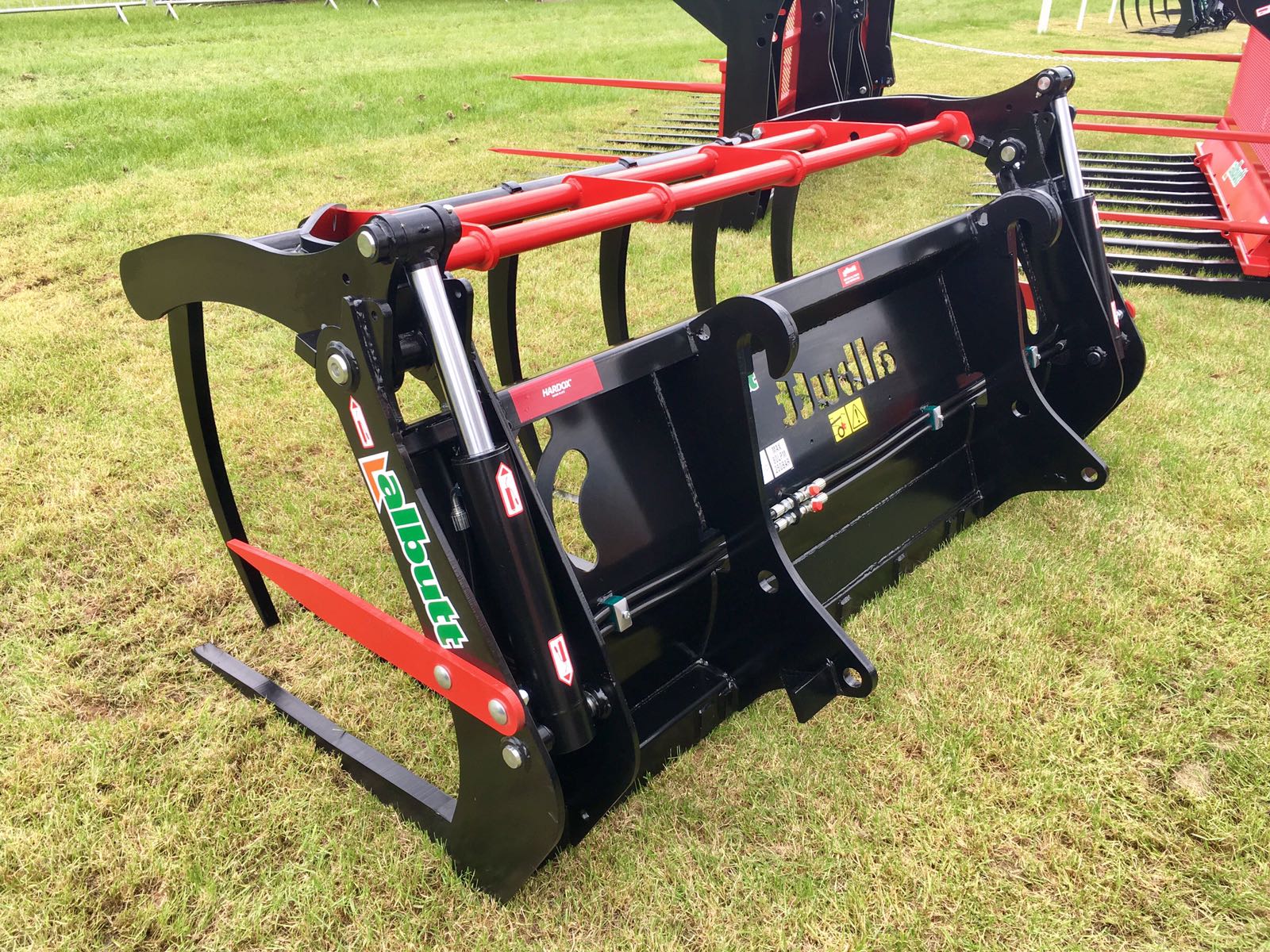

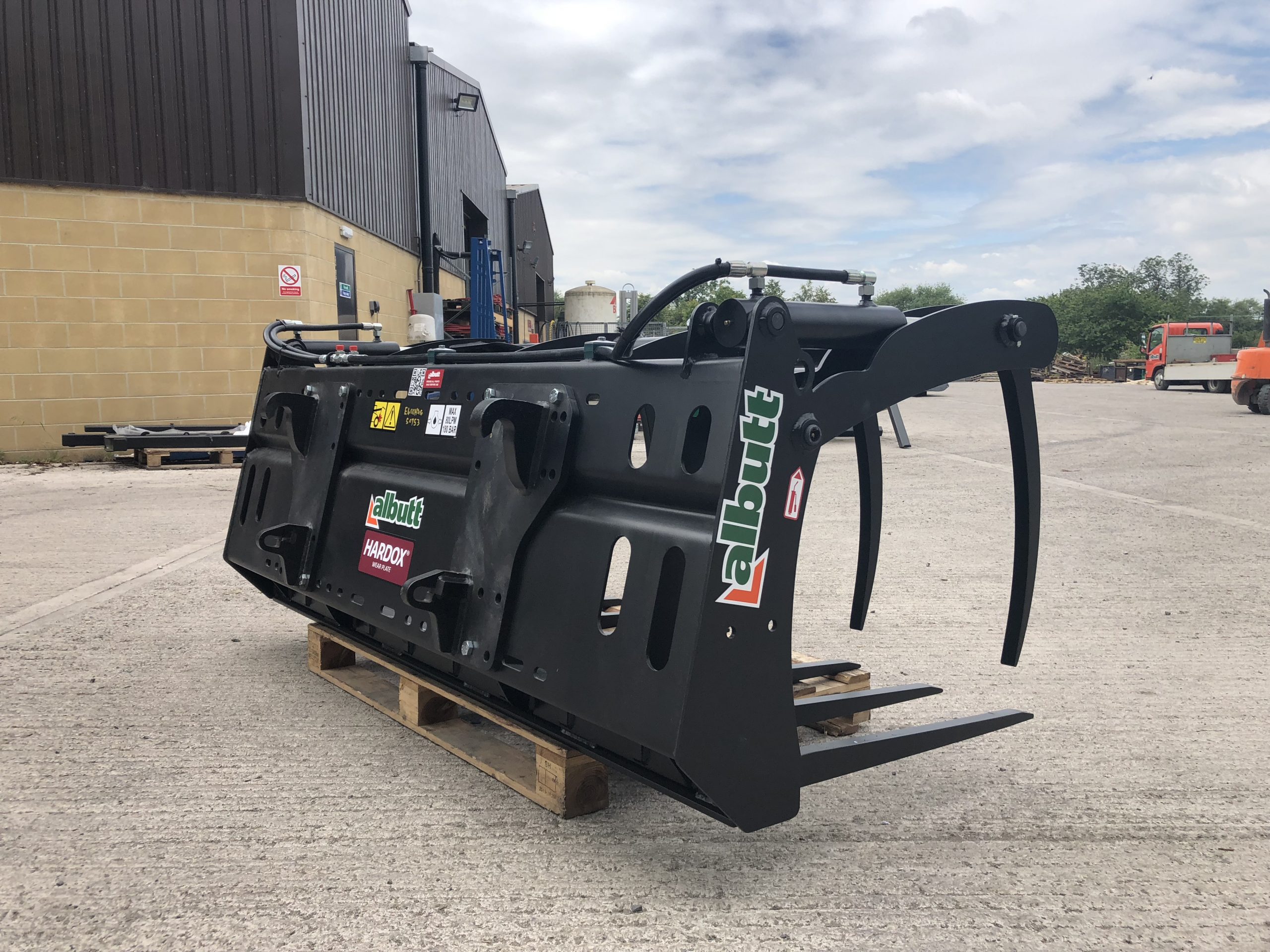

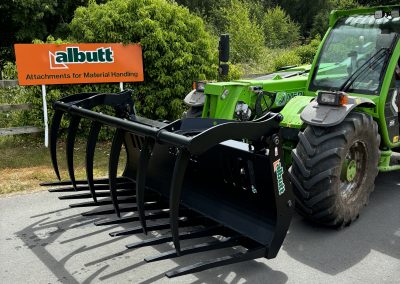

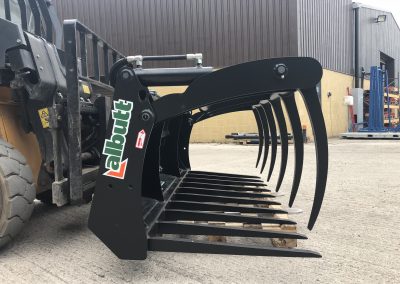

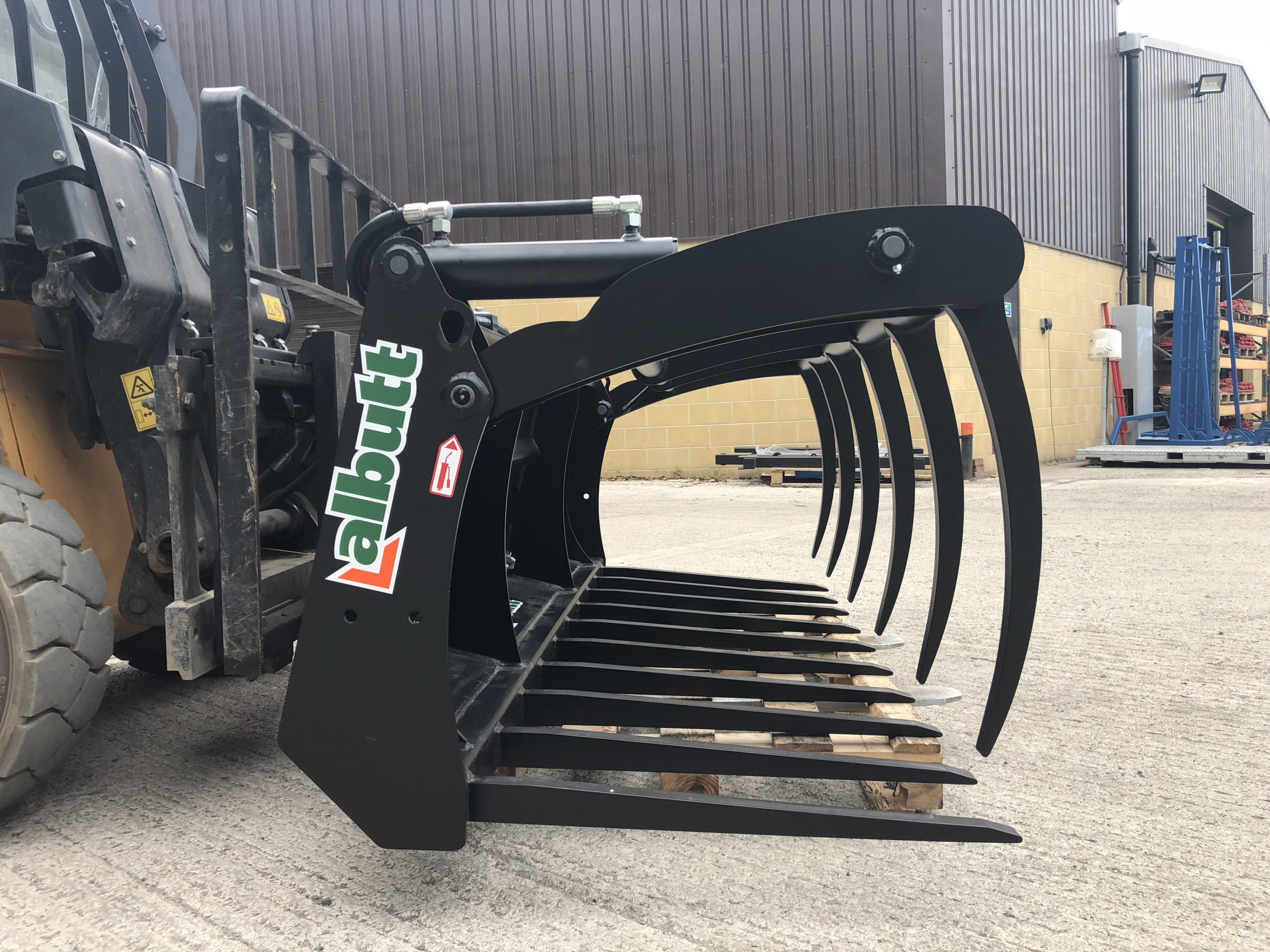

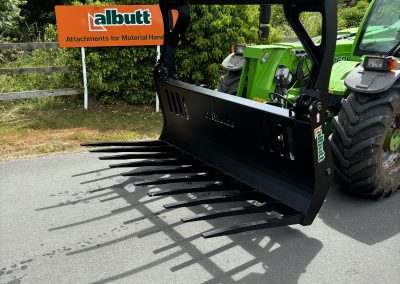

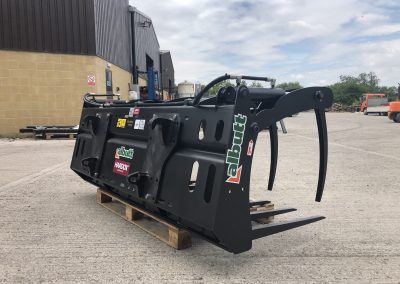

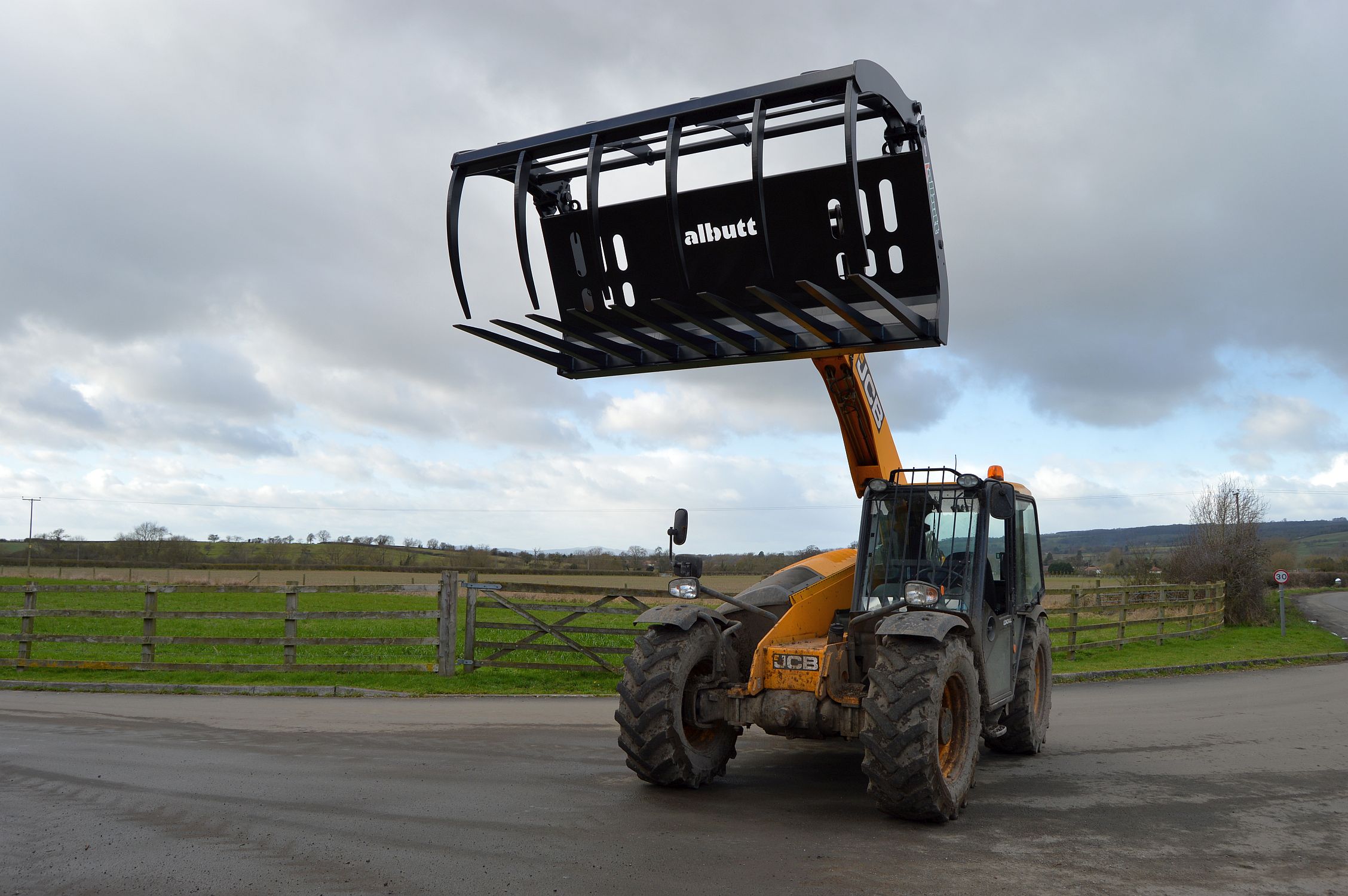

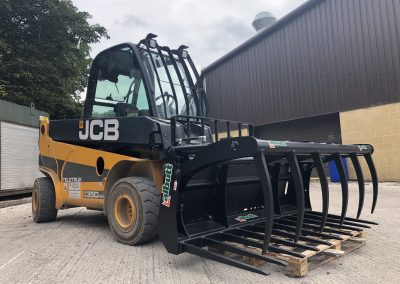

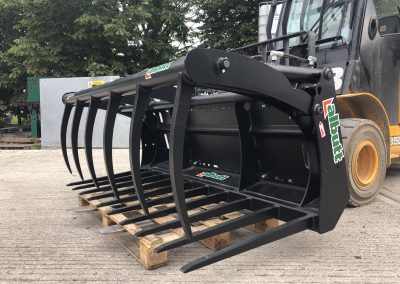

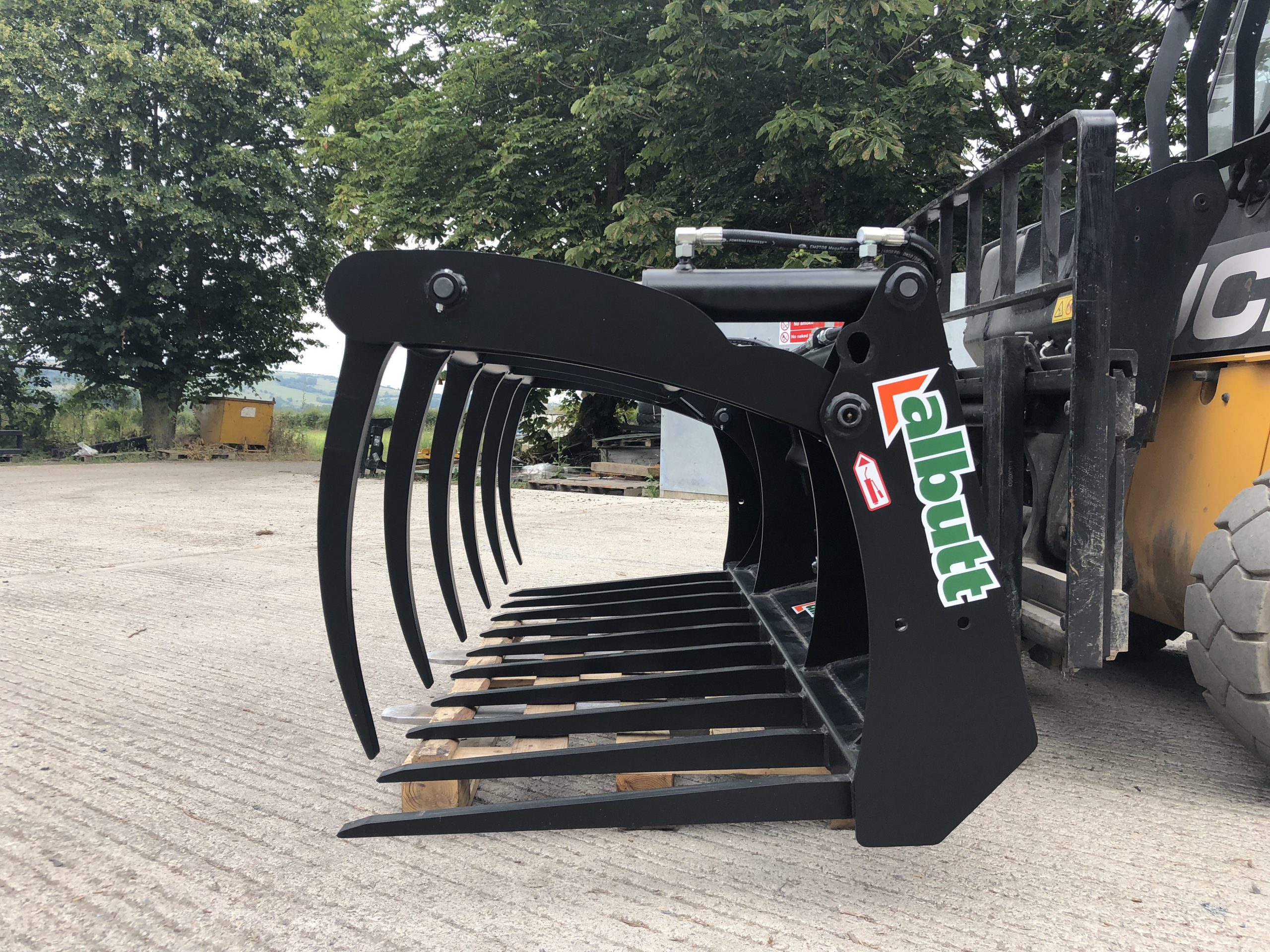

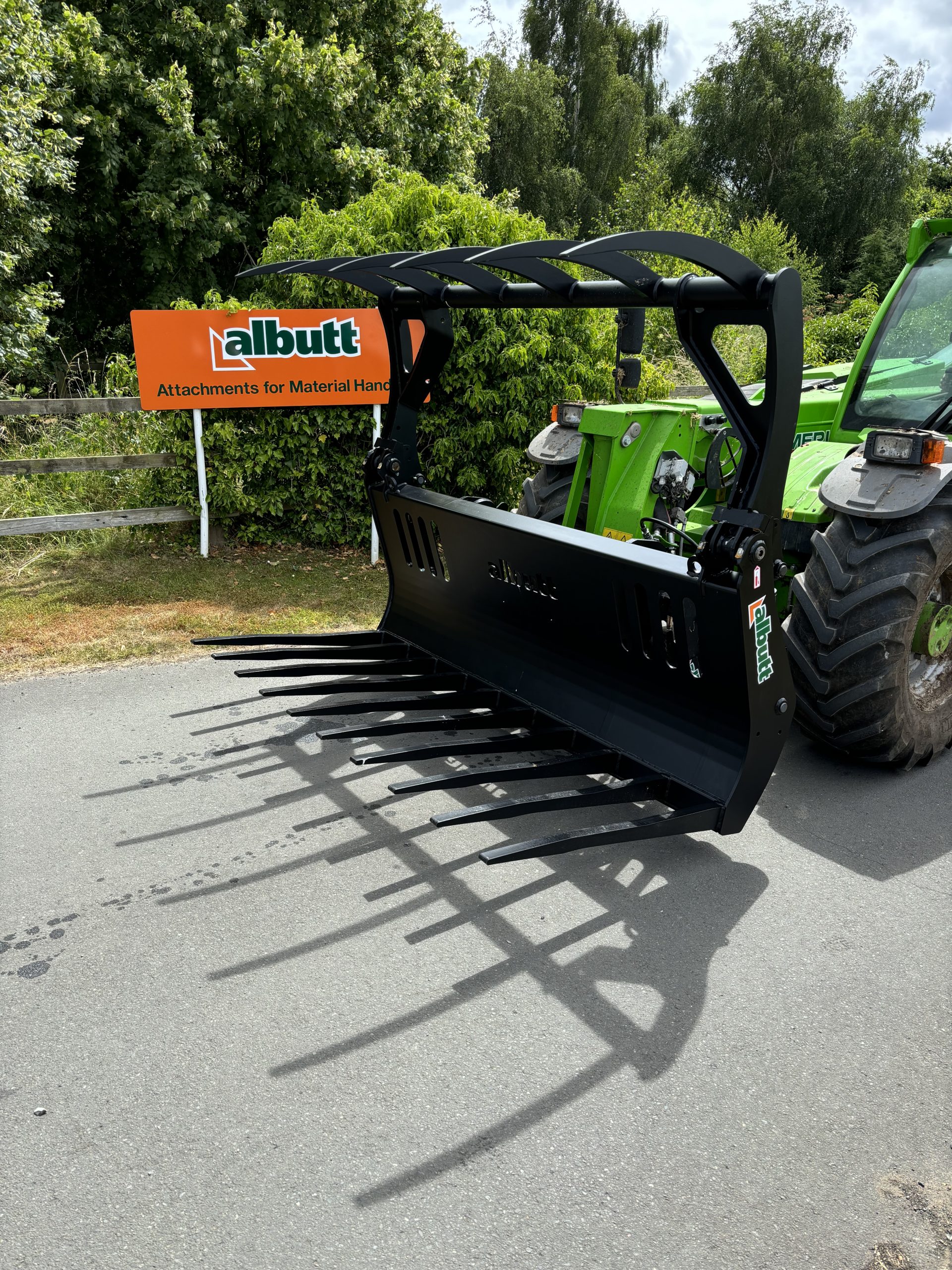

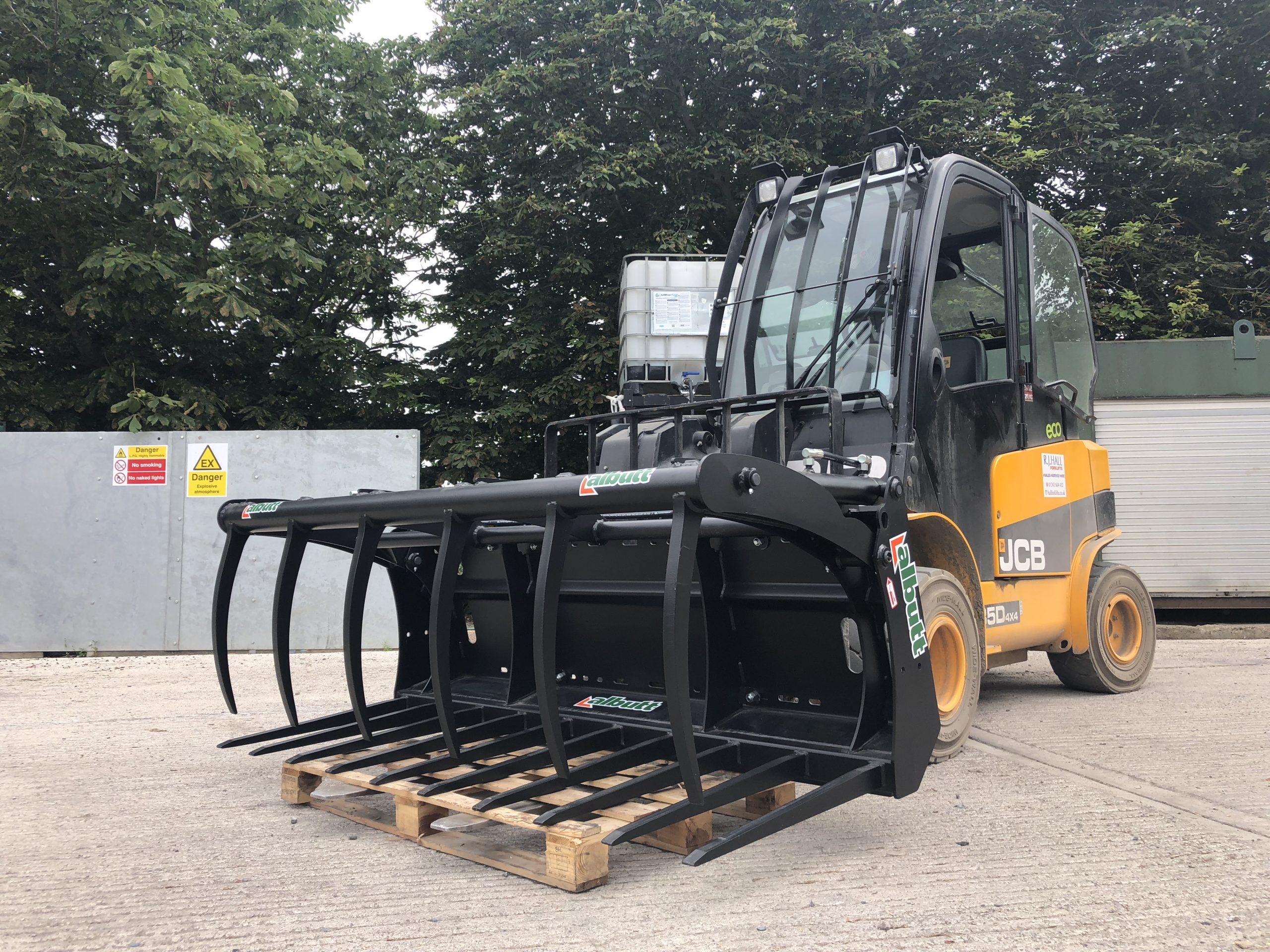

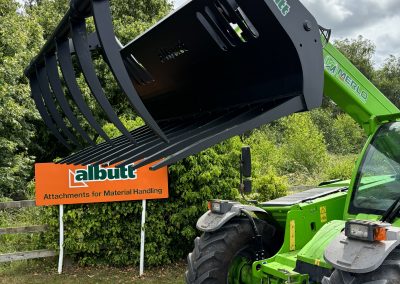

The Albutt range of Fork and Grabs covers models for use on Tractor Loaders, Telehandlers and Loading Shovels. A market leading specification ensures that the Albutt range of Fork and Grabs provides a longer operating life whilst providing excellent usability. For Hardox tine models, we use genuine Hardox material to provide resistance to bending and breaking against conventional tines. B-Series and C-Series models also incorporate a heavy duty grab stop which prevents against over extension of the grab, resisting against pin breakages and ram seals leaking.
Ranges
B Series – For machines with a 4 tonne plus lift capacity
C-500 Series – For machines with a 2-3 tonne lift capacity
C-600 Series – For machines with a 3-4 tonne lift capacity
E Series – For Tractor Loaders

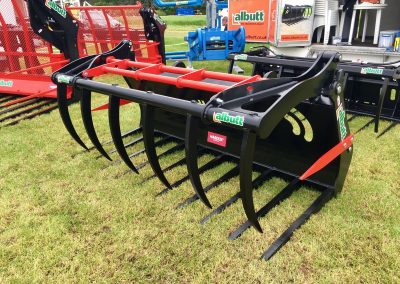

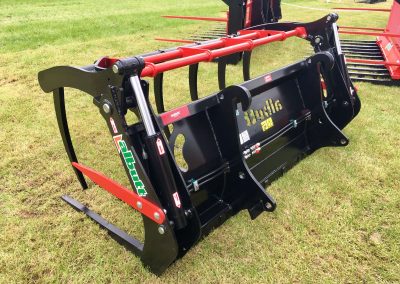

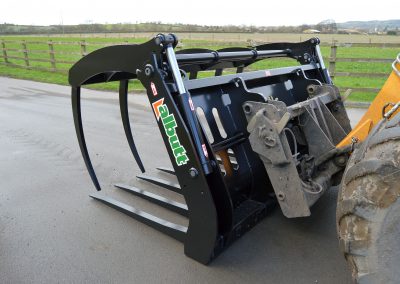

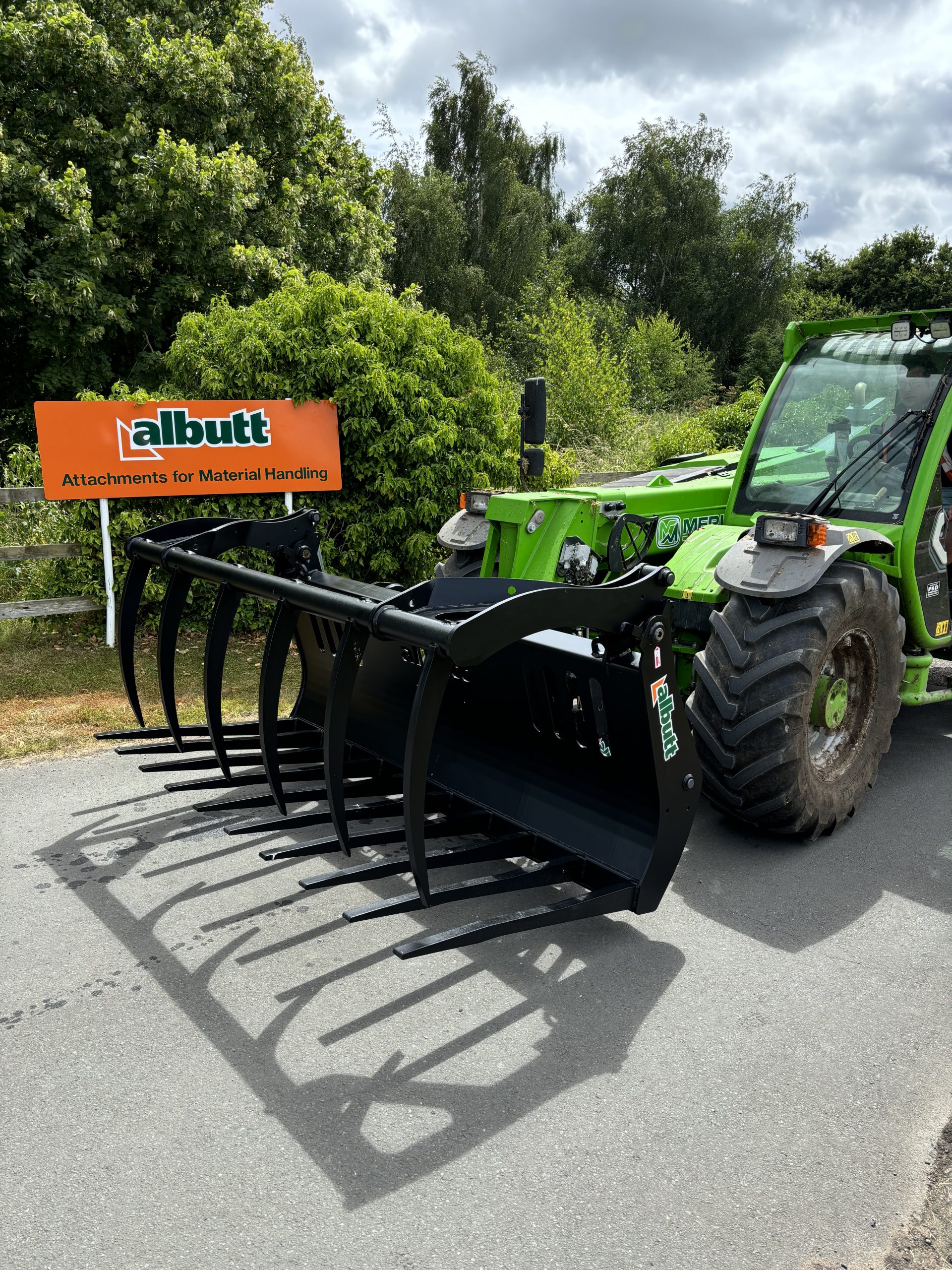

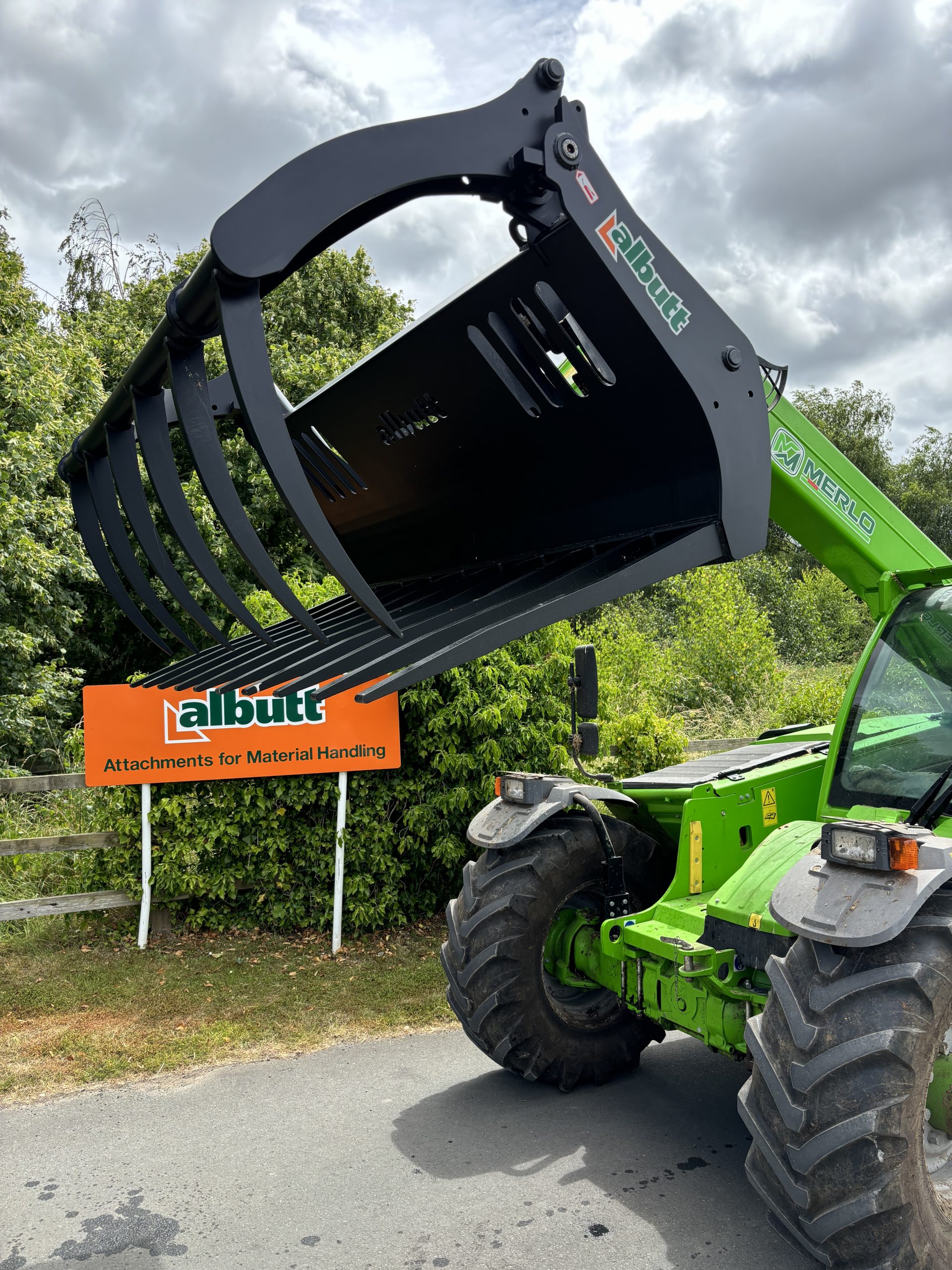

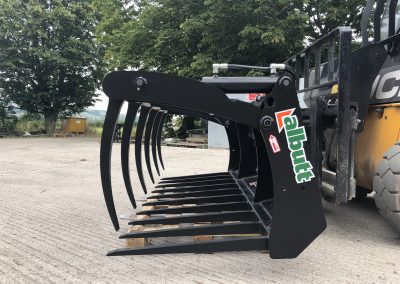

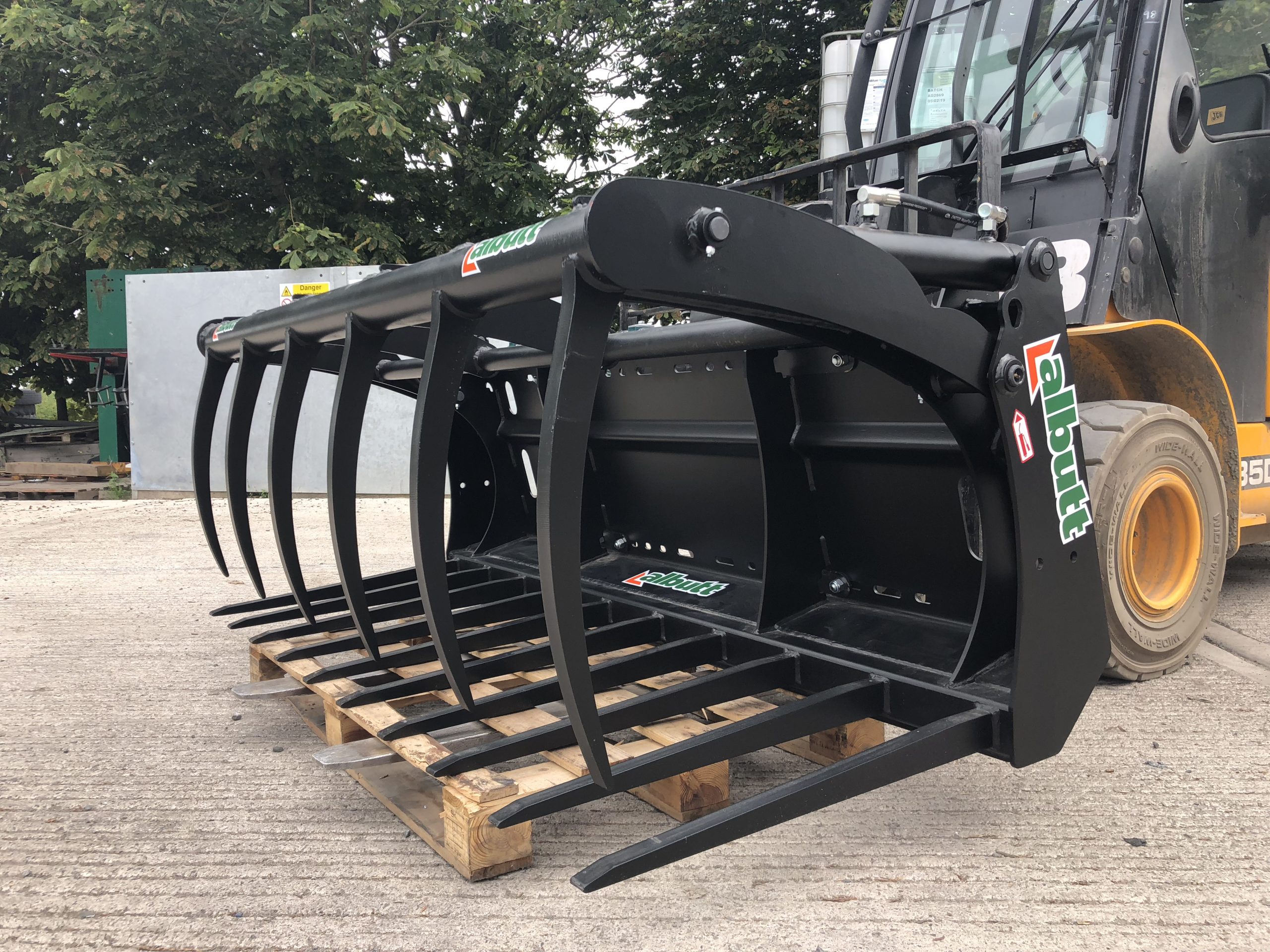

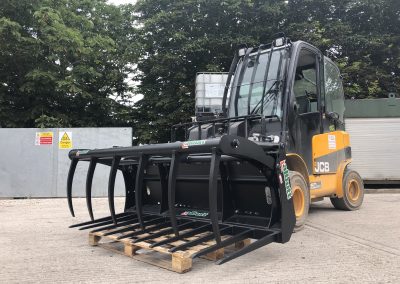

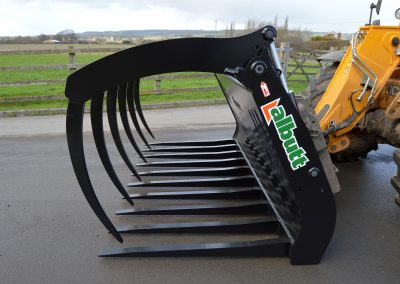

Albutt Fork and Grab Features

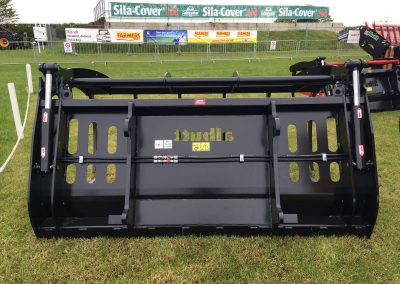

- Solid fork back – keep carriage and hydraulics clean
- Wide opening grabs
- Choice of Forged steel or genuine Hardox tines

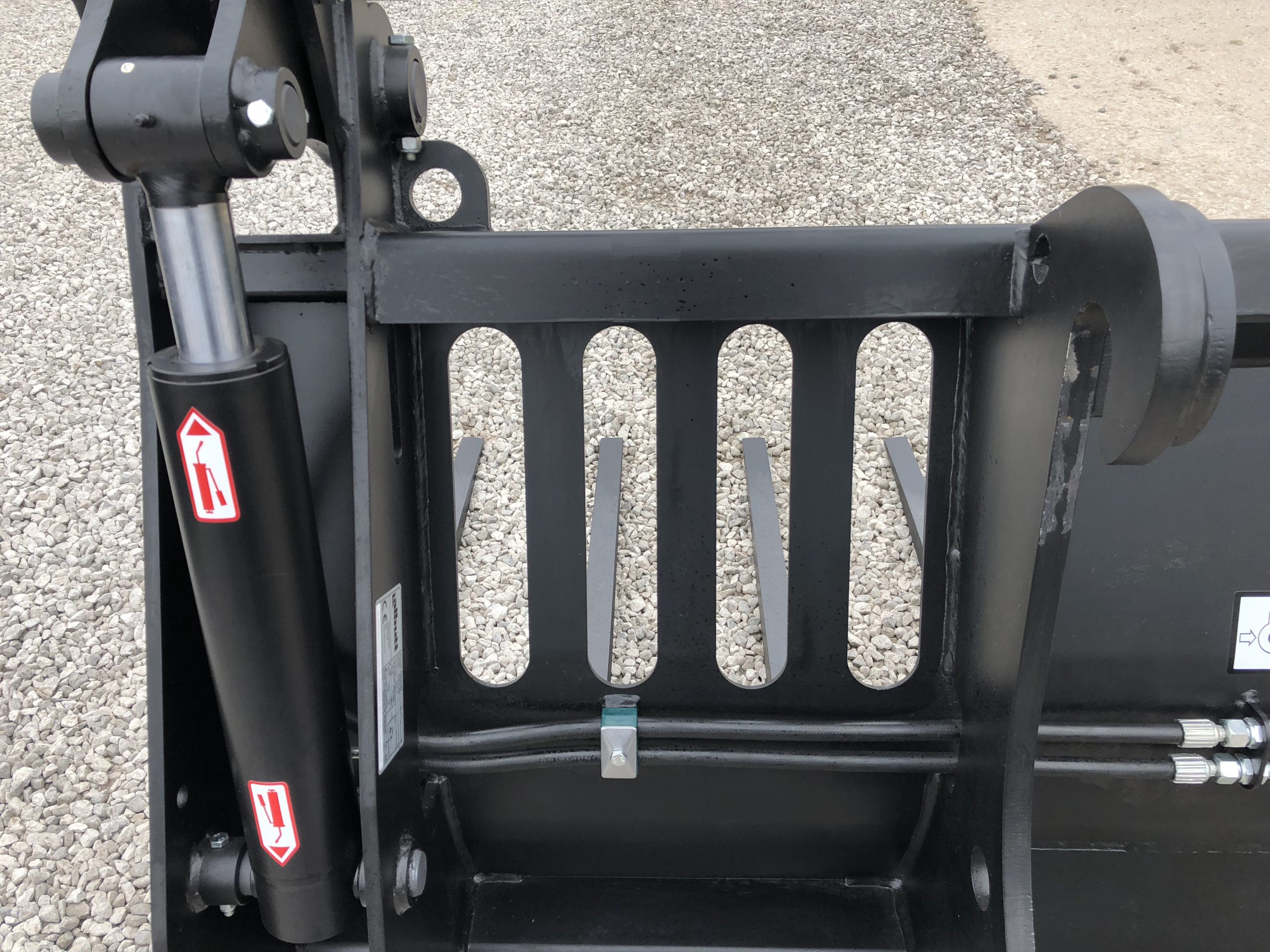

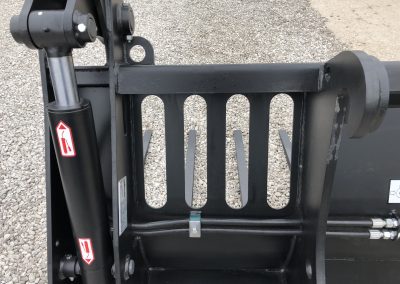

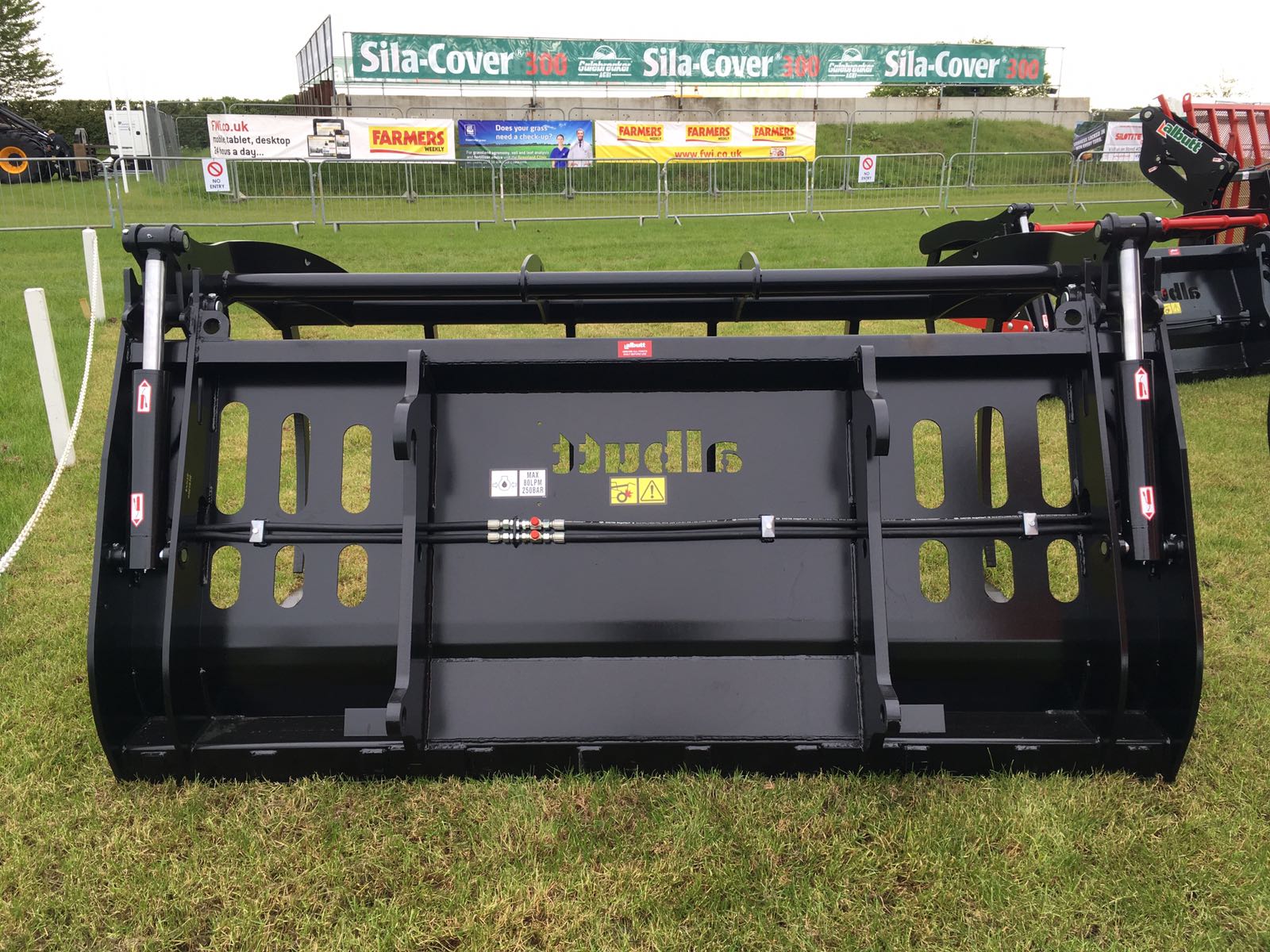

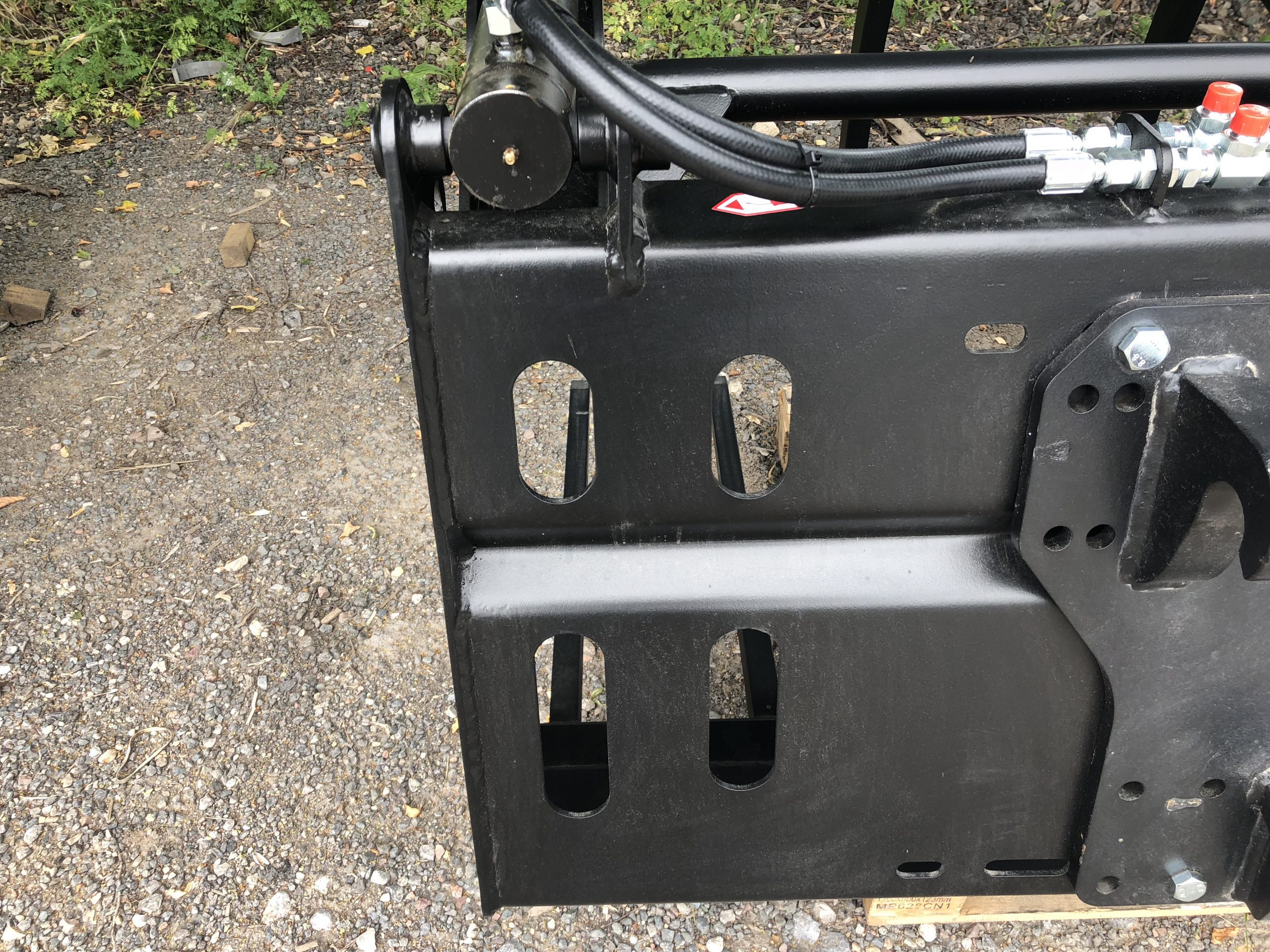

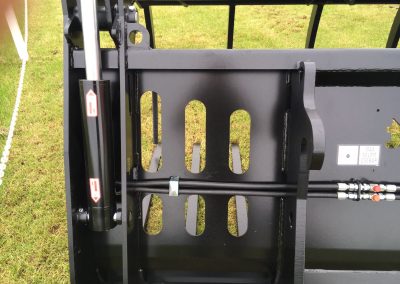

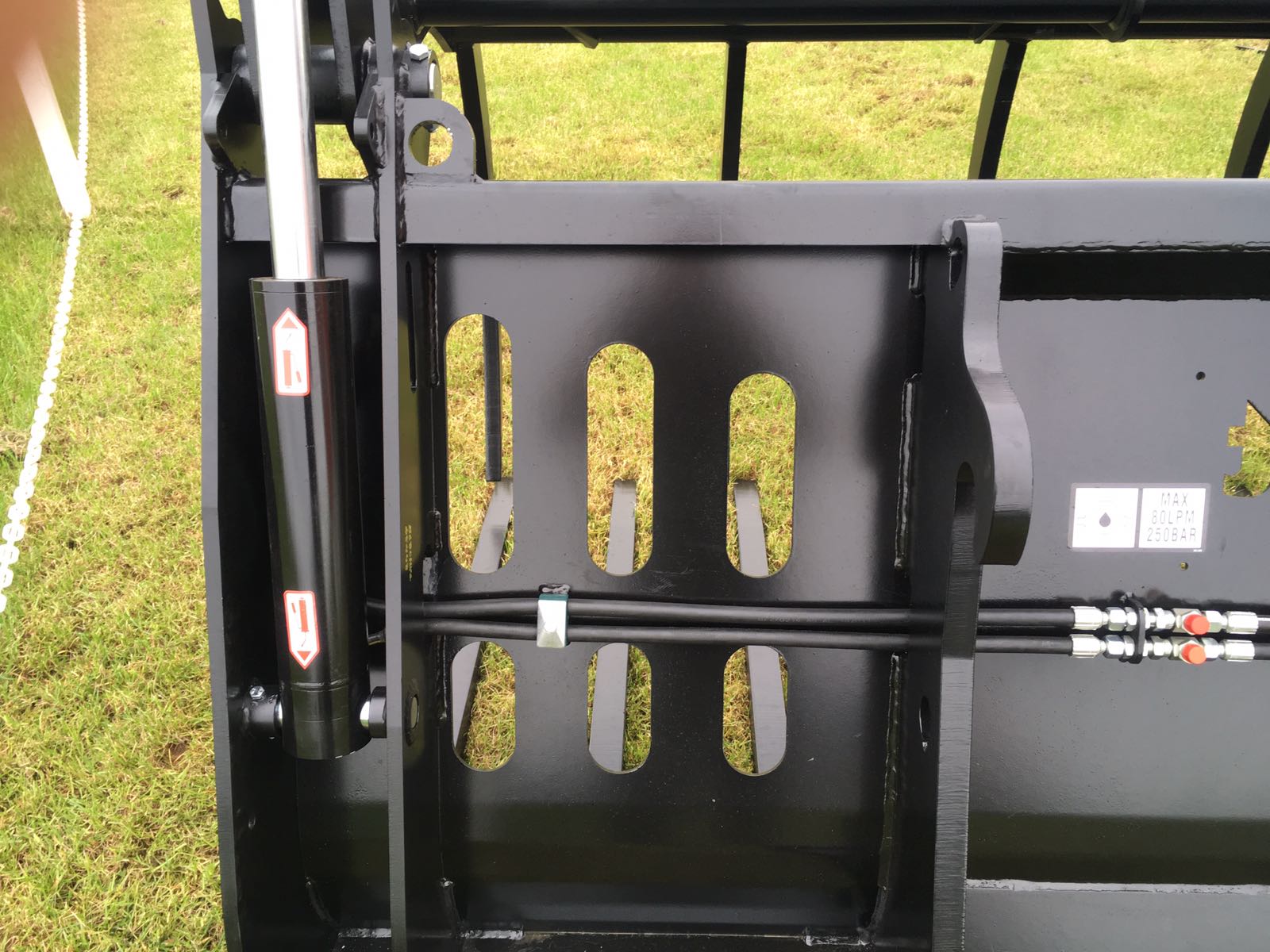

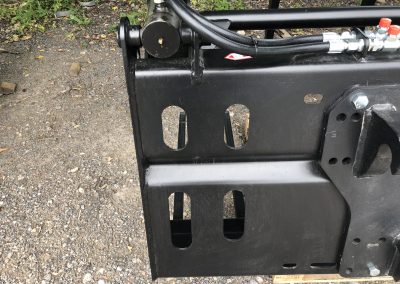

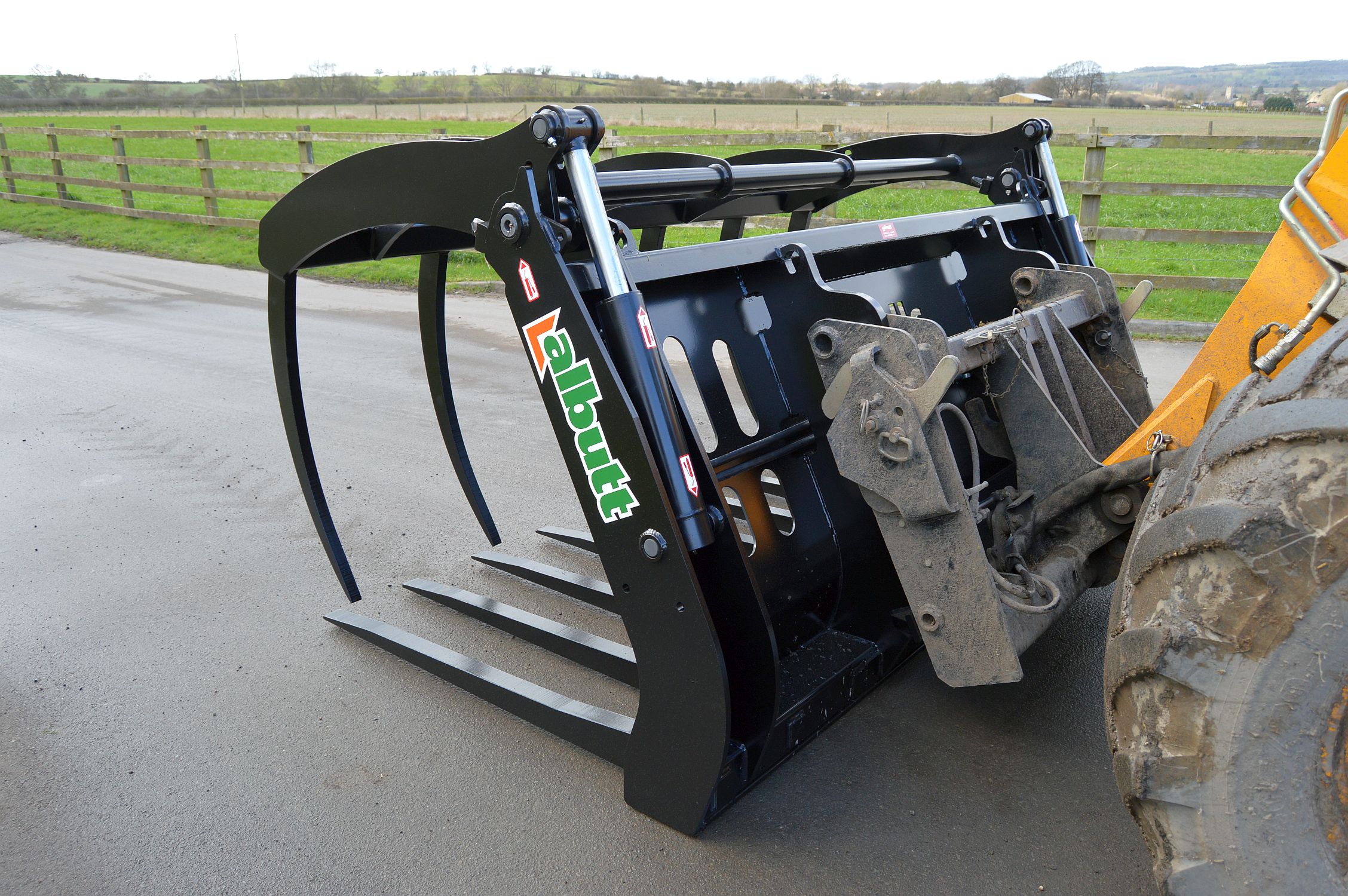

- Cut outs in fork back for visibility

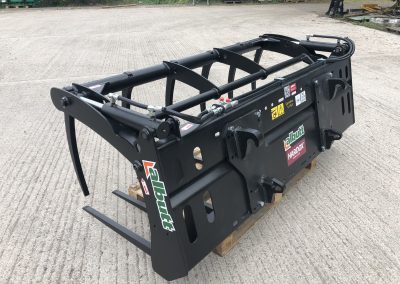

- High capacity hydraulic rams
- Open and close grab stops to protect hydraulic rams and pins - B and C Series
- Optional side tines; Hardox
- Full width base wear strip protects tine holder
- Hardox tines welded into tine holder
- Forged tines bushed into the tine holder
- Tees on rams inward facing for spill protection - B and C Series

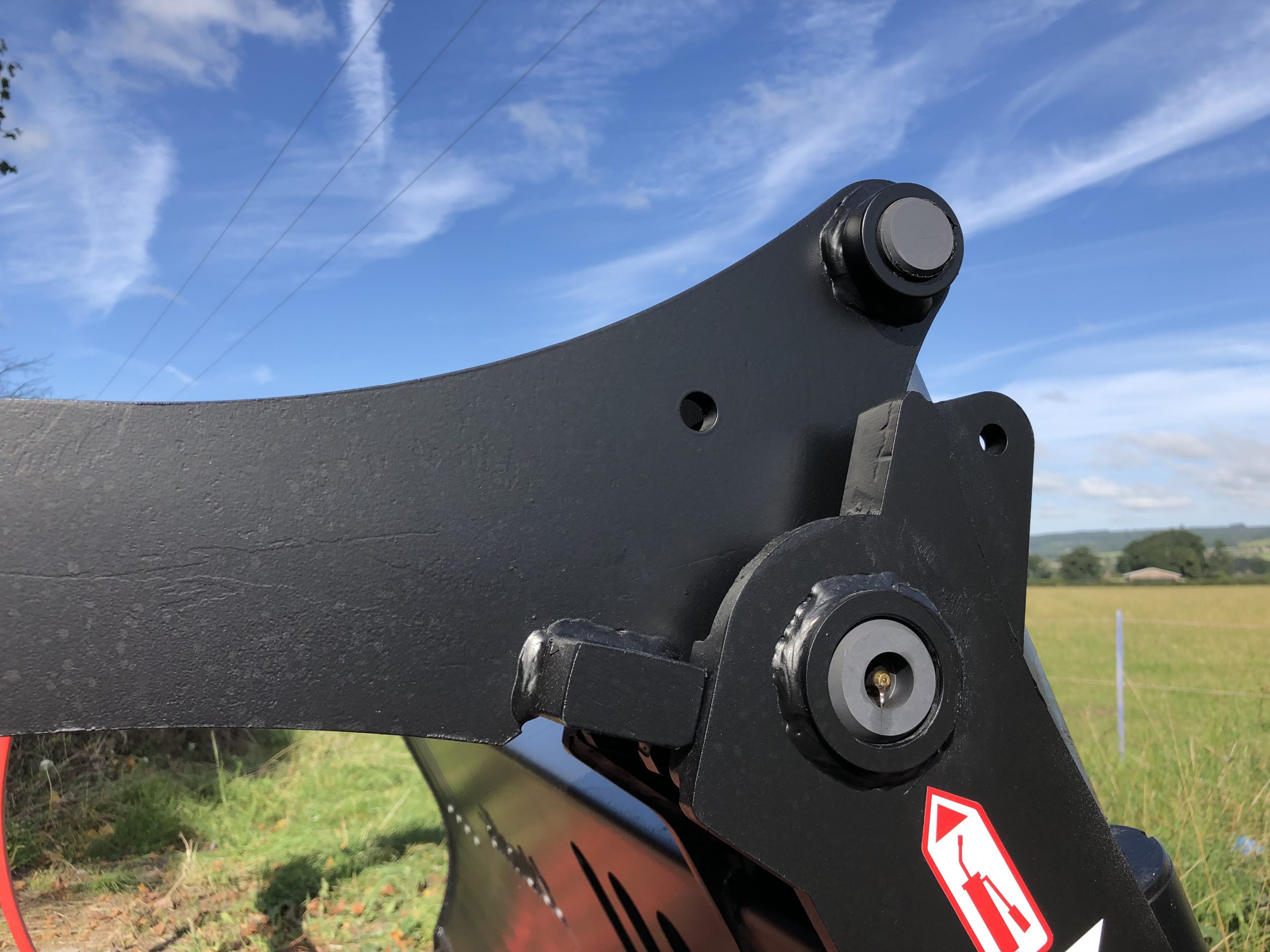

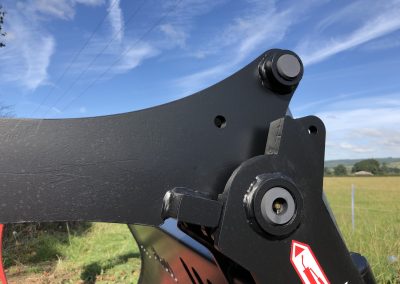

Featuring our ALS pin system - better lubrication properties than zinc plated pins

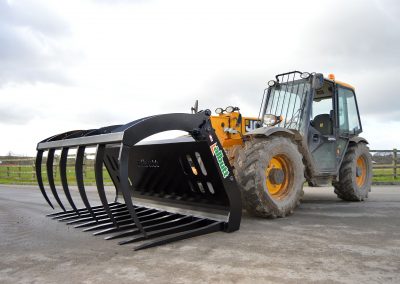

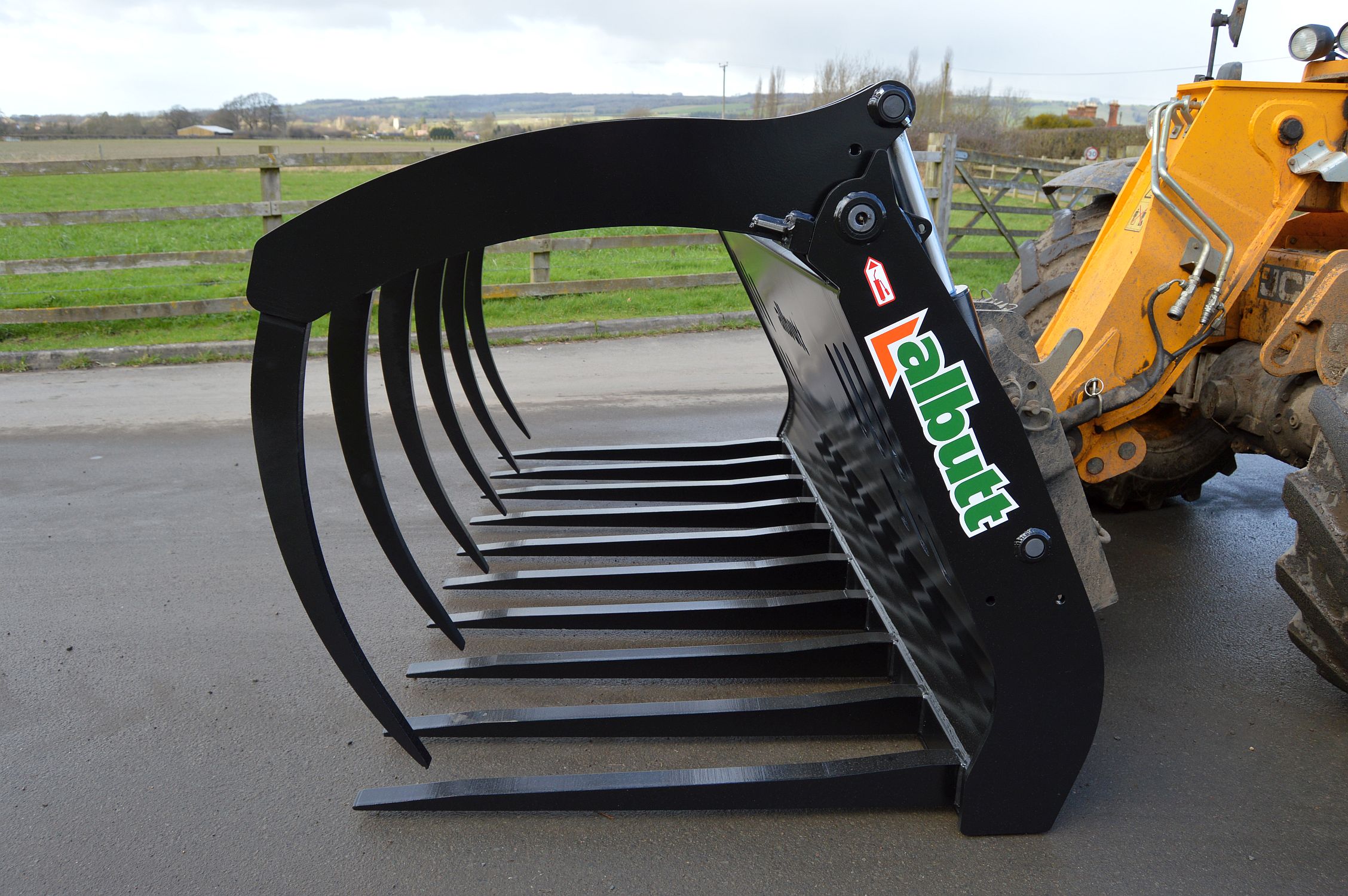

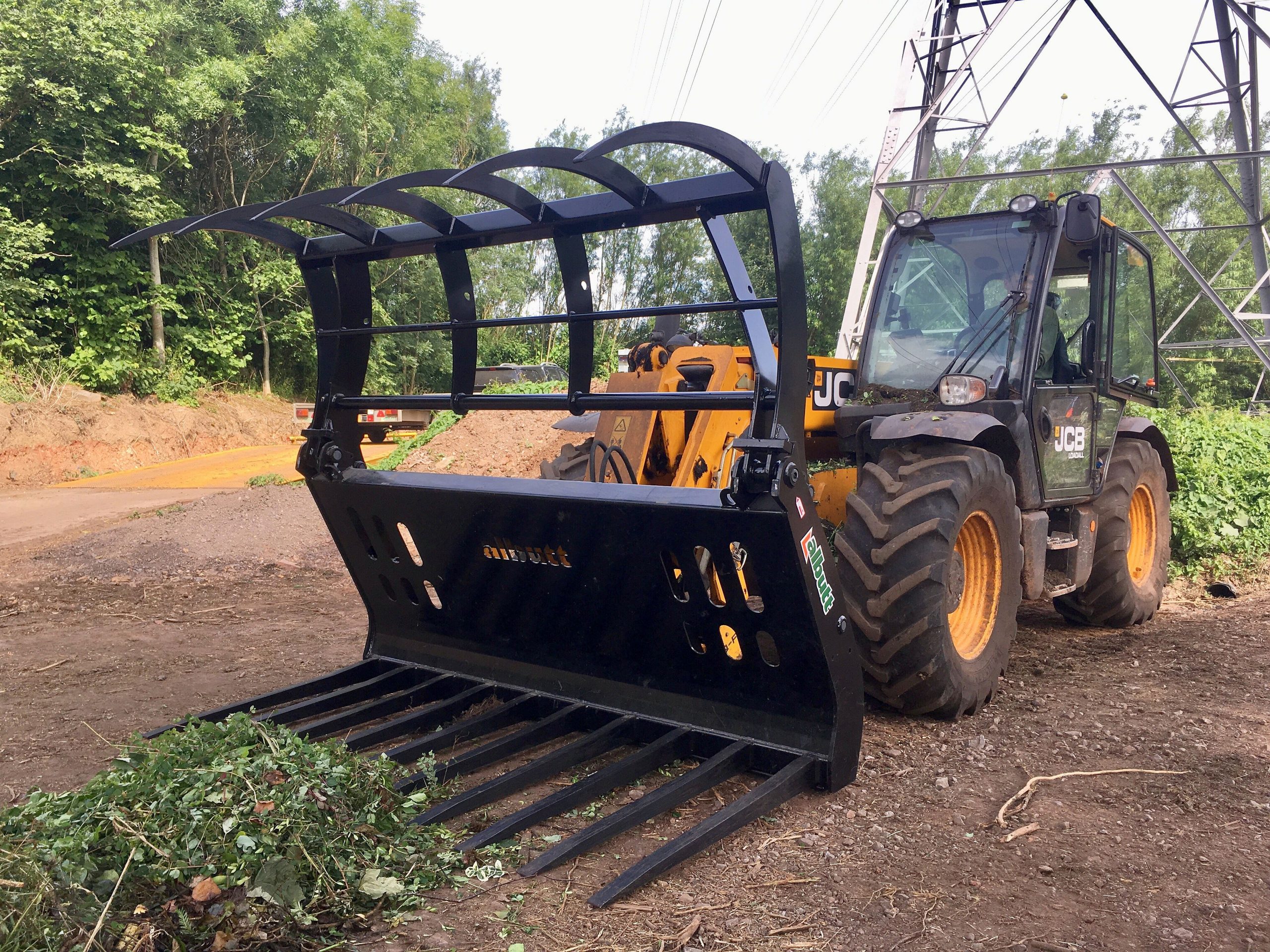

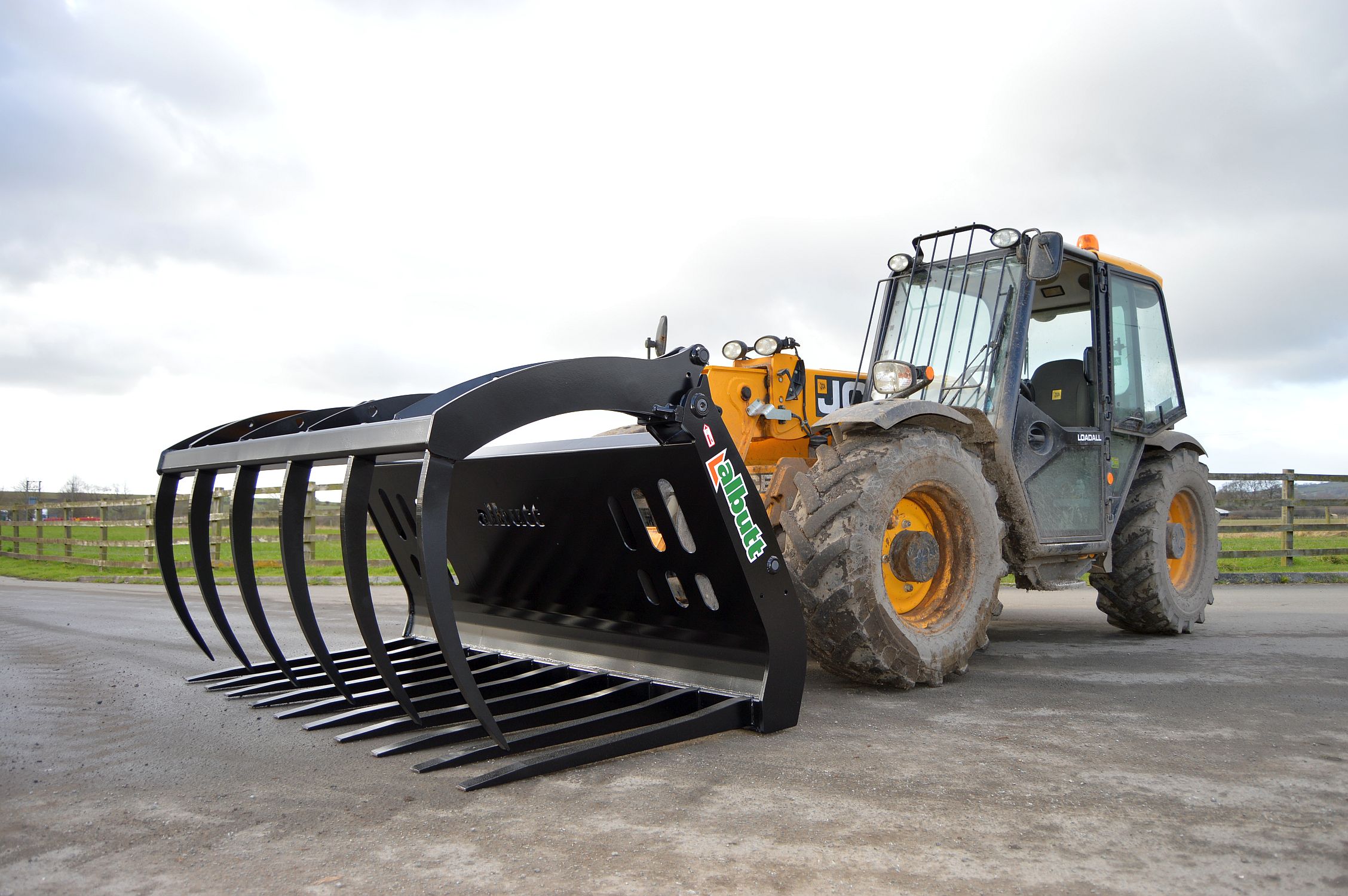

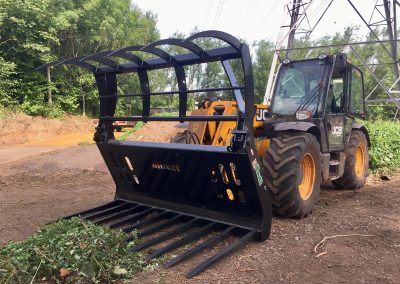

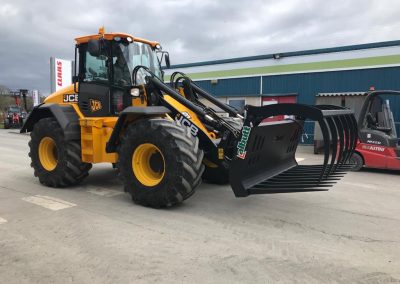

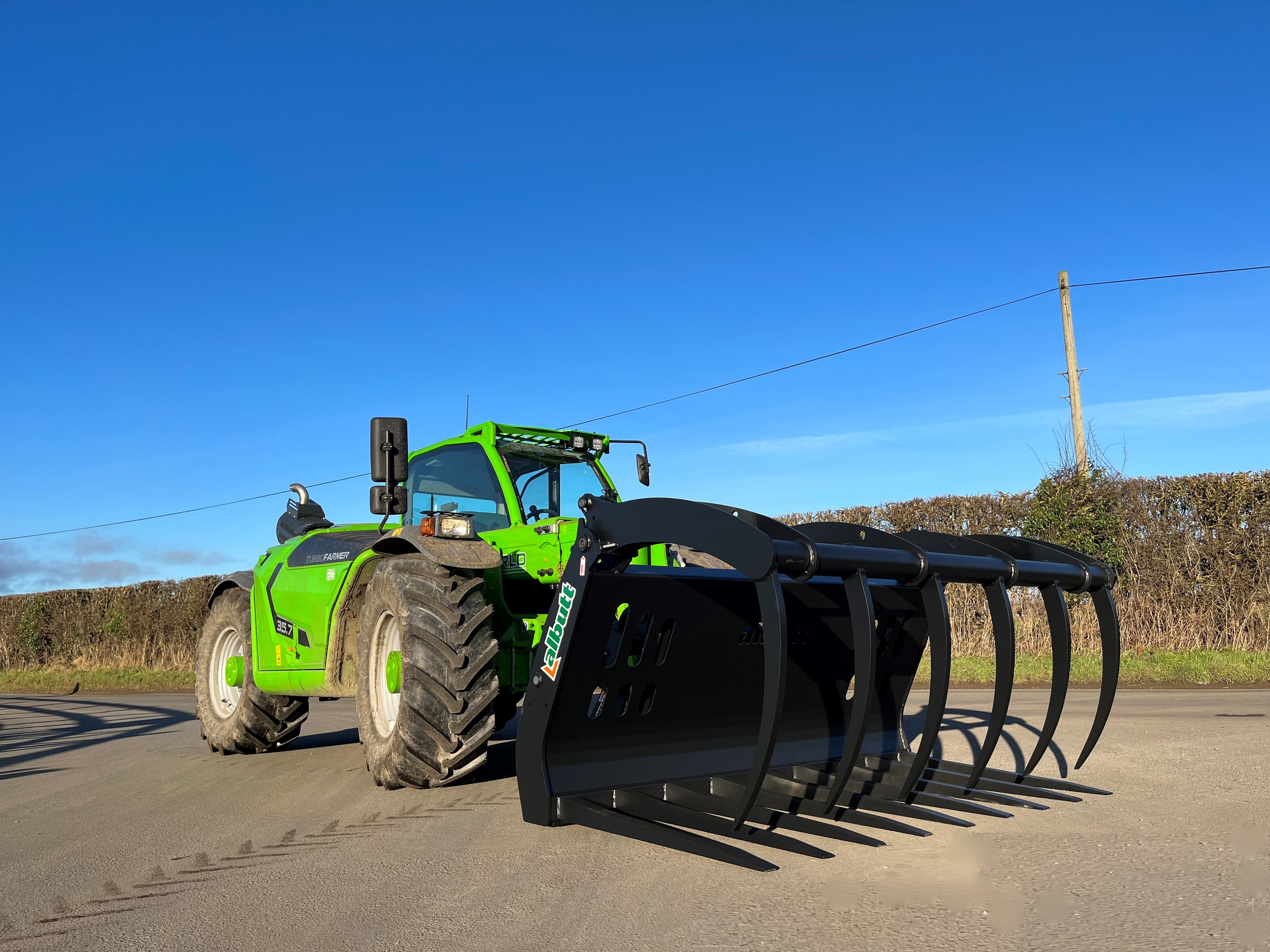

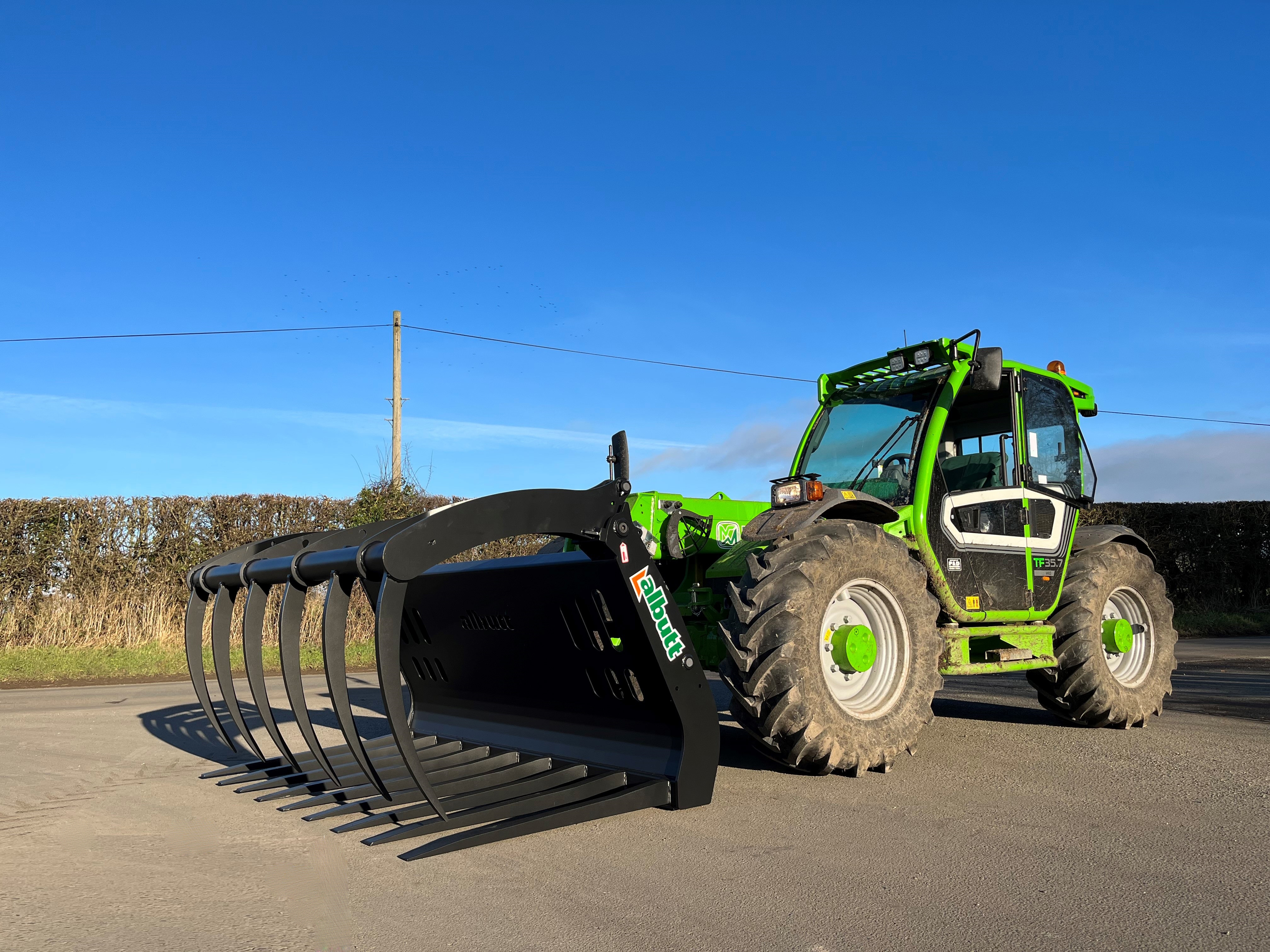

B-Series
- For machines with a minimum 4 tonne lift capacity
- Hardox tines available only on B-Series
- 35mm Ø top and bottom plated pins
- 45mm Ø pivot plated pins
- Heavy duty grab stops for ram seal and pin protection
- 75mm Ø bore rams
- Grab opens to 1905mm
- 1264mm tall
- 1240mm long genuine Hardox Base Tines
- DX bushes in cylinder ends
- Inward facing tees on rams
- Large side visibility cut outs
- Full width base wear strip
| Model | Capacity | Width | Base Tines | Grab Tines |
|---|---|---|---|---|
| B666HXG | 2.30m3 | 6’6” | 8 | 5 |
| B670HXG | 2.42m3 | 7′ | 8 | 6 |
| B676HXG | 2.60m3 | 7’6” | 9 | 6 |
| B680HXG | 2.76m3 | 8′ | 10 | 6 |
| B690HXG | 3.10m3 | 9′ | 11 | 7 |

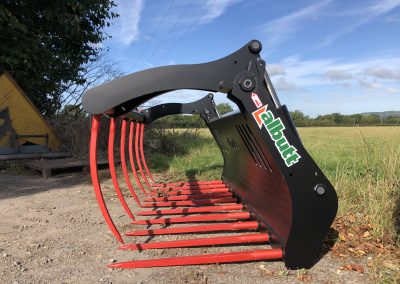

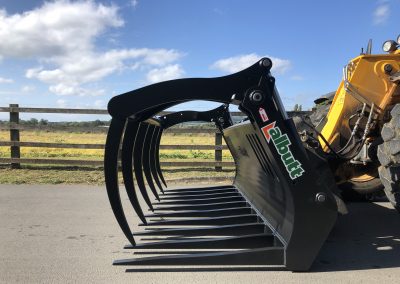

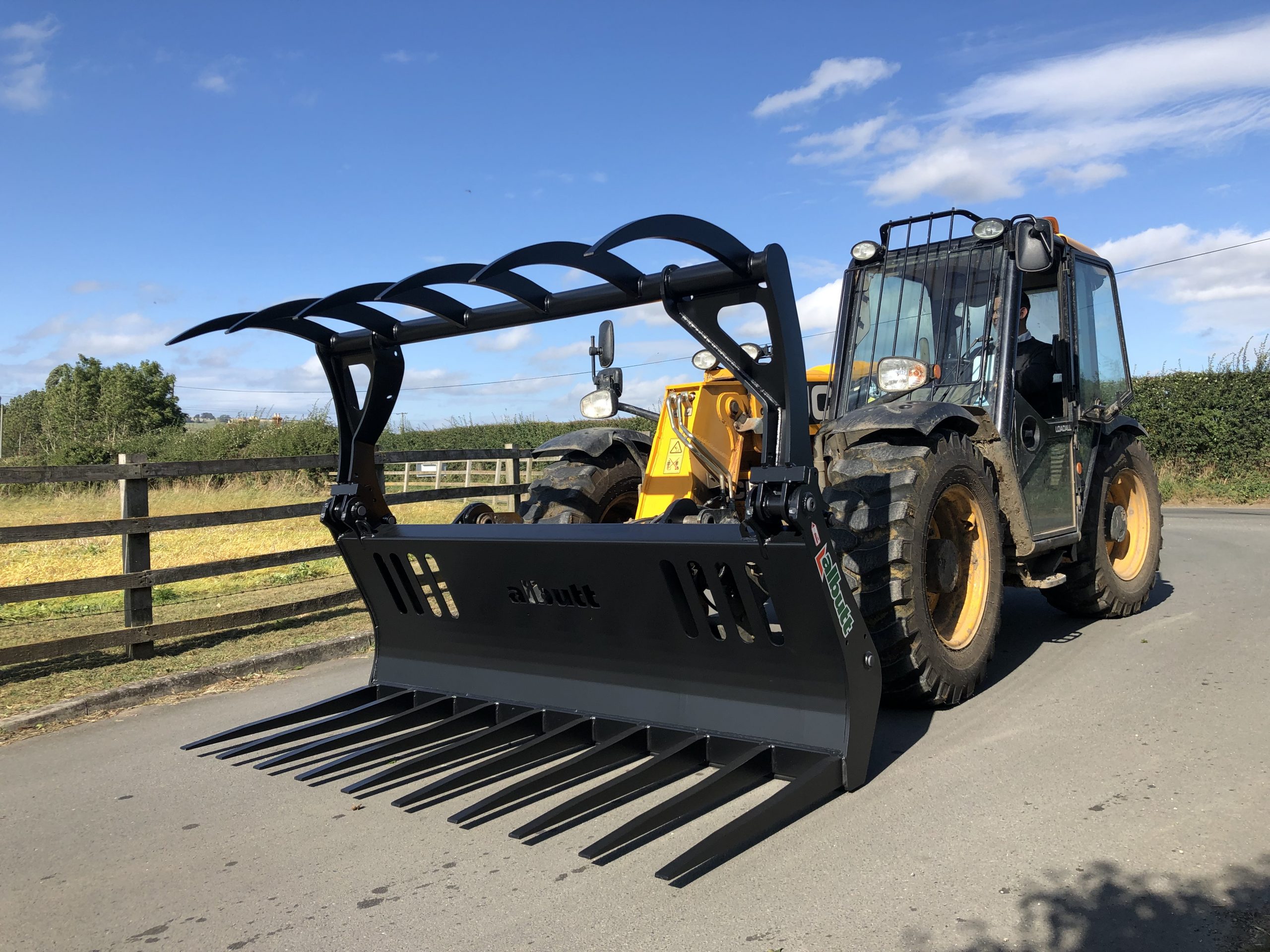

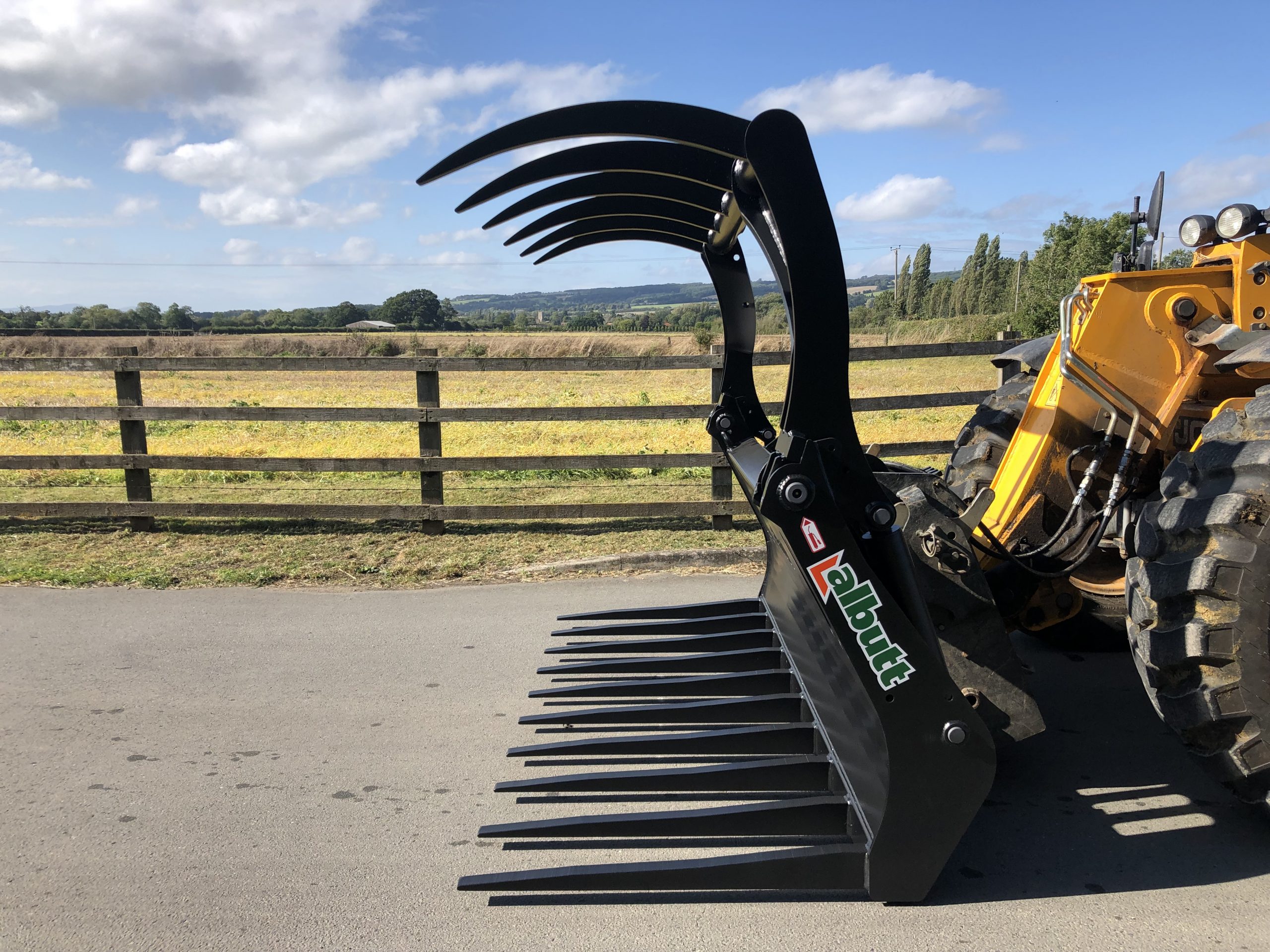

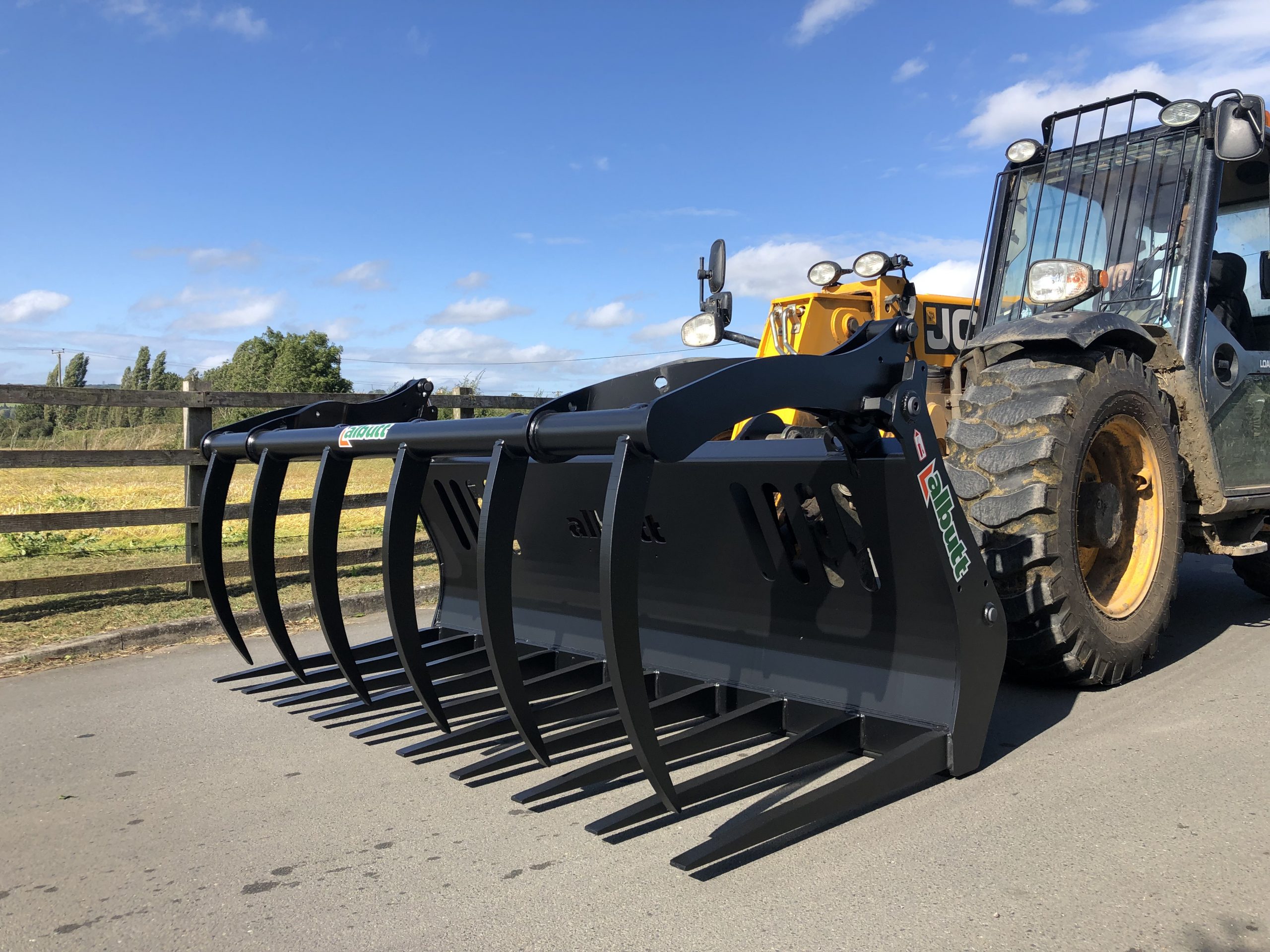

C600 - Series
- For machines with a 3-4 tonne lift capacity
- Genuine Hardox type tines as standard
- 35mm Ø top and bottom plated ram pins
- 45mm Ø pivot plated pins
- Heavy duty grab stops for ram seal and pin protection
- 75mm Ø bore rams
- Grab opens to 1653mm
- 1180mm tall
- Base Tine length; Hardox 1110mm
- DX bushes in cylinder ends
- Inward facing tees on rams
- Central ‘Albutt’ visibility cut out
- Large side visibility cut outs
- Full width base wear strip
- Extra grab and base tine compared to industry standard
| Model | Capacity | Width | Base Tines | Grab Tines |
|---|---|---|---|---|
| C660HXG | 1.38m3 | 6′ | 8 | 5 |
| C666HXG | 1.49m3 | 6’6” | 9 | 5 |
| C670HXG | 1.61m3 | 7′ | 9 | 6 |

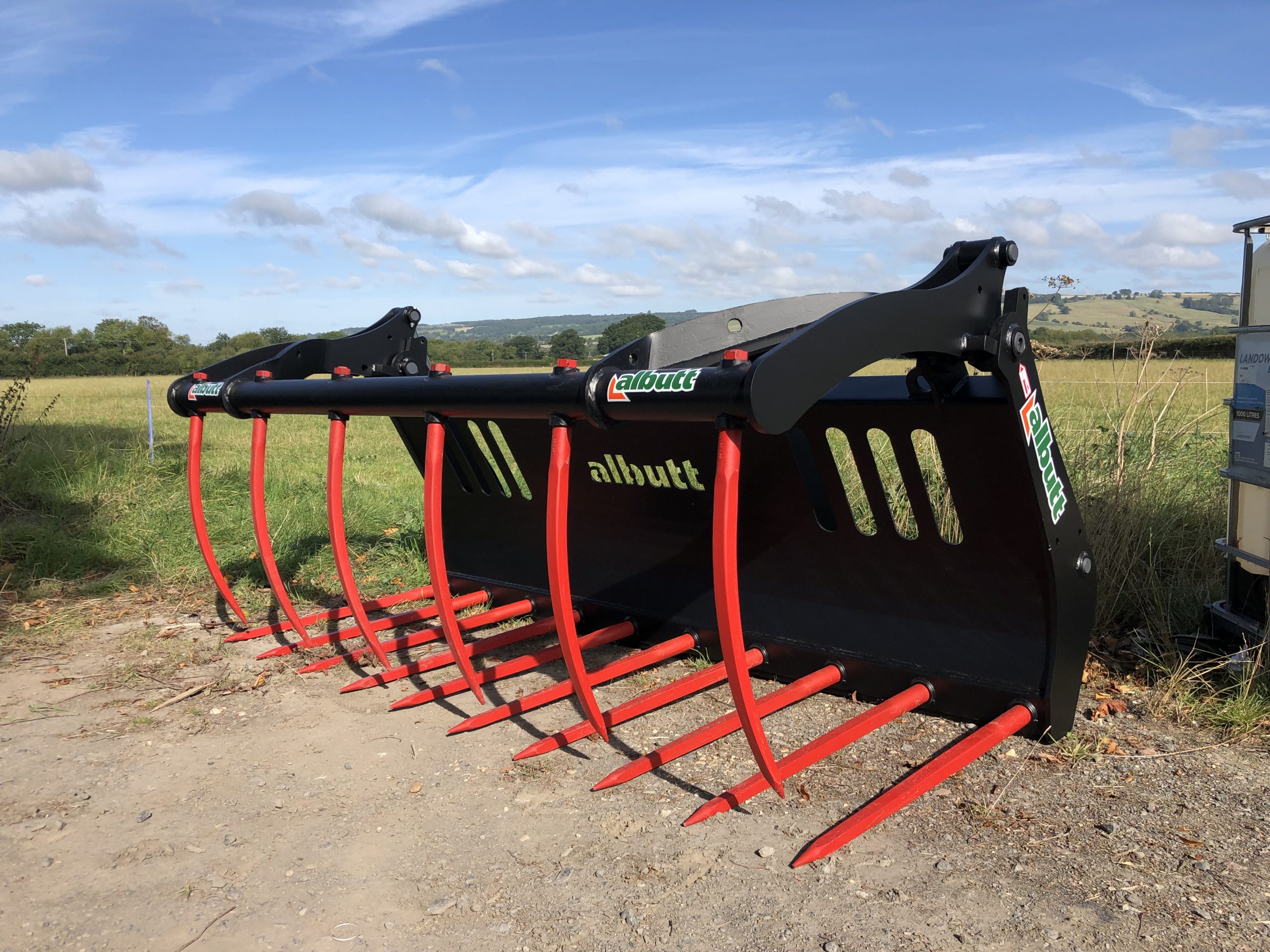

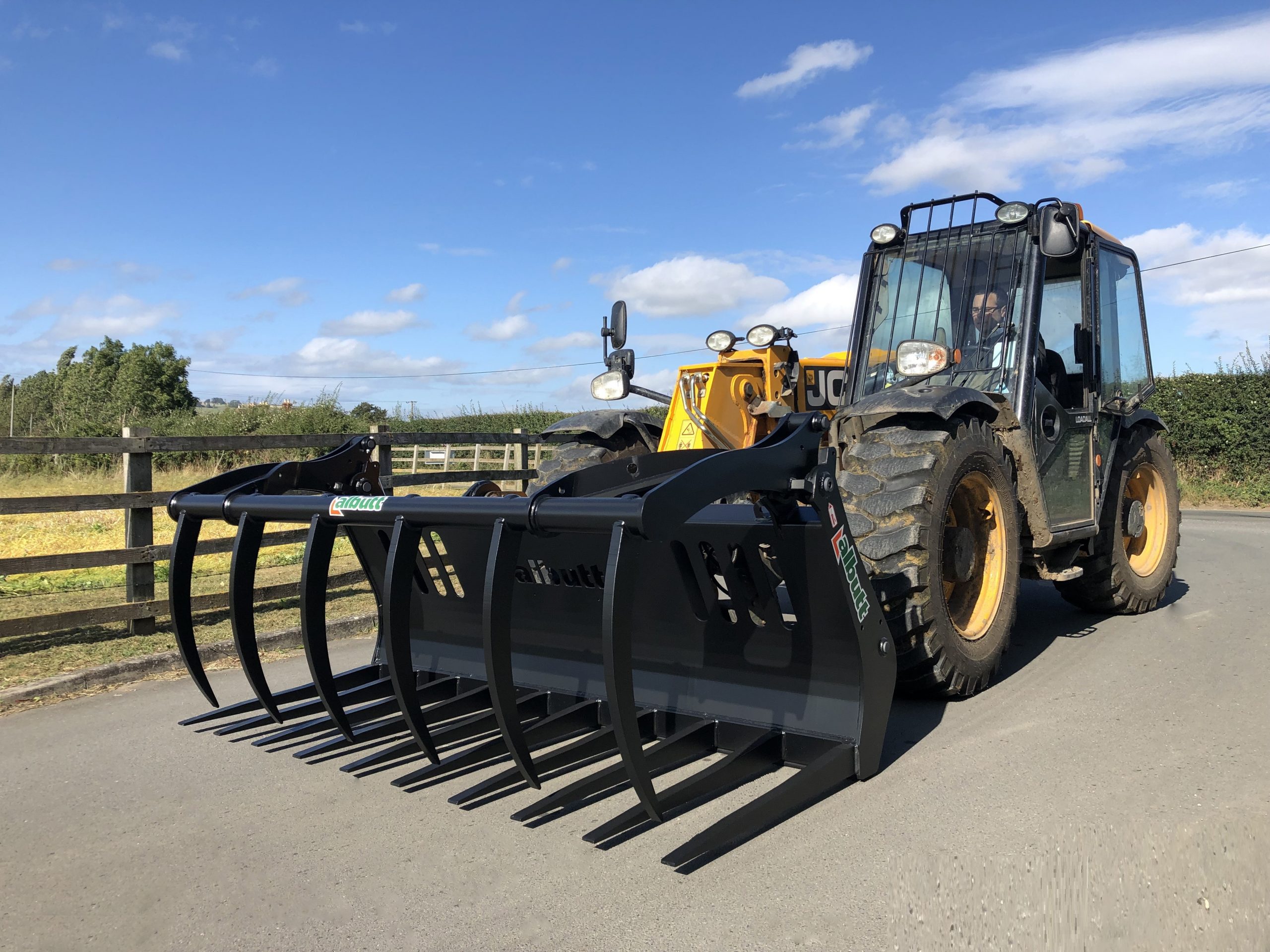

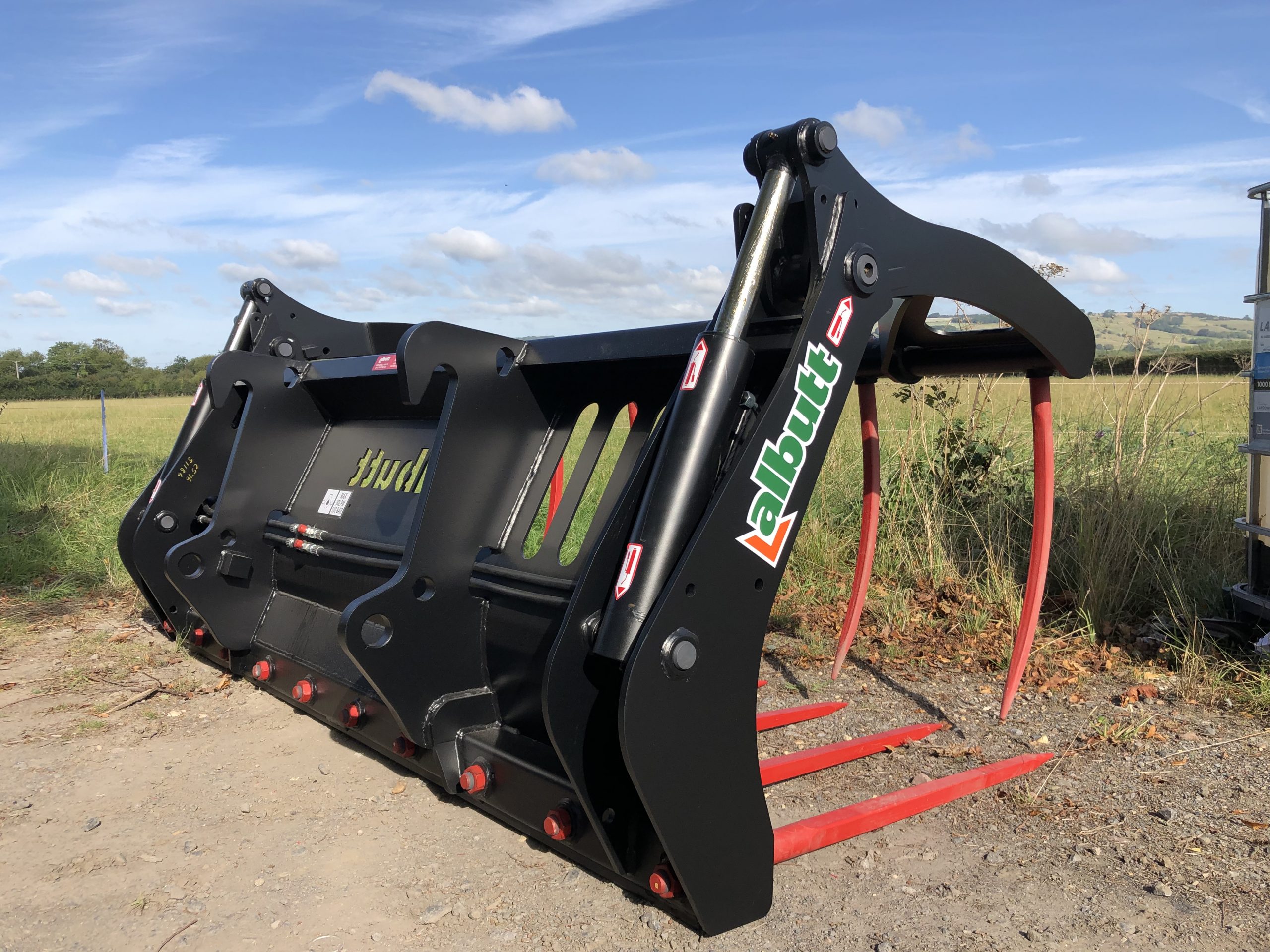

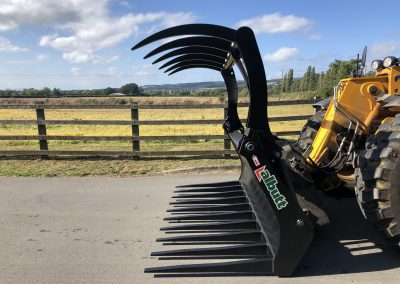

| C676HXG | 1.76m3 | 7’6” | 10 | 6 |

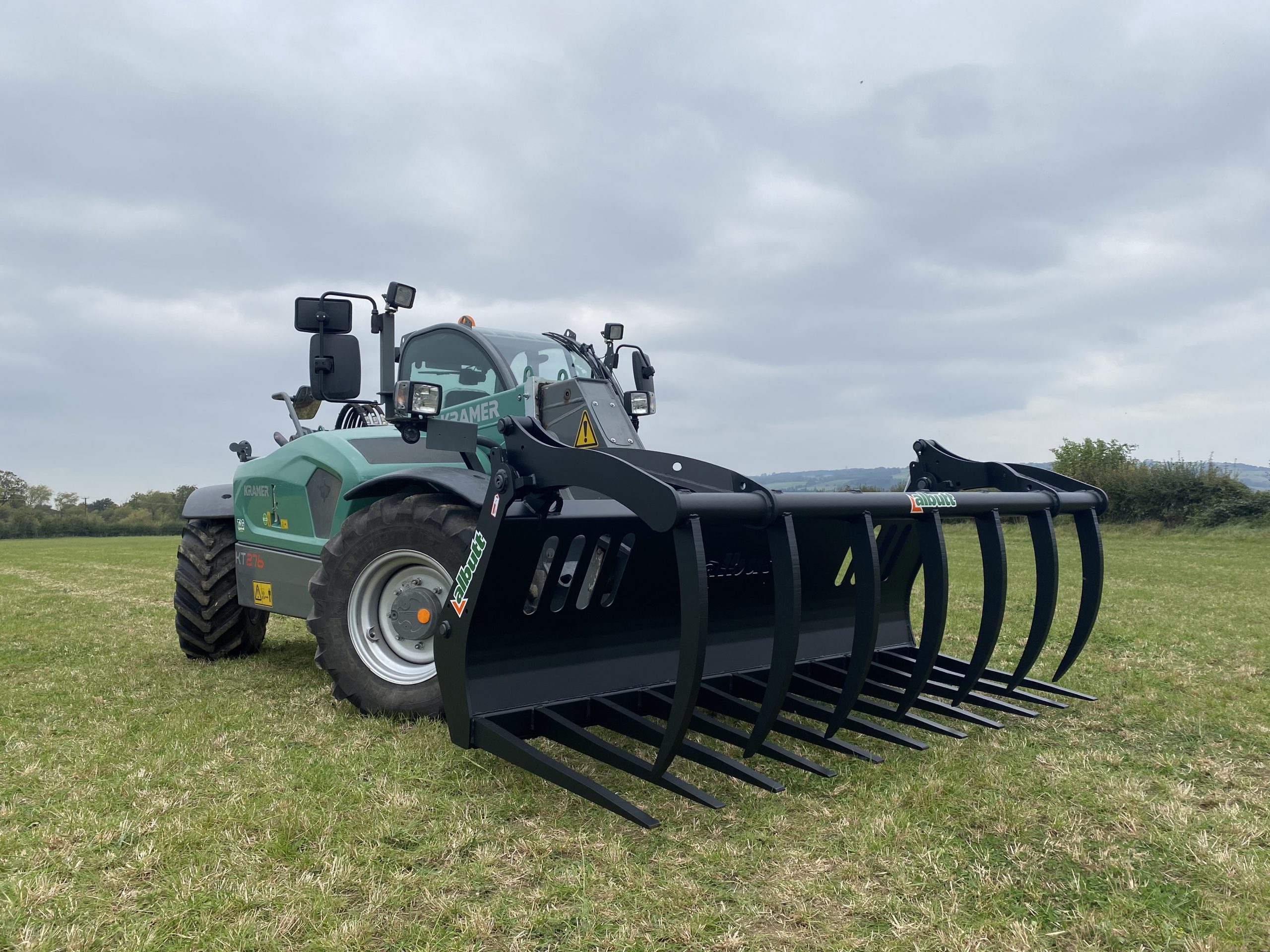

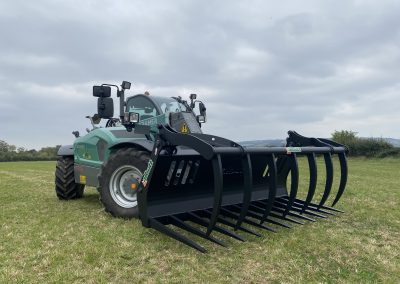

| C680HXG | 1.84m3 | 8′ | 11 | 7 |

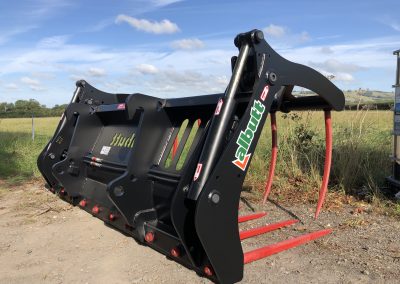

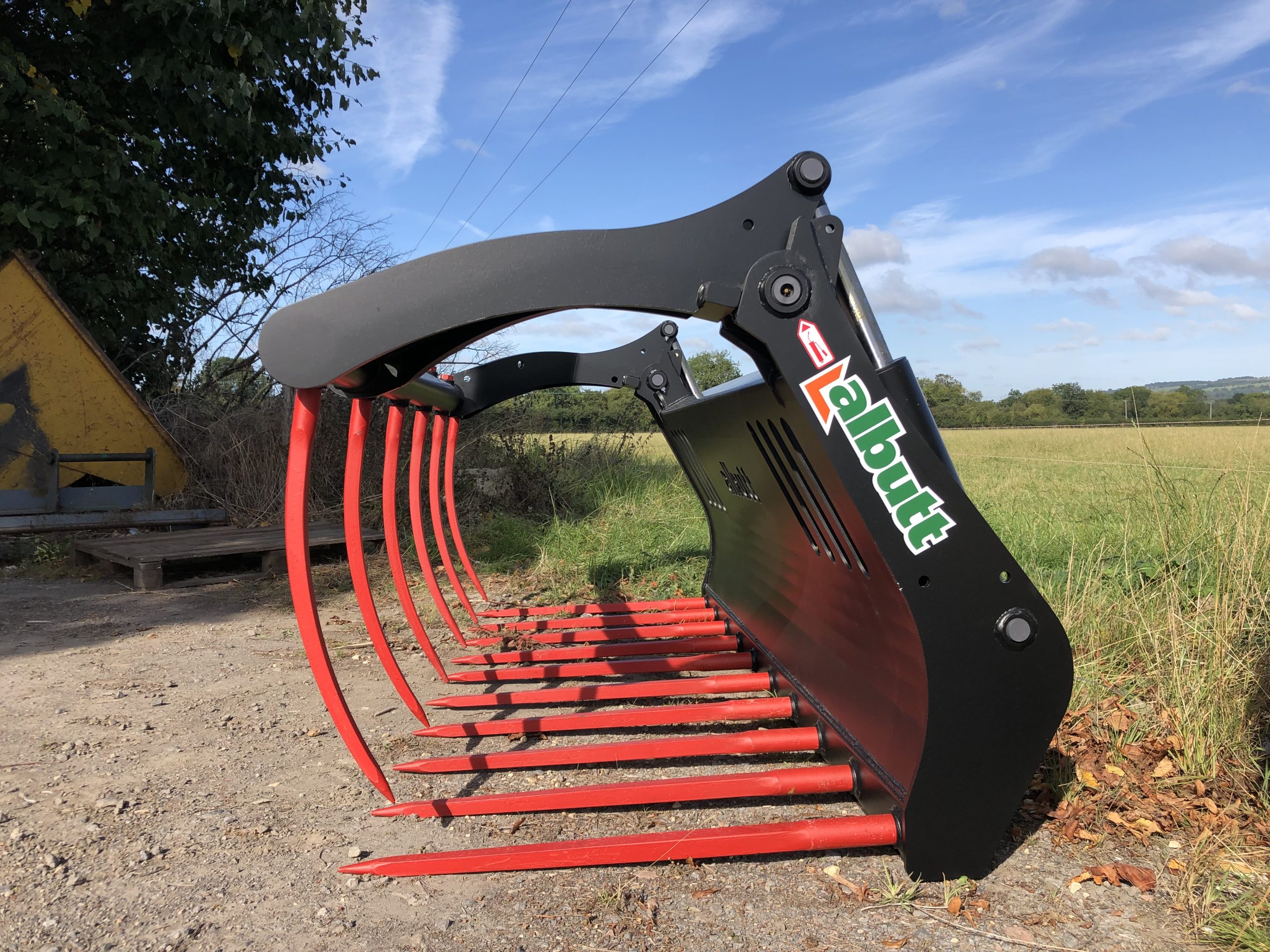

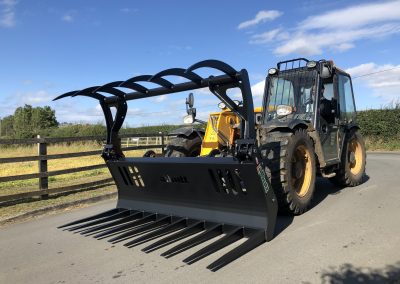

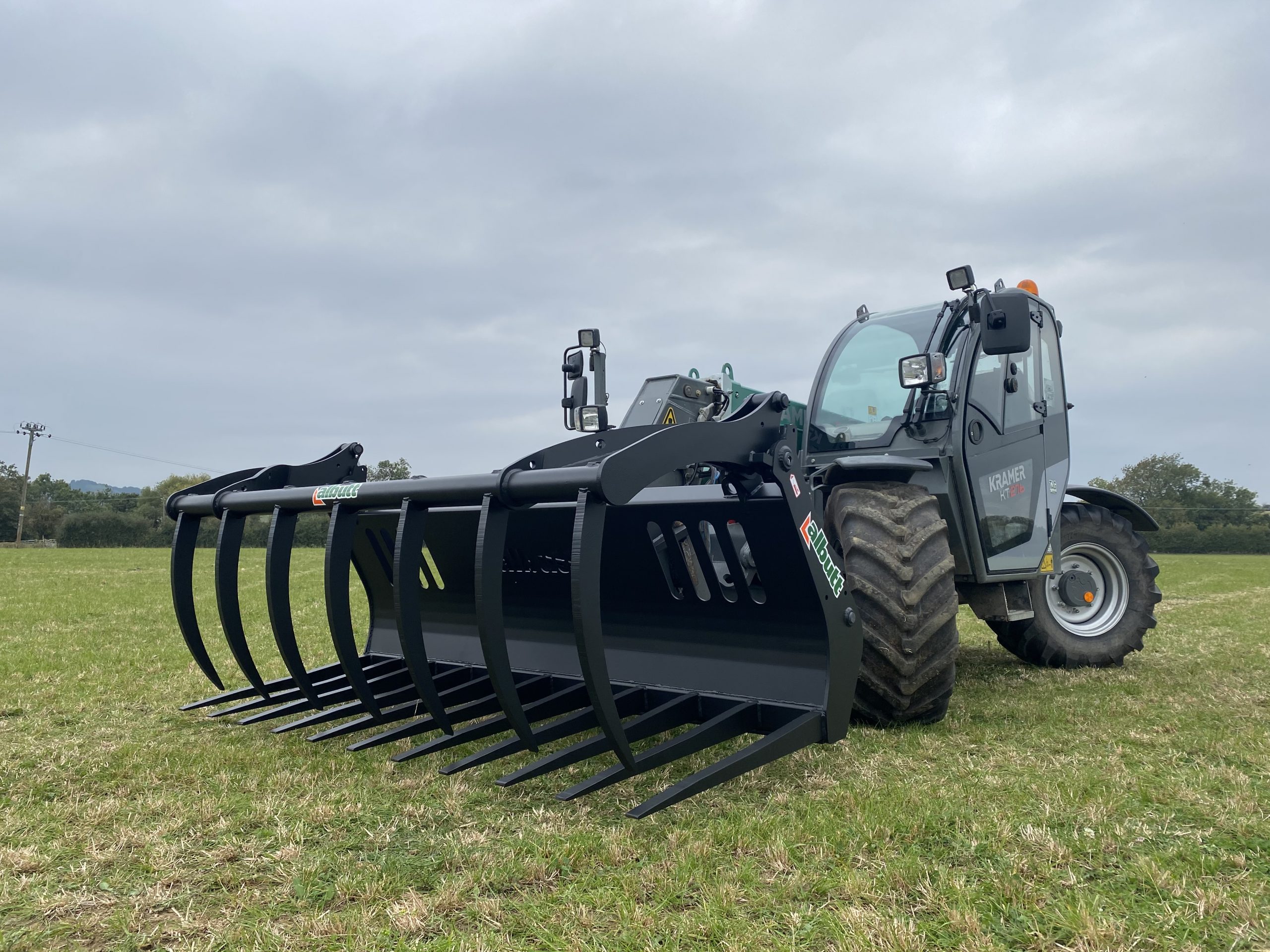

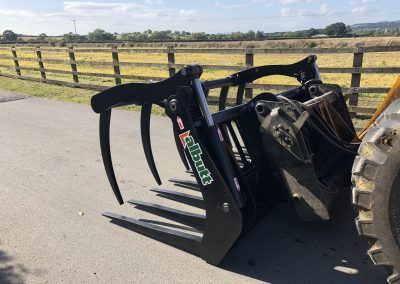

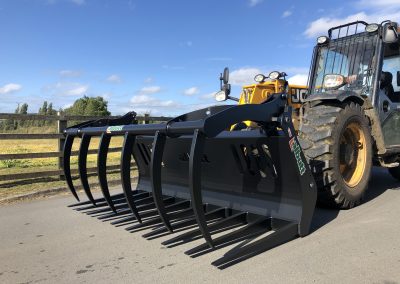

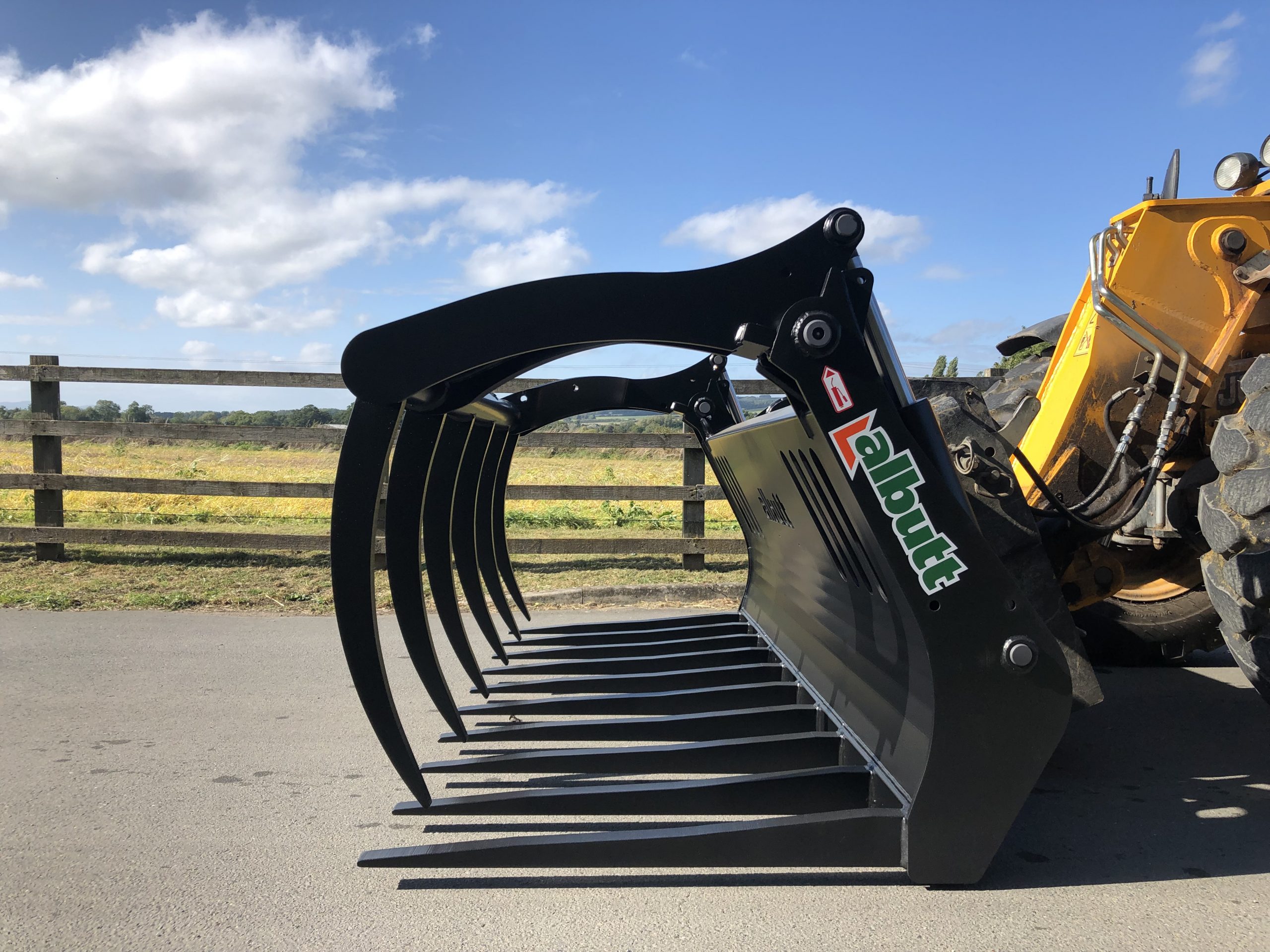

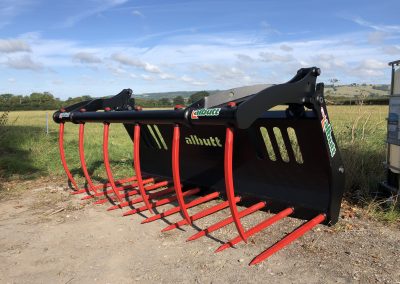

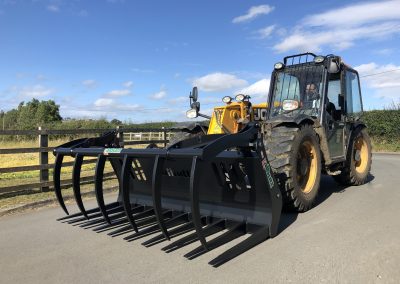

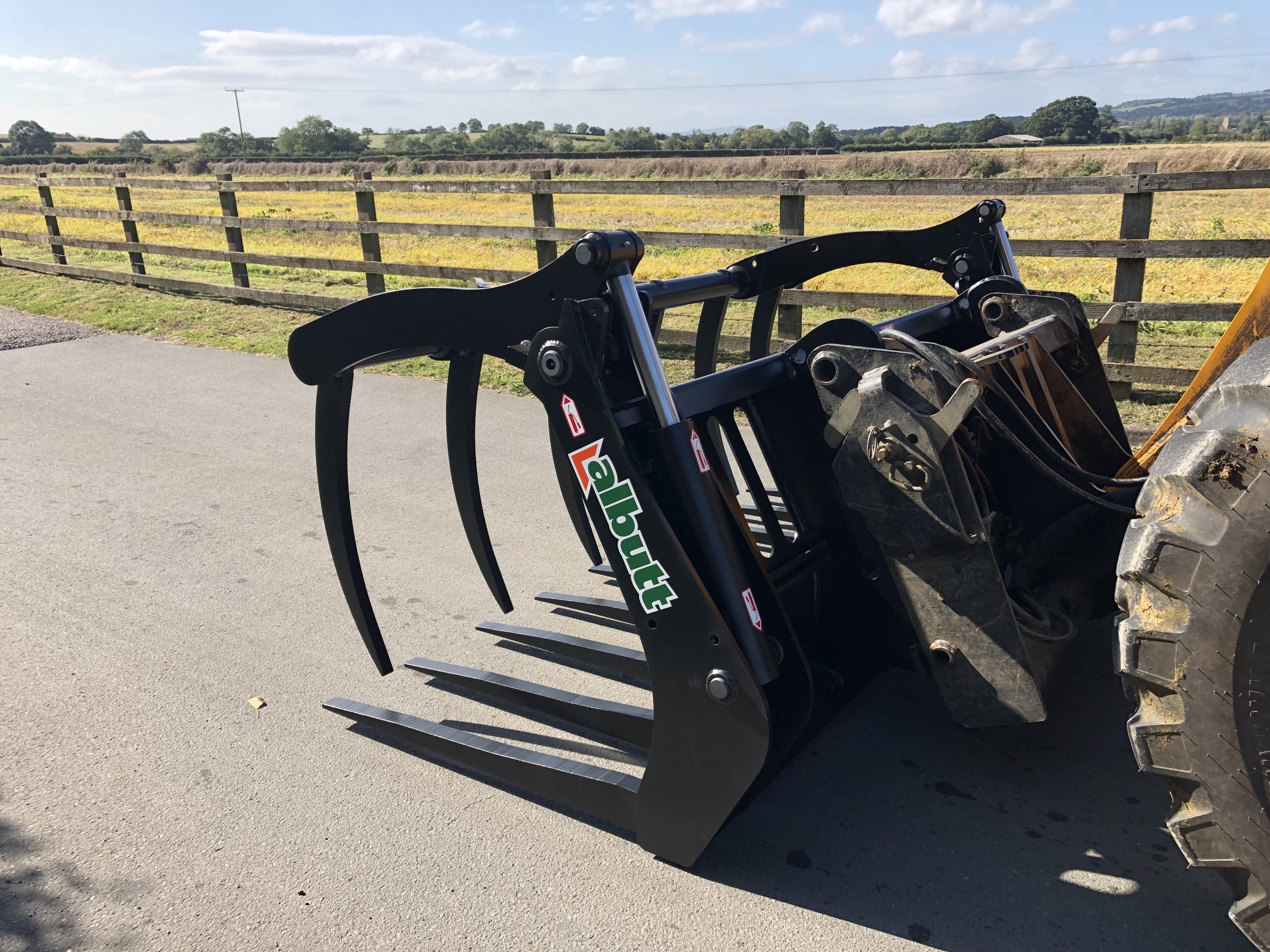

C500 - Series
- For machines with a 2-3 tonne lift capacity
- KV type tines as standard. Add ‘HXG’ to any part no. for Hardox tines
- 35mm Ø top and bottom plated ram pins
- 45mm Ø pivot plated pins
- Heavy duty grab stops for ram seal and pin protection
- 75mm Ø bore rams
- Grab opens to 1480mm
- 1044mm tall
- Base Tine length; Hardox 970mm / KV type 980mm
- DX bushes in cylinder ends
- Inward facing tees on rams
- Central ‘albutt’ visibility cut out
- Large side visibility cut outs
- Full width base wear strip
- Extra grab and base tine compared to industry standard
| Model | Capacity | Width | Base Tines | Grab Tines |
|---|---|---|---|---|
| C560 | 1.24m3 | 6′ | 8 | 5 |
| C566 | 1.33m3 | 6’6” | 9 | 5 |
| C570 | 1.41m3 | 7′ | 9 | 6 |
| C576 | 1.56m3 | 7’6” | 10 | 6 |
| C580 | 1.70m3 | 8′ | 11 | 7 |

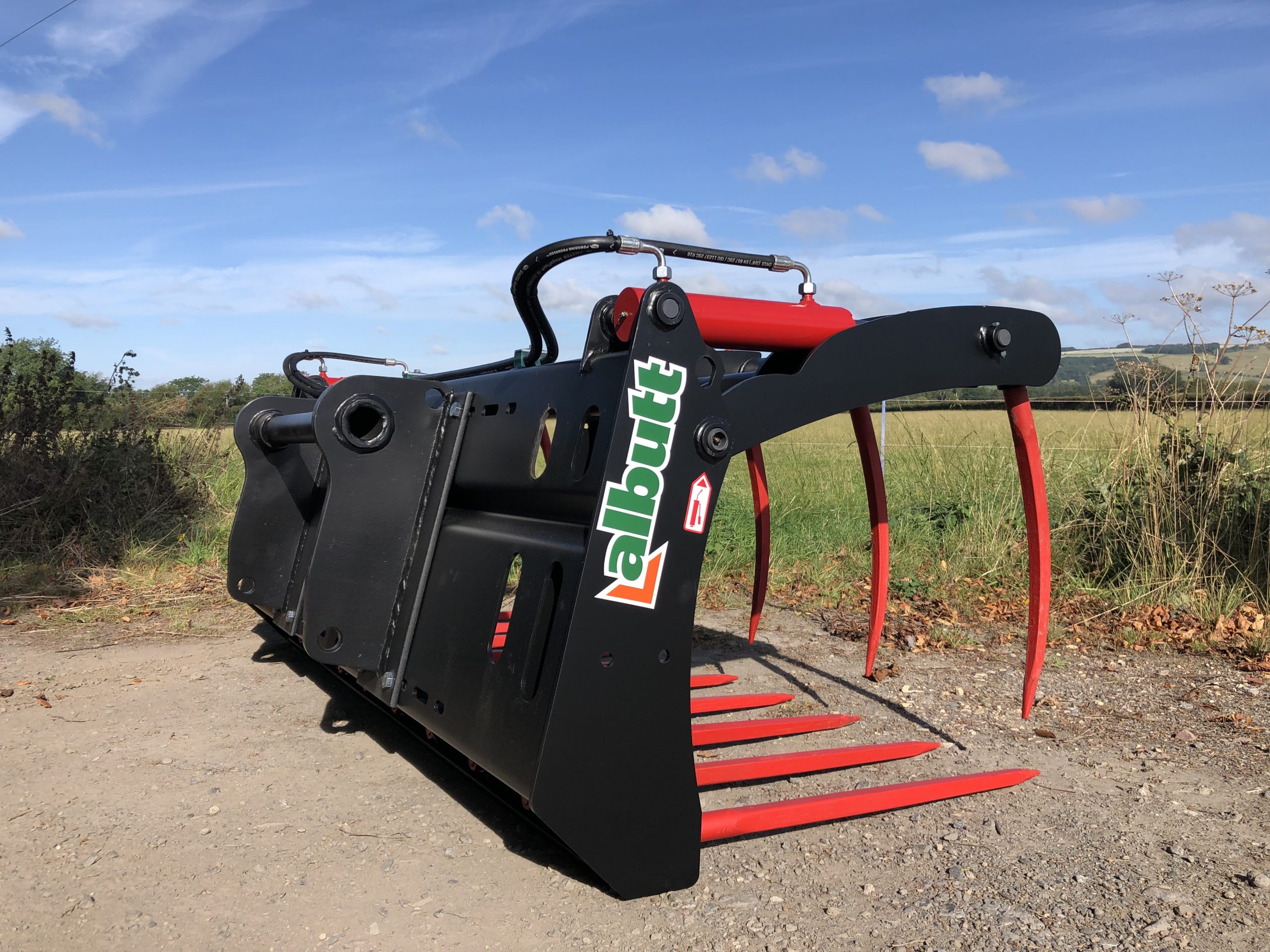

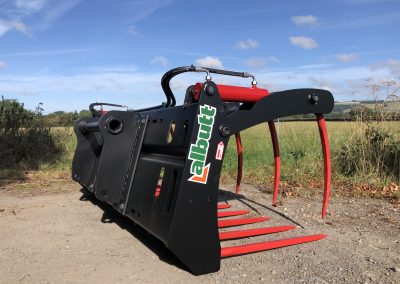

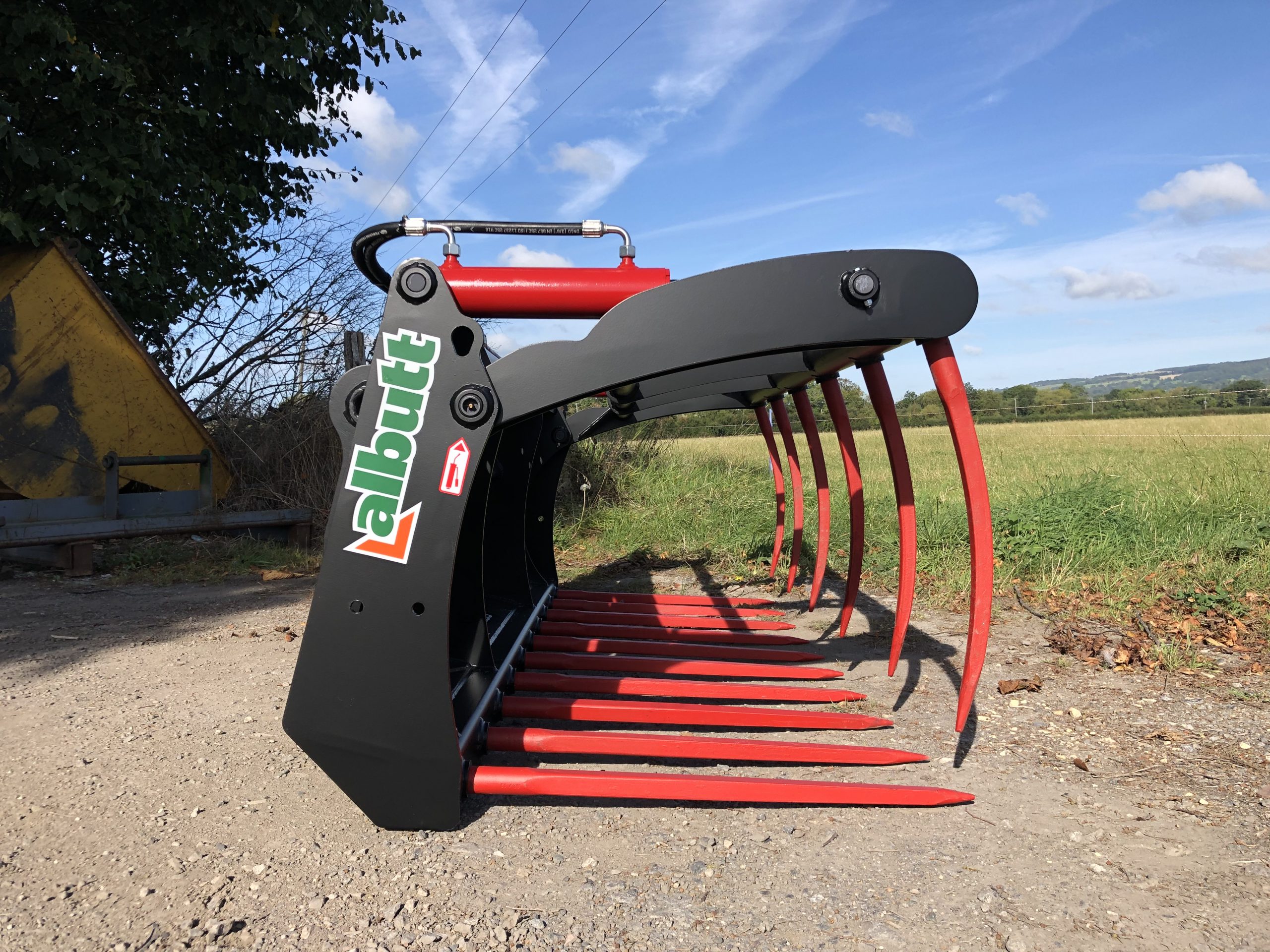

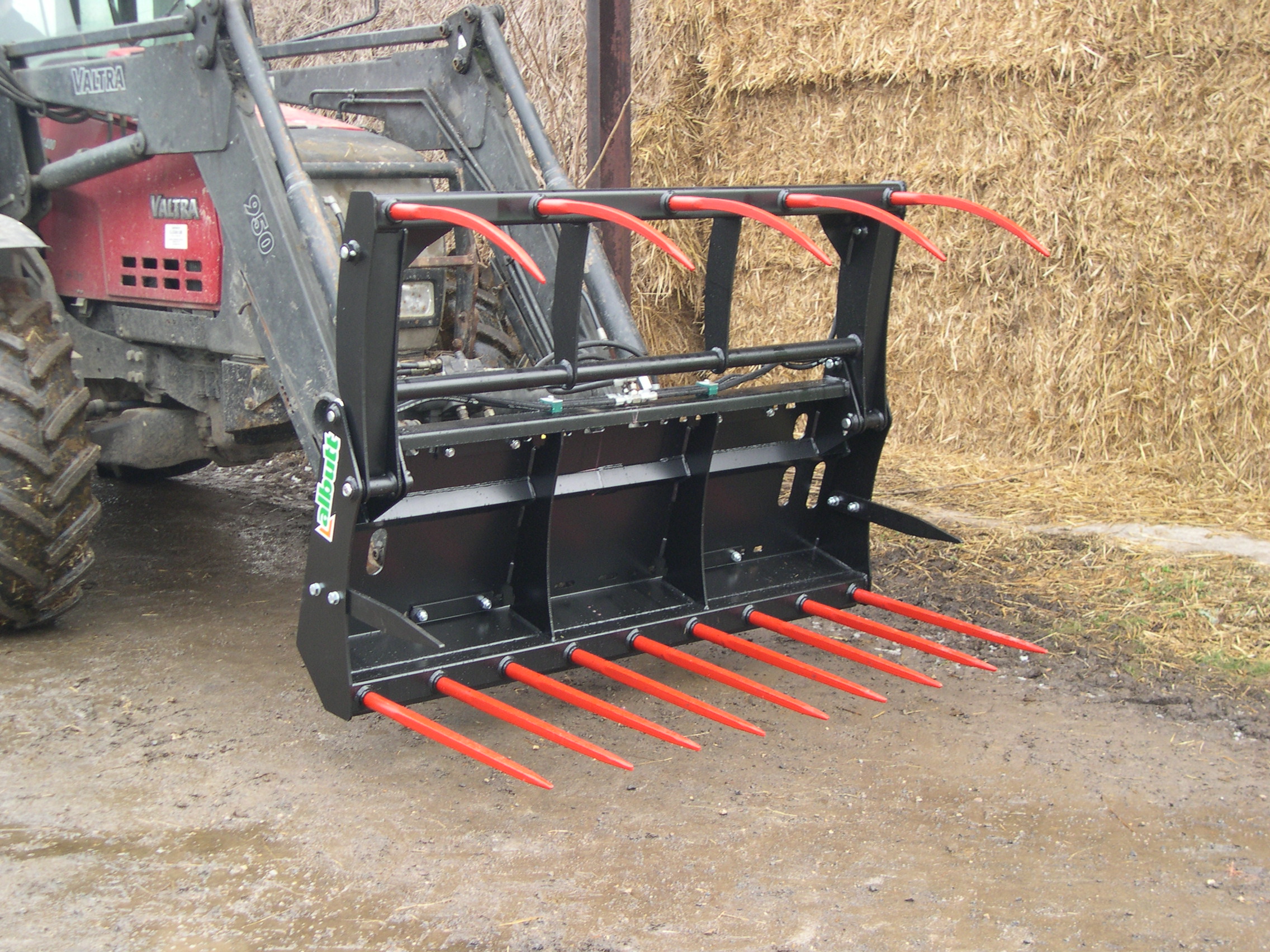

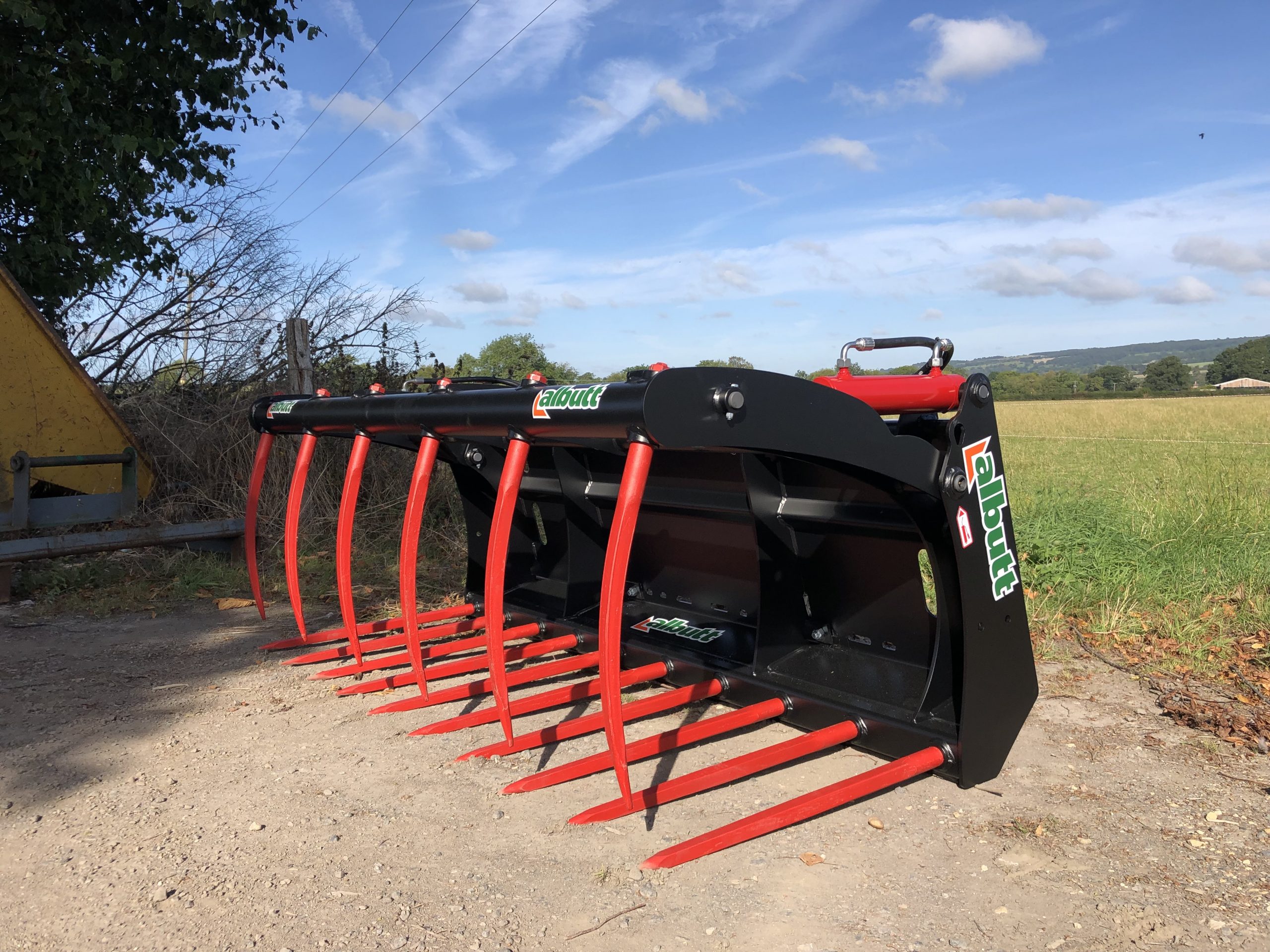

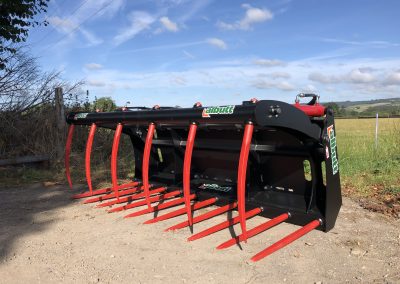

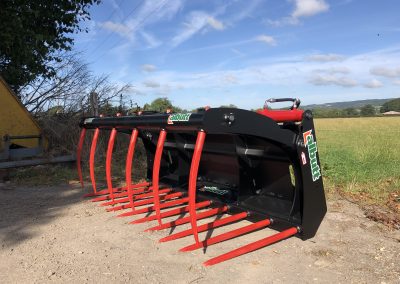

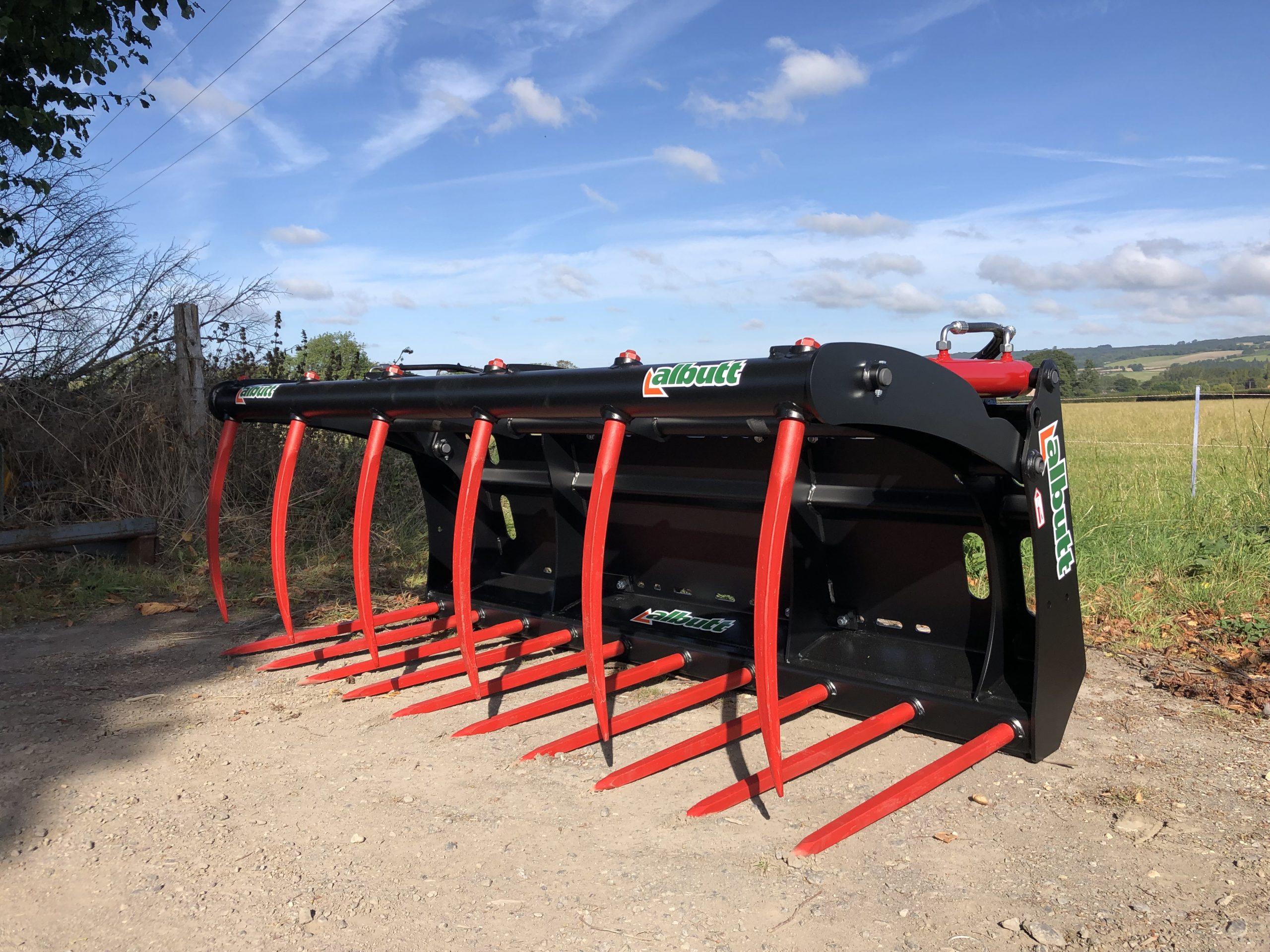

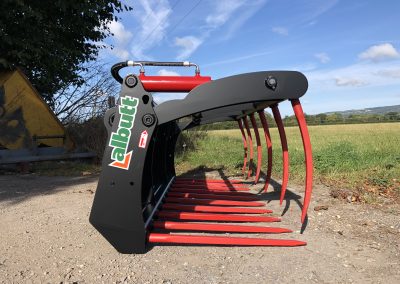

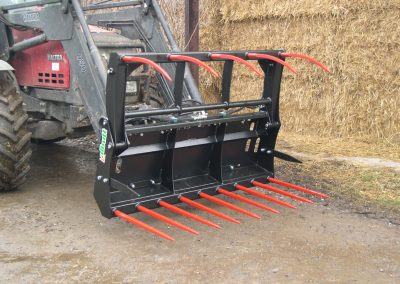

E-Series
- For Tractor Loaders and Skidsteers
- Add ‘HX’ to any part number for Hardox Tines
- 25mm Ø top and bottom plated pins
- 30mm Ø pivot plated pins
- 60mm Ø bore rams
- Optional side tines
- Grab opens to 1060mm
- 789mm tall
- Base Tine length; Hardox 800mm / KV type 760mm
- Large side visibility cut outs
- Full width base wear strip
| Model | Capacity | Width | Base Tines | Grab Tines |
|---|---|---|---|---|
| E324G | 0.62m3 | 4’1” | 7 | 4 |
| E340G | 0.70m3 | 4’7” | 7 | 4 |
| E360G | 0.80m3 | 5’3” | 8 | 5 |
| E380G | 0.90m3 | 5’11” | 9 | 5 |
| E400G | 1.00m3 | 6’7” | 10 | 6 |
| E410G | 1.07m3 | 7′ | 10 | 6 |
Pricing
PLEASE RING FOR PRICES
B Series Prices
| Model | Retail | 1 off nett | 3 off nett | 6 off nett |
|---|---|---|---|---|
| B666HXG | ||||
| B670HXG | ||||
| B676HXG | ||||
| B680HXG | ||||
| B690HXG |
C Series Prices
| Model | Retail | 1 off nett | 3 off nett | 6 off nett |
|---|---|---|---|---|
| C660HXG | ||||
| C666HXG | ||||
| C670HXG | ||||
| C676HXG | ||||
| C680HXG | ||||
| C560HXG | ||||
| C566HXG | ||||
| C570HXG | ||||
| C576HXG | ||||
| C580HXG | ||||
| C560 | ||||
| C566 | ||||
| C570 | ||||
| C576 | ||||
| C580 | ||||
| Side Tines |
E Series Prices
| Model | Retail | 1 off nett | 3 off nett | 6 off nett |
|---|---|---|---|---|
| E324HXG 4’1” | ||||
| E340HXG 4’7” | ||||
| E360HXG 5’3” | ||||
| E380HXG 5’11” | ||||
| E400HXG 6’7” | ||||
| E410HXG 7′ | ||||
| E324G 4’1” | ||||
| E340G 4’7” | ||||
| E360G 5’3” | ||||
| E380G 5’11” | ||||
| E400G 6’7” | ||||
| E410G 7′ | ||||
| Side Tines |
Videos
Gallery
B-Series
C-Series
E-Series
Extras
| Part Number | Description |
|---|---|
| ST01 | Hardox side tines – B, C and E Series |
| SF01 | Bolt on spill frame – C Series only |
