Manure Forks
Manure Forks

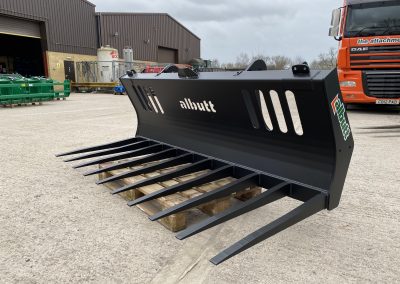

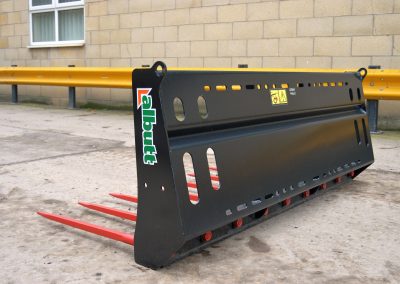

The Albutt range of Manure Forks covers models for use on Tractor Loaders, Telehandlers and Loading Shovels. A market leading specification ensures that the Albutt range of Forks provides a longer operating life whilst providing excellent usability. For Hardox tine models, we use genuine Hardox material to provide resistance to bending and breaking against conventional tines. Forged steel KV type tines can be specified which offer a better solution for moving bales. Forged tines are bushed into the tine holder as standard.
Ranges
B Series – For machines with a 4 tonne plus lift capacity
C Series – For machines with a 2-4 tonne lift capacity
E Series – For Tractor Loaders
Albutt Manure Fork Features
- Solid fork back – keep carriage and hydraulics clean
- Choice of Forged steel or genuine Hardox tines

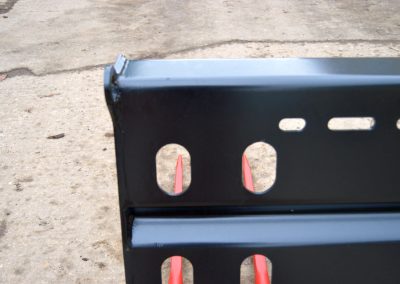

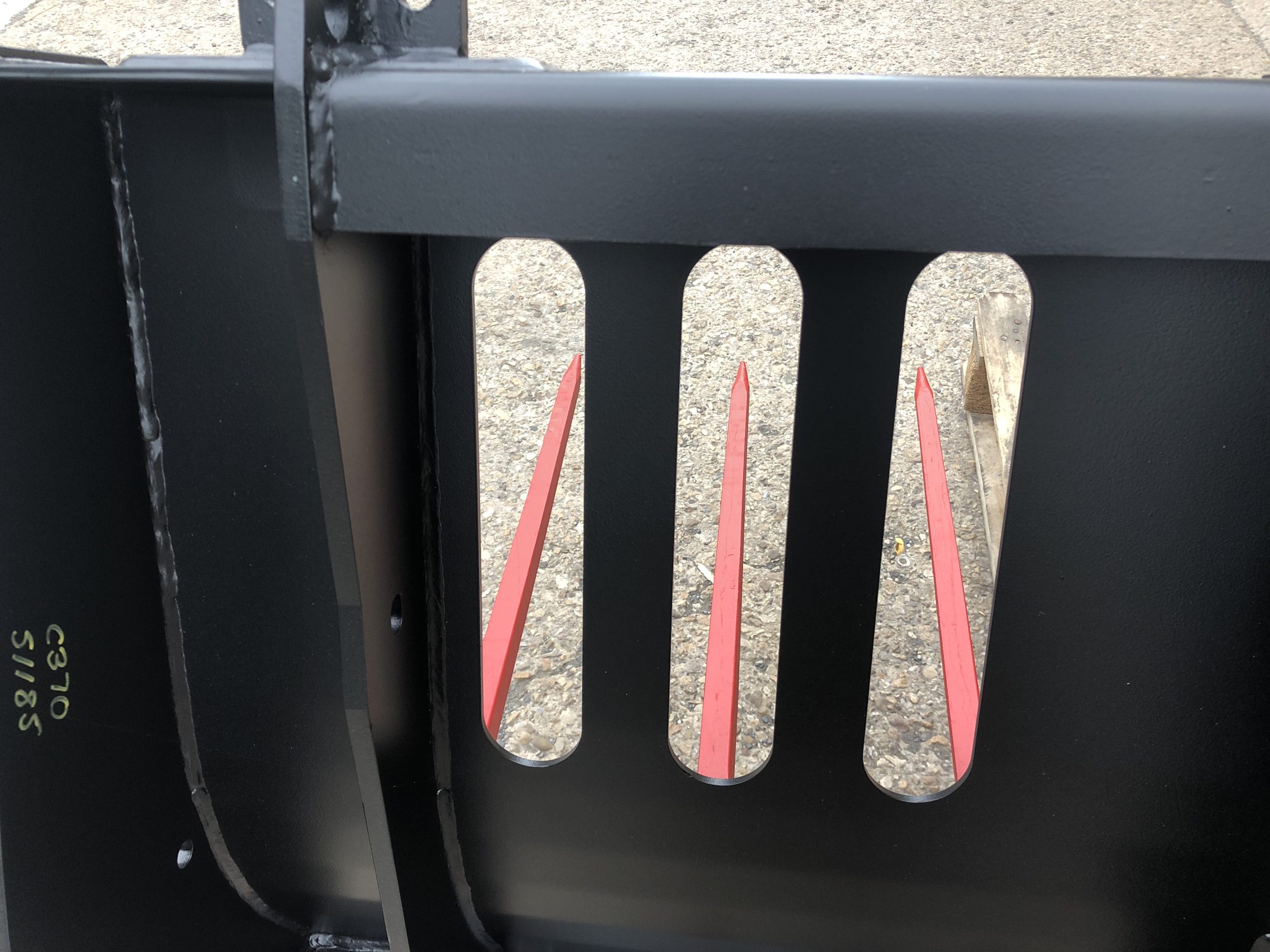

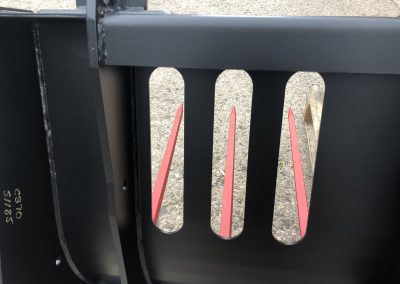

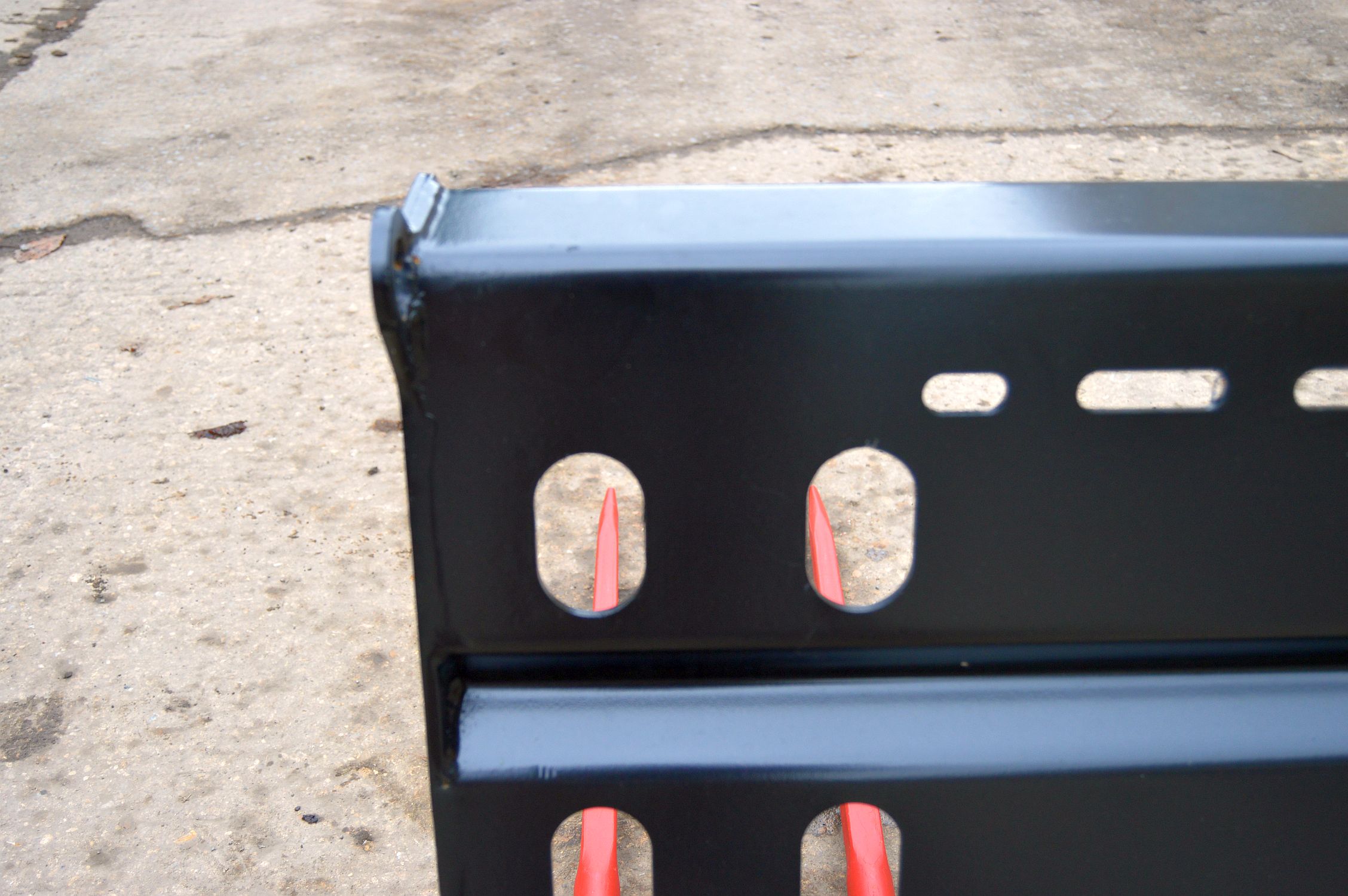

- Cut outs in fork back for visibility
- Optional side tines; Hardox
- Full width base wear strip protects tine holder
- Hardox tines welded into tine holder
- Forged tines bushed into tine holder

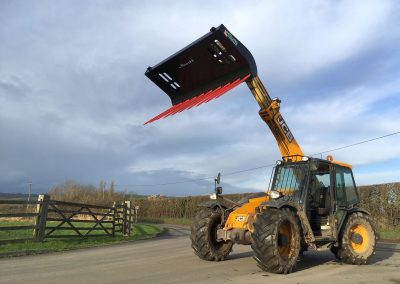

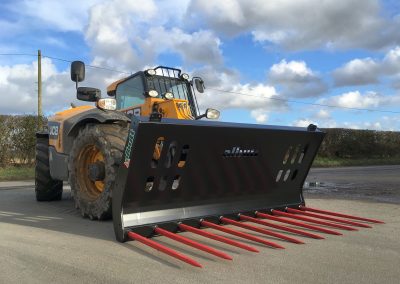

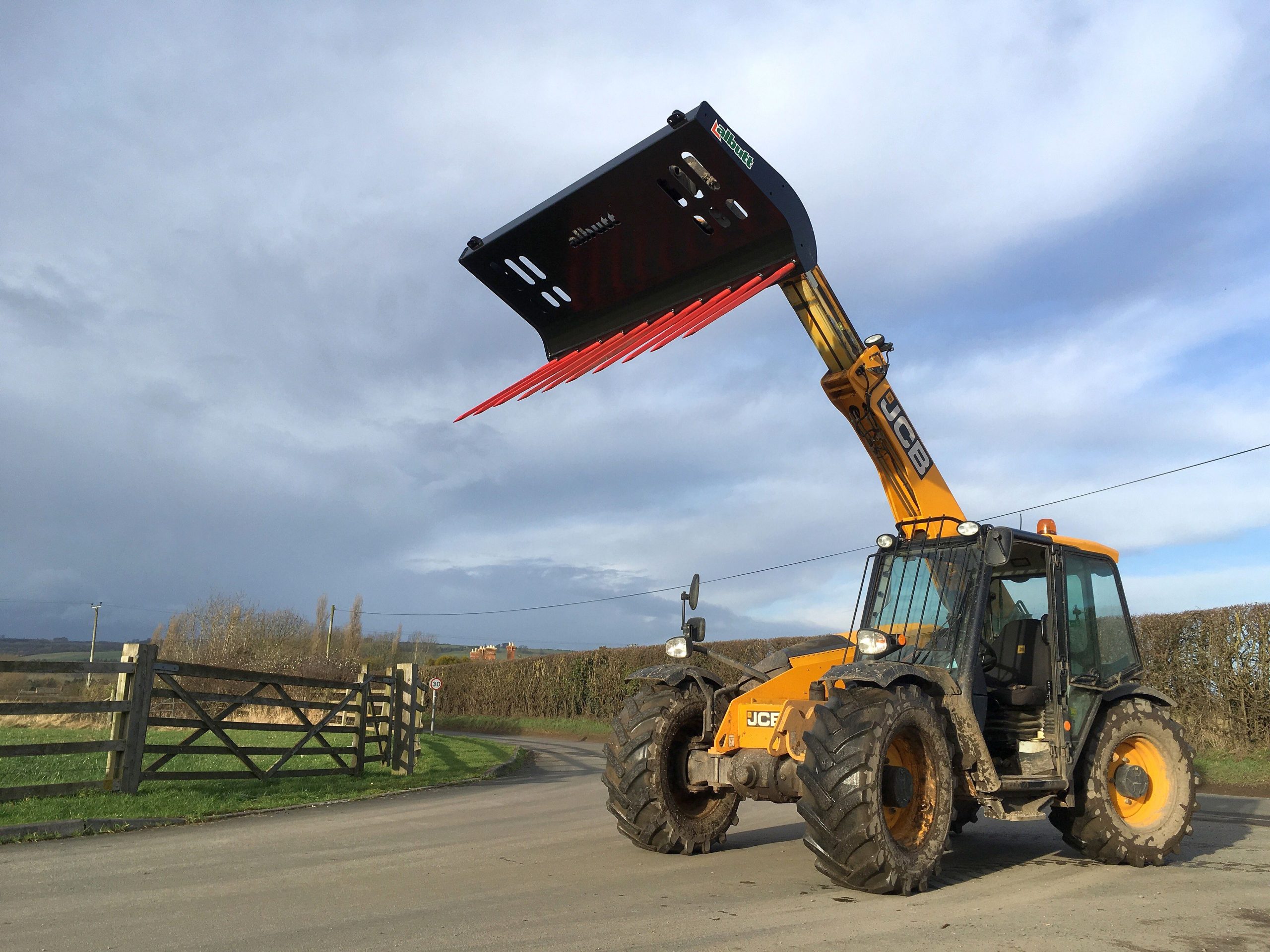

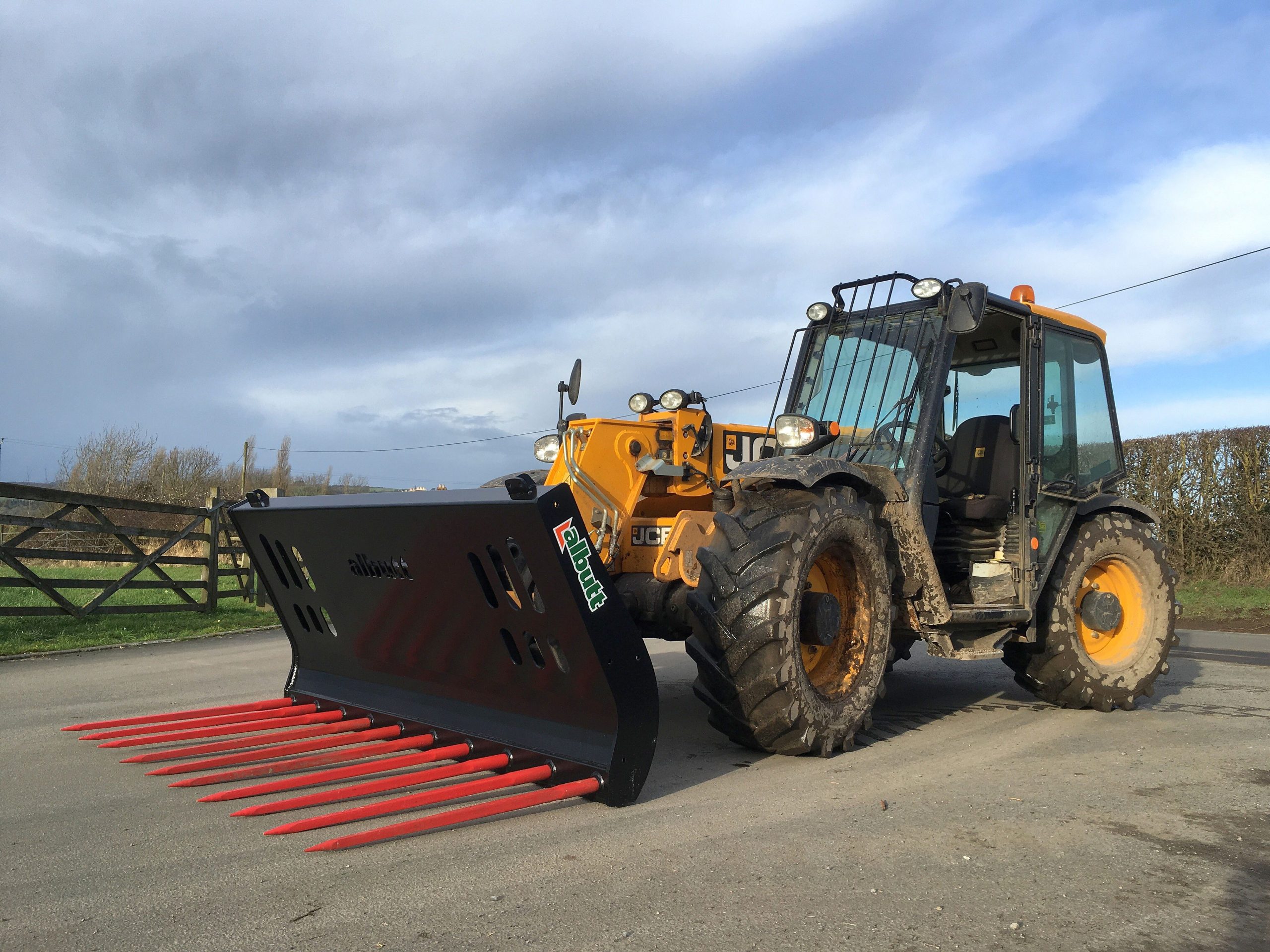

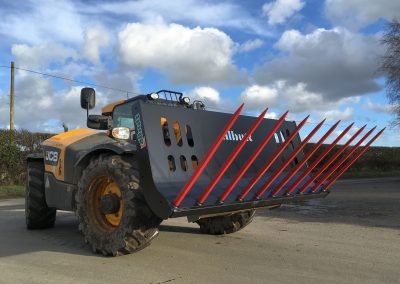

B-Series
- For machines with a minimum 4 tonne lift capacity
- Choice of KV type tines or Hardox tines
- Full width base wear pad
- 1034mm tall
- Base Tine length; Hardox 1240mm / KV type 1100mm

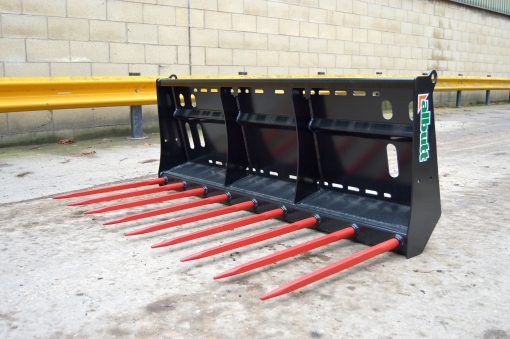

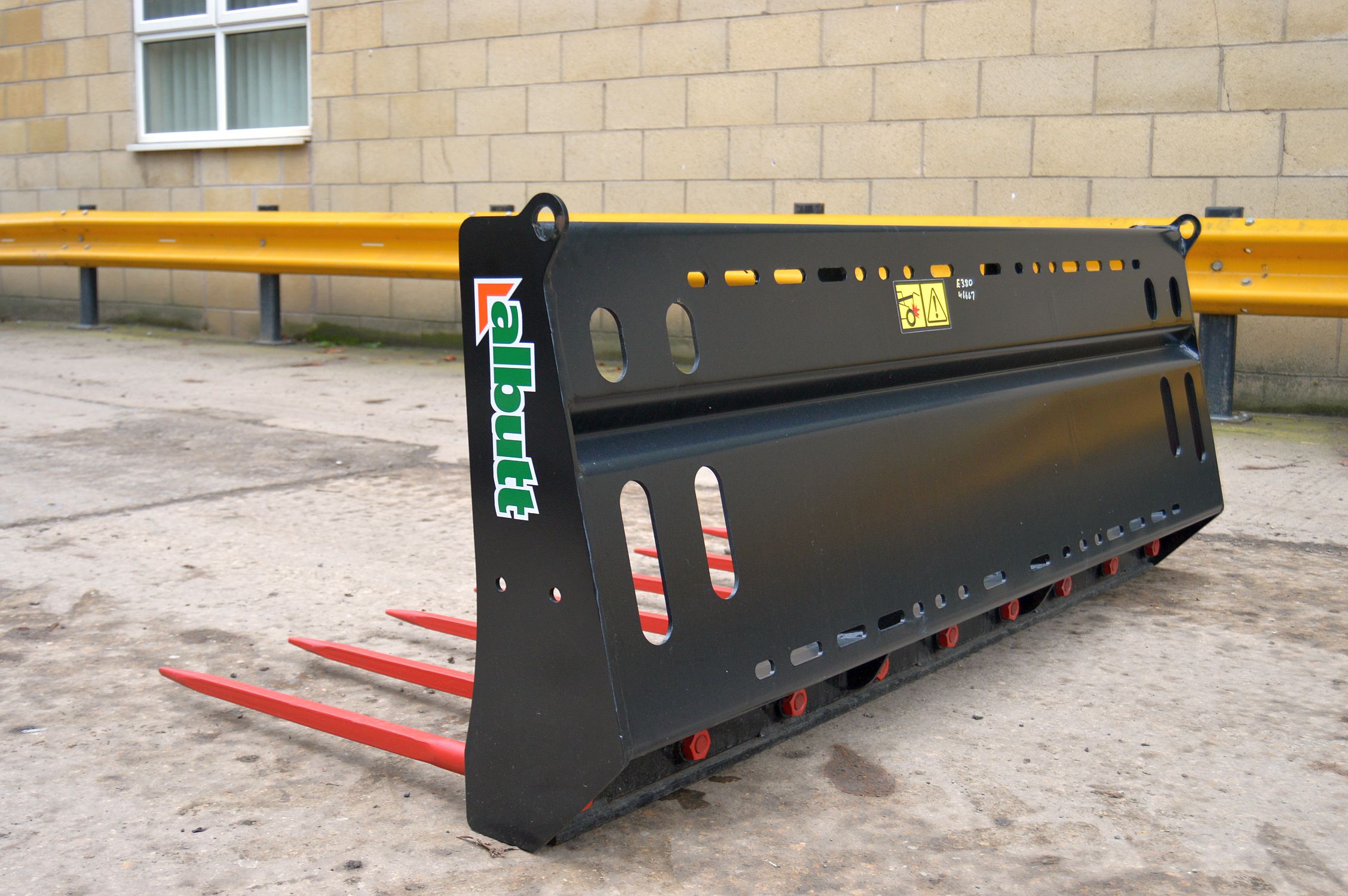

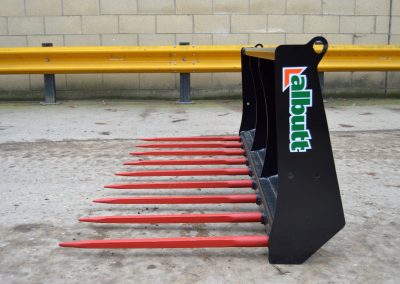

KV type tine Models
| Model | Capacity | Width | Base Tines |
|---|---|---|---|
| B466 | 1.70m3 | 6’6” | 9 |
| B470 | 1.80m3 | 7′ | 9 |
| B476 | 1.95m3 | 7’6” | 10 |
| B480 | 2.10m3 | 8′ | 11 |

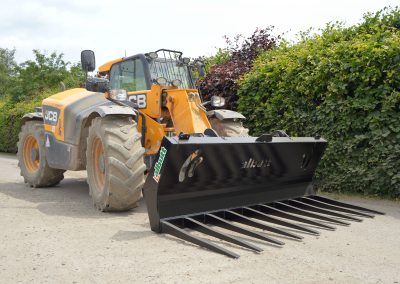

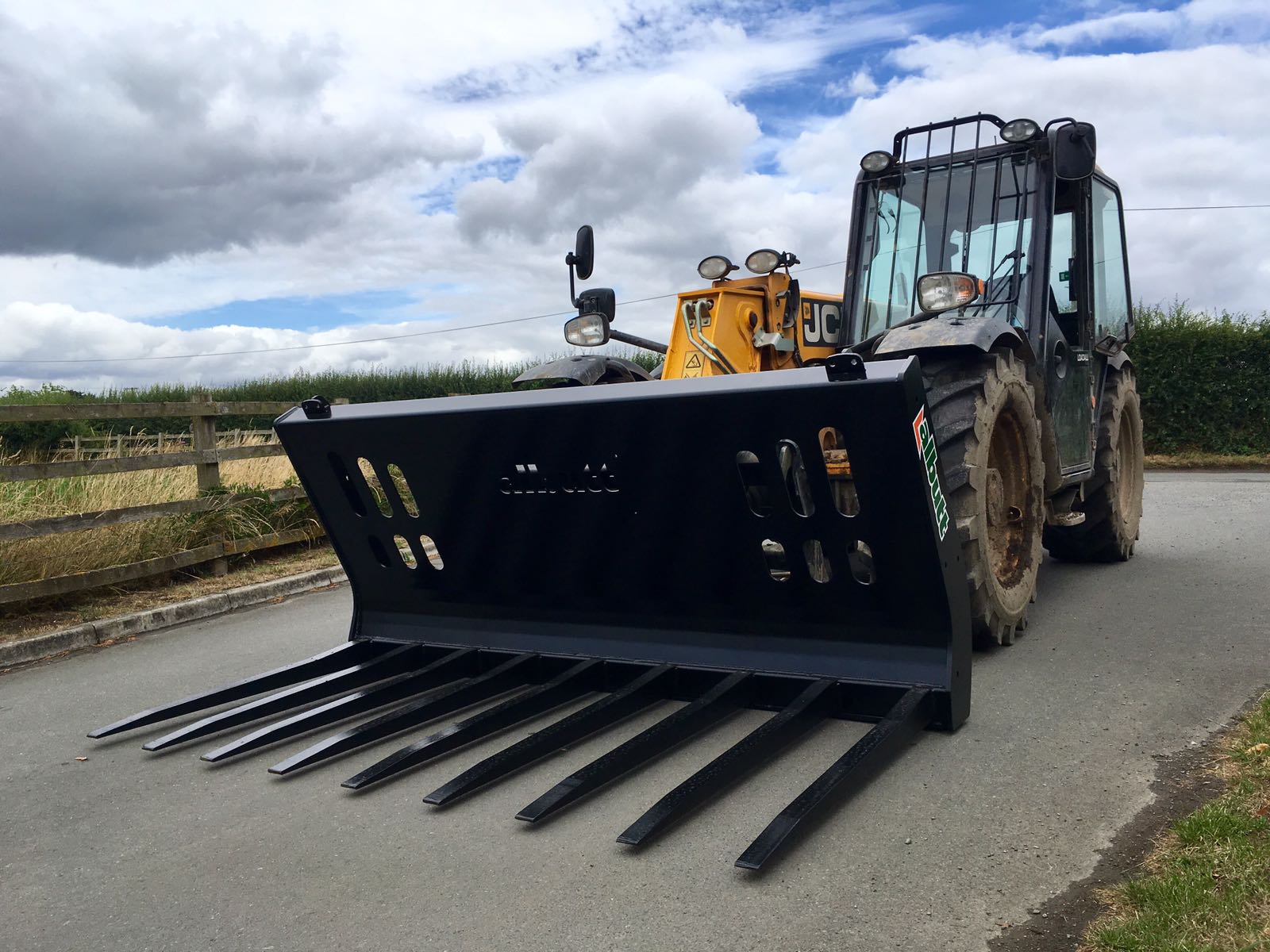

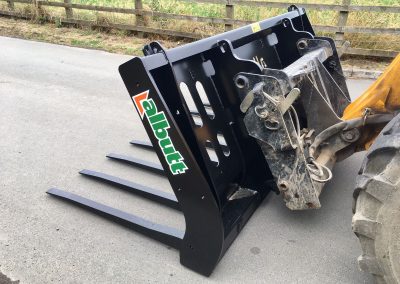

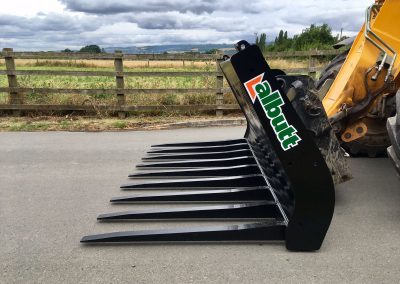

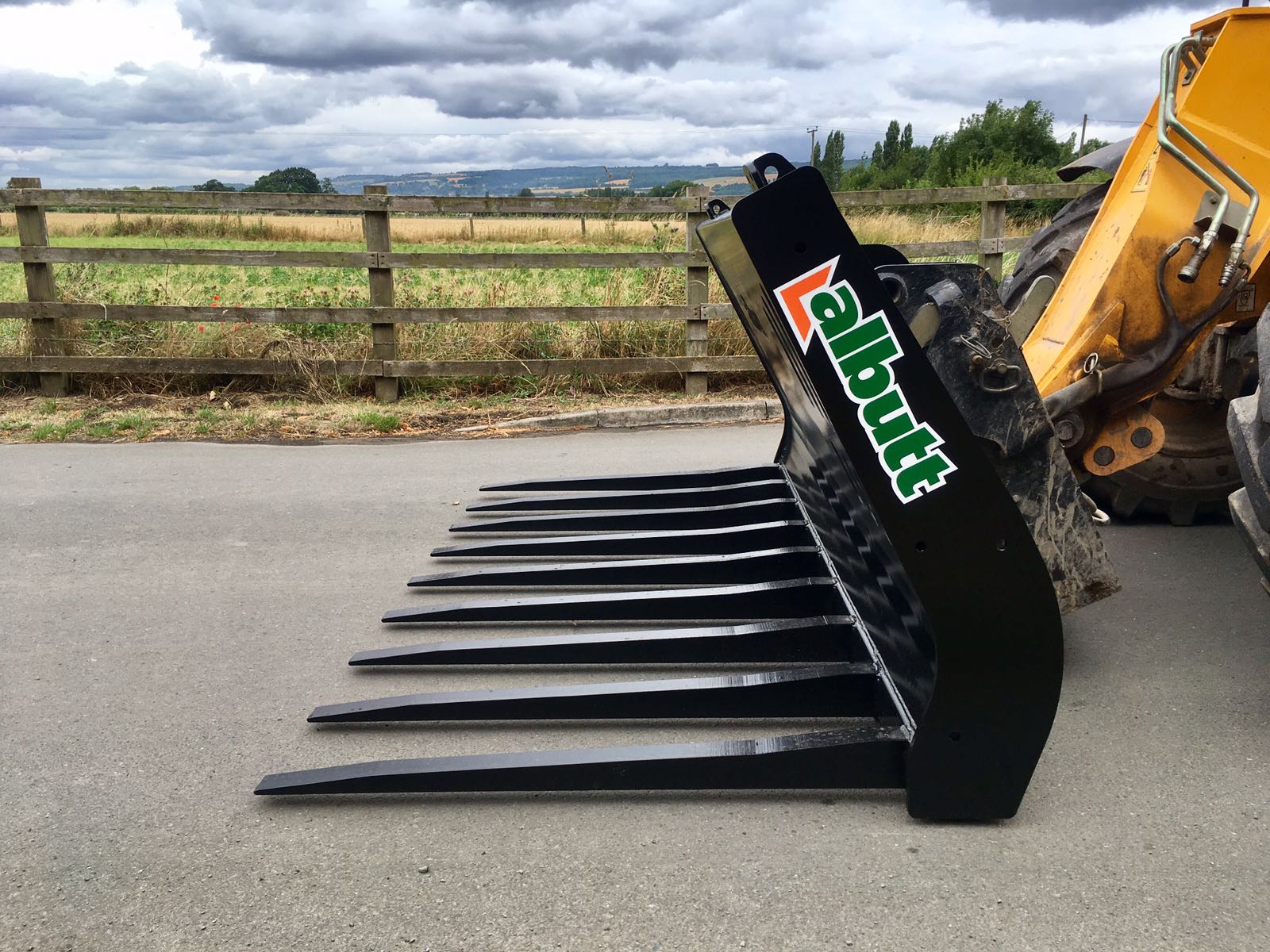

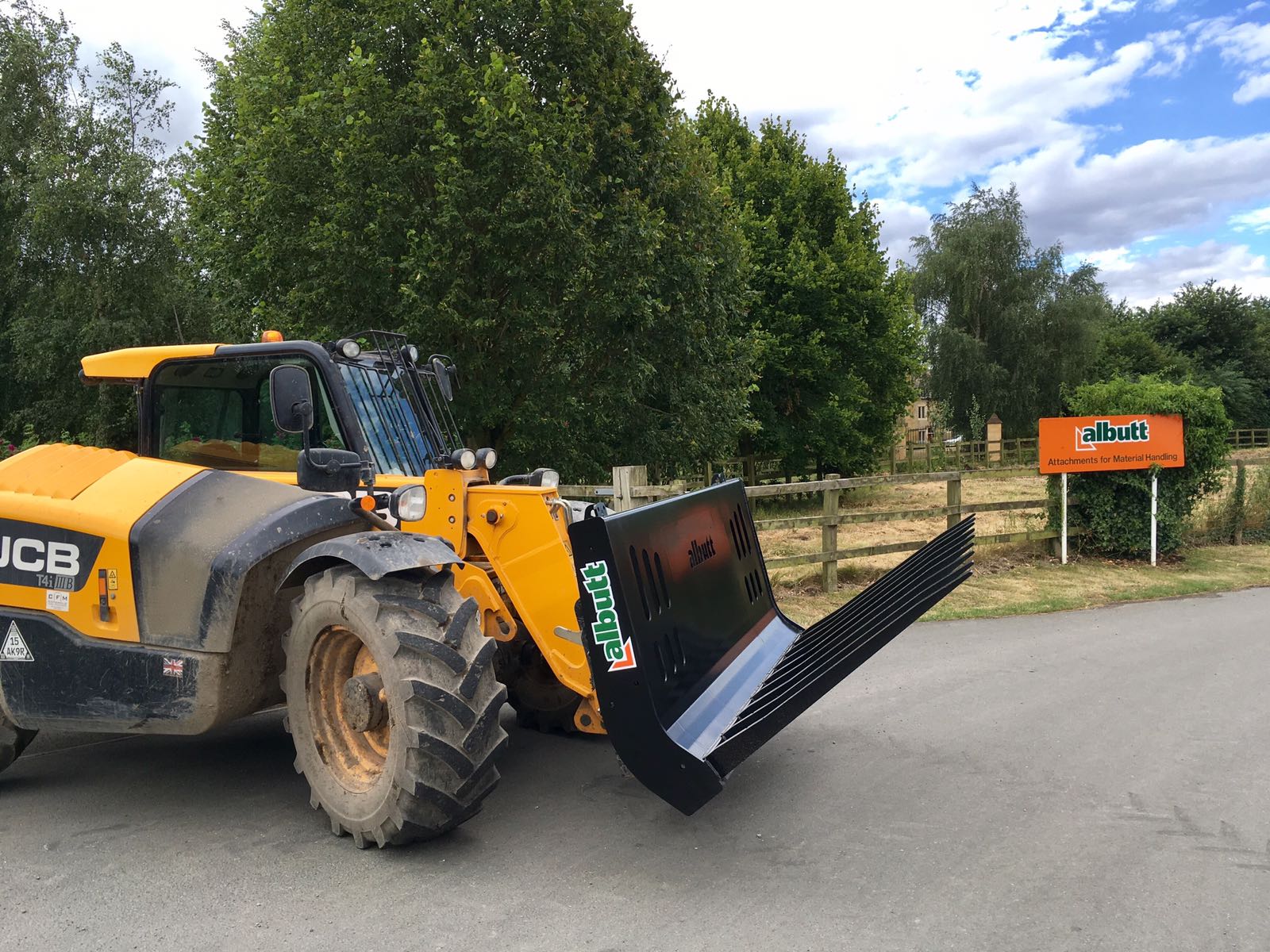

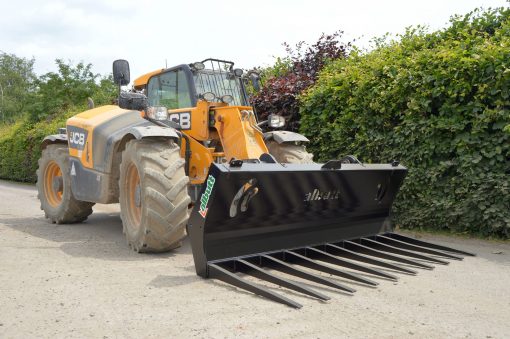

Hardox tine Models
| Model | Capacity | Width | Base Tines |
|---|---|---|---|
| B566HX | 2.00m3 | 6’6” | 8 |
| B570HX | 2.10m3 | 7′ | 8 |
| B576HX | 2.26m3 | 7’6” | 9 |
| B580HX | 2.40m3 | 8′ | 10 |
| B590HX | 2.70m3 | 9′ | 11 |

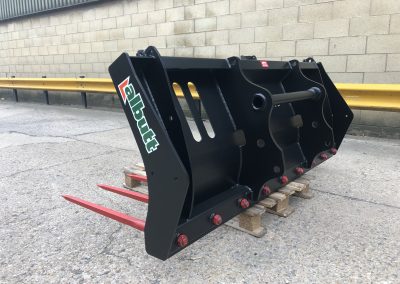

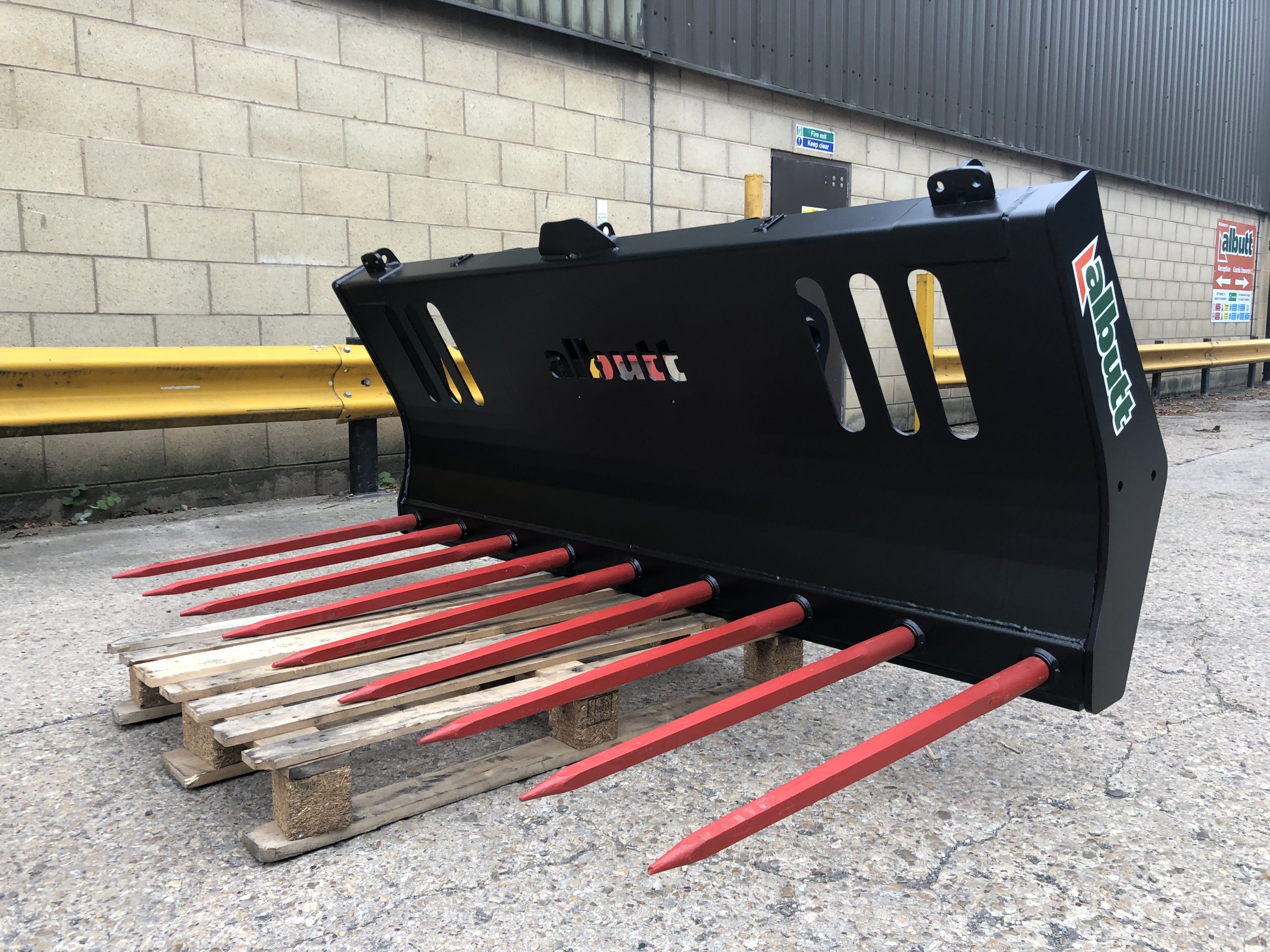

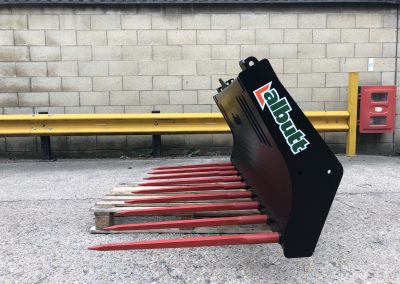

C-Series
- For machines with a minimum 2-4 tonne lift capacity
- KV type tines as standard. Add ‘HX’ to any part no. for Hardox tines
- Full width base wear pad
- 852mm tall
- Base Tine length; Hardox 970mm / KV type 980mm

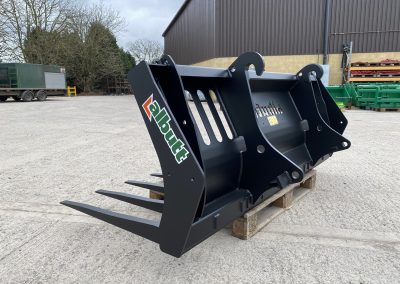

| Model | Capacity | Width | Base Tines |
|---|---|---|---|
| C366 | 1.33m3 | 6’6” | 9 |
| C370 | 1.41m3 | 7′ | 9 |
| C376 | 1.56m3 | 7’6” | 10 |
E-Series
- For Tractor Loaders
- KV type tines as standard. Add ‘HX’ to any part no. for Hardox tines
- Full width base wear pad
- 678mm tall
- Base Tine length; Hardox 800mm / KV type 760mm
| Model | Capacity | Width | Base Tines |
|---|---|---|---|
| E324 | 0.62m3 | 4’1” | 7 |
| E340 | 0.70m3 | 4’7” | 7 |
| E360 | 0.80m3 | 5’3” | 8 |
| E380 | 0.90m3 | 5’11” | 9 |
| E400 | 1.00m3 | 6’7” | 10 |
| E410 | 1.07m3 | 7′ | 10 |
Pricing
B Series Prices
| Model | Retail | 1 off nett | 3 off nett | 6 off nett |
|---|---|---|---|---|
| B566HX | £3,147 | £2,360 | £2,301 | £2,244 |
| B570HX | £3,169 | £2,377 | £2,317 | £2,259 |
| B576HX | £3,264 | £2,448 | £2,387 | £2,327 |
| B580HX | £3,441 | £2,581 | £2,516 | £2,453 |
| B590HX | £3,733 | £2,800 | £2,730 | £2,662 |
| B466 | £2,825 | £2,119 | £2,066 | £2,014 |
| B470 | £2,846 | £2,134 | £2,081 | £2,029 |
| B476 | £2,928 | £2,196 | £2,141 | £2,088 |
| B480 | £2,946 | £2,209 | £2,154 | £2,100 |
C Series Prices
| Model | Retail | 1 off nett | 3 off nett | 6 off nett |
|---|---|---|---|---|
| C366HX | £2,709 | £2,032 | £1,981 | £1,931 |
| C370HX | £2,747 | £2,060 | £2,009 | £1,959 |
| C376HX | £2,767 | £2,075 | £2,023 | £1,973 |
| C366 | £2,532 | £1,899 | £1,851 | £1,805 |
| C370 | £2,569 | £1,927 | £1,879 | £1,832 |
| C376 | £2,610 | £1,957 | £1,908 | £1,861 |
E Series Prices
| Model | Retail | 1 off nett | 3 off nett | 6 off nett |
|---|---|---|---|---|
| E324HX 4’1” | £1,379 | £1,034 | £1,008 | £983 |
| E340HX 4’7” | £1,391 | £1,043 | £1,017 | £992 |
| E360HX 5’3” | £1,511 | £1,133 | £1,105 | £1,077 |
| E380HX 5’11” | £1,548 | £1,161 | £1,132 | £1,104 |
| E400HX 6’7” | £1,570 | £1,178 | £1,148 | £1,119 |
| E410HX 7′ | £1,595 | £1,197 | £1,167 | £1,137 |
| E324 4’1” | £1,400 | £1,050 | £1,024 | £998 |
| E340 4’7” | £1,412 | £1,059 | £1,033 | £1,007 |
| E360 5’3” | £1,532 | £1,149 | £1,120 | £1,092 |
| E380 5’11” | £1,570 | £1,178 | £1,148 | £1,119 |
| E400 6’7” | £1,592 | £1,194 | £1,164 | £1,135 |
| E410 7′ | £1,616 | £1,212 | £1,182 | £1,152 |
